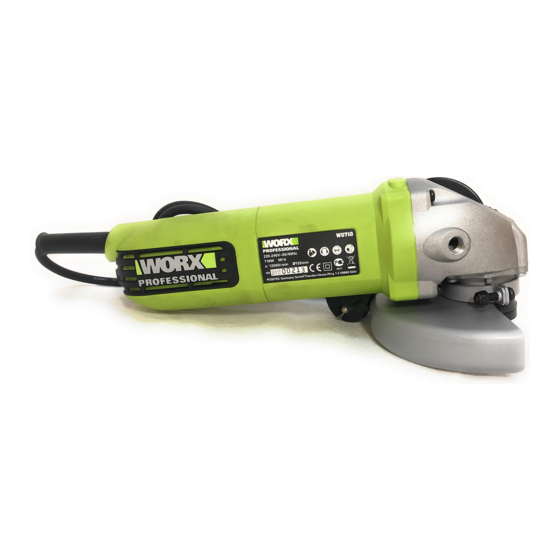

Angle grinder
Hide thumbs Also See for Professional WU700:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Manual
SAFETY AND OPERATING MANUAL
ORIGINAL INSTRUCTIONS
ANGLE GRINDER
WU700 WU700.1 WU706 WU706L WU706.1 WU710 WU710.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Professional WU700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Worx Professional WU700

Summary of Contents for Worx Professional WU700

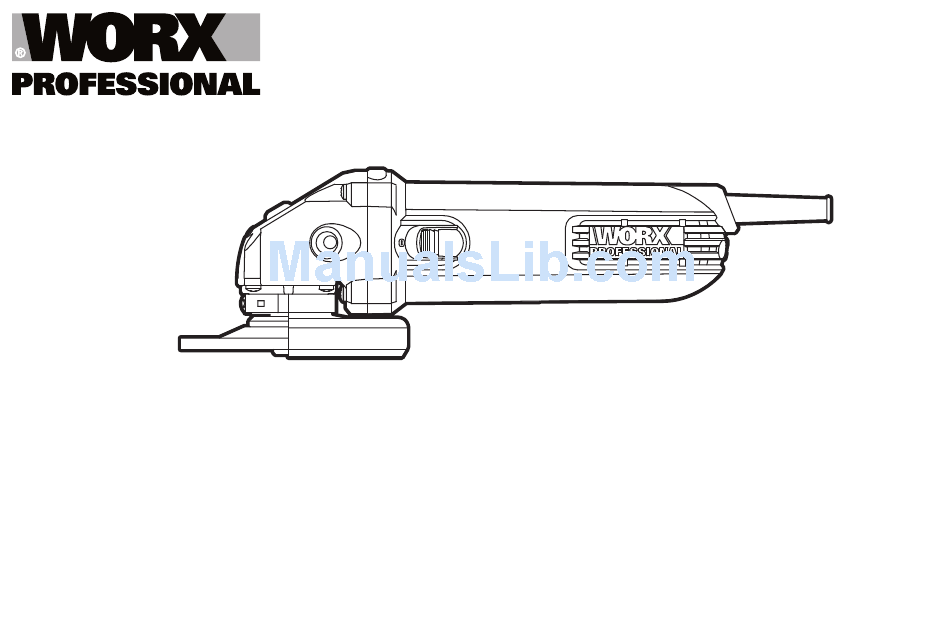

  • Page 1 SAFETY AND OPERATING MANUAL ORIGINAL INSTRUCTIONS ANGLE GRINDER WU700 WU700.1 WU706 WU706L WU706.1 WU710 WU710.1...

  • Page 2: Work Area Safety

    General power tool safety warnings or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. Warning: Read all safety warnings and all instructions. e) When operating a power tool outdoors, use an extension cord Failure to follow the warnings and instructions may result in electric suitable for outdoor use.

  • Page 3: Additional Safety Instructions For

    situations. f) Keep cutting tools sharp and clean. Properly maintained cutting f) Dress properly. Do not wear loose clothing or jewellery. Keep tools with sharp cutting edges are less likely to bind and are easier your hair, clothing and gloves away from moving parts. Loose to control.
  • Page 4 Operations for which the power tool was not designed may workpiece fragments. The eye protection must be capable of create a hazard and cause personal injury. stopping flying debris generated by various operations . The Do not use accessories which are not specifically designed dust mask or respirator must be capable of filtrating particles and recommended by the tool manufacturer.
  • Page 5 or other liquid coolants may result in electrocution or shock. Do not position your body in the area where power tool will Your hand must hold on the handle when you are working. move if kickback occurs. Kickback will propel the tool in direction Always use the auxiliary handles supplied with the tool.
  • Page 6 Do not use worn down wheels from larger power tools. Wheel workpiece near the line of cut and near the edge of the workpiece on intended for larger power tool is not suitable for the higher speed of a both sides of the wheel. smaller tool and may burst.
  • Page 7 Symbols To reduce the risk of injury, user must read instruction manual Warning Wear eye protection Wear dust mask Wear ear protection Double insulated Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

  • Page 8: Component List

    Component list On-off switch Hand grip area Auxiliary handle Spindle lock button Outer flange Inner flange Spindle Grinding disc * Spanner Protection guard for grinding Clamping screw Coded projection Protection guard for cutting * * Not all the accessories illustrated or described are included in standard delivery.

  • Page 9: Technical Data

    Vibration information Technical data WU706L WU700 WU706 WU710 WU700.1 WU706.1 WU710.1 Vibration total values (triax vector sum) determined according to • EN 60745: • Rated voltage 110V~50Hz 220-240V~50/60Hz • Vibration emission value Rated input power 710W = 7.56m/s Typical weighted vibration •...
  • Page 10 significantly reduce the exposure level over the total working period. Helping to minimize your vibration exposure risk. Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate). If the tool is to be used regularly then invest in anti vibration accessories.

  • Page 11: Intended Use

    Intended use Note: Before using the tool, read the instruction book carefully. The machine is intended for cutting, roughing and brushing metal and stone materials without using water. For cutting metal, a special protection guard for cutting ( accessory) must be used. Assembly and adjustment MOUNTINg THE PROTECTIVE DEVICES AUXILIARY HANDLE...
  • Page 12 gRINDINg/CUTTINg DISC Pay attention to the dimensions of the grinding disc. The mounting hole diameter must fit the inner flange (6) without play. Do not use reducers or adapters. When using a diamond cutting disc, take care that the direction- of-rotation arrow on the diamond cutting disc and the direction of rotation of the machine (direction-of-rotation arrow on the machine head) agree.

  • Page 13: Starting Operation

    The closed side of the protection guard (10/13) must always point to the operator. Tighten clamping screw (11). Operation STARTINg OPERATION To start the power tool, push the on/off switch (1) forward. To lock the on/off switch (1), press the on/off switch (1) down at the front until it engages.

  • Page 14: Rough Grinding

    ROUgH gRINDINg The best roughing results are achieved when setting the machine at an angle of 30° to 40°. Move the machine back and forth with moderate pressure. In this manner, the workpiece will not become too hot, does not discolour and no grooves are formed. Warning! Never use a cutting disc for roughing.
  • Page 15 AUTO-STOP CARBON BRUSHES When the resin insulating tip (15) inside the carbon brush (16) is exposed to contact the commutator (14), it will automatically shut off the motor. When this occurs, both carbon brushes should be replaced. Keep the carbon brushes clean and free to slip in the holders. Both carbon brushes should be replaced at the same time.

  • Page 16: Working Hints For Your Angle Grinder

    Working hints for your angle Maintenance grinder Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. If your power tool becomes too hot, run no load for 2-3 minutes to cool Your power tool requires no additional lubrication or maintenance. the motor.

  • Page 17: Plug Replacement (Uk & Ireland Only)

    Plug replacement (UK & Ireland only) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are colored in accordance with the following code: BLUE =NEUTRAL BROWN = LIVE As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows.

  • Page 18: Ec Declaration Of Conformity

    Positec Power Tools (Europe) Ltd, PO Box 152, Leeds, LS10 9DS, UK Declare that the product, Description WORX Angle grinder Type WU700 WU700.1 WU706 WU706.1 WU706L WU710 WU710.1 Function Peripheral and lateral grinding Complies with the following directives, EC Machinery directive 2006/42/EC •...

This manual is also suitable for:

Professional wu700.1Professional wu706Professional wu706lProfessional wu706.1Professional wu710Professional wu710.1
