Select window 1 on the MGP Pro and configure the input as follows:
a. Set the following input sampling parameters as desired: signal type, horizontal and
vertical start, total pixels, active pixels, and active lines.
b. Set the following picture controls as desired: image size, image position, color, tint,
brightness, and contrast.
c.
Set the pixel phase for window 1, then mute the window to display the next window
behind it. Repeat this step for windows 2, 3, and 4.
d. Save the adjusted settings as Input Preset 1.
5. Repeat step 4 for every input on the switcher that will be displayed on the output screen
via the processor, saving the settings for each input as Input Preset 2, 3, and so on.
NOTE: Each input preset must be saved with the same number as the MGP Pro
input.
6. Synchronize the MGP Pro to the matrix switcher as follows:
a. Open the Windows-based control software.
b.
From the menu, select
Tools
Sync MGP Pro to Matrix Switcher window opens.
c. In the
IP Address
d. Click
Connect To Matrix
the right of the button, and its input-output ties are displayed in the Matrix Status
section below.
e. From the drop-down menu in the MGP Pro
matrix switcher output to which you connected the MGP Pro input 1 in step 1.
f.
Repeat step e for MGP Pro inputs 2 through 4, making sure to select the number of
the matrix switcher output connector to which you attached the MGP Pro input.
g. Click to tie the MGP Pro inputs to the selected switcher outputs.
Take
h. Click to close the Sync MGP Pro to Matrix Switcher window.
Close

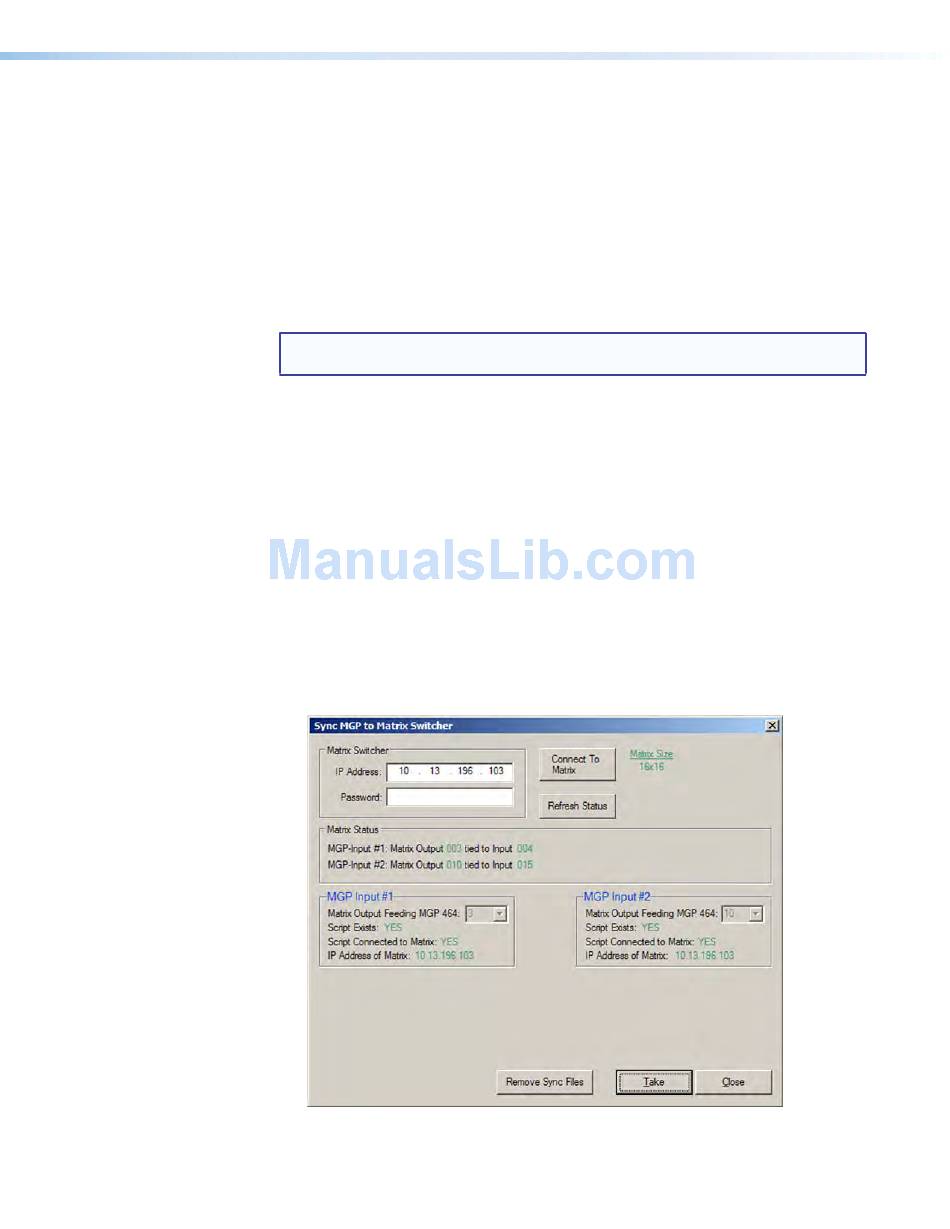

Figure 44. Example of a Sync MGP Pro to Matrix Switcher Window for an
MGP 464 Pro with Input Ties to a Switcher
Sync MGP Pro Device to Matrix Switcher...
field, enter the matrix switcher IP address.
button. The matrix size of the switcher is displayed to
Input #1
MGP Pro Series • Special Applications
. The
field, select the number of the
