FOX II RS 104 and FOX RS 104 • Setup Guide

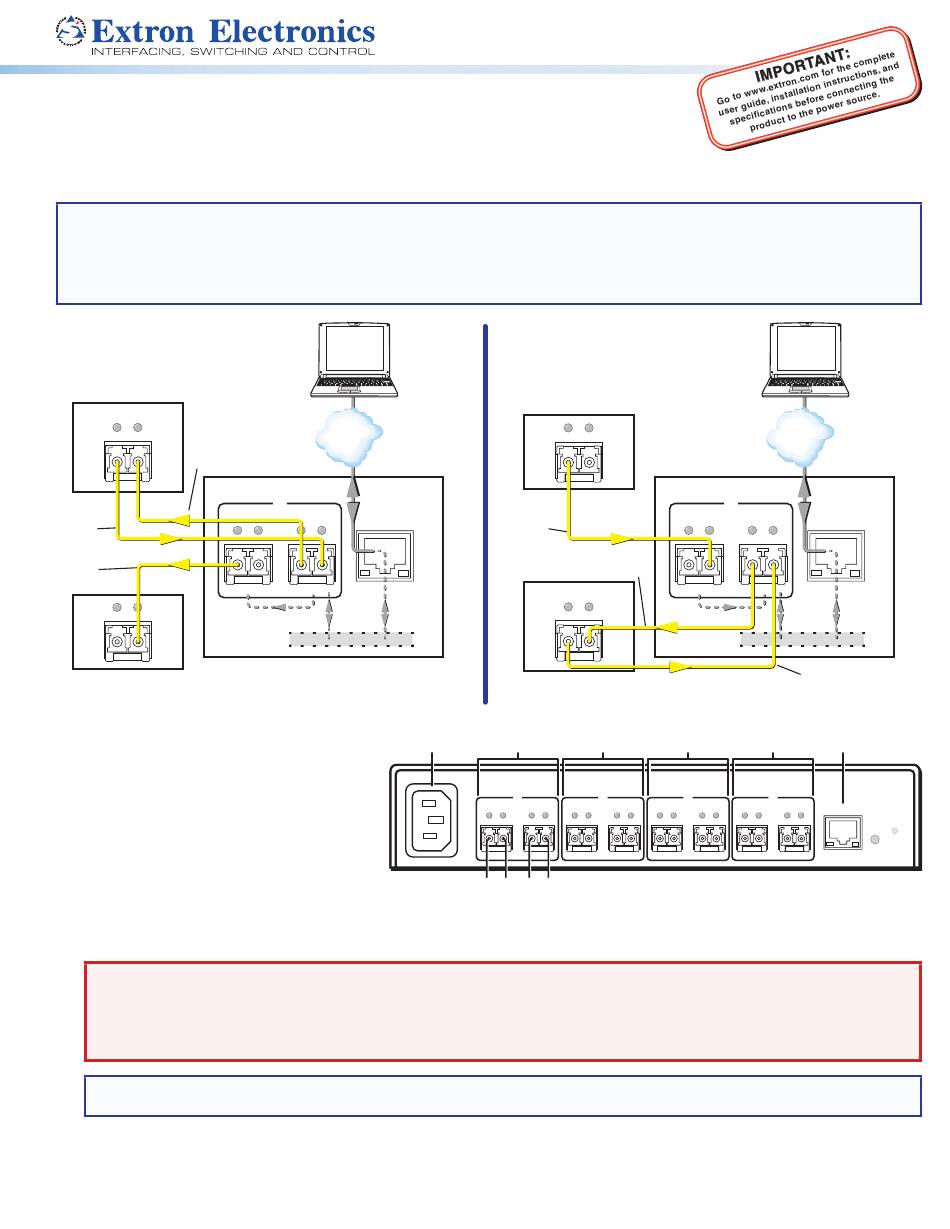

This guide provides instructions for an experienced installer to set up and operate the Extron
FOX RS 104 and FOX II RS 104 RS-232 Inserters. The inserters provide local insertion points for
long-haul RS-232 control. The inserters can be installed on the input of a fiber optic matrix switcher
(see the figure below left) or on the output (see the figure below right).
NOTES:
• The FOX II RS 104 supports Extron legacy and FOX II products. The FOX RS 104 supports legacy products only. The two
models are otherwise functionally identical.
• For more information on any subject in this guide, see the FOX RS 104 and FOX II RS 104 RS-232 Inserters User Guide at
www.extron.com.
Inserter connected on
switcher input
Tx Rx
Inserted RS-232
FOX
Tx
Video &
Audio
Video &
Audio
OUT IN
FOX Matrix Switcher
Installation
Step 1 — Mounting
Turn off or disconnect all equipment power
sources and mount the inserter as required.
Step 2 — Connections
Fiber optic connectors and LEDs — Each
A
port, 1 through 4, has two SFP optical
transceiver modules with LC connectors, labeled "A" and "B." Transceiver B is connected to an internal UART that inserts serial
communications into the fiber optic signal or extracts the serial communications, depending on the application (see the connection
example drawings above).
WARNING:
The FOX inserter outputs continuous invisible light (class 1 rated), which may be harmful to the eyes; use
with caution. Plug the attached dust caps into the transceivers when the fiber cable is unplugged.
AVERTISSEMENT :
pour les yeux, à utiliser avec précaution. Branchez les protections contre la poussière dans l'ensemble émetteur/récepteur
lorsque le câble fibre optique est débranché.
:
NOTE Ensure that you use the proper fiber cable for your inserter. Typically, singlemode fiber has a yellow jacket and multimode
cable has an orange or aqua jacket.
Tx A — For one-way communication from the inserter to a downstream device, typically a matrix switcher, connect a fiber optic
Î
cable to the Tx A LC connector. Connect the free end of this fiber optic cable to the In or Rx connector on the downstream device.
Control
PC or
Control System
Ethernet
LAN
1
Tx Rx Tx Rx
LAN
A B
UART
FOX II RS 104
Fiber Optic RS-232 Inserter
Le FOX inserter émet une lumière invisible en continu (conforme à la classe 1) qui peut être dangereux
Inserter connected on
switcher output
FOX Matrix Switcher
OUT
Video &
Audio
Video, Audio &
Inserted RS-232
Tx
FOX
Rx
C C A A
Rear
100-240V ~ 50/60 Hz
1
Tx Rx Tx Rx Tx Rx
A B
0.3 A MAX
Î Î Õ Õ Ü Ü ã ã
PC or
Control System
Ethernet
IN
1
Tx Rx Tx Rx
A
Rx
FOX II RS 104
Fiber Optic RS-232 Inserter
A A A A
2 3
Tx Rx Tx Rx Tx Rx Tx Rx
A B A B A
Control
LAN
LAN
B
UART
Optical return
signal
A A B B
FOX II RS 104
4
Tx Rx
LAN
RESET
B
