Names and Functions of Parts (cont.)

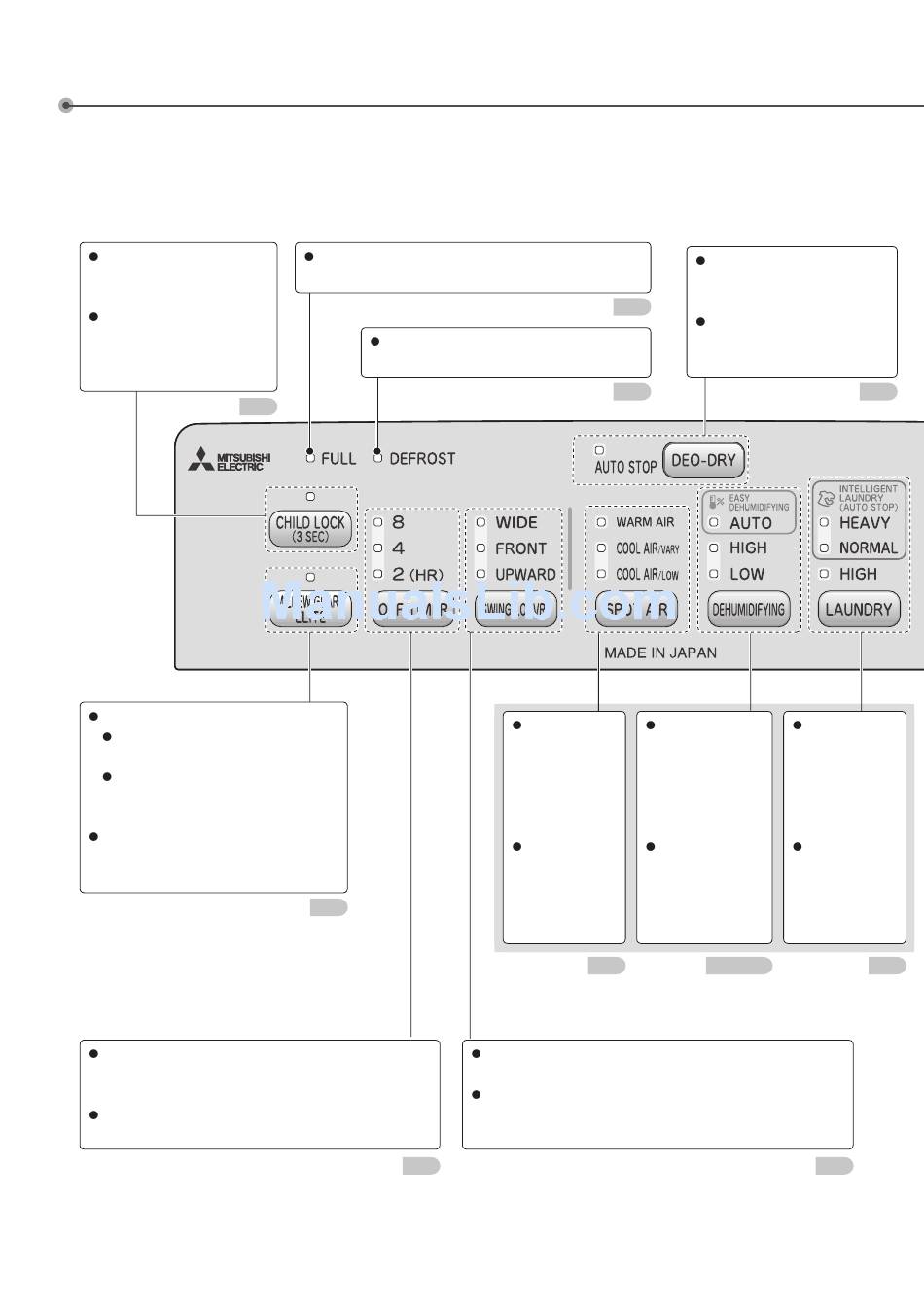

Control Panel

CHILD LOCK lamp
Lights while child lock
is active.
CHILD LOCK Switch
To lock/unlock the
switch, press the switch
for at least 3 seconds.
MILDEW GUARD ELITE lamp
Flashes during mildew guard
elite operation.
Lights when the mildew guard
elite operation is waiting to
begin.
MILDEW GUARD ELITE switch
Use this to switch the internal
drying operation ON and OFF.
OFF TIMER lamps
The lamp displaying the remaining time lights
when the OFF timer is operating.
OFF TIMER Switch
Use this to set the OFF timer operation time.
8
Tank FULL lamp
Lights up to warn that the water tank is full.
DEFROST lamp
Lights during defrosting operation.
P17
P19
P17
P20
P3
Operation
Mode lamps
The lamp for
the current
operating
mode lights.
SPOT AIR
Switch
Switches to
cold wind
operation.
P15
SWING LOUVRE lamps
The lamp for the swing direction of the louvre lights.
SWING LOUVRE Switch
Sets the swing louvre direction or locks it into
position.
DEO-DRY lamp
Lights during deodorizing
clothes operation.
DEO-DRY Switch
Switches to deodorizing
clothes operation.
Operation Operation
Mode lamps Mode lamps
The lamp for The lamp for
the current the current
operating operating
mode lights. mode lights.
DEHUMIDIFYING LAUNDRY
Switch Switch
Switches to Switches
dehumidifying to laundry
operation. operation.
P14~15
P16
P18
P12
