Summary of Contents for Belling 100 GDO

  • Page 1: Double Oven

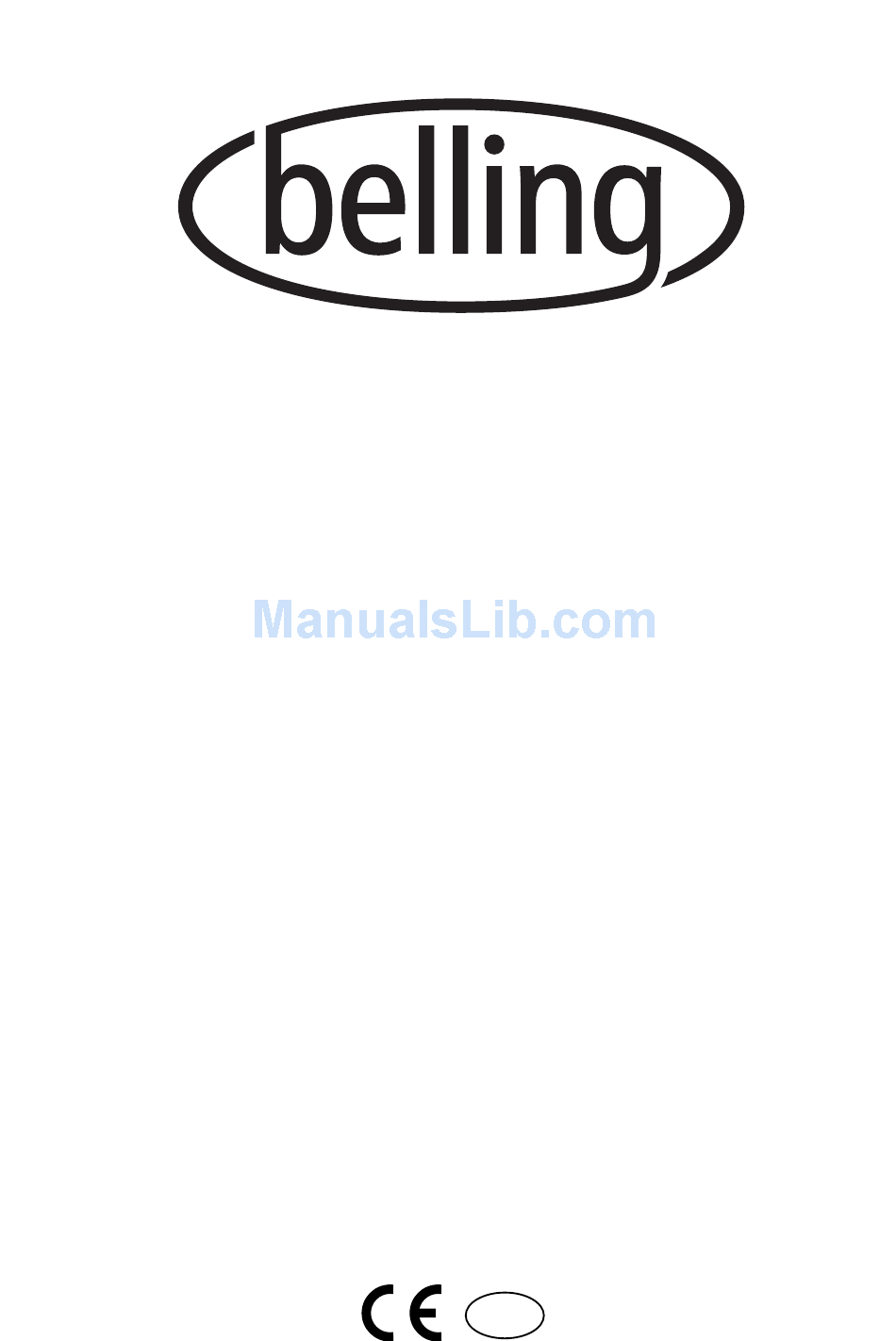

    DOUBLE OVEN GAS COOKER BELLING 100 GDO Instructions for use - Installation advice...
  • Page 2: Dear Customer

    Dear Customer, Thank you for having purchased and given your preference to our product. The safety precautions and recommendations reported below are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance.
  • Page 3: Declaration Of Ce Conformity

    IMPORTANT INSTRUCTIONS AND ADVICE FOR THE USE OF ELECTRICAL APPLIANCES The use of any electrical appliance requires the compliance with some basic rules, namely: – do not touch the appliance with wet or damp hands (or feet) – do not use the appliance whilst in bare feet –...
  • Page 4 IMPORTANT SAFEGUARDS WARNING AND RECOMMENDATIONS When correctly installed, your product meets all safety requirements laid down for this type of product category. After unpacking the appliance, check to However special care should be taken ensure that it is not damaged and that around the rear or the underneath of the oven doors close correctly.
  • Page 5: Cooking Hob

    COOKING HOB Fig. 1.1 COOKING HOB 1. Auxiliary burner (A) 1,00 kW 2. Semi-rapid burner (SR) 1,75 kW 3. Rapid burner (R) 3,00 kW 4. Triple-ring burner (TR) 3,50 kW Important Note: The electric ignition is incorporated in the knobs.
  • Page 6: Control Panel

    CONTROL PANEL Fig. 2.1 CONTROL PANEL - Controls description 1. Left main oven - Gas oven / gas grill control knob 2. Electronic clock 3. Front left burner control knob 4. Rear left burner control knob 5. Front central burner control knob 6.
  • Page 7: Gas Burners

    USE THE HOB GAS BURNERS Each burner is controlled by a gas tap assuring the opening and the closing of the gas supply. Make the lever of the knob match with the indicator on the control panel to obtain: – symbol : off –...
  • Page 8: Lighting The Burners

    LIGHTING THE BURNERS CHOICE OF THE BURNER To ignite the burner, the following On the control panel, near each knob, instructions are to be followed: there is a diagram that indicates which burner is controlled by that knob. 1) Lightly press and turn the knob anti- Select the burner that is most suitable clockwise (fig.
  • Page 9: Left Main Gas Oven

    LEFT MAIN GAS OVEN TEMPERATURE CONTROL Attention: the oven door becomes The temperature knob is numbered from very hot during operation. (fig. 4.1) indicating the increas- Keep children away. ing oven temperature value (see table 4.2). GENERAL FEATURES The thermostat which regulates the flow of gas to the oven burner has a safety The oven is furnished completely clean;...
  • Page 10: Oven Cooking

    IGNITION OF THE OVEN BURNER 1) Open the oven door to the full extent. WARNING: Risk of explosion! The oven door must be open during this operation. 2) Lightly press and turn the temperature knob anti-clockwise (fig. 4.3) to the max position ( fig.
  • Page 11 IGNITION OF THE GRILL BURNER IMPORTANT: the grill must always be used with the oven door ajar and with shield "A” mounted (fig. 4.7). Do not grill with the oven door closed. Attention: the oven door becomes very hot during operation. Keep children away.
  • Page 12: Use Of The Grill

    USE OF THE GRILL Very important: the grill must always be used with the oven door slightly open and with shield "A” mounted SHIELD FOR RIGHT SMALL OVEN (Fig. 4.7). Mount shield “A” which serves to pro- tect the control panel from the heat. Turn on the grill, as explained in the pre- ceding paragraphs and let the oven pre- SHIELD FOR LEFT MAIN OVEN...
  • Page 13 GRILL PAN AND BAKING TRAY Grilling In order to get the best results from your grill, please grill in the grill area - as shown in the illustration 4.8 - this will given the most even results in the short- est time.
  • Page 14: Right Small Gas Oven

    RIGHT SMALL GAS OVEN TEMPERATURE CONTROL Attention: the oven door becomes The temperature knob is numbered from very hot during operation. (fig. 5.1) indicating the increas- Keep children away. ing oven temperature value (see table 5.2). The thermostat which regulates the flow GENERAL FEATURES of gas to the oven burner has a safety valve which automatically shuts off the...
  • Page 15 IGNITION OF THE OVEN BURNER OVEN COOKING 1) Open the oven door to the full Before introducing the food, preheat the extent. oven to the desired temperature. WARNING: Risk of explosion! The For a correct preheating operation, it is oven door must be open during this advisable to remove the tray from the operation.
  • Page 16 IGNITION OF THE GRILL BURNER IMPORTANT: the grill must always be used with the oven door ajar and with shield "B” mounted (fig. 5.7). Do not grill with the oven door closed. Attention: the oven door becomes very hot during operation. Keep children away.
  • Page 17 USE OF THE GRILL Very important: the grill must always be used with the oven door slightly open and with shield "B” mounted SHIELD FOR RIGHT SMALL OVEN (fig. 5.7). Mount shield “B” which serves to pro- tect the control panel from the heat. Turn on the grill, as explained in the pre- ceding paragraphs and let the oven pre- SHIELD FOR LEFT MAIN OVEN...
  • Page 18 GRILL PAN AND BAKING TRAY Grilling In order to get the best results from your grill, please grill in the grill area - as shown in the illustration 5.8 - this will given the most even results in the short- est time.
  • Page 19: Cooking Guide

    COOKING GUIDE Temperature and times given are approximate, as they will vary depending on the quality and amount of food being cooked. Remember to use ovenproof dishes and to adjust the oven temperature during cooking if necessary. COOKING CHART Temperature Food Cooking Time (approx) °C...
  • Page 20: Electronic Clock

    ELECTRONIC CLOCK ELECTRONIC CLOCK USING THE MINUTE MINDER The minute minder can be set for a This appliance comes with an electronic maximum of 99 minutes. 24 hour clock with minute minder. To set the minute minder, press the plus and minus buttons until the desire length of time is set.
  • Page 21: Cleaning And Maintenance

    CLEANING AND MAINTENANCE IMPORTANT NOTES IMPORTANT: Installation, and any demonstration, Before cleaning or carrying out information or adjustments are not any maintenance disconnect the included in the warranty. appliance from the electrical sup- ply and wait for it to cool down. The cooker must be installed by a quali- fied person in accordance with the Gas Attention...
  • Page 22: Enamelled Parts

    ENAMELLED PARTS REPLACING THE OVEN LIGHT BULB (LEFT MAIN OVEN ONLY) All the enamelled parts must be cleaned with a sponge and soapy water or other Switch the cooker off at the mains. non-abrasive products. When the oven is cool, unscrew and Dry preferably with a soft cloth.
  • Page 23 BURNERS CORRECT REPLACEMENT OF THE BURNERS The burners can be removed and washed with soapy water only. It is very important to check that the They will remain perfect if always burner flame distributor F and the cap C cleaned with products used for silver- has been correctly positioned (see figs.
  • Page 24 TRIPLE RING BURNER The triple ring burner must be correctly positioned (see fig. 8.3); the burner rib must be enter in their logement as shown by the arrow. The burners must be correctly positioned so that they cannot rotate (fig. 8.4). Then position the cap A and the ring B (fig.
  • Page 25: Storage Compartment

    OVEN DOOR STORAGE COMPARTMENT The storage compartment is accessible The internal glass panel can be easily through the pivoting panel (fig. 8.7). removed for cleaning by unscrewing the 2 retaining screws (Fig. 8.6) Do not store flammable material in the oven or in the storage com- partment.
  • Page 26 REMOVABLE BOTTOM STAINLESS STEEL PANEL The cooker is fitted with a removable bottom stainless steel panel to facilitate the clean- ing under the appliance. REMOVING THE PANEL Grip the panel as indicated in fig. 8.8 and remove it by pulling toward the outside. IMPORTANT: to avoid damage never grip the panel in the central part.
  • Page 27 ASSEMBLY AND DISMANTLING OF INSIDE OF OVEN THE SIDE RUNNER FRAMES This must be cleaned after every use. Remove and refit the side runner frames – Fit the side runner frames into the as described on the next chapter. holes on the side walls inside the Wipe the inside walls with a cloth oven (Fig.
  • Page 28: Removing The Oven Door

    REMOVING THE OVEN DOOR Fig. 8.12A The oven door can easily be removed as follows: – Open the door to the full extent (fig. 8.12A). – Attach the retaining rings to the hooks on the left and right hinges (fig. 8.12B). –...
  • Page 29 Advice for the Installer IMPORTANT – Cooker installation must only be carried out by QUALIFIED TECHNICIANS and in compliance with local safety standards. Failure to observe this rule will invalidate the warranty. – The appliance must be installed in compliance with regulations in force in your country and in observation of the manufacturer's instructions.
  • Page 30: Installation

    INSTALLATION The cooker must be installed by a qualified technician and in compliance with local safety standards. This cookers has class “2/1” overheating protection so that it can be installed next to a cabinet. If the cooker is installed adjacent to furniture which is higher than the gas hob cooktop, a gap of at least 200 mm must be left between the side of the cooker and the furniture.
  • Page 31: Levelling The Cooker

    LEVELLING THE COOKER The cooker is equipped with 4 LEVEL- LING FEET and may be levelled by screwing or unscrewing the feet with a spanner (fig. 9.2). It is important to observe the prescrip- tions of figures 9.3 - 9.4. Fig.
  • Page 32 BACKGUARD Before installing the cooker, assemble the backguard “C” (fig. 9.5). – The backguard “C” can be found packed at the rear of the cooker. – Before assembling remove any protective film/adhesive tape. – Remove the two spacers “A” and the screw “B” from the rear of the cooktop. –...
  • Page 33: Moving The Cooker

    MOVING THE COOKER WARNING When raising cooker to upright posi- tion always ensure two people carry out this manoeuvre to prevent dam- age to the adjustable feet and the sides (fig. 9.6). Fig. 9.6 WARNING Be carefull: DO NOT LIFT the cooker by the door handle when raising to the upright position (fig.
  • Page 34: Provision For Ventilation

    PROVISION FOR VENTILATION The room containing the cooker should have an air supply in accordance with BS.5540: Part 2: 1989. All rooms require an openable window or equivalent while some rooms require a perma- nent vent in addition to the openable window. The cooker should not be installed in a bed-sitting room, of volume less than 21 m Where a DOMESTIC COOKER is installed in a room or internal space, that room or inter- nal space shall be provided with a permanent opening which communicates directly with...
  • Page 35: Gas Section

    GAS SECTION GAS INSTALLATION GAS CONNECTION IMPORTANT NOTE The installation of the cooker to Natural Gas or LP Gas must be carried out by a This appliance is supplied for use on qualified gas engineer. Installers shall NATURAL GAS only and cannot be used take due account of the provisions of on any other gas without modification.
  • Page 36: Important Note

    GAS CONNECTION The gas supply must use the nearest gas inlet pipe which is located at the left or the right hand side at the rear of the appliance (fig. 10.2). Before connecting the appliance to the gas mains fit the female con- IMPORTANT NOTE: nector (supplied with the appliance in a separate kit) to the right or the left inlet pipe interposing the gasket.
  • Page 37 Right gas inlet pipe Left gas inlet pipe Plug Connector Fig. 10.2 IMPORTANT PRESCRIPTIONS FOR GAS CONNECTION Rear wall Suggested area for gas mains connection Fig. 10.3...
  • Page 38: Adjusting Of The Minimum Of The Top Burners

    GAS MAINTENANCE INJECTORS REPLACEMENT OF THE TOP BURNERS If the injectors are not supplied they can be obtained from the Service Centre. Select the injectors to be replaced according to the “Table for the choice of the injectors”. The nozzle diameters, expressed in hun- dredths of a millimetre, are marked on Fig.
  • Page 39 TABLE FOR THE CHOICE OF THE INJECTORS Cat: 2H3+ G 20 G 30 - 28-30 mbar Nominal Reduced BURNERS 20 mbar G 31 - 37 mbar Power Power Ø injector Ø injector By-pass By-pass Ring opening Ring opening [kW] [kW] [1/100 mm] [mm] [mm]...
  • Page 40 LEFT OVEN OVEN BURNER AND GRILL BURNER REPLACEMENT OF INJECTORS a) oven burner – Lift and remove the lower panel inside Fig. 10.7 the oven. – Remove the burner securing screw (fig. 10.7). – Withdraw the burner as shown in fig- ure 10.8 and rest it inside the oven.
  • Page 41 REGULATION OF AIR SUPPLY TO OVEN AND GRILL BURNERS Using a cross-head screwdriver, slacken the screw securing the air flow regulation collar (fig. 10.11 and 10.12) and move the collar forward or backward to increase or reduce the air aperture in accordance with gas type and the indications in the “ TABLE FOR THE CHOICE OF THE INJECTORS ”.
  • Page 42 RIGHT OVEN OVEN BURNER AND GRILL BURNER REPLACEMENT OF INJECTORS a) oven burner – Lift and remove the lower panel inside the oven. Fig. 10.13 – Remove the 2 screws securing the burner (fig. 10.13). – Withdraw the burner as shown in fig- ure 10.14 and rest it inside the oven.
  • Page 43 REGULATION OF AIR SUPPLY TO OVEN AND GRILL BURNERS Using a screwdriver, slacken the screw securing the air flow regulation collar (fig. 10.17 and 10.18) and rotate the collar clockwise or anti-clockwise to increase or reduce the air aperture in accordance with gas type and the indications in the “ TABLE FOR THE CHOICE OF THE INJECTORS ”.
  • Page 44: Lubrication Of The Gas Taps

    LEFT and RIGHT OVENS REGULATING OF THE OVEN MINIMUM This needs to be done only for the oven burner (the grill is a fixed capacity) by acting on the thermostat. Considering that in the minimum posi- tion the flame must have a length of about 4 mm and must remain lit even with a brusque passage from the maxi- mum position to that of minimum.
  • Page 45: Electrical Section

    ELECTRICAL SECTION For your safety please read the A properly earthed three pin plug (fused following information: at 3 amps, to BS 1362 ASTA approved) must be used. This appliance must be installed by a qualified technician according with the As the colours of the wires in the mains current local regulations and in compli- lead of this appliance may not...
  • Page 46 ELECTRICAL FEEDER CABLE FEEDER CABLE SECTION TYPE CONNECTION H05RR-F or H05VV-F To connect the supply cable: 230 V 3 x 0,75 mm - Remove the screws securing the cover “A” on the rear of the cooker (fig. 11.2). - Feed the supply cable through the cable clamp “D”.
  • Page 48 The manufacturer cannot be held responsible for possible inaccuracies due to printing or transcription errors in the present booklet. The manufacturer reserves the right to make all modifications to its products deemed necessary for manufacture or commercial reasons at any moment and without prior notice, without jeopardising the essential functional and safety characteristics of the appliances.
