The
POWER
In
PRESENTATION PRODUCTS
DA-LITE SCREEN COMPANY, INC.
Operating Instructions for
3100 North Detroit Street
Post Office Box 137
Warsaw, Indiana 46581-0137

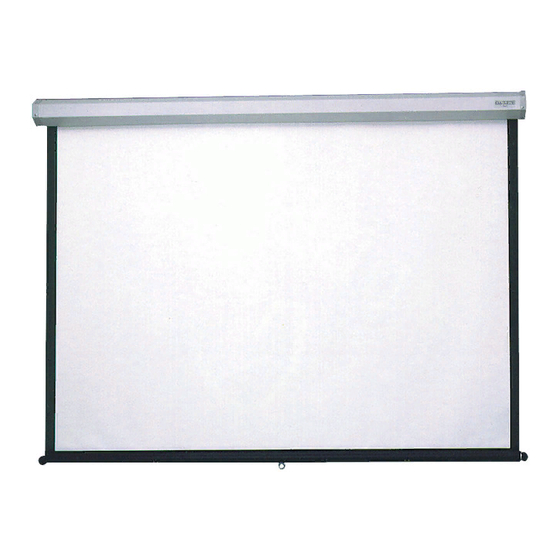

MODEL C
Phone: 574-267-8101
800-622-3737
Fax: 574-267-7804
Toll Free Fax: 877-325-4832
www.da-lite.com
e-mail: info@da-lite.com
Advertisement
Table of Contents
Related Manuals for Da-Lite C
Summary of Contents for Da-Lite C
- Page 1 POWER PRESENTATION PRODUCTS DA-LITE SCREEN COMPANY, INC. Operating Instructions for 3100 North Detroit Street Post Office Box 137 Warsaw, Indiana 46581-0137 MODEL C Phone: 574-267-8101 800-622-3737 Fax: 574-267-7804 Toll Free Fax: 877-325-4832 www.da-lite.com e-mail: info@da-lite.com...
- Page 2 TO RE-ROLL YOUR PICTURE SURFACE The Model C operates on the same principle as a window shade. Pull down about 4 inches to disengage the locking dog and start the fabric up firmly and quickly. Large picture surfaces are heavy and will start up too slowly to prevent the locking dog from catching unless help is provided, so keep picture surface moving briskly.
- Page 3 PICTURE SURFACE SURFACE CONCEALED USE No. 6 BRACKETS TO HANG BEHIND BEAM OR VALANCE (ALLOW ROOM FOR ACCESS) MODEL C EXCLUSIVE FEATURES • Easily Installed • Multi-Purpose End Caps Form Sturdy Brackets for Wall/Ceiling Installation • Aluminum Slat Saddle Distributes Uniform Tension on Picture Surface •...
- Page 4 TO USE WITH PORTABLE FLOOR STAND NOTE: CAN ONLY BE USED WITH FLOOR MODEL C. WALL SCREENS WILL NOT OPERATE CORRECTLY. 1. Assemble stand according to instructions. 2. Lay screen in cradle of stand with pull bail up. 3. Lift surface by pull bail and hook pull bail over gooseneck of elevating support.
