StarTech.com ET90110WDM Spec Sheet

10/100 mbps fiber to ethernet single mode wdm media converter (sc) includes both endpoints

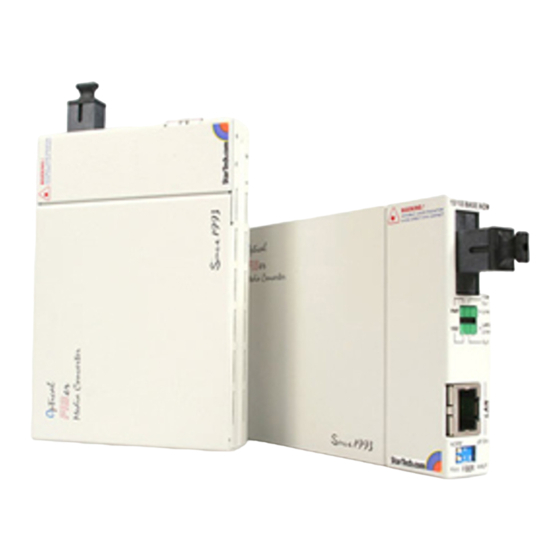

10/100 Mbps Fiber to Ethernet Single Mode WDM Media Converter (SC) *** Includes both Endpoints

StarTech ID: ET90110WDM

Are you looking for a cost-effective way to deploy or increase the capacity of a fiber cabling solution?

The ET90110WDM allows you to use one single-mode fiber cable for two-way communication at distances

up to 20 Km, reducing fiber cabling costs. Alternatively, you can effectively double the capacity

of your existing fiber infrastructure without the need to install new cabling.

Includes two endpoints required for a single installation.

Applications and Solutions

> Bridging two Ethernet networks using a single fiber cable

> Single mode design allows signals to be transmitted up to 20 Km

> WDM (Wave Division Multiplexing) technology allows the use of a single fiber cable for both sending

and receiving of data (Tx/Rx), reducing the amount of cable required by half

Specifications

> Connector Types 1 - Fiber Optic SC Female

> Connector Types 1 - RJ45 Female

Table of Contents

Do you have a question about the ET90110WDM and is the answer not in the manual?

Page 1 Are you looking for a cost-effective way to deploy or increase the capacity of a fiber cabling solution? The ET90110WDM allows you to use one single-mode fiber cable for two-way communication at distances up to 20 Km, reducing fiber cabling costs. Alternatively, you can effectively double the capacity of your existing fiber infrastructure without the need to install new cabling.
Page 2 > Product Height 10.24 in [260 mm] > Product Length 19.29 in [490 mm] > Carton Quantity 8 > Shipping (Package) Weight 2.43 lb [1.1 kg] > Product Weight 33.53 oz [950 g] > Product Width 15.75 in [40 cm] >...
