Instruction Manual

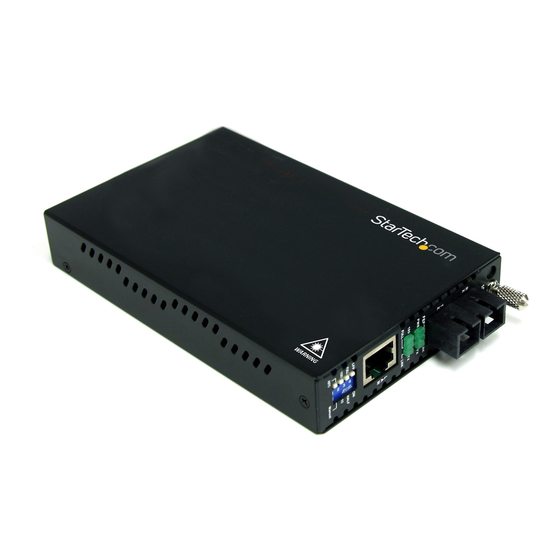

10/100 Mbps Ethernet to Multi Mode SC/ST Fiber Media Converter - 2 km
ET90110SC2 / ET90110ST2
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
Packaging Contents
• 1 x Fiber Media Converter
• 1 x Universal Power Adapter
• 3 x Power Adapter Plug (NA/ UK/ EU)
• 1 x Instruction Manual
System Requirements
• 10BASE-T or 100Base-TX compatible Ethernet network equipment
• RJ45 terminated UTP Cat5 or better Ethernet cable
• 100BASE-FX compatible fiber optic network equipment
• SC or ST terminated multi mode fiber optic cable
• Available AC electrical outlet
Installation
1. Make sure the DIP switches are set appropriately for your network
configuration (see "DIP Switch Settings" section for details).
2. Connect the fiber optic network cable from a computer/switch/
media converter to the SC/ST connector on the media converter.
NOTE: When connecting the fiber cable, make sure to connect the Tx
(transmit) terminal on one end, with the Rx (receive) terminal on the
other end.
3. Connect a UTP Ethernet cable, from a computer/switch to the
RJ45 jack on the media converter.
4. Connect the power adapter to the media converter.
5. The following example illustrates the connection scheme when
connecting from a 10BASE-T or 100BASE-TX Ethernet port of a
hub/switch to a 100BASE-FX port of another hub/switch, through
the fiber media converter:
For the most up-to-date information, please visit: www.startech.com

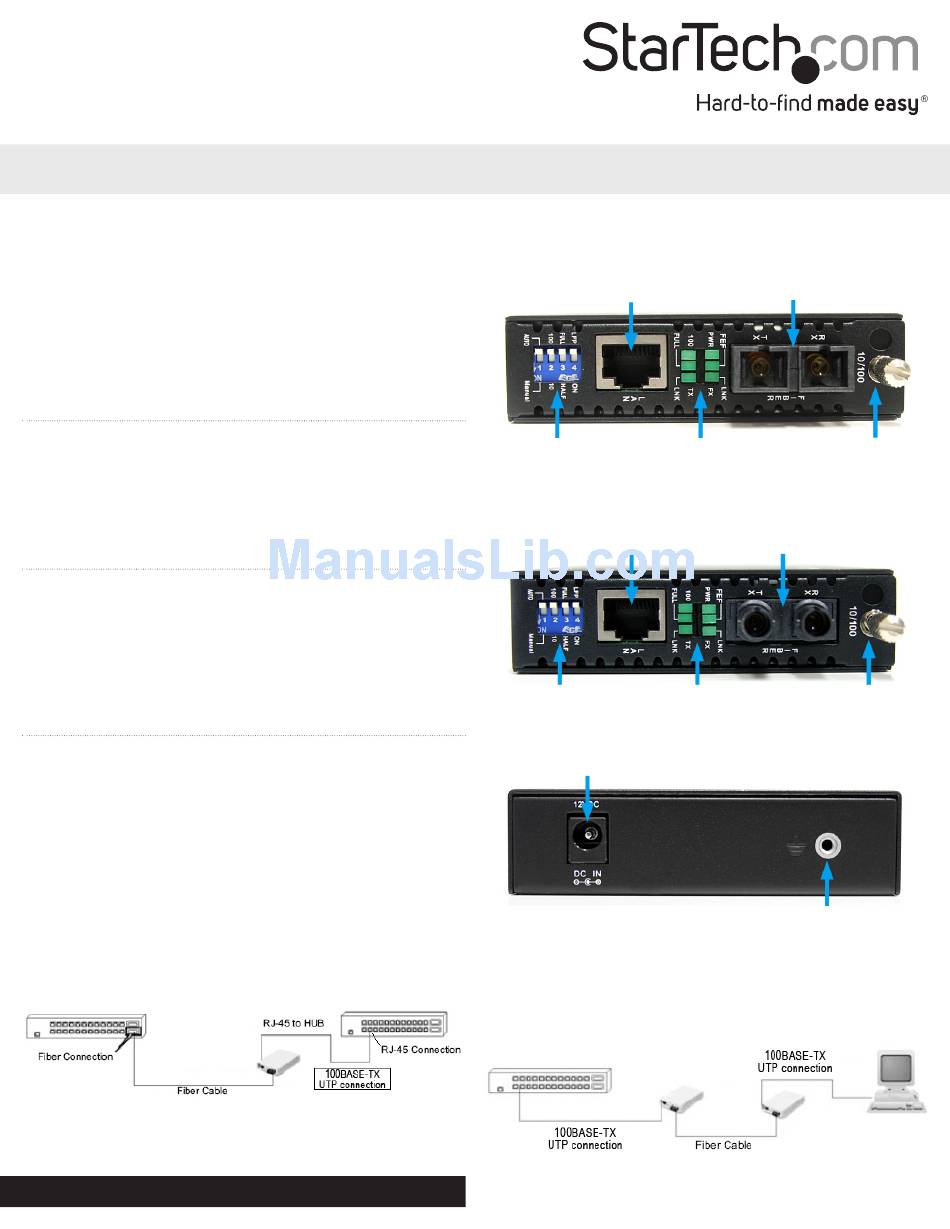

ET90110SC2
RJ45 Ethernet
connector
DIP Switches
LED indicators
ET90110ST2
RJ45 Ethernet
connector
DIP Switches
LED indicators
Rear View (ET90110SC2/ET90110ST2)
DC Power connector
6. The following example illustrates the connection scheme when
connecting from a 100BASE-TX Ethernet port on a hub/switch to a
100BASE-TX Ethernet Network Interface Card (NIC) in a computer
through the fiber media converter:
SC Duplex fiber
connector
Card Release
Thumbscrew
*actual product may vary from photos
SC Duplex fiber
connector
Card Release
Thumbscrew
Ground Point (optional)
Manual Revision: 01/20/2012
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com ET90110SC2
Summary of Contents for StarTech.com ET90110SC2
-
Page 1: Packaging Contents
DC Power connector configuration (see “DIP Switch Settings“ section for details). 2. Connect the fiber optic network cable from a computer/switch/ media converter to the SC/ST connector on the media converter. NOTE: When connecting the fiber cable, make sure to connect the Tx (transmit) terminal on one end, with the Rx (receive) terminal on the other end. 3. Connect a UTP Ethernet cable, from a computer/switch to the RJ45 jack on the media converter. Ground Point (optional) 4. Connect the power adapter to the media converter. 5. The following example illustrates the connection scheme when connecting from a 10BASE-T or 100BASE-TX Ethernet port of a hub/switch to a 100BASE-FX port of another hub/switch, through 6. The following example illustrates the connection scheme when the fiber media converter: connecting from a 100BASE-TX Ethernet port on a hub/switch to a 100BASE-TX Ethernet Network Interface Card (NIC) in a computer through the fiber media converter: For the most up-to-date information, please visit: www.startech.com Manual Revision: 01/20/2012... -
Page 2: Dip Switch Settings
DIP Switch Settings LFP: Link Fault Pass-through will pass a link failure to the Ethernet side, if a link failure is encountered on the fiber side and vice versa. Otherwise, the Ethernet side will continue to show no link failures, even if the fiber side has no link. (OFF = Not active, On = Active) Full/ Half: Specifications Ethernet Duplex mode will be configured for Full or Half. 10/ 100: ET90110SC2 ET90110ST2 Set the Ethernet side link speed to 10 or 100 Mbps. Supported IEEE 802.3, IEEE 802.3u Auto/Manual: Standards Auto negotiate Link Speed and Duplex mode or manually set via 1 x RJ45 Ethernet 1 x RJ45 Ethernet DIP switches. female female Connectors 2 x SC Fiber female 2 x ST Fiber female LED Status 1 x DC Power 1 x DC Power Compatible Fiber Multi Mode Name Status Description...
