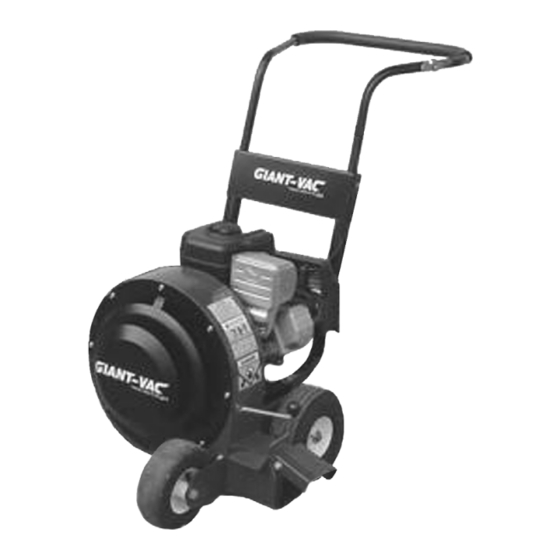

- Page 1 ASSEMBLY INSTRUCTIONS OPERATOR’S MANUAL PARTS LIST ‘Giant-Blo’ Walk-Behind Leaf Blower EXTREME II Models covered: 10BA 85KA SERIES 90HA 13KA Actual product may differ slightly from product pictured above Manual No. 3079262 (6/2003)
-
Page 2: Model Number
preliminaries Congratulations! You have just purchased one of the finest pieces of outdoor power equipment on the market today. If properly cared for, your new blower will provide years of dependable service. Please read and follow this instruction manual carefully in order to get the most out of your new equipment. As you carefully unpack your unit, you will find the following items: Blower Unit Handle Assembly including:... -
Page 3: Slope Operation
safety rules regarding outdoor power equipment IMPORTANT! READ CAREFULLY THE FOLLOWING SAFETY RULES BEFORE ASSEMBLING OR OPERATING UNIT. • Operate only in the daylight or with good artificial TRAINING light, keeping away from holes and hidden hazards. • Read, understand, and follow all instructions in the •... -
Page 4: Maintenance And Storage
safety rules regarding outdoor power equipment (cont.) • Watch for holes, ruts, or bumps. Uneven terrain • Always follow the engine manual instructions for could overturn the unit. Tall grass can hide storage preparations before storing the unit for both obstacles. -
Page 5: Front Wheel Assembly
unit assembly Note: Please refer to Parts List for correct part identification and placement. FRONT WHEEL ASSEMBLY • Place Mounting Bracket (Parts List Ref. #28) against lower right corner of Blower Housing (1), aligning holes in bracket with holes in housing. - Page 6 unit assembly HANDLE ASSEMBLY (cont.) • Slip bottom tubes of Upper Handle (40) into top holes of support panel and into lower handle tubes. Align holes in upper handle with set of holes in lower handle assembly that provides most comfortable height, insert one 5/16-18 x 1-3/4”...
-
Page 7: Starting The Engine
unit operation STARTING THE ENGINE IMPORTANT NOTE: The procedures outlined within this section are general guidelines, and are in no way meant to replace or supercede engine manufacturer’s operating instructions. In order to obtain optimum performance from your engine, refer to your engine manual. WARNING! IMPELLER IS MOUNTED DIRECTLY TO ENGINE SHAFT –... -
Page 8: Blower Operation
unit operation (cont.) STARTING THE ENGINE (cont.) • Set throttle control fully toward “on” position. If your engine has a fuel prime button, depress it ‘ON’ firmly three times. • Bracing unit with one hand, grasp recoil handle and pull briskly. You may have to pull several times before engine starts. - Page 9 unit operation (cont.) BLOWER OPERATION (cont.) GENERAL RULES TO OBSERVE BEFORE AND DURING OPERATION: • Inspect your unit before each and every use. Check for worn, bent or broken components, loose fasteners, low or flat tires, etc., and repair or replace prior to operation. DO NOT OPERATE A DEFECTIVE UNIT – SERIOUS INJURY OR DEATH CAN RESULT.
- Page 10 unit operation (cont.) BLOWER OPERATION (cont.) HINTS FOR EFFECTIVE OPERATION: • For operator ease and maneuverability, push down on the upper handle while walking so that the machine balances on the rear wheels. • When blowing dry debris, set blower discharge to lower rate; when blowing wet or frozen debris, increase discharge rate.
-
Page 11: Troubleshooting
maintenance (cont.) TROUBLESHOOTING: • UNIT WILL NOT START: • Check fuel and oil levels. • Check to make sure choke is set when engine is cold, off when hot. • Check throttle for proper operation. • Check intake baffle for jammed debris or accumulation of debris. •... -
Page 12: Replacement Parts
90° points of tire, then retightening bolts. alternate method is to place a level against the side of the caster bracket. 0° REPLACEMENT PARTS: • Replacement parts are available through your Giant-Vac dealer. - Page 13 GIANT-VAC, INC. 'GIANT-BLO' Extreme II Series R0603.1 thru thru A thru B 13KA ONLY...
- Page 14 Ref # Part # Description 10BA 85KA 90HA 13KA 10267 Housing, and base assy – 10BA 10268 Housing, and base assy – 85KA, 90HA 10269 Housing, and base assy – 13KA 79099 Decal, Caution/Danger combo 39092 Engine, 10hp Briggs Intek 39078 Engine, 8.5hp Kohler...
- Page 15 Giant-Blo ‘Extreme II’ Series R0603.1 Ref # Part # Description 10BA 85KA 90HA 13KA 31034 Washer, flat – 3/8” 33300 Wheel, 9-3.50 x 4 ‘No-Flat’ 31772 Bolt, hex cap – 5/8-11 x 5” 31490 Nut, reverse lock – 5/8-11 23267...
- Page 16 This warranty does not apply to engines, tires or other items that are purchased by Giant-Vac and warranted by the manufacturer of such items. Items such as bags, grass catchers, hoses and blades are not warranted, as these are considered expendable items.
