ASSEMBLY INSTRUCTIONS
OPERATOR'S MANUAL
PARTS LIST

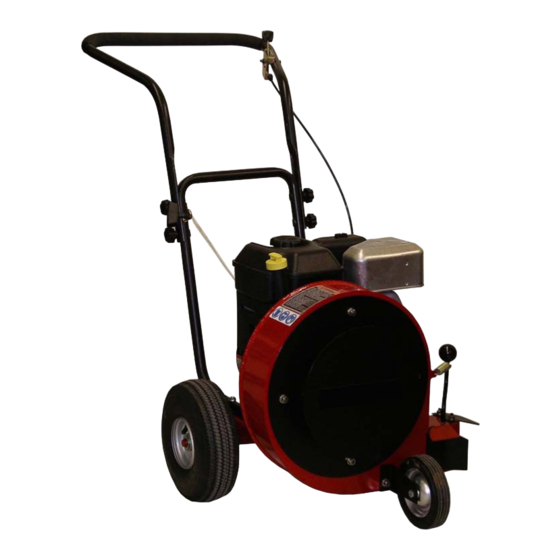

Actual product may differ slightly from product pictured above
Manual No. 7078079 (I.R. - 09/21/04)
Classic Series
Walk-Behind
Leaf Blower
Series 1
Models covered:
LBC6151BV
(Part # 7085921)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Snapper LBC6151BV and is the answer not in the manual?

Questions and answers

Related Manuals for Giant-Vac Snapper LBC6151BV

Summary of Contents for Giant-Vac Snapper LBC6151BV

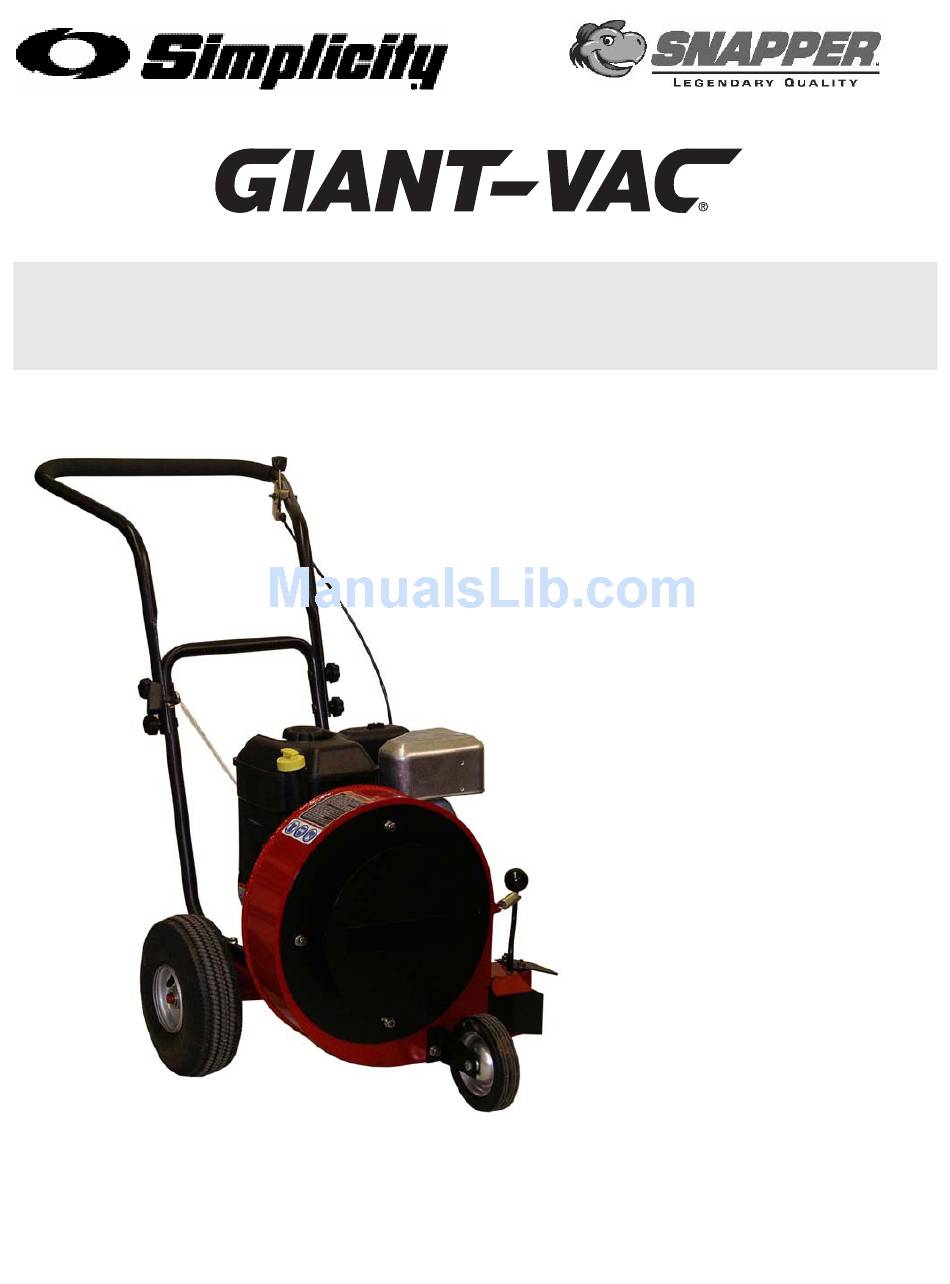

  • Page 1 ASSEMBLY INSTRUCTIONS OPERATOR’S MANUAL PARTS LIST Actual product may differ slightly from product pictured above Manual No. 7078079 (I.R. - 09/21/04) Classic Series Walk-Behind Leaf Blower Series 1 Models covered: LBC6151BV (Part # 7085921)

  • Page 2: Model Number

    You have just purchased one of the finest pieces of outdoor power equipment on the market today. If properly cared for, your new blower will provide years of dependable service. Please read and follow this instruction manual carefully in order to get the most out of your new equipment.

  • Page 3: Slope Operation

    • Do not operate in reverse unless absolutely necessary. Always look down and behind before and while traveling in reverse. • Be aware of the blower discharge direction and do not point it at anyone. Do not operate the blower without deflectors in place.

  • Page 4: Maintenance And Storage

    The operator could lose footing or balance or blower could suddenly turn over if a wheel is over the edge of a cliff or ditch, or if an edge caves in. • Do not operate on slopes with wet grass. Reduced footing or traction could cause sliding.

  • Page 5: Front Wheel Assembly

    unit assembly Note: Please refer to Parts List for correct part identification and placement. FRONT WHEEL ASSEMBLY • Attach left and right caster brackets to caster wheel using 3/8-18 x 2-1/4 bolt and lock nut. Insert bolt through hole in bracket. Place caster wheel onto bolt.

  • Page 6: Starting The Engine

    unit operation STARTING THE ENGINE IMPORTANT NOTE: The procedures outlined within this section are general guidelines, and are in no way meant to replace or supercede engine manufacturer’s operating instructions. In order to obtain optimum performance from your engine, refer to your engine manual. WARNING! IMPELLER IS MOUNTED DIRECTLY TO ENGINE SHAFT –...

  • Page 7: Blower Operation

    BLOWER OPERATION DANGER! DO NOT PASS BY OR STAND ON THE AIR DISCHARGE SIDE OF ANY LEAF BLOWER WITH THE ENGINE RUNNING. HIGH VELOCITY DISCHARGE CAN EASILY TURN HARMLESS DEBRIS INTO FLYING PROJECTILES. DANGER! NEVER INSERT ANY BODY PART OR FOREIGN OBJECT INTO ANY OPENING WHILE UNIT IS RUNNING.
  • Page 8 For operator ease and maneuverability, push down on the upper handle while walking so that the machine balances on the rear wheels. • When blowing dry debris, set blower discharge to lower rate; when blowing wet or frozen debris, increase discharge rate. FRONT...
  • Page 9 LUBRICATION: • The pneumatic tires on your blower contain bearings that should be lubricated on a weekly basis using a high-performance, automotive quality grease to ensure long life and minimal wear. Check all adjustments periodically.

  • Page 10: Troubleshooting

    maintenance (cont.) BEFORE MAKING ANY ADJUSTMENTS, STOP ENGINE AND DISCONNECT SPARK PLUG WIRE TO PREVENT INADVERTENT STARTING OF UNIT. TROUBLESHOOTING: • UNIT WILL NOT START: • Check fuel and oil levels. • Check to make sure choke is set when engine is cold, off when hot. •...
  • Page 11 13010 – DANGER – KEEP HANDS AND FEET AWAY – LOCATED ABOVE BLOWER DISCHARGE 75760 – SNAPPER LOGO – LOCATED ON INTAKE BAFFLE (ON APPLICABLE MODELS) 1722551 – SIMPLICITY LOGO – LOCATED ON INTAKE BAFFLE (ON APPLICABLE MODELS) 6.0HP 3078075 – GIANT-VAC LOGO – LOCATED ON...
  • Page 12 illustrated parts list LBC6151BV...
  • Page 13 DECAL – See DECAL IDENTIFICATION ASSEMBLY, Upper Handle & Grip - Narrow (p/n 33876 + grip) GRIP, 1.0 x 21-1/2" Foam HANDLE, Lower Folding- Narrow- Blower SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR5 NUT, 5/16-18 Hex Nyloc ENGINE, 6 HP B&S Intek 1" Horozontal Shaft (not shown) DECAL –...
  • Page 14 illustrated parts list (cont’d) Item Part No. 90391 3071776 46465 90372 3071800 90505 76978 1717312 Description WASHER, 5/16" Internal Tooth Lock KNOB, Folding Handle GUIDE, Rope NUT, 1/4-20 Hex Center Lock, GR5 or B THROTTLE CONTROL, B&S SCREW, 1/4-20 x 2" Hex Head Cap, GR5 NUT, 1/4-20 Hex Nyloc WASHER, 5/16"...
  • Page 15 NOTES __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________ __________________________________________________________________________...
  • Page 16 Classic Series Walk-Behind Leaf Blower Series 1 McDonough, GA 30253 USA Manual No. 7078079 (I.R. - 09/21/04)
