Giant-Vac LBC6152BV Operator's Manual

Assembly instructions parts list classic series walk-behind leaf blower series 2
Hide thumbs

Advertisement

Table of Contents

A A S S S S E E M M B B L L Y Y I I N N S S T T R R U U C C T T I I O O N N S S
O O P P E E R R A A T T O O R R ' ' S S M M A A N N U U A A L L
P P A A R R T T S S L L I I S S T T

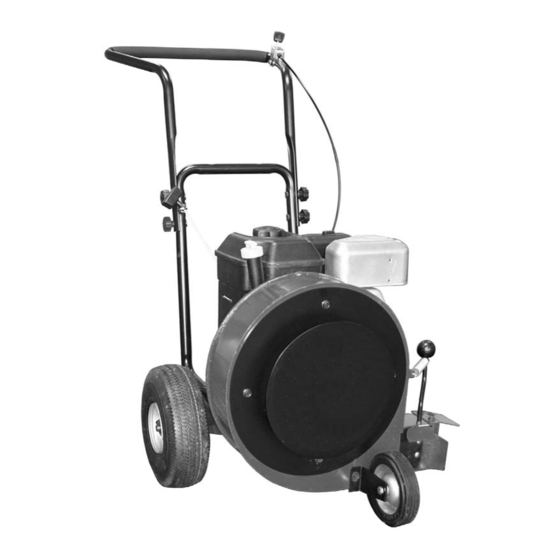

Actual product may differ slightly from product pictured above
Manual No. 7078227 (I.R. - 02/08/05)
Classic Series
Walk-Behind
Leaf Blower
Series 2
Models Covered:
LBC6152BV
(Part # 7085914)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LBC6152BV and is the answer not in the manual?

Questions and answers

Related Manuals for Giant-Vac LBC6152BV

Summary of Contents for Giant-Vac LBC6152BV

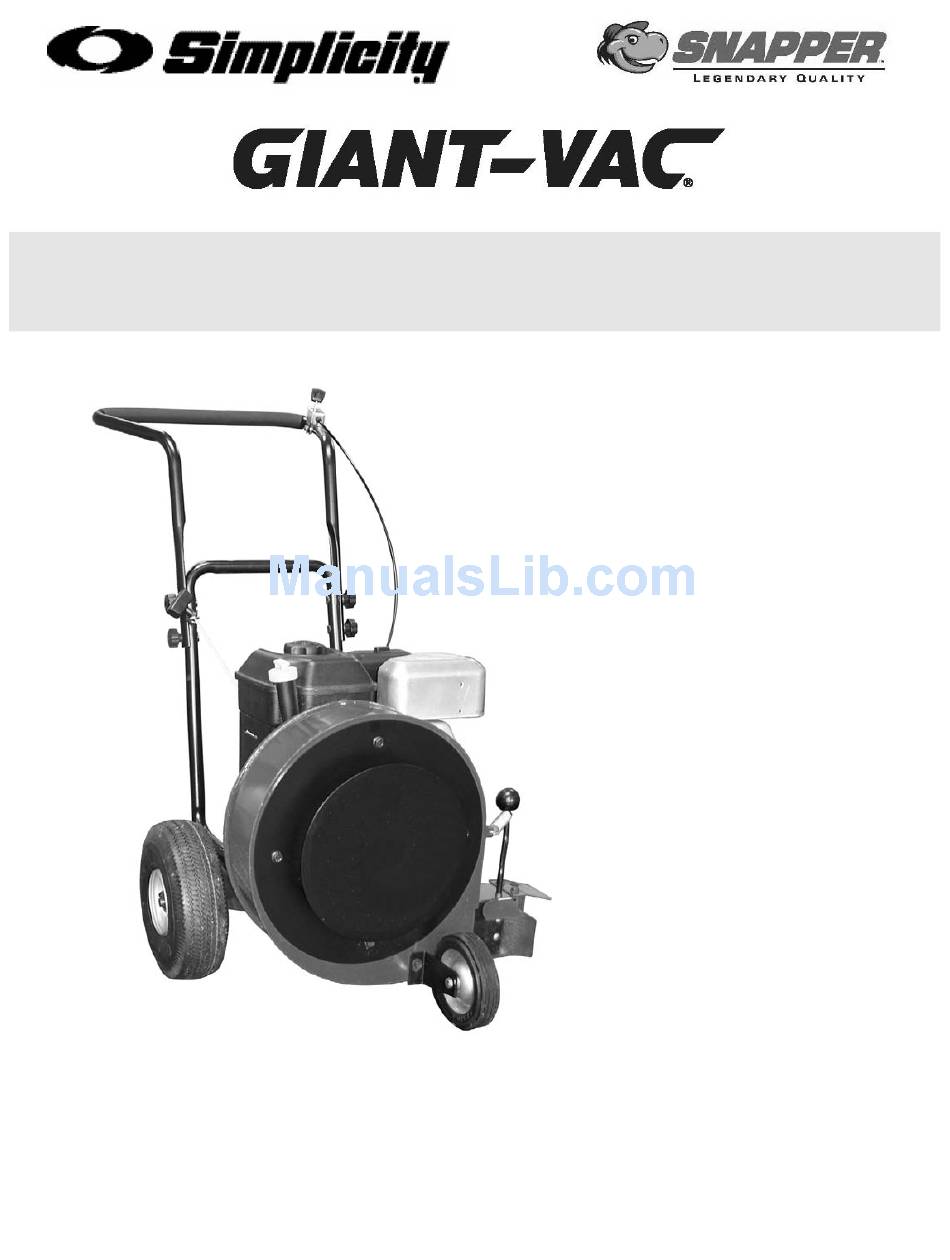

  • Page 1 P P A A R R T T S S L L I I S S T T Actual product may differ slightly from product pictured above Manual No. 7078227 (I.R. - 02/08/05) Classic Series Walk-Behind Leaf Blower Series 2 Models Covered: LBC6152BV (Part # 7085914)

  • Page 2: Model Number

    You have just purchased one of the finest pieces of outdoor power equipment on the market today. If properly cared for, your new blower will provide years of dependable service. Please read and follow this instruction manual carefully in order to get the most out of your new equipment.

  • Page 3: Slope Operation

    • Do not operate in reverse unless absolutely necessary. Always look down and behind before and while traveling in reverse. • Be aware of the blower discharge direction and do not point it at anyone. Do not operate the blower without deflec- tors in place.

  • Page 4: Maintenance And Storage

    safety rules regarding outdoor power equipment (cont.) CHILDREN Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the unit and its activity. Never assume that children will remain where you last saw them. •...

  • Page 5: Front Wheel Assembly

    unit assembly Note: Please refer to Parts List for correct part identification and placement. FRONT WHEEL ASSEMBLY • Attach left and right caster brackets to caster wheel using 3/8-18 x 2-1/4 bolt and lock nut. Insert bolt through hole in bracket. Place caster wheel onto bolt. Place other caster bracket onto bolt.

  • Page 6: Starting The Engine

    unit operation STARTING THE ENGINE IMPORTANT NOTE: The procedures outlined within this section are general guidelines, and are in no way meant to replace or supercede engine manufacturer’s operating instructions. In order to obtain optimum performance from your engine, refer to your engine manual.

  • Page 7: Blower Operation

    BLOWER OPERATION DANGER! DO NOT PASS BY OR STAND ON THE AIR DISCHARGE SIDE OF ANY LEAF BLOWER WITH THE ENGINE RUNNING. HIGH VELOCITY DISCHARGE CAN EASILY TURN HARMLESS DEBRIS INTO FLYING PROJECTILES. DANGER! NEVER INSERT ANY BODY PART OR FOREIGN OBJECT INTO ANY OPENING WHILE UNIT IS RUNNING.
  • Page 8 For operator ease and maneuverability, push down on the upper handle while walking so that the machine balances on the rear wheels. • When blowing dry debris, set blower discharge to lower rate; when blowing wet or frozen debris, increase discharge rate. FRONT...
  • Page 9 LUBRICATION: • The pneumatic tires on your blower contain bearings that should be lubricated on a weekly basis using a high-perform- ance, automotive quality grease to ensure long life and minimal wear.

  • Page 10: Troubleshooting

    maintenance (cont.) BEFORE MAKING ANY ADJUSTMENTS, STOP ENGINE AND DISCONNECT SPARK PLUG WIRE TO PREVENT INADVERTENT STARTING OF UNIT. TROUBLESHOOTING: • UNIT WILL NOT START: • Check fuel and oil levels. • Check to make sure choke is set when engine is cold, off when hot. •...
  • Page 11 LOCATED ON SIDE OF BLOWER HOUSING 13010 - DANGER-KEEP HANDS AND FEET AWAY - LOCATED ABOVE BLOWER DISCHARGE 75760 - SNAPPER LOGO - LOCATED ON INTAKE BAFFLE (ON APPLICABLE MODELS) 1722551 - SIMPLICITY LOGO - LOCATED ON INTAKE BAFFLE (ON APPLICABLE MODELS)
  • Page 12 illustrated parts list...
  • Page 13 DECAL – See DECAL IDENTIFICATION 3023270 ASSEMBLY, Upper Handle & Grip - Narrow (p/n 33876 + grip) 74422 GRIP, 1.0 x 21-1/2” Foam 33877 HANDLE, Lower Folding- Narrow- Blower 91908 SCREW, 5/16-18 x 1-3/4” Hex Head Cap, GR5 91298 NUT, 5/16-18 Hex Nyloc 3039112 ENGINE, 6 HP B&S Intek 1”...
  • Page 14 illustrated parts list (cont.) Item Part No. Description 90391 WASHER, 5/16” Internal Tooth Lock 3071776 KNOB, Folding Handle 46465 GUIDE, Rope 90372 NUT, 1/4-20 Hex Center Lock, GR5 or B 3071800 THROTTLE CONTROL, B&S 90505 SCREW, 1/4-20 x 2” Hex Head Cap, GR5 76978 NUT, 1/4-20 Hex Nyloc 1717312...
  • Page 15 notes...
  • Page 16 O O P P E E R R A A T T O O R R ’ ’ S S M M A A N N U U A A L L P P A A R R T T S S L L I I S S T T Classic Series Walk-Behind Leaf Blower Series 2 McDonough, GA 30253 USA Manual No. 7078227 (I.R. - 02/08/05)
