Hyundai H-CDM8064 Instruction Manual

Cd/mp3-receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
H- CDM8064
CD/MP3-RECEIVER
CD/MP3-
Instruction manual

Advertisement

Table of Contents
loading

Related Manuals for Hyundai H-CDM8064

Summary of Contents for Hyundai H-CDM8064

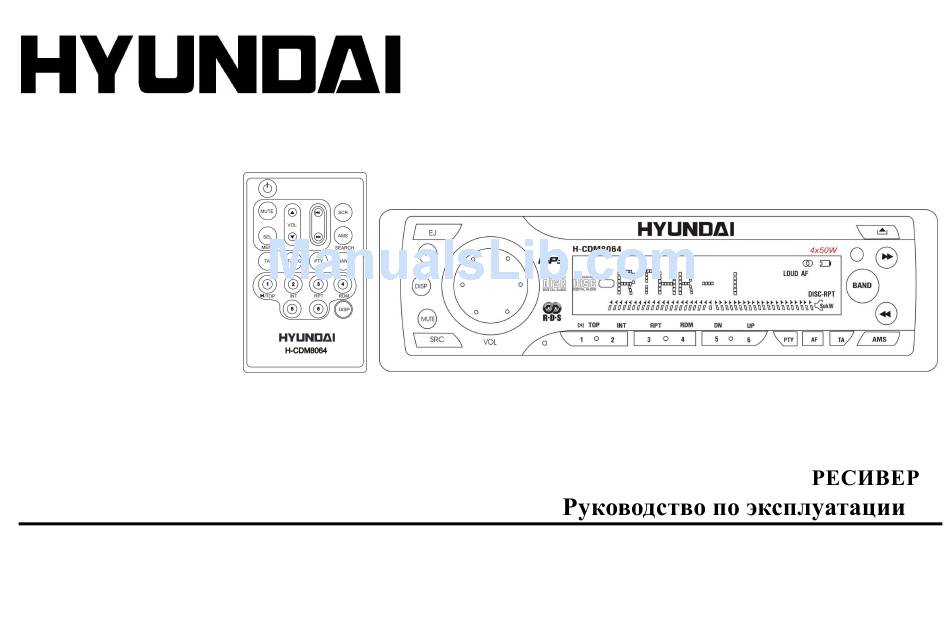

  • Page 1 H- CDM8064 CD/MP3-RECEIVER CD/MP3- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ..................................2 Important safeguards.................................

  • Page 3: Important Safeguards

    Important safeguards · Read carefully through this manual to familiarize yourself with this high-quality sound system. · Use only in a 12-volt DC negative-ground electrical system. · Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. · When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.

  • Page 4: Installation/Connections

    Installation/Connections First complete the electrical connections, and then check them for correctness. Installation opening This unit can be install in any dashboard having an opening as shown below. The dashboard should be 4.75 5.56 mm thick in order to be able to support the unit. 1.
  • Page 5 Electrical connections Do not interchange the connection of the wiring!!! For some car models you may need to modify wiring of the supplied power cord as illustrated (modified wiring), or else the memory of the unit may be lost after you power off. Contact your authorized car dealer before installing this unit.

  • Page 6: Panel Controls

    Panel controls 1. Disc eject. 2. Rotate the Multi-Control to adjust volume level. Press to select VOL/BAS/TRE/BAL/FAD, press- or + to adjust level. Press more than 2 seconds to Menu mode. MP3 track / file / character search. ESP 40s/120s 3.

  • Page 7: Remote Control

    MP3 track 10 down. MP3 track +10 up. Track random play. Track repeat play. Intro play (10 seconds) Play/pause. Top play (press more than 2 seconds). Radio/Disc play (when disc is in). MUTE button Display switch. Power on: press any button on the panel except and OPEN button to turn on the unit.
  • Page 8 AMS: - Radio Preset scan. - Radio Auto Preset. 10. Band Switch: FM1 – FM2 – FM3 – FM(OIRT) –AM1 –AM2. 11. Program Type. 12. Track Random Play. 13. Track Repeat Play. 14. Display switch. 15. Volume. 16. Radio Tune / Track Seek. Inserting the batteries in the remote control 1.

  • Page 9: Button Tips

    Button tips Disc Load / Eject Press to slide down the panel. If there is a disc inside it will be ejected automatically. Load: Insert the disc into the slot. The panel will close automatically. Panel slide down/close: Press to slide down the panel. Press again to close the panel.
  • Page 10 Press briefly to scan the preset station 1-6 for 5 seconds each. Hold more than 2 seconds, the 6 strongest available station will be automatically saved in the memory of preset button 1-6. Set clock Press DISP button, time displays. Press again more than 2 seconds, time display blinks. Press + button to set hours. Press - button to set minutes.

  • Page 11: Menu Function

    Menu function Press SEL / MENU button more than 2 seconds to enter menu mode, then each press changes the mode as follows: TA mode MASK mode ESP mode DSP mode LOUD ON / OFF mode BEEP ON / OFF SEEK1/2 mode (only in tuner mode) ST / MO mode...
  • Page 12 ESP 40/120s ESP40: Selected as CD-ESP time 40 seconds. ESP120: Selected as CD-ESP time 120 seconds. DSP mode Rotate the Multi-Control to choose DSP sound effect. ROCK CLASSIC FLAT DSP OFF LOUD mode Rotate the Multi-Control to choose loud on or off. BEEP ON/OFF mode Rotate the Multi-Control to choose button beep sound on or off.

  • Page 13: Mp3 Play Back

    MP3 Play back While playing MP3 disc, the folder/file name and ID3 TAG (song title, album and artist) can entirely scroll displayed on the LCD display. Elapsed playing time and Track number Folder name and number File name and number Song title Album title Artist...

  • Page 14: Mp3 Character Search

    MP3 Character Search Press AMS button three times to select "CHAR SCH" mode. Press the Multi-Control and displayed. Now if press the Multi-Control more than 0.5 seconds. which first character of its name is will be played. Rotate the Multi-Control to select the 1st character of the desired track name and press the Multi-Control to confirm. Then flash at the next place, select 2nd and other character of the desired track name as steps above.

  • Page 15: Mp3 Overview

    MP3 Overview Notes on MP3 · MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. · This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. · The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.

  • Page 16: Rds (Radio Data System)

    · Up to 16 characters are displayed for the name of an Album or a Track. ID3TAG version 1.x is required. · Note that the unit may not play Tracks in the order that you wrote them to the disc. RDS (Radio Data System) RDS service availability varies with areas.
  • Page 17 Traffic Announcements Some RDS FM stations periodically provide traffic information. TP ( Traffic Program Identification ) - Broadcasting of traffic information TA ( Traffic Announcements Identification ) - Radio announcements on traffic conditions TA Mode Press TA button to turn on / off TA. When TA mode is on and TA indicator on LCD is displayed.
  • Page 18 PTY Reception (Program Type) RDS FM stations provide a program type identification signal. Example: news, rock, info, sport, etc. PTY Mode Press PTY button to turn PTY on, previous PTY type is displayed and searched if no button is pressed for 2 seconds. If there is no correspond program type, NO PTY is displayed.

  • Page 19: Anti-Theft System

    Anti-Theft System This unit is equipped with a slide-down detachable and mask panel. Panel can be detached and taken with you, helping to deter theft. Removing the panel 1.Press PWR button more than 2 seconds to switch off the power of the unit. 2.Press button to slide down the panel.

  • Page 20: Handling Compact Discs

    Handling compact discs · Dirty, scratched or warped discs may cause skip ping or noise. · Handle the disc only by the edges. To keep clean do not touch its surface. · Discs should be stored in their cases after use to avoid scratches. ·...

  • Page 21: Components

    Components 1. Mounting collar 1 pc. 2. Tapping screws M5x6 mm 4 pcs. 3. Mounting bolt (50 mm) 1 pc. 4. Wire connector 1 pc. 5. Removable faceplate case 1 pc. 6. Trim plate 1 pc. 7. L-key 2 pcs. 8.

  • Page 22: Troubleshooting Guide

    Troubleshooting guide General Car's engine switch is not on. Turn your car's key to ACC or ON. No power or no sound Cable is not correctly connected. Check connection. Fuse is burnt. Replace fuse. Check volume or mute on / off. Disc Disc is upside down.

  • Page 23: Specification

    Specification General. Power supply 12V DC (11V-16V) Test voltage 14.4V, negative ground Maximum power output: 50Wx4 channels Rated power output (RMS): 20Wx4 channels (4 10% T.H.D.) Suitable speaker impedance: 4-8 ohm Pre-Amp output voltage: 4.0V(CD play mode: 1KHz, 0 dB, 10K load) Fuse: Dimensions (W x H x D) / Weight: 178 50 166 mm / 1.7kg...
  • Page 24 ..................................24 ..............................25 ............................... 26 ............................. 28 ..........................30 ................................. 32 ................................. 33 3 ..............................36 ..............................37 3 ..................................38 RDS ( )............................40 ............................... 43 ............................44 .................................. 45 .................................. 45 ........................ 46 ............................47...
  • Page 25 · · 12 . · · · · · · · · · · ·...
  • Page 26 4,75 5,56 CD/MP3...
  • Page 28 VOL/BAS/TRE/BAL/FAD, ESP 40s/120s 8. AMS:...
  • Page 29 : FM1 – FM2 – FM3 – FM(OIRT) – AM1 – AM2. TA ( AF ( PTY ( 3 10 3 +10 OPEN,...
  • Page 30 VOL/BAS/TRE/BAL/FAD, Volume REG ( Aux ( 9. AMS: : FM1 – FM2 – FM3 – FM(OIRT) – AM1 – AM2.
  • Page 31 « + » ·...
  • Page 32 · · · AMS: 1 6. DISP,...
  • Page 33 MASK LOUD ON/OFF BEEP ON/OFF SEEK ½ ( ST/MO LOCAL/DX VOL. TA ALARM TA SEEK. TA SEEK TA ALARM TA SEEK. TP (Traffic Program PI (Program Identification ALARM. "NO TP, TA".
  • Page 34 MASK MASK DPI MASK ALL. (AF), PI " ". MASK DPI. RDS, PI ( MASK ALL.
  • Page 35 ESP 40/120 DSP. ROCK CLASSIC FLAT DSP OFF LOUD BEEP ON/OFF SEEK ½ SEEK 1. SEEK 2. << >>. ST/MO VOL LAST / ADJUST VOL LAST: VOL ADJ,...
  • Page 36 ID3 TAG ( TRACK SCH . 001 . 100, 100, · FILE SCH .
  • Page 37 «CHAR SCH» ( « ». « ». « » «ECHO»...
  • Page 38 · MPEG 3 · CD-ROM, CD-R CD-RW. · ISO 9660. · .mp3 . · .mp3 , · · 256. · · · VBR, . VBR: CD-R CD-RW, MP3. · 44,1 · · ISO 9660, · CD-R · MP3 CD-R CD-RW...
  • Page 39 · · CD-R CD-RW CD-R CD-RW · 1. ID3TAG. ·...
  • Page 40 RDS ( AF ( RDS- PS Display ( AF ( REG. RDS- RDS- NO CT.
  • Page 41 RDS, SEEK ( ), SCAN ( EON ( EON, RDS- EON. EON RDS- . EON PTY ( RDS,...
  • Page 42 PTY, PTY. NO PTY. 1 6 , POP M ( NEWS ( AFFAIRS ( ROCK M ( INFO ( M.O.R.M. ( SPORT ( EDUCATE ( LIGHT M ( DRAMA ( CLASSIC M ( CULTURE ( OTHER M ( SCIENCE ( VARIED ( JAZZ M ( WEATHER (...
  • Page 44 · · · · · · · · · ·...
  • Page 46 30 , NO FILE: ERR-7: ERR-10: ERR-11: ERR-3: ERR-4: RESET...
  • Page 47 12 , 16 ) 14,4 , (RMS): (4 10 % .D.) 4.0 ( CD: 1 , 10 178 50 166 / 1,8 ESP/ CD (40 ), MP3 (120 )/4.0 65.0 74.0 / 87.5 108.0 / 55 IF: 50 / 70 522-1620 (S/N = 20 - 20...
