Hyundai H-CMMD4044 Instruction Manual

Multimedia dvd receiver with motorized 7” tft display and tv tuner
Hide thumbs Also See for H-CMMD4044:
Table of Contents

Advertisement

Quick Links

Download this manual
H-CMMD4044
MULTIMEDIA DVD RECEIVER WITH MOTORIZED 7" TFT DISPLAY AND TV
TUNER
Instruction manual
DVD-
7"
TFT-

Advertisement

Table of Contents
loading

Related Manuals for Hyundai H-CMMD4044

Summary of Contents for Hyundai H-CMMD4044

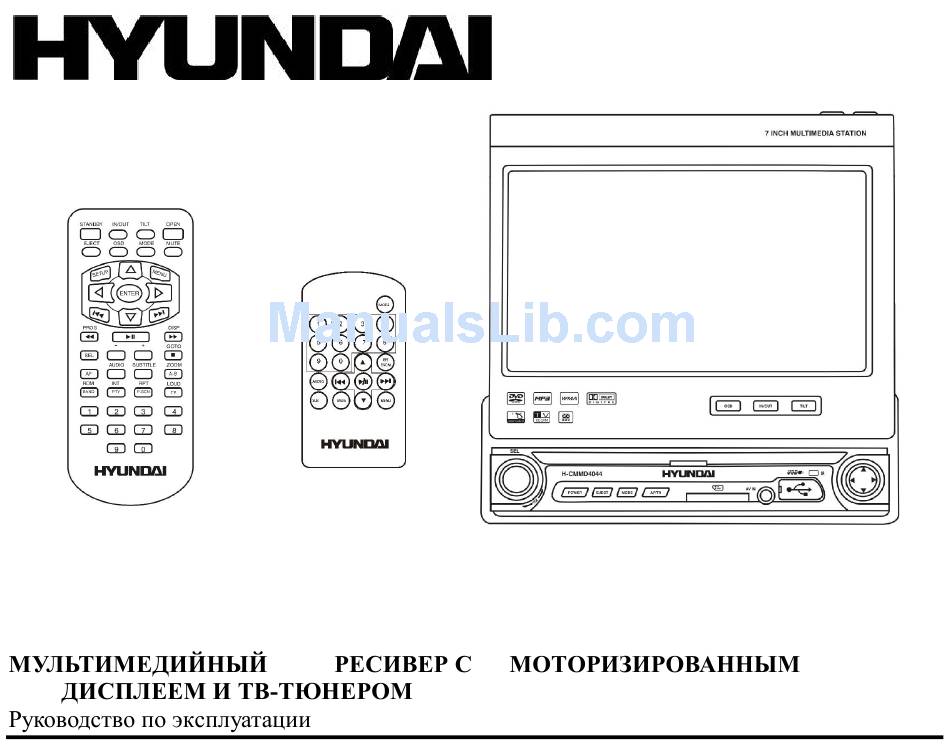

  • Page 1 H-CMMD4044 MULTIMEDIA DVD RECEIVER WITH MOTORIZED 7” TFT DISPLAY AND TV TUNER Instruction manual DVD- 7” TFT-...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ...............................2 Important safeguards ............................3 Accessory list ..............................4 Installation/Connection............................5...

  • Page 3: Important Safeguards

    Important safeguards Using the device at temperature below -10º may cause the breakage of the device. Before using please heat up the passenger compartment to the recommended temperature! Read carefully through this manual to familiarize yourself with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.

  • Page 4: Accessory List

    Accessory list Receiver 1 pc Unit Remote Control 1 pc Second Monitor Remote Control 1 pc TV tuner 1 pc TV antenna 1 pc TV cable 1 pc ISO connector 1 pc 2 side tape 1 pc Mounting parts: Release Key 2 pcs Flat Washer 1 pc...

  • Page 5: Installation/Connection

    Installation/Connection Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring and make sure that the unit works properly. Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
  • Page 6 1. Install the sleeve into the dashboard; ensure it is installed with the correct side and there are no obstacles (wires, dashboard elements, etc) for the unit installation. 2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the sleeve in place.
  • Page 7 Trim frame installation To install the trim frame, press it to the unit body and push it to fix it in place. This should be done before installing the front panel; otherwise you are not able to install the trim frame. When the trim frame being installed, the side with the groove should face down and fixed first.
  • Page 8 Electrical connection Note: The parking wire is connected with brake signal; for safety, the programs can be seen on the monitor after braking the car.
  • Page 9 Caution: For some car models you may need to modify wiring of the supplied power cord. Contact your authorized car dealer before installing this unit. Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.
  • Page 10 Location Function Rear Right (+)---Purple Reverse cable/Orange Rear Right (-)---Purple/Black Stripe Front Right (+)---Grey Battery+/Yellow Front Right (-)---Grey/Black Stripe Auto antenna/Blue Front Left (+)---White Front Left (-)---White/Black Stripe ACC/Red Rear Left (+)---Green Ground/black Rear Left (-)---Green/Black Stripe...

  • Page 11: Antenna Connection

    Antenna connection Specification: Power supply 12 V +- 25% Power consumption 20 mA or less TV frequency bands: VHF, UHF Radio frequency bands: OIRT/FM Amplification in VHF - 22+-3 dB Amplification in UHF - 20+-3 dB Amplification in OIRT/FM - 21 dB Cable length –...

  • Page 13: Unit Controls

    Unit controls Front panel Disc slot Mini LCD BAND/P.SCAN button OPEN button VOL knob/SEL button POWER button EJECT button MODE button AF/TA button 10 SD/MMC slot 11 AV IN jack 12 USB slot 13 IR sensor 14 Cursor (LEFT/RIGHT/UP/DOWN)/ENTER button...
  • Page 14 Monitor 1. TFT display 2. OSD button 3. IN/OUT button 4. TILT button...
  • Page 15 Remote controllers (RC) Main monitor RC 1. STANDBY button 2. IN/OUT button EJECT button OSD button SETUP button Cursor buttons LEFT/RIGHT/UP/DOWN PROG/REW button SEL button VOL- button 10 AF button 11 AUDIO button 12 RDM/BAND button 13 INT/PTY button 14 Number buttons 15 RPT/P.SCAN button 16 TP/LOUD button 17 SUBTITLE button...
  • Page 16 23 PREV/NEXT buttons 24 ENTER button 25 MENU button 26 MODE button 27 MUTE button 28 TILT button 29 OPEN button Second monitor RC Number buttons AUDIO button SUB button MUTE button Cursor buttons/PREV/NEXT buttons MENU button PLAY/PAUSE button RPT/P.SCAN button MODE button...
  • Page 17 Changing the battery 1. Pull out the battery tray. 2. Insert the 1 x lithium battery, type CR2025 (3V) battery with the stamped (+) mark facing upward. Insert the battery tray into the remote control. Warning: Store the battery where children cannot reach it. If a child accidentally swallows the battery, consult a doctor immediately.

  • Page 18: Monitor Operations

    Monitor operations Open/close TFT monitor 1. Press OPEN button on the panel to open the monitor to the last viewing position. 2. Press OPEN button to load the monitor to the unit. Notes: If the monitor is turned to the left or right, you cannot close it (pic 1). The monitor can be turned to the left or right at 30°...

  • Page 19: Touch Screen Operations

    Touch screen operations In any mode touch the left corner of the top area of the TFT display to open the source menu. Touch any point of the up right corner to display dual zone menu. Now you may touch and choose any option to operate. Source menu TUNER MEDIA (DVD PLAYER, CAMERA, SD CARD, AV IN, USB, TV...
  • Page 20 Audio setup menu BASS TREBLE BALANCE (right and left channels) FADER (front and rear channels) S.WOOFER – subwoofer on/off S.VOLUME – initial volume level when the unit is on. TEL VOL (for units equipped with Bluetooth) Video setup menu BRIGHT CONTRAST COLOR SHARP...

  • Page 21: General Operations

    General operations Power on/off Press POWER button on the front panel or STANDBY button on the RC to turn the unit on. Press and hold POWER button for 2 seconds or press STANDBY button on the RC to turn the unit power off. Note: After the unit is off, the volume level and radio current settings will be memorized, and when you turn the unit on it will resume the stored status that you set.
  • Page 22 Mode selecting Press MODE button repeatedly to select the source: TUNER => DVD => R. CAM => SD/MMC => AUX IN => Setting other functions 1. Press and hold SEL button to enter the menu, then press this button repeatedly to switch between options in the following sequence: LOC ON/OFF, LOUD ON/OFF, ST/MO ON/OFF, TIME, TA VOL, EON ON/OFF, F: TUNER R:D OFF.

  • Page 23: Radio Operations

    Radio operations Mode selecting Press MODE button repeatedly to select TUNER mode. If the monitor is open, the tuner control menu will appear on the screen. Touch upper left corner on the screen to open the source menu. Then press touchable TUNER icon to open the tuner control menu.
  • Page 24 Manual/automatic tuning Automatic tuning: Press LEFT/RIGHT cursor buttons or touchable buttons, the automatic search will start. It will play when finds the station with a strong signal. Press it again to search for a following station. Press and hold for 2 seconds a number button to store the station found. Manual tuning: Press and hold LEFT/RIGHT cursor buttons or touchable buttons to switch on the manual search mode.
  • Page 25 strongest available stations to the 6 preset memories of the current band. To stop auto store, press this button again. RDS (Radio Data Service) function Note: RDS service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either.
  • Page 26 PTY (Program Type) function 1. Enter RDS menu. 2. Use LEFT/RIGHT cursor buttons to choose PTY option, press INT/PTY button on the RC to turn it on/off, then press ENTER button to confirm the setting. 3. Choose the desirable type of program and press ENTER to confirm your selection. Start the search using LEFT/RIGHT cursor buttons.

  • Page 27: Disc Operations

    Disc operations Glossary PBC (PlayBack Control) PlayBack Control is a menu recorded on the disc with SVCD or VCD2.0 format. For the discs contained PBC, it can playback interactive software with the menu displayed on TV. And if the disc contains still images, it can playback high definition of still image.
  • Page 28 Discs for playback This unit can play disc types: CD/DVD/CDDA/CD-R/-RW/DVD±R/±RW. Compatible with formats: DVD-video/SVCD/VCD/HDCD/MP3/MP4/WMA/Picture-CD/JPEG. The following file types are supported: Audio files: MP3 (*.mp3) WMA (*.wma) Video files: MP4 (*.avi, DIVX3.11/4.0/5.0/6.0 and XVID) MPEG 2(*.vob) MPEG 1(*.dat) Picture file: JPEG (*.jpg) ISO 9660 or ISO 9660 +Joliet format - Max.
  • Page 29 Loading a disc 1. Turn the power on. 2. Insert the disc with the printed side facing upward into the slot. The unit will switch to DVD mode automatically. 3. Press EJECT button on the panel or the RC to eject the disc. Touchable playback control menu Press the center of the lower part of the touchable screen to open the playback control menu.
  • Page 30 Direct entering the number Press number 0-9 buttons to directly input the track/chapter number. To input 2- or 3-digit number s of tracks and chapters press and hold buttons with corresponding numbers in turn on the RC. E.g., to input 135, press 1 => 3 => 5. Fast forward and backward playback During playback press DISP/FWD or PROG/REW buttons on the RC or touchable buttons, to select a...
  • Page 31 Random playback (for DVD/CD/VCD/MP3 discs) During disc playback, press RDM/BAND on the RC to start random playback of the disc. Press again to cancel. Intro playback (for CDDA/VCD discs) You can play the beginning of every track for 10 seconds in sequence. Press and hold INT/PTY button on the RC to start intro play of whole disc.
  • Page 32 Programming the playback 1. Press and hold PROG/REW button on RC to enable the program function. 2. Press the digital buttons to insert the desired title/chapter number (for DVD) or track number (for VCD/CD) into the first position selected. 3. Press the cursor buttons to select the next position (total 20 positions). 4.

  • Page 33: Mp3 Overview

    MP3 overview Notes on MP3: MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
  • Page 34 Notes on creating your own CD-R or CD-RW containing MP3 files: To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate o f 128 kbps. DO NOT store more than 448 MP3 files per disc. For ISO 9660 - compliant format, the maximum allowable depth of nested folders is 8, including the root directory (folder).

  • Page 35: Tv Tuner Operations

    TV tuner operations Connect TV tuner and TV antenna as it is shown on electrical connection diagram. Before connecting the TV tuner, switch off the unit. Note: There is a 2-side tape in the accessories; you can use it to fix the TV box to your car. Switch to TV tuner mode Connect the TV tuner to the unit.
  • Page 36 AUTO/MANUAL – press for auto/manual search of channels. Auto tuning 1. Press LEFT/RIGHT cursor buttons to start auto search of available TV station in backward/forward direction. When the first available station is found searching will be stopped and the station found will be played. Press the button again to continue searching.

  • Page 37: Av In Mode

    AV IN mode This mode is for using the unit as an AV signal amplifier or connecting the rear-view camera. Connect the peripheral device (DVD player, video-camera, rear-view camera etc) to the unit via RCA output and AV in. The unit will be switched into the AV mode and will show the picture from the device connected. You can use VOL knob or functional buttons to set the video and audio parameters from the unit.

  • Page 38: System Setup Menu

    System setup menu 1. Press SETUP button on the RC to display the setup screen. 2. Use LEFT/RIGHT cursor buttons to select the desired menu: General setup, Audio setup, Video setup, Preference page or Password setup. 3. Press DOWN button to enter the menu. 4.
  • Page 39 This function doesn't work when the disc is without caption. If the caption is OFF, press SUBTITLE button on the RC to make caption on. The default setup is ON. LAST MEMORY When this function is on, the unit can memorize the time elapsed from the last time you played the disc. Then at the next playing, it will resume playing from the memorized time.
  • Page 40 L-Mono: left output signal. R-Mono: right output signal. Mix-Mono: left and right output average signal. DYNAMIC If watching large dynamic scope movie program at night, to select this mode you can reduce the volume to a very low level, at the same time, to keep the fine details sounds. In this case, this doesn't disturb the family and keep the quality sounds.
  • Page 41 Video setup page Video setup page QUALITY Sharpness - SHARPNESS, BRIGHTNESS, CONTRAST, GAMMA, HUE, Brightness SATURATION, LUMA DELAY Contrast You can set the color settings according to your preference. Gamma Saturation Luma delay Sharpness Preference page (to select this menu page, stop playback completely) Preference page TV TYPE TV type...
  • Page 42 Otherwise the disc default value works. And these settings can be changed respectively by pressing AUDIO and SUBTITLE buttons when playing. PARENTAL The control level is for parental to control playing content and protect your children from violence and erotic. The disc, the level of which is higher than the setting level cannot be played. DEFAULT Reset to the initial factory setups Password setup page...

  • Page 43: Handling And Cleaning Discs

    Handling and cleaning discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust.

  • Page 44: Troubleshooting Guide

    Troubleshooting guide Symptom Cause Solution No power The car ignition is not on. If the power supply is properly connected to the car accessory switch the ignition key to “ACC”. The fuse is blown. Replace the fuse. Disc cannot be loaded. Presence of disc inside the player.

  • Page 45: Specification

    Specification General Power supply: 12 V DC Maximum power output: 50 W x 4 channels Compatible formats: SVCD/VCD/HDCD/CD/MP3/WMA/CDDA/JPEG/MPEG 4 (DivX) Supported disc types: DVD/DVD±R/±RW/CD-R/-RW//USB/SD/MMC Dimensions (D x W x H) 190 x 178 x 50 mm ESP function: 40 sec. for Audio CD, 120 sec. for MP3 TFT display Screen size: 7”...
  • Page 46 Separation 0.5% Line out Output: 4 channel RCA line-out (2V) Specifications are subject to change without notice. Dimensions are approximate.
  • Page 47 ..............................47 ..........................48 ............................49 ..........................50 ...........................57 ...........................59 ..........................64 .........................65 ............................68 ............................71 ............................75 3 ..............................82 ..........................84 AV ...............................87 ............................88 ............................93 ....................94 ........................96...
  • Page 48 -10º...
  • Page 49 (B5X20) (M5X6)
  • Page 50 30°, « » « » « » ( « » ( DIN,...
  • Page 51 « » ( (5 25...
  • Page 52 – – – « » (...
  • Page 55 ISO,...
  • Page 56 (+)--- (-)--- (+)--- 12 (+)/ (-)--- (+)--- ((-)--- (+)--- (-)---...
  • Page 57 +- 25% (VHF), (UHF) (VHF) - 22+-3 (UHF) - 20+-3 / FM - 21...
  • Page 59 BAND/P.SCAN OPEN VOL/ POWER EJECT MODE AF/TA SD/MMC AV IN ENTER...
  • Page 60 1. TFT IN/OUT TILT...
  • Page 61 STANDBY IN/OUT EJECT SETUP PROG/REW VOL- AUDIO RDM/BAND INT/PTY RPT/P.SCAN TP/LOUD SUBTITLE A-B/ZOOM VOL+ GOTO/STOP PLAY/PAUSE DISP/FWD...
  • Page 62 PREV/NEXT ENTER MENU MODE MUTE TILT OPEN AUDIO MUTE PREV/NEXT MENU PLAY/PAUSE RPT/P.SCAN MODE...
  • Page 63 (CR 2025 3V), . 1). (CR 2025 3V), . 2). – 6...
  • Page 64 OPEN, OPEN, 30° TILT...
  • Page 65 TUNER: MEDIA: , AV IN, USB, TV. BLUETOOTH ( Bluetooth DUAL ZONE: SETUP: NAVIGATION:...
  • Page 66 SOUND: DISPLAY: SYSTEM: RDS SETTING: RDS ( . 73 TV MODE: CALIBRATION: BASS – TREBLE – BALANCE – FADER – S.WOOFER – S.VOLUME – TEL VOL ( Bluetooth BRIGHT – CONTRAST – COLOR – SHARP – SCREEN – DVD).
  • Page 67 BEEP – TILT – TILT RANGE – IN/OUT FIX – TIME SET – GPS DUAL SOUND – GPS.
  • Page 68 POWER STANDBY STANDBY POWER VOL+/VOL- POWER MUTE VOL+/-, BASS ( ) TREBLE ( ), BALANCE L-R ( ), FADER ( ), BRIGHT ( ), CONTRAST ( ), COLOUR ), SHARP ( DVD).
  • Page 69 VOL+/- MODE, : TUNER ( ) => DVD ( ) => R. CAM ) => SD/MMC ( ) => AUX IN ( ) =>TV ( SEL, SEL, : LOC ON/OFF ( ), LOUD ON/OFF ( ), ST/MO ON/OFF ( ), TIME ( ), TA VOL ( ), EON ON/OFF (...
  • Page 70 DUAL ZONE...
  • Page 71 MODE, TUNER B ND/P.SCAN RDM/BAND BAND, : FM1, FM2, FM3, MW1 (AM1), MW2 (AM2).
  • Page 72 (18 FM, 12 AM). 1~6 ( 1~6 (...
  • Page 73 RPT/P.SCN PSCN, RPT/P.SCN PSCN BAND/P.SCAN RDS ( AF, INT/PTY TP/LOUD RDS MENU, RDS. AF (...
  • Page 74 AF/TA TA ( TP/LOUD RDS, AF/TA TP RDS TP/TA TP/TA PTY ( RDS, RDS. INT/PTY ENTER ENTER...
  • Page 75 PBC ( – PBC, –...
  • Page 76 CD/DVD/CDDA/CD-R/-RW/DVD±R/±RW. : DVD-video, SVCD/VCD/HDCD/MP3/MP4/WMA/ Picture-CD/JPEG. : MP3 (*.mp3) WMA (*.wma) : MP4 (*.avi, DIVX3.11/4.0/5.0/6.0 XVID) MPEG 2(*.vob) MPEG 1(*.dat) : JPEG (*.jpg) ISO 9660 ISO 9660 + Joliet - – 448. – 99. - 99 44,1 : 32 - 320 : *.ACC, *.DLF, *.M3U, *.PLS, MP3 PRO, DRM.
  • Page 77 DVD. EJECT PLAY/PAUSE GOTO/STOP PLAY/PAUSE PREV NEXT...
  • Page 78 (1-9, 0) 135, 1=>3=>5. DISP/FWD PROG/REW 2 => 4 => 8 => 16 => X32. PLAY/PAUSE, RPT/P.SCAN VCD/CD: REPEAT TRACK ( ) => REPEAT ALL ( DVD: REPEAT CHAPTER ( ) => REPEAT TITLE ( ) => REPEAT ALL ( ) =>...
  • Page 79 A-B/ZOOM DVD/CD/VCD/MP3) RDM/BAND INTRO ( CDDA/VCD INT/PTY CD/VCD/DVD AUDIO, CD/VCD AUDIO, : Mono Left ( ) => Mono Right ( ) => Stereo ( MENU, ENTER MENU.
  • Page 80 PBC ( PBC, MENU PREV/NEXT PLAY/PAUSE, MENU, – PROG/REW DVD) VCD/CD), ENTER. ENTER.
  • Page 81 DISP DVD/VCD A-B/ZOOM : 2 => 3 => 4 => 1\2 =>1/3 =>1/4 => SUBTITLE (GOTO) ( DVD/VCD) GOTO/STOP; ENTER. PLAY/PAUSE...
  • Page 82 MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. “.mp3”. “.mp3”, “ MP3” “ ”, PC “ ” “ ” 448. (VBR), WMA (Windows Media Audio) – Microsoft Corporation.
  • Page 83 , 64 CD-R CD-RW, MP3: 44,1 ISO 9660, CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW 1. ID3TAG.
  • Page 84 MODE, TUNER ( MEDIA TV MODE TV SYSTEM: PAL SECAM. TV SOUND: B/G, I, D/K. PAL: SOUND-1 B/G, SOUND-2 I, SOUND-3 D/K. SECAM: SOUND-1 B/G, SOUND-2 L/L`, SOUND-3 D/K. SOUND-3,...
  • Page 85 CH00 – PSCN – BAND/P.SCN BAND – RDM/BAND AUTO/MANUAL – ENTER, BAND/P.SCAN RPT/P.SCAN GOTO/STOP...
  • Page 86 BAND/P.SCAN RPT/P.SCAN GOTO/STOP PREV/NEXT...
  • Page 87 (DVD . .). – AV IN MODE. MEDIA AV IN...
  • Page 88 SETUP, ENTER SETUP. 4:3 PS: 4:3 LB: 16:9:...
  • Page 89 SUBTITLE SPDIF DOLBY Pro LOGIC. DDigital Surround: HDCD DOLBY SURROUND. SPDIF SPDIF SPDIF SPDIF/RAW: SPDIF/PCM: LPCM...
  • Page 90 DOLBY DIGITAL BASS, 3D (3D HDCD ., 1...
  • Page 91 PAL, NTSC Multi. Multi: NTSC: PAL: PBC.
  • Page 92 AUDIO SUBTITLE => 136900 (...
  • Page 94 “ ”. POWER...
  • Page 96 SVCD/VCD/HDCD/CD/MP3/WMA/CDDA/JPEG/MPEG 4 (DivX) DVD/DVD±R/±RW/CD-R/-RW//USB/SD/MMC 190 x 178 x 50 : 40 CD, 120 480 x 234 16:9 300:1 .: 110 .: 130 87.5 – 108.0 - 1620...
  • Page 97 0.5% RCA- (2 )
