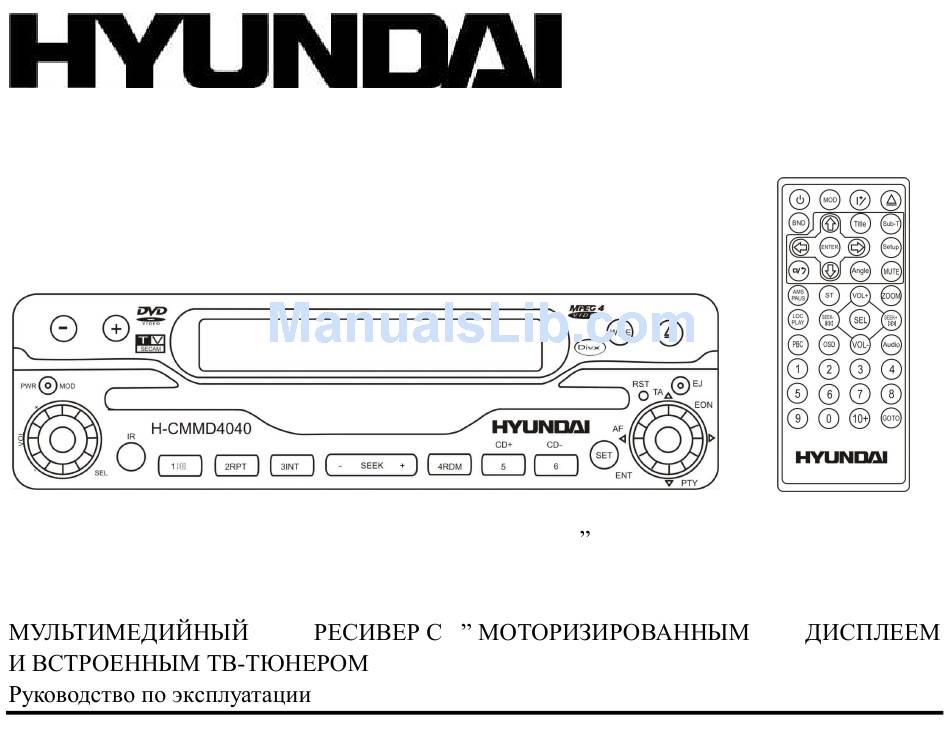

- Page 1 H-CMMD4040 MULTIMEDIA DVD RECEIVER WITH MOTORIZED 7 TFT DISPLAY AND BUILT-IN TV-TUNER Instruction manual...
-
Page 2: Table Of Contents
Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents............................2 Important safeguards..........................3 Installation/ connection ..........................4 Panel controls ............................7... -
Page 3: Important Safeguards
Important safeguards · Using the device at temperature below -10º may cause the breakage of the device. BEFORE USING PLEASE HEAT UP THE PASSENGER COMPARTMENT TO THE RECOMMENDED TEMPERATURE! · Read carefully through this manual to familiarize yourself with this high-quality sound system. ·... -
Page 4: Installation/ Connection
Installation/ connection First complete the electrical connections, and then check them for correctness. Installation opening This unit can be installed in any dashboard having an opening as shown on the picture. The dashboard should be 4.75 5.56 mm thick in order to be able to support the unit. - Page 5 Electrical connection Amplifier jacks...
- Page 6 Caution: Do not interchange the connection of the wiring!!! For some car models you may need to modify wiring of the supplied power cord. Contact your authorized car dealer before installing this unit. Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated.
-
Page 7: Panel Controls
Panel controls Front panel 1. PWR/MOD button Press POWER button to turn the power on, press and hold for 2 seconds to turn the power off. 2. Adjust angle +/- 3. TFT display 4. WIDE button. Press it to choose screen format - 16:9 or 4:3 5. - Page 8 11. SET button (Multi-functional key) 12. Navigation knob (AF, TA, PTY, EON) 13. PLAY/PAUSE button Use this button to start playback. Press it to pause playback. 14. RPT button Use this button to play current track repeatedly. 15. INT button Press it to start intro playing (10 seconds).
- Page 9 Remote control 1. MODE button 2. POWER button 3. BND button 4. Directional buttons for menu selection 5. ENTER button 6. STOP/REVERSE button 7. AMS/PAUSE button 8. ST button 9. LOC/PLAY button 10. VOL +/- button 11. PBC button 12. OSD (On Screen Display) button 13.
- Page 10 24. AUDIO button 25. GOTO button Changing the battery 1. Press the catch and at the same time pull out the battery tray. 2. Insert the 1 x lithium battery, type CR 2025 3V battery with the stamped (+) mark facing upward.
-
Page 11: General Operation
General operation Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press the RESET button by using a ball-point pen or a similar tool to restore the unit to the original factory settings. -
Page 12: Mute Control
BALANCE control Press the VOL 4 times, then rotate to adjust the balance level. FADER control Press the VOL 5 times, then rotate to adjust the fader level. LOUDNESS control Rotate the knob clockwise to activate LOUD ON, rotate anticlockwise to activate LOUD OFF. EQ control Rotate the knob clockwise to choose the equalizer mode: OFF, POP, ROCK, CLAS, JAZZ. - Page 13 ST selector During the radio mode press the ST button on the RC to switch left speaker/right speaker/stereo. Adjust angle Press the Adjust angle +/- buttons on the front panel or button on the RC to adjust the TFT Panel angle to your need.
-
Page 14: Digital Tuner
Digital tuner Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. Band selection Press MODE button to select Radio mode. Press BND button on the RC once or more to select: FM1, FM2, FM3, FM (OIRT), MW1, MW2. Display will show the wave band, frequency and preset station number if already stored. - Page 15 AMS (Auto Memory Store) function · Preset scan: press AMS/PAUSE on the RC to scan all preset stations in the memory of the current band and stay on each memory stations for about 5 seconds. The memory location indicator on the LCD will flash during the process.
- Page 16 PTY (Program Type) 1. Rotate the navigation knob to choose PTY function. The previous PTY type is shown. Press PTY once again to enter the MUSIC type or press twice to enter the SPEECH type, then use buttons 1 - 6 to select the desired program type (see the following table). 3.
-
Page 17: Tv Operations
Local/Distance Control In radio mode, press the LOC/PLAY button on the RC to select local or distance reception. a. LOC ON showing on the display, means local reception is turned on; b. _DX_ showing on the display, means distant reception is turned on. Local and distance reception setting can facilitate the radio reception, depending on the location in which the radio is being used. -
Page 18: Glossary
Glossary PBC (PlayBack Control) PlayBack Control is a menu recorded on the disc with SVCD or VCD2.0 format. For the discs contained PBC, it can playback interactive software with the menu displayed on TV. And if the disc contains still images, it can playback high definition of still image. -
Page 19: Disc Operations
Disc operations Discs for playback · This unit can play all digital audio CD, DVD/SVCD/VCD/HDCD/MP3/MP4/WMA/CDDA/ Picture-CD/JPEG/CD-R/-RW/DVD±R/±RW. · The following file types are supported: Audio files: MP3 (*.mp3) WMA (*.wma) Video files: MP4 (*.avi, DIVX3.11/4.0/5.0/6.0 and XVID) MPEG 2(*.vob) MPEG 1(*.dat) Picture file: JPEG (*.jpg) ·... - Page 20 Playing/ pausing To ensure good system performance, wait until the unit finishes reading the disc information before proceeding. Press the PLAY/ PAUSE button on the front panel or LOC/PLAY on the RC to start the playback. Pause In pause mode press the PLAY/ PAUSE button on the front panel or AMS/PAUSE on the RC to resume the playback.
- Page 21 Repeat playback Press the RPT button on the panel once or more to repeat the playback: · For VCD/CD/MP3: display appears RPT ONE => RPT OFF · For DVD: display appears RPT CHAP => RPT TITL => RPT ALL RPT icon will appear on the display. Random playback (for CD/VCD/MP3 discs) During disc playback, press the RDM button to start random playback of the disc.
- Page 22 3. The VCD starts playing the selected title automatically or press PLAY/ PAUSE button to confirm the selected track for playback. 4. Press STOP button to return to menu. 5. Press PBC again to exit menu. MENU selector Press buttons or rotate navigation knob to select the desired menu, then press ENTER or PLAY/PAUSE to confirm.
- Page 23 On-screen display Press OSD button. The display shows single track elapsed time, single track left time or entire disc left time. Press it again, the display shows DVD/VCD/MPEG4/CD mode, the track being played, the amount of the whole disc. Using the TITLE (for DVD only) 1.
-
Page 24: Mp3 Overview
MP3 overview Notes on MP3: · MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. · This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. · The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write. - Page 25 Notes on creating your own CD-R or CD-RW containing MP3 files: · To enjoy high quality sound, we recommend converting to MP3 files with a sampling frequency of 44.1 kHz and a fixed bit rate o f 128 kbps. · DO NOT store more than 448 MP3 files per disc.
-
Page 26: Dvd Setup
DVD setup Press SETUP button on the remote control to display DVD setup screen. Use LANGUAGE the cursor buttons to select the desired option or item. Press ENTER button to VIDEO confirm option. RATING Language setup LANGUAGE OSD MENU SUBTITLE AUDIO DVD MENU RESUME PLAY... - Page 27 Setting DVD Menu Language Select a kind of language for the menu of DVD disc from the languages which are contained in the DVD disc: English, German, French, Spanish, Italian, Dutch, Russian. Video setup VIDEO TV DISPLAY TV SYSTEM Setting TV Display type 4: 3PS (pan scan): It is adapted to the TV with common size.
- Page 28 Setting Password This item is originally set as locked status. Under this status, we can not make the selection on the RATING item or change the password. If you want to set the RATING , please input the password or the original password 0000 (if you set it for the first time).
-
Page 29: Anti-Theft System
Anti-theft system Remove the panel 1. Press the POWER button to turn the power off. 2. Press OPEN button to flip down the panel. 3. Gently press the right side of the panel. 4. Pull the panel out. 5. Place the panel into the case and take it with you when you leave the car. Remove the unit 1. -
Page 30: Handling Discs
Handling discs · Dirty, scratched or warped discs may cause skip ping or noise. · Handle the disc only by the edges. To keep clean do not touch its surface. · Discs should be stored in their cases after use to avoid scratches. ·... -
Page 31: Troubleshooting Guide
Troubleshooting guide Cause Solution Symptom General The car ignition is not on. If the power supply is properly connected to the car No power The fuse is blown. accessory switch the ignition key to ACC . Replace the fuse. Disc Presence of disc inside the player. -
Page 32: Specification
Specification General Power supply: 14.4 V DC Current consumption: Max. 10 A Maximum power output: 60 W x 4 channels Compatible formats: DVD/SVCD/VCD/HDCD/MP3/MP4/DivX/MPEG4/WMA/CDDA/Picture -CD/JPEG/CD-R/ -RW/DVD±R/±RW playback Dimensions (L x W x H) / weight: 192 x 178 x 50 mm / 1.75 kg Working temperature range: -10º... - Page 33 Audio specification Maximum output: 2 Vrms (+/- 3 dB) Frequency response: 20 Hz - 20 KHz S/N ratio(A-vtd): 85 dB Separation 80 dB DSP sound effect: Classic, Rock, Pop, Flat Line out Output: CD max 2000 mV TV bands VL, VH, VHF Color system PAL/SECAM Sound system...
- Page 34 ..............................34 ..........................35 ..........................36 ............................39 ............................43 ............................46 ...............................49 .........................50 ..........................51 3 ..............................57 ..........................62 ............................62 ..............................63 ....................64 ........................65...
- Page 35 · -10º · · · · · · · · · · · · ·...
- Page 36 4,75 5,56...
- Page 38 ISO, (+)--- (-)--- (+)--- 12 (+)/ (-)--- (+)--- (-)--- ACC+/ (+)--- (-)---...
- Page 39 PWR/MOD. Wide. 16:9 4:3: RESET OPEN. EJECT.
- Page 40 [1-6] SET ( AF, TA, PTY, EON) PLAY/PAUSE RPT. INT ( Intro. SEEK +/- ( RDM. 18. CD+. 19. CD-.
- Page 41 MOD. POWER. BAND: RADIO. ENTER. STOP/REVERSE. AMS/PAUS. LOC/PLAY. VOL+/-. OSD. TITLE ( SUB.T ( SETUP. ANGLE ( MUTE.
- Page 42 ZOOM ( DVD/VCD SEL - 9/:. AUDIO. GOTO. (CR 2025 3V),...
- Page 43 RESET, POWER/MODE POWER POWER/MODE VOL + VOL - VOL/BASS/TREBLE/BALANCE/FADER/LOUDNESS/EQ. DSP)
- Page 44 VOL 2 DSP) VOL 3 VOL 4 VOL 5 LOUD, LOUD. : OFF, POP, ROCK, CLAS, JAZZ. : VOL BAS TRE FAD BAL. · · · MUTE...
- Page 45 POWER/MODE MODE /DVD/ /AUX POWER/MODE DVD, WIDE : 16:9 4:3. OPEN OPEN SCREEN...
- Page 46 RDS ( MODE, - RADIO. : FM1, FM2, FM3, FM (OIRT), MW1, MW2. · · (18 FM, 12 AM). · 9/:. 1~6,...
- Page 47 · 1~6. 9/:, · AMS/PAUSE AMS. · AMS/PAUSE 1~6. AMS. AF ( ON (...
- Page 48 TA ( (TA-VOL). SEEK, SCAN, AMS PTY ( RDS, PTY. NO PTY, , NO PTY PTY.
- Page 49 EON ( EON, LOC ON ; _DX_ . MODE AMS/PAUSE...
- Page 50 PBC ( PBC, DVD-...
- Page 51 · CD,DVD/SVCD/VCD/HDCD/MP3/ MP4/WMA/CDDA/Picture-CD/JPEG/CD-R/-RW/DVD±R/±RW. · : MP3 (*.mp3) WMA (*.wma) : MP4 (*.avi, DIVX3.11/4.0/5.0/6.0 and XVID) MPEG 2(*.vob) MPEG 1(*.dat) : JPEG (*.jpg) · ISO 9660 ISO 9660 + Joliet - · 448. · · · - 99 · 44,1 · : 32 - 320 ·...
- Page 52 EJECT, PLAY/PAUSE LOC/PLAY PLAY/PAUSE AMS/PAUSE PLAY/PAUSE 1-9, 0, 10+...
- Page 53 : 2, 4, 8, 20. PLAY/PAUSE, · VCD/CD/MP3 RPT ONE ( ) => RPT OFF ( · RPT CHAP ( ) => RPT TITL ( ) => RPT ALL RPT. CD/VCD/MP3) RDM, Intro ( CD/VCD) INT,...
- Page 54 GOTO GOTO, => => => ENTER, PBC ( PBC, PLAY/ PAUSE, STOP VCD. ENTER PLAY/PAUSE...
- Page 55 PAL/SECAM/NTSC. AUTO/PAL/NTSC. · AUDIO · AUDIO STEREO ( SUB.T OSD. (DVD/VCD/MPEG4/CD),...
- Page 56 TITLE, ENTER. DVD- ANGLE ZOOM.
- Page 57 · MPEG 3 · CD-ROM, CD-R CD-RW. · ISO 9660. · .mp3 . · .mp3 , · · 448. · · · VBR, . VBR:...
- Page 58 CD-R CD-RW, · 44,1 · · ISO 9660, · CD-R · MP3 CD-R CD-RW · · CD-R CD-RW CD-R CD-RW · 1. ID3TAG. ·...
- Page 59 SETUP, ENTER, ENTER, ENTER DVD-...
- Page 60 DVD- DVD- 4: 3PS (pan scan): 4: 3LB (letter box): 16:9 (wide screen): NTSC, PAL,...
- Page 61 « ». «0000» ( ENTER ENTER, ENTER...
- Page 62 POWER. OPEN, · · · · ·...
- Page 63 · · ·...
- Page 64 RESET.
- Page 65 14.4 : 60 DVD/SVCD/VCD/HDCD/MP3/MP4/DivX/MPEG4/WMA/CDDA/Pictur e-CD/JPEG/CD-R/ -RW/DVD±R/±RW 192 178 50 / 1.75 -10º - +60º CD, 120 480 234 dpi 65.0 74.0 / 87.5 108.0 MHz 522-1620...
- Page 66 RMS (+/-3 (A-vtd): Classic, Rock, Pop, Flat . 2000 VL, VH, VHF PAL/SECAM BG/DK/I...
