Summary of Contents for Darfon PVI5000

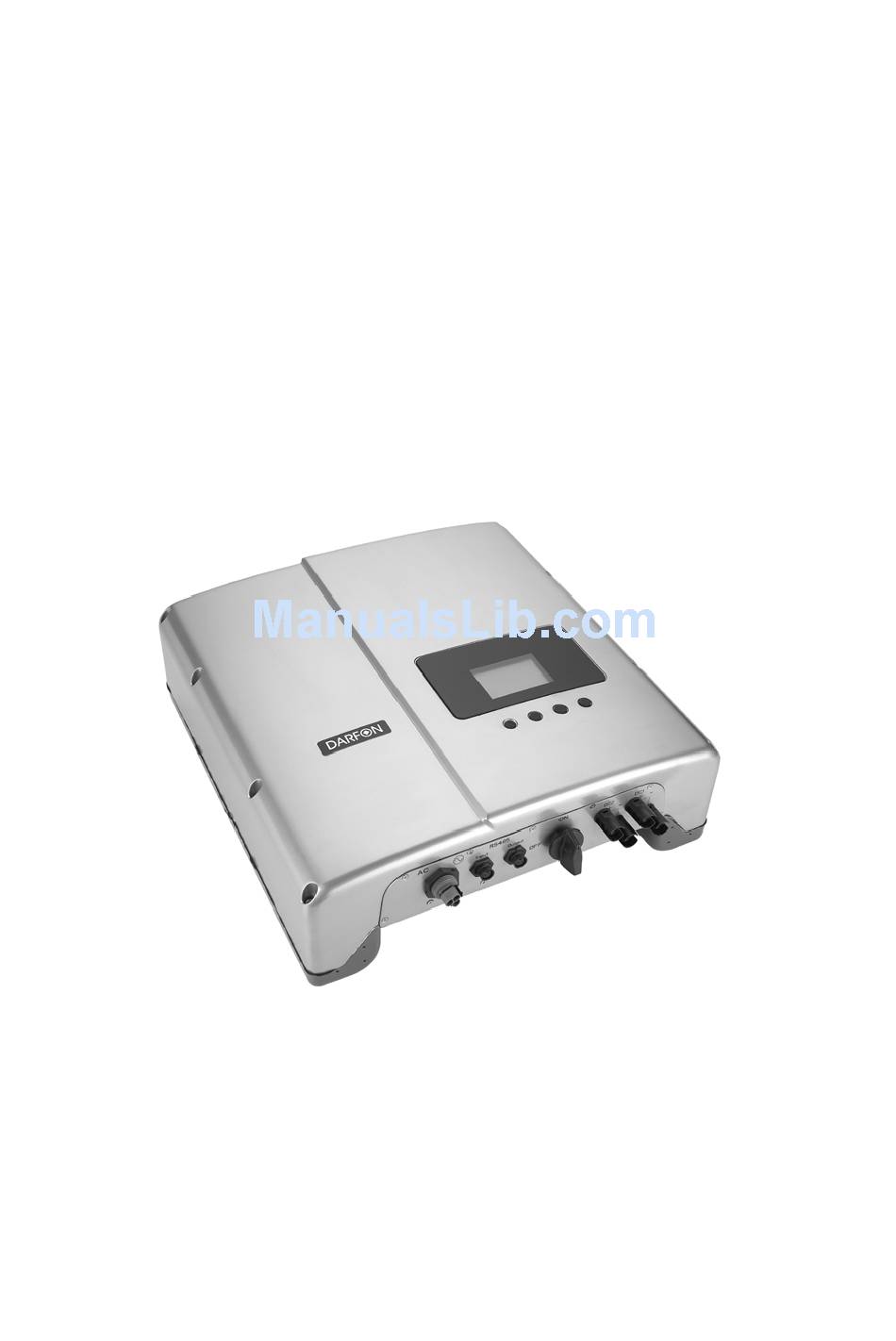

- Page 1 Installation and Operating Manual...
- Page 2 Careful optimization of the overall inverter system’s cost and efficiency lead to the choice of a 550V DC maximum system voltage for the PVI5000 for use with 1 kW to 5.3 kWPV arrays per inverter. The PVI5000 inverter is designed to cover solar electric power into utility grade electricity that can be used by home or local power company.
- Page 3 PVI5000 inverter goes into the Grid with MPPT mode that turns the AC relays on and begins feeding the AC voltage into the grid steadily. When all of the input DC voltages fall below the initial voltage setting which is 100Vdc, the PVI5000 inverter will then shut itself down.
-
Page 4: Specification Table
1.2 Specification Table Model Name PVI 5000 Grid Side (AC output) AC Nominal Voltage / Range 220-240 V / 180-280 V AC Grid Frequency 50 / 60 Hz Nominal Output Power 4600 W Maximum Output Power 5000 W Maximum Output Current 22 A Waveform True sine... - Page 5 PV 5000 Model Name General Specification Dimensions (W x H x D) 470 * 490 * 170 in mm Weight / Shipping Weight 28 kg Cooling Fan Controlled Ambient Temperature Range -20°C to 60°C Protection Degree IP65 Topology Transformer-less Others DC Connection Tyco(Std.)/MC3(Opt.)/MC4(Opt.) DC Switch...
-
Page 6: Installing Accessories
1.3 Installing Accessories Operating Manual AC Connector DC Connector (female) DC Connector (male) RS485/RS422 Connector Bracket... -
Page 7: Safety Notification
2.Safety 2.1 Safety Notification The PVI5000 inverters may contain high voltages and the risk of electrical shock, even when no external voltage is present. Only the trained qualified electrical personnel are allowed to perform the electrical installation, wiring, opening, repair, and modification of the PVI5000 inverters. -
Page 8: Safety Symbols
2.2 Safety Symbols To reduce the risk of injury and to ensure the continued safe operation of this product, the following safety instructions and warnings are marked in this manual. Warning, risk of electric shock The lighting flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of dangerous voltage with in the product’s enclosure that may... -
Page 9: Wiring The Inverter
2.3 Wiring the Inverter The following three sections describe the connections of wirings for the DC, AC, and communication ports. The PVI5000 has two (2) pairs of DC connection terminals, string A and B. The DC connection terminals are used to connect to PV strings through circuit breakers. - Page 10 2.3.1 DC Cable Connection The PVI5000 is designed to support two independent PV strings, string A and B. Each PV string shall provide a DC input voltage with maximum power of 3000 W and maximum current of 12 A. The are two (2) terminals, labeled as “+”...
- Page 11 PVI5000 inverters away from any possible hazards that could damage the cables. WARNING! Allow at least 5 minutes for PVI5000 inverter to discharge energy completely, since the hazardous voltage will remand on the device after disconnecting all PV DC input.
-
Page 12: Operation Feature
While PVI5000 detect the connection type of PV arrays is parallel mode, PVI5000 has one set of MPPT. MPPT built in program can make the PV arrays achieve the optimum power efficiency. In contrast, if PVI5000... -
Page 14: Technical Specifications
2.5 Technical Specifications PVI 5000 Model Name Grid Side (AC output) AC Nominal Voltage / 220-240 V / 180-280 V Range AC Grid Frequency 50/60 Hz Nominal Output Power 4600 W Maximum Output Power 5000 W Maximum Output Current 22 A Waveform True sine Power Factor... - Page 15 Efficiency Max. Efficiency > 96.5 % Euro. Efficiency > 95.5 % Consumption: < 20 W / < 0.5 W Operating(standby)/Night General Specification Dimensions (W x H x D) in mm 430 * 495 * 166 Weight / Shipping Weight 28 kg Cooling Fan Controlled Ambient Temperature Rang...
- Page 16 Manufactured by: DARFON ELECTRONICS CORP. 167 Shan-ying Road, Gueishan, Taoyuan 333, Taiwan, (R.O.C.)
