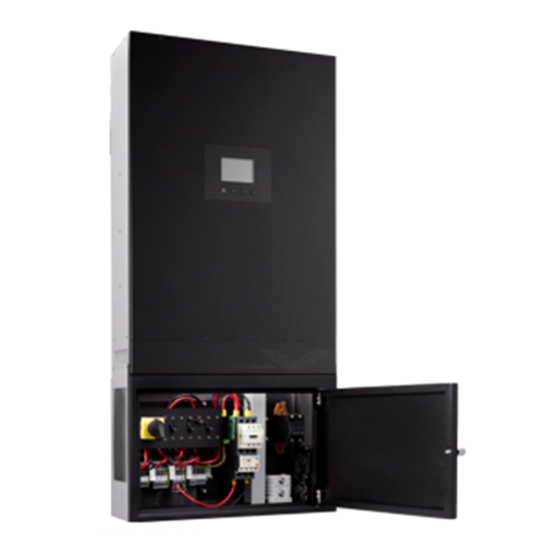

INSTALLATION MANUAL
H5001 HYBRID INVERTER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H5001 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Darfon H5001

Summary of Contents for Darfon H5001

  • Page 1 INSTALLATION MANUAL H5001 HYBRID INVERTER...

  • Page 2: Table Of Contents

    I N S T A L L A T I O N M A N U A L H 5 0 0 1 H Y B R I D I N V E R T E R TABLE OF CONTENTS IMPORTANT SAFETY WARNINGS ....................

  • Page 3: Important Safety Warnings

    I N S T A L L A T I O N M A N U A L H 5 0 0 1 H Y B R I D I N V E R T E R IMPORTANT SAFETY WARNINGS PLEASE READ ALL INSTRUCTIONS AND CAUTIONARY MARKINGS ON THE UNIT AND THIS MANUAL BEFORE USING THE INVERTER.

  • Page 4: Introduction

    I N V E R T E R INTRODUCTION BASIC HYBRID PV STORAGE SYSTEM OVERVIEW The H5001 hybrid inverter provides power to the essential load by utilizing power from PV panels, the utility and batteries. When the PV panels (two string input) generates...

  • Page 5: Mounting The Inverter

    Before installation, make sure nothing inside the package is damaged. You should have received the following items in the package: H5001 hybrid inverter, backplate, brackets, screws and this installation manual. The following considerations must be taken into account before selecting where to install.

  • Page 6: Pv Module (Dc) Connection

    Class A-rated. To avoid any malfunction, do not connect any PV modules with possibility of leakage current to the inverter. For example, non-grounded PV modules will cause leakage current to the inverter. CAUTION. To reduce the risk of damage due to surge, Darfon recommends surge protection between the modules and the inverter.

  • Page 7: Grid (Utility) Connection

    I N S T A L L A T I O N M A N U A L H 5 0 0 1 H Y B R I D I N V E R T E R GRID (UTILITY) CONNECTION There is an AC (Grid) circuit breaker in the distribution box.

  • Page 8: Battery Connection And Charging Requirements

    I N S T A L L A T I O N M A N U A L H 5 0 0 1 H Y B R I D I N V E R T E R BATTERY CONNECTION AND CHARGING REQUIREMENTS There is a DC (Battery) circuit breaker in the distribution box.

  • Page 9: Battery Charging Requirements

    The default charging parameters are shown below. Use this as a reference to make sure the battery selected is compatible with H5001 inverter. It is recommended that you use a deep cycle battery when the mode of operation is not set as one of the two back-up modes. If you want to change battery charging parameters, please refer to the remote setting on page 25.
  • Page 10 2. Lithium Battery Charging Characteristics Charging Parameter Default Value Max. Charging Current Golden Crown Battery Charging Voltage 56Vdc Darfon Battery Charging Voltage 57.4Vdc Panasonic Battery Charging Voltage 52Vdc Charging process based on default setting. The three stages: First - charging voltage increases to Charging voltage.

  • Page 11: Load (Ac Output) Connection

    I N S T A L L A T I O N M A N U A L H 5 0 0 1 H Y B R I D I N V E R T E R LOAD (AC OUTPUT) CONNECTION There are two AC circuit breakers inside the distribution box for the load connection;...

  • Page 12: Operation And Display Panel

    I N S T A L L A T I O N M A N U A L H 5 0 0 1 H Y B R I D I N V E R T E R OPERATION AND DISPLAY PANEL Display Panel Overview The display panel consists of four function keys and an LCD screen.

  • Page 13: Lcd Screen - Icons And Pages

    I N S T A L L A T I O N M A N U A L H 5 0 0 1 H Y B R I D I N V E R T E R LCD Screen – Icons and Pages The LCD screen will display three different pages: “Power Flows”, “Power Information”...

  • Page 14: Mode Rule Definition

    I N S T A L L A T I O N M A N U A L H 5 0 0 1 H Y B R I D I N V E R T E R Mode Rule Definition This hybrid inverter has six modes of operation for backup, residential and time of use.

  • Page 15: System Settings

    Darfon representative. R e v . 1 © 2 0 1 8 D a r f o n E l e c t r o n i c s C o r p .
  • Page 16 I N S T A L L A T I O N M A N U A L H 5 0 0 1 H Y B R I D I N V E R T E R B. Setting System Time →...

  • Page 17: Warning And Fault Definition

    I N S T A L L A T I O N M A N U A L H 5 0 0 1 H Y B R I D I N V E R T E R Warning and Fault Definition On the Power Flows Page, the icon will flash when an error has occurred.
  • Page 18 I N S T A L L A T I O N M A N U A L H 5 0 0 1 H Y B R I D I N V E R T E R On the Power Flows Page, the icon will flash when an overload has occurred.

  • Page 19: Generator [Optional]

    I N S T A L L A T I O N M A N U A L H 5 0 0 1 H Y B R I D I N V E R T E R GENERATOR [OPTIONAL] The inverter can only work with “split-phase” generators that delivers clean 120/240Vac at 60Hz. Single-phase and three-phase generators are not compatible with this inverter.

  • Page 20: Configuring The Hardware

    FUNCTION DESCRIPTION REMARKS AUX. PORT FOR GENERATION FUNCTION EXTERNAL DISPLAY PORT FOR H100/H200 CABINET USE PARALLELED COMMUNICATION PORT FOR H5001 PARALLELED FUNCTION BOOT-LOAD AND COMMUNICATION JUMPER. USB PORT RS-485 SLAVE FOR DATA LOGGER USE/REMOTE CONTROL USE RS-485 MASTER FOR BMS USE R e v .
  • Page 21 Rx-2 Step 3: Please make sure the jumper pins on Tx-2 and Rx-2. Step 4: The H5001 hybrid inverter need to connect the power, either choices PV, Battery or Grid. Then use the application software setting your parameters. R e v . 1 ©...

  • Page 22: Use Application Software Modifies Parameters

    I N S T A L L A T I O N M A N U A L H 5 0 0 1 H Y B R I D I N V E R T E R USE APPLICATION SOFTWARE MODIFIES PARAMETERS Preparation Download the H5000 application software from Darfonsolar website: http://www.darfonsolar.com/downloads/ Connecting to the application software and modifies parameters...
  • Page 23 I N S T A L L A T I O N M A N U A L H 5 0 0 1 H Y B R I D I N V E R T E R Step3: Click “Option”, and select port Step4: Click “Read All Parameter”...
  • Page 24 I N S T A L L A T I O N M A N U A L H 5 0 0 1 H Y B R I D I N V E R T E R Step6: Click “one Inverter”, every group has its write one inverter button. Device Remote Setting Step7: Click “確定”, it means ok if “Write successfully”...

  • Page 25: Parameters Setting Tables

    MULTI-MODULE 1: PARALLEL MALFUNCTION! 2: THREE PHASE 0: DEFAULT 1: LEAD-ACID BATTERY TYPE 2: GOLDEN CROWN 3: DARFON 4: PANASONIC CHARGE CURRENT 10A ~ 60A MAX BATTERY CHARGING CURRENT BAT LOW VOLTAGE 44.0V ~ 48.0V BATTERY CUT OFF VOLTAGE BAT HIGH VOLTAGE 54.0V ~ 58.0V...

  • Page 26: Maintenance & Cleaning

    40A or less, and (2) All wiring must be sized for 40A or more. NOTES: The H5001 has L1 and L2 connections for two AC input sources, although it can only accept one source at a time. The H5001 has separate neutral connections for grid input, generator input and output. These are electrically common.

  • Page 27: Specifications

    I N S T A L L A T I O N M A N U A L H 5 0 0 1 H Y B R I D I N V E R T E R SPECIFICATIONS SOLAR DC INPUT Maximum Power 6500W Operation / MPPT Voltage Range...

  • Page 28: Grid Support Paramerters

    I N S T A L L A T I O N M A N U A L H 5 0 0 1 H Y B R I D I N V E R T E R GRID SUPPORT PARAMERTERS (UL1741SA) Manufacturer Stated Tolerances Inverter AC Output VOLTAGE...
  • Page 29 I N S T A L L A T I O N M A N U A L H 5 0 0 1 H Y B R I D I N V E R T E R 235 - 245V Deadband range (V) Power Ramp Rate ACCURACY DESCRIPTION...

  • Page 30: 5-Year Limited Warranty

    Darfon’s Return Merchandise Authorization policy and procedure on behalf of the end user. If the original installer cannot be contacted, the end user will need to contact Darfon for a referral to a local authorized installer. This Limited Warranty will be void if the Product is uninstalled and returned by an unauthorized installer.
  • Page 31 Tel: +886 3 2508800 Tel: +1.650.316.6300 ©2018 Darfon Electronics Corp. All rights reserved. All specifications are subject to change without prior notice. Darfon and the Darfon logo are trademarks of Darfon Electronics Corp. All other trademarks are the property of the respective owners.
