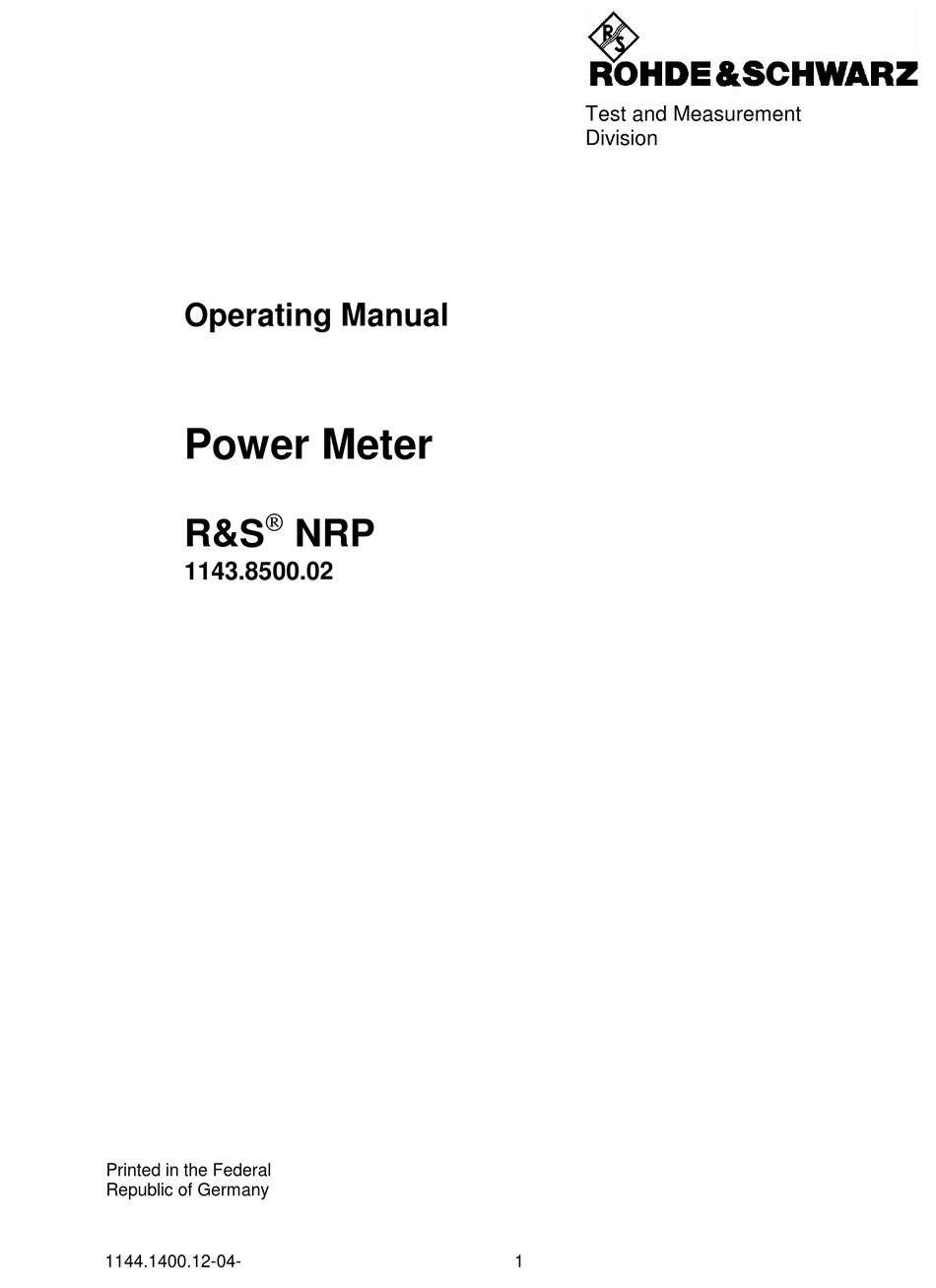

Page 1: Operating Manual
Test and Measurement Division Operating Manual Power Meter  R&S 1143.8500.02 Printed in the Federal Republic of Germany 1144.1400.12-04-...
Page 2 Dear Customer, R&S® is a registered trademark of Rohde & Schwarz GmbH & Co. KG. Trade names are trademarks of the owners. 1144.1400.12-04-...
Page 3 R&S NRP Supplement Supplement to Operating Manual R&S NRP 1144.1400.12-04- Dear Customer, Your power meter is equipped with firmware version ≥ 03.00. A number of functions have been modified since the printing of the manual, and the modifications are described in the following. Battery operation System Bat…...
Page 4 Supplement R&S NRP The data sheet specifies how long the R&S NRP can be operated from the battery. The battery operating time depends on the number and type of the connected sensors and especially on the brightness of the display backlighting. The battery can be charged at temperatures between 5°C and 30°C and discharged at temperatures ranging from 0°C to 40°C.
Page 5 R&S NRP Supplement (¶ MENU) The calibration cycle is performed. First of all, the battery is fully ä charged, then fully discharged and finally fully charged again. This process may take between 11 and 20 hours depending on the charge status of the battery at the beginning of the calibration cycle.
Page 6 R&S NRP Supplement Supplement to Operating Manual R&S NRP 1144.1400.12-04- Dear Customer, Your power meter is equipped with firmware version ≥ 03.00. A number of functions have been modified since the printing of the manual, and the modifications are described on the following pages. Ethernet For remote control via a TCP/IP-based LAN, the R&S NRP can be fitted with an optional 10/100BaseT Ethernet interface (option R&S NRP-B4).
Page 7 Supplement R&S NRP VXI11 The VXI11 protocol uses ONC RPC (open network computing remote procedure calls), making it possible to call R&S NRP functions at the source code level as if they were running locally on the controller. The following figure shows the relationships of the relevant protocol layers in the OSI reference model.
Page 8: Connection Setup
R&S NRP Supplement Communication channels of a VXI11 connection Channel Meaning Core All client-server communication, excluding aborts and interrupts, is handled via this channel. Abort Since the commands in the core channel are serialized and therefore cannot be interrupted, asynchronous abort commands must be transmitted via a separate, independent channel. This channel serves no further purpose.
Page 9 Supplement R&S NRP VXI11 protocol functions Function name Channel Meaning core Opens a link to a network instrument device, setting up socket connections for the create_link() core and abort channels, but not for the interrupt channel. destroy_link() core Cancels a link to a network instrument device. core Sends an IEEE 488.2 or SCPI command as a string to a network instrument device.
Page 10 R&S NRP Supplement If the R&S NRP is connected to a controller via a USB 1.1 interface, it logs on as a USBTMC (USB test and measurement class) device, provided that USB is selected as a remote interface in the System Remote menu.
Page 11 R&S NRP Tabbed Divider Overview Tabbed Divider Overview Data Sheet Safety Instructions Certificate of Quality EU Certificate of Conformity List of R&S Representatives Tabbed Divider Chapter 1: Putting into Operation Chapter 2: Getting Started Chapter 3: Operation Chapter 4: Functional Description Chapter 5: Remote Control –...
Page 12 Before putting the product into operation for the first time, make sure to read the following S a f e t y I n s t r u c t i o n s Rohde & Schwarz makes every effort to keep the safety standard of its products up to date and to offer its customers the highest possible degree of safety.
Page 13: Safety Instructions
Safety Instructions Observing the safety instructions will help prevent personal injury or damage of any kind caused by dangerous situations. Therefore, carefully read through and adhere to the following safety instructions before putting the product into operation. It is also absolutely essential to observe the additional safety instructions on personal safety that appear in other parts of the documentation.
Page 14 Safety Instructions 4. If products/components are mechanically 10. Intentionally breaking the protective earth and/or thermically processed in a manner connection either in the feed line or in the that goes beyond their intended use, product itself is not permitted. Doing so can hazardous substances (heavy-metal dust result in the danger of an electric shock such as lead, beryllium, nickel) may be...
Page 15 Safety Instructions 19. If a product is to be permanently installed, matching Rohde & Schwarz type (see the connection between the PE terminal on spare parts list). Batteries and storage site and the product's PE conductor must batteries are hazardous waste. Dispose of be made first before any other connection them only in specially marked containers.
Page 16 Por favor lea imprescindiblemente antes de la primera puesta en funcionamiento las siguientes informaciones de seguridad Informaciones de seguridad Es el principio de Rohde & Schwarz de tener a sus productos siempre al día con los estandards de seguridad y de ofrecer a sus clientes el máximo grado de seguridad. Nuestros productos y todos los equipos adicionales son siempre fabricados y examinados según las normas de seguridad vigentes.
Page 17 Informaciones de seguridad Tener en cuenta las informaciones de seguridad sirve para tratar de evitar daños y peligros de toda clase. Es necesario de que se lean las siguientes informaciones de seguridad concienzudamente y se tengan en cuenta debidamente antes de la puesta en funcionamiento del producto. También deberán ser tenidas en cuenta las informaciones para la protección de personas que encontrarán en otro capítulo de esta documentación y que también son obligatorias de seguir.
Page 18 Informaciones de seguridad seguridad (control a primera vista, control de peligro a causa de la radiación conductor protector, medición de resistencia electromagnética. El empresario está de aislamiento, medición de medición de la comprometido a valorar y señalar areas de corriente conductora, control trabajo en las que se corra un riesgo de...
Page 19 Informaciones de seguridad 12. No utilice nunca el producto si está dañado el 20. En caso de que los productos que son cable eléctrico. Asegure a través de las instalados fijamente en un lugar sean sin medidas de protección y de instalación protector implementado, autointerruptor o adecuadas de que el cable de eléctrico no similares objetos de protección, deberá...
Page 20 Informaciones de seguridad 27. Baterías y acumuladores no deben de ser 31. Las asas instaladas en los productos sirven expuestos a temperaturas altas o al fuego. solamente de ayuda para el manejo que Guardar baterías y acumuladores fuera del solamente está previsto para personas. Por alcance de los niños.
Page 21 Certified Quality System Certified Environmental System ISO 9001 ISO 14001 DQS REG. NO 1954 QM DQS REG. NO 1954 UM Qualitätszertifikat Certificate of quality Certificat de qualité Sehr geehrter Kunde, Dear Customer, Cher client, Sie haben sich für den Kauf eines Rohde & You have decided to buy a Rohde &...
Page 22 EC Certificate of Conformity Certificate No.: 2002-36 This is to certify that: Equipment type Stock No. Designation 1143.8500.02 Power Meter NRP-B1 1146.9008.02 Sensor Check Source NRP-B2 1146.8801.02 Second Sensor Input NRP-B5 1146.9608.02 3rd und 4th Sensor NRP-B6 1146.9908.02 Rear-Panel Sensor NRP-Z3 1146.7005.02 USB Adapter...
Page 23 Support Center Telefon / Telephone: +49 (0)180 512 42 42 Fax: +49 89 41 29 137 77 E-mail: CustomerSupport@rohde-schwarz.com Für technische Fragen zu diesem Rohde & Schwarz-Gerät steht Ihnen die Hotline der Rohde & Schwarz Vertriebs-GmbH, Support Center, zur Verfügung. Unser Team bespricht mit Ihnen Ihre Fragen und sucht Lösungen für Ihre Probleme.
Page 24 Adressen/Addresses FIRMENSITZ/HEADQUARTERS Phone Zweigniederlassung Süd, Geschäftsstelle +49 (89) 41 86 95-0 München +49 (89) 40 47 64 E-mail Mühldorfstraße 15 · D-81671 München Postfach 80 14 69 · D-81614 München Rohde & Schwarz GmbH & Co. KG +49 (89) 41 29-0 Mühldorfstraße 15 ·...
Page 25 Adressen/Addresses Canada ROHDE & SCHWARZ CANADA Inc. +1 (613) 592 80 00 Denmark ROHDE & SCHWARZ DANMARK A/S +45 (43) 43 66 99 555 March Rd. +1 (613) 592 80 09 Ejby Industrivej 40 +45 (43) 43 77 44 Kanata, Ontario K2K 2M5 cgirwarnauth@rscanada.ca 2600 Glostrup Canada...
Page 26 Adressen/Addresses India ROHDE & SCHWARZ India Pvt. Ltd. +91 (80) 535 23 62 Kenya Excel Enterprises Ltd +254 (2) 55 80 88 Bangalore Office +91 (80) 535 03 61 Dunga Road +254 (2) 54 46 79 No. 24, Service Road, Domlur rsindiab@rsnl.net P.O.Box 42 788 2nd Stage Extension...
Page 27 Adressen/Addresses Norway ROHDE & SCHWARZ NORGE AS +47 (23) 38 66 00 Spain ROHDE & SCHWARZ ESPANA S.A. +34 (91) 334 10 70 Enebakkveien 302 B +47 (23) 38 66 01 Salcedo, 11 +34 (91) 329 05 06 1188 Oslo rses@rses-rohde-schwarz.com 28034 Madrid Oman...
Page 28 Adressen/Addresses United Arab ROHDE & SCHWARZ Bick Mobile +971 (4) 883 71 35 Emirates Communication +971 (4) 883 71 36 P.O.Box 17466 www.rsbick.de Dubai United Arab ROHDE & SCHWARZ Emirates L.L.C. +971 (2) 631 20 40 Emirates Ahmed Al Nasri Building, Mezzanine Floor, +971 (2) 631 30 40 P.O.Box 31156 rsuaeam@emirates.net.ae...
Page 29: Table Of Contents
R&S NRP Table of Contents Chapter 1 Table of Contents Putting into Operation ......................1.1 Notes on putting into operation......................1.1 Unpacking the meter........................1.1 Setting up the meter ........................1.2 Front and rear views ........................1.3 Front panel..........................1.3 Rear panel ..........................1.5 Installation in a 19" rack ........................1.7 AC supply voltage ..........................1.7 AC supply fuses ..........................1.7 EMC..............................1.7...
Page 30: Putting Into Operation
R&S NRP Notes on putting into operation 1 Putting into Operation This Chapter describes putting into operation (unpacking, AC supply connection, switching the meter on and off), function testing and installing the meter, the preset or default settings and also contains front and rear views of the meter.
Page 31: Setting Up The Meter
Notes on putting into operation R&S NRP Setting up the meter Carrying handle If the R&S NRP is not installed in a rack, it should be set up so that the viewing angle for the display is optimal. The carrying handle can be locked in a variety of positions to act as a stand.
Page 32: Front And Rear Views
R&S NRP Front and rear views Front and rear views NRP POWER METER MENU DEL/1 TRIG ESC LOCAL FREQ PRE SET ZERO CAL Front panel Sensor connector The front panel accommodates a maximum of two sensor connectors (for sensors A and B). The power sensors are connected by inserting the male connector.
Page 33 Front and rear views R&S NRP Keypad See Chapter 3 (Manual Operation). MENU DEL/1 TRIG ESC LOCAL FREQ PRE SET ZERO CAL 1144.1400.12...
Page 34: Rear Panel
R&S NRP Front and rear views Rear panel IEEE 488 SCPI TRIG / OUT 2 OUT 1 ETHERNET LR 114 196 ® AUTOMATIC POWER SELECTION 100 ... 120 V 50 ... 400 Hz 220 ... 240 V 50 ... 60 Hz 80 VA SENSOR INPUT C (A)
Page 35 Front and rear views R&S NRP AC supply connector The AC supply connector comprises a standard, IEC low- temperature connector and contains a fuse holder for two miniature fuses. The fuse holder can be taken out with a screwdriver. AC supply voltage on page 1.7 for more on con- necting the AC supply.
Page 36: Installation In A 19" Rack
R&S NRP Installation in a 19" rack Installation in a 19" rack Caution If the meter is rack-mounted ensure there is a free flow of air through the holes in the side panels. The R&S NRP can be installed in 19" racks using a variety of rack adapters (see data sheet for order Nos.).
Page 37: Switching The Meter On/Off
Switching the meter on/off R&S NRP Switching the meter on/off ( Ø ) key ON/STANDBY key The ON/STANDBY key is used to toggle between the on and standby states. Yellow LED (AC supply) The yellow LED indicates that the AC supply is connected to the R&S NRP.
Page 38 R&S NRP Switching the meter on/off Addressability check on the interfaces for the sensor chan- nels. Only one of the icons shown on the left is displayed to show the number of channels that have been installed. Channel A. Appears if the device is single-channel. Channel A or channels A and B, fitted on the front panel.
Page 39: Resetting And Setting Brightness And Contrast
Switching the meter on/off R&S NRP If an error is detected when the non-volatile memory contain- ing instrument settings is checked, an error message is dis- played when booting is completed. The non-volatile memory is then re-initialized completely and the R&S NRP goes into the preset state.
Page 40: Preset
R&S NRP Preset Preset You can change the R&S NRP to a defined default state by pressing the ({PRE}SET) key twice. Various parameters including the following will be set as a result: • All channels in the Cont Av mode (continuous average power). •...
Page 41 R&S NRP Table of Contents Chapter 2 Table of Contents Getting Started ........................2.1 Requirements............................2.1 Measuring average power (Cont Av mode) ...................2.2 Window handling..........................2.11 Setting measurement functions....................2.16 Graphically representing power versus time (Scope mode) .............2.18 Measuring av. burst power (Burst Av mode)................2.21 Measuring average power in defined time interval..............2.22 1144.1400.12 I-2.1...
Page 42: Getting Started
R&S NRP Requirements 2 Getting Started This Chapter contains step-by-step instructions for simple measurements and provides an introduction to the R&S NRP's basic modes of operation. Each step is listed in order. The operating steps that are to be performed are highlighted in grey, while the sections between contain screenshots and also com- ments and references to more information.
Page 43: Measuring Average Power (Cont Av Mode)
Measuring average power (Cont Av mode) R&S NRP Measuring average power (Cont Av mode) Set the R&S NRP to the PRESET state. The instrument is set to a well-defined initial state to prevent any previous settings from causing incor- rect results. Put the R&S NRP into operation as described in Chapter 1 and connect a sensor to connector A.
Page 44 R&S NRP Measuring average power (Cont Av mode) Zeroing the meter A zero error correction is one of the meter’s default settings. This procedure should be repeated as and when necessary, but primarily when the sensor reaches its operating temperature. If the sensor is already connected to a signal source, switch off the power.
Page 45 Measuring average power (Cont Av mode) R&S NRP Frequency – Press the softkey Frequency A panel with all the characters you will need to enter the frequency is displayed next to the softkeys. Clear the field with the (DEL/1TRIG) key. 1 2 3 4 5 6 7 8 9 0 U .
Page 46 R&S NRP Measuring average power (Cont Av mode) Setting the unit in the display – Using the topmost rocker switch or the cursor keys ↔ ), select the menu. Measurement The menu opens out automatically for this procedure. Press the (¶ MENU) key, if the menu is not dis- played.
Page 47 Measuring average power (Cont Av mode) R&S NRP The result is displayed in W. 1144.1400.12...
Page 48 R&S NRP Measuring average power (Cont Av mode) Setting a fixed offset correction – Using the topmost rocker switch or the cursor keys ↔ ), select the menu. Sensor All sensor-related settings can be made in the Sensor menu. This determines the type and details of data ac- quisition.
Page 49 Measuring average power (Cont Av mode) R&S NRP Global – Activate the global offset correction by pressing the right-hand side of the rocker switch next to Global (¶ MENU) Accept the warning concerning the triggerlevel. Global offset correction is now on. The displayed value is increased or decreased depending on the sign of the offset.
Page 50 R&S NRP Measuring average power (Cont Av mode) Relative power measurements The R&S NRP can calculate and display the relative difference between a measured value and a refer- ence value. The reference value can be a measured value that has been saved or an arbitrary value that is entered.
Page 51 Measuring average power (Cont Av mode) R&S NRP Checking settings (window zoom). – Using the topmost rocker switch, or the cursor keys ↔ ), select the menu Windows menu contains all the functions required for Windows opening, closing and configuring windows. Select –...
Page 52: Window Handling
R&S NRP Window handling Window handling Up to four windows can be shown simultaneously on the R&S NRP‘s display. Each window can be con- figured for a separate measurement. The following examples show how to handle windows. Opening, creating, zooming and closing windows. ({PRE}SET) Press the ({PRE}SET) key twice.
Page 53 Window handling R&S NRP The third softkey is now labelled Close | Expand Close | Expand – Press the Expand key The window expands to occupy the full display height and indicates all parameters relevant to the measurement. The currently displayed values are the default values obtained after a preset.
Page 54 R&S NRP Window handling Window 1 now displays the function on an analog A Rel scale. Close | Arrange – Now, close window 1 with the softkey. Close “Select” in shows that window 1 is still selected. Window The labelling next to the third softkey is now Open | Init Open | Init...
Page 55 Window handling R&S NRP Display options softkeys are used to select various dis- D&A play modes. The standard display mode is ital measured value. Dig D/A Graph – Select the display mode. Window 1 now shows an analog scale and a digital read- ing.
Page 56 R&S NRP Window handling Auxiliary values (Maximum, Minimum, Max, Min, …). – Select the menu. Measurement ↔ Function… – Select in this menu. Function… The measurement function, unit, sensors used and the auxiliary value can be selected in the Function & Unit dialog box.
Page 57: Setting Measurement Functions
Setting measurement functions R&S NRP Setting measurement functions A multichannel meter with two sensors connected is required for this section. If only one sensor is available, you can only select the measurement functions "Primary" and "Secondary". Measuring one power relative to another. Connect the two sensors to connectors A and B on the R&S NRP and apply an unmodulated signal with a level between –10 dBm and +10 dBm to each of...
Page 58 R&S NRP Setting measurement functions Check whether is selected in the drop-down Sensor A list for the primary channel and in the drop- Sensor B down list for the secondary channel. If not, switch to the primary channel, for example. The secondary channel is then automatically set to the other sensor.
Page 59: Graphically Representing Power Versus Time (Scope Mode)
Graphically representing power versus time (Scope mode) R&S NRP Graphically representing power versus time (Scope mode) In the Scope mode, power versus time can be represented graphically as with an oscilloscope. If you wish to carry out time-dependent measurements (in the Burst or Timeslot mode) on modulated signals, displaying the signal in the Scope mode is always initially recommended since stable triggering by the R&S NRP is most clearly recognized in this mode.
Page 60 R&S NRP Graphically representing power versus time (Scope mode) Close | Expand – The window is now in the Scope display mode and shows the Trace page. The fields are used to choose the level range (the vertical resolution), and the field to choose the horizontal resolution.
Page 61 Graphically representing power versus time (Scope mode) R&S NRP Settings for reliable triggering Change to the Sensor menu. Trigger … – Open the dialog box. Trigger If the Trigger dialog box is opened in the Scope display, a dotted line indicates the trigger threshold in the diagram. (trigger threshold) Source Choose between external triggering (connector I/O2...
Page 62: Measuring Av. Burst Power (Burst Av Mode)
R&S NRP Measuring av. burst power (Burst Av mode) Measuring av. burst power (Burst Av mode) An R&S NRP-Z1x or R&S NRP-Z2x diode sensor is required for this measurement. To make measure- ments possible, a pulsed RF signal with a pulse repetition frequency not exceeding 10 kHz should be available.
Page 63: Measuring Average Power In Defined Time Interval
Measuring average power in defined time interval R&S NRP Measuring average power in defined time interval (Timeslot mode) In the Timeslot mode, average power can be measured in a defined time interval of any complex signal. An external trigger signal is normally used since it always ensures reliable triggering and the measure- ment of very low power.
Page 64 R&S NRP Measuring average power in defined time interval Settings to ensure reliable triggering (¶ MENU) Close the dialog box. Mode Trigger … – Open the dialog box. Trigger The Timeslot mode provides not only the Source Level parameters described in the section Settings for reli- able triggering but also the parameter which is used...
Page 65 R&S NRP Table of Contents Chapter 3 Table of Contents Manual Operation .......................3.1 Keys ..............................3.1 Screen layout ............................3.3 Menu layout............................3.5 Menu handling ..........................3.7 Dialog boxes and their controls......................3.8 Display windows..........................3.11 Window sizes and types ......................3.11 Special symbols ........................3.12 1144.1400.12 I-3.1...
Page 66: Manual Operation
R&S NRP Keys 3 Manual Operation This Chapter describes the controls, displays, etc, the screen layout and how to operate the R&S NRP. Keys Keys on the front panel of the meter are used to manually operate the instrument. There are several groups of keys, each group having a different function: Softkeys The six softkeys are rocker switches –...
Page 67 Keys R&S NRP As the (¶) key (i.e. Enter key), it is used to confirm entries Enter / MENU key in text fields and dialog boxes and to confirm selections in the drop-down lists. M E N U As the (MENU) key, it is used to fold out and fold back the menus next to the softkeys.
Page 68: Screen Layout
R&S NRP Screen layout Screen layout Window The R&S NRP displays results in windows. A maximum of four windows can be displayed simultaneously on the screen. They are numbered 1 to 4. Windows have a title bar which contains the number (not user-assignable) and a name (user-selectable) for the window.
Page 69 Screen layout R&S NRP Menus See p. 3.7, Menu handling for more information. Dialog boxes Dialog boxes can be opened from the menus. The dialog boxes present a group of related parameters that can be set. Dialog boxes on p. 3.8 for more information on handling dialog boxes.
Page 70: Menu Layout
R&S NRP Menu layout Menu layout Sensor All sensor settings can be made using the menu. Sensor The type and details of data acquisition can be specified with this menu. See Chapter 4, section "Data acquisition and parameters", for a detailed description. Windows menu is used to configure windows and the Windows...
Page 71 Menu layout R&S NRP File menu is used to handle the setup memories and File display information about the instrument and any sensors that have been connected. See Chapter 4, section "Management of settings", for a detailed description. System menu is used to handle functions that are not System specifically used to perform measurements.
Page 72: Menu Handling
R&S NRP Menu handling Menu handling The menus can contain up to eight menu items which are used to perform an action, open a dialog box or set a parameter. Perform action If the menu contains only one or two descriptive terms, an action is performed directly.
Page 73: Dialog Boxes And Their Controls
Dialog boxes and their controls R&S NRP Dialog boxes and their controls Dialog boxes contain check boxes, option fields, editing fields and drop-down lists as control elements. They are activated using the appropriate rocker switch to their right. If two control elements are posi- tioned side by side, the element on the left is operated with the left-hand side of the rocker switch and the element on the right with the right-hand side of the rocker switch.
Page 74 R&S NRP Dialog boxes and their controls Editing fields (cont.) In the editing fields for quantities with units, the left/right cursor keys can be used to select the unit too; the up/down cursor keys are used to edit it. Usually, the digit panel also contains a unit softkey which you can use to change the unit whenever you want.
Page 75 Dialog boxes and their controls R&S NRP Digit and letter panels Panels which are displayed when an editing field is acti- vated (see above) are used to enter digits, letters and units. Entering letters with the letter panel is like entering letters on a phone keypad.
Page 76: Display Windows
R&S NRP Display windows Display windows Window sizes and types Results are displayed in the main section of the screen in windows. Windows come in three sizes: half height, quarter height and full height. In windows, values can be displayed digitally or in a combined digital and analog mode (See Chapter 4, section "Displaying measurement results", for instructions on selecting these modes).
Page 77: Special Symbols
Display windows R&S NRP Special symbols The following table defines the individual symbols: Window symbols Display values Frequency in the primary and sec- Window number ondary channel Window name Close box, operated with the [¶] Auxiliary value; here, max-min (¶ MENU) key Measurement function Auxiliary value symbol Measurement function...
Page 78 R&S NRP Table of Contents Chapter 4 Table of Contents Instrument Functions ......................4.1 Hardkeys ............................4.2 Stored settings (Presets) ......................4.2 Frequency settings (FREQ) ......................4.3 Zeroing (ZERO/CAL) ........................4.3 Test Measurement (ZERO/CAL) ....................4.4 Test Report ........................4.5 Configuring the test measurement..................4.5 Contrast and brightness (Contrast/Brightness) ................4.6 Data acquisition and parameters (Sensor menu) .................4.7 Setting the measurement mode....................4.7 Free-running average-power measurements ..............4.8...
Page 79 Table of Contents Chapter 4 R&S NRP Configuring measurements (Measurement menu) ..............4.32 Measurement windows ......................4.32 The Measurement menu......................4.32 Selecting a window .......................4.32 Selecting a measurement function ...................4.33 Functions and their use....................4.34 Expanded configuration for sensors in the Scope mode ..........4.35 Setting units ........................4.36 Setting the auxiliary value .....................4.38 Resetting the extreme value display................4.38...
Page 80 R&S NRP Table of Contents Chapter 4 System information ........................4.62 Information about sensors ....................4.62 Information about the R&S NRP ...................4.63 Miscellaneous Operation at low ambient temperatures ............4.64 Messages and alarms ........................4.65 1144.1400.12 I-4.3...
Page 81 List of Figures and Tables Chapter 4 R&S NRP Figs. Fig. 4-1 Setup dialog box .......................4.2 Fig. 4-2 Frequency dialog box......................4.3 Fig. 4-3 Zero/Cal dialog box ......................4.3 Fig. 4-4 Zeroing error message......................4.4 Fig. 4-5 Zero/Cal dialog box ......................4.4 Fig. 4-6 Test Report dialog box ......................4.5 Fig.
Page 82 R&S NRP List of Figures and Tables Chapter 4 Fig. 4-45 Recall Setup dialog box ....................4.51 Fig. 4-46 Errorlist dialog box ......................4.52 Fig. 4-43 Menu bar in the remote control mode ................4.52 Fig. 4-48 Window Name dialog box ....................4.52 Fig. 4-49 System menu ........................4.54 Fig.
Page 83: Instrument Functions
R&S NRP Hardkeys 4 Instrument Functions This Chapter contains a systematic description of the R&S NRP’s functions in the order in which they occur in the menus. The grey text in the headings provides additional information that should prove helpful. •...
Page 84: Hardkeys
Hardkeys R&S NRP Hardkeys The main settings for the Power Meter R&S NRP can be accessed via hardkeys. Stored setting ({PRE}SET) ({PRE}SET) is used to change the instrument to its default state (Preset) or to a user-defined (Setup) state (maximum of 10 possible); pressing this key once opens the File menu; pressing it a second time loads the Preset setting.
Page 85: Zeroing (Zero/Cal)
R&S NRP Hardkeys Frequency setting (FREQ) (FREQ) is used to set the carrier frequency of the applied signal. This corrects any frequency- dependent effects introduced by the sensor. If the sensor is to reach the specified measurement accuracy, a frequency entry must be made. Hardkey (FREQ) ä...
Page 86: Test Measurement (Zero/Cal)
Hardkeys R&S NRP Starts zeroing in channel A. Zero A – ä Zeroing for channels B, C and D. Zero Remote Control Zero C CALibration[1..4]:ZERO:AUTO[?] ONCE Zero Zeroing failure If the power measured during zeroing is too large, the R&S NRP re- ports an error.
Page 87: Test Report
R&S NRP Hardkeys Opens a dialog box for entering tolerance limits. Config… – ä Test Report The test report shows the type and serial number of the tested sensor, and on two pages the deviations between the sensor and the power reference. Differences up to 0.02 dB at room temperature are abso- lutely normal and are due to the uncertainty in the calibration of the sensor and the power reference.
Page 88: Contrast And Brightness (Contrast/Brightness)
Hardkeys R&S NRP Zero/Cal dialog box Config… – ä Fig. 4-7 Config Test dialog box Tabs for selecting the measurement channel. When the dialog box A | B | C | D – ä ä ↔ opens, it shows the data of the sensor last tested. Tolerance limits for sensors without a lead-in attenuator or with an Test Limits –...
Page 89: Data Acquisition And Parameters (Sensor Menu)
R&S NRP Data acquisition and parameters (Sensor menu) Data acquisition and parameters Sensor - menu Depending on the options that have been installed, up to four sensors can be connected to the R&S NRP. The sensors perform the complete power measurement from the acquisition of the RF signal to every aspect of result processing.
Page 90: Free-Running Average-Power Measurements
Data acquisition and parameters (Sensor menu) R&S NRP multiple timeslots ( Measuring the power of TDMA signals, p. 4.13). The Timegate mode provides four user-configurable gates for meas- urement ( Measuring power in gates, p. 4.14). In the Scope mode, the R&S NRP records the power versus time and displays it graphically.
Page 91 R&S NRP Data acquisition and parameters (Sensor menu) N = 1, 2, 3, … This means that the minimum theoretical measurement time can only be obtained with smoothing turned off. The more modulation periods fit into a sampling window, the less criti- cal it is whether N is an integer or not.
Page 92 Data acquisition and parameters (Sensor menu) R&S NRP Background information Sampling window As the sensor amplifiers use chopping, a measurement comprises at least two sampling windows and a sensor- specific deadtime of a few 100 µs. Samples at equal time intervals over the duration of a sampling window are taken and a partial measurement result is formed from these samples.
Page 93: Measuring The Average Burst Power
R&S NRP Data acquisition and parameters (Sensor menu) Measuring the average burst power Mode : Burst Av The Burst Average mode is the simplest method of measuring the average burst power. It is available with sensors from the R&S NRP-Z1x and R&S NRP-Z2x series. When this mode is selected, the sensor itself detects the start and end of the burst;...
Page 94 Data acquisition and parameters (Sensor menu) R&S NRP Background information Dropout tolerance parameter facilitates the clear identification of the burst end of modulated signals (e.g. Dropout NADC). Without this parameter, the end of the burst might erroneously be detected within the burst owing to the considerable modulation-specific power drops of such signals.
Page 95: Measuring The Power Of Tdma Signals
R&S NRP Data acquisition and parameters (Sensor menu) Mode : Timeslot Measuring the power of TDMA signals The Timeslot mode is an easy-to-configure method for simultaneously measuring average power in multiple timeslots of a TDMA signal. It is available only with sensors of the R&S NRP-Z1x and R&S NRP-Z2x families.
Page 96: Measuring Power In Gates
Data acquisition and parameters (Sensor menu) R&S NRP Background information Timing diagram The timing diagram below shows the relation between the following parameters: • Trigger event, trigger delay and start of the first timeslot • Width, exclude intervals and measurement interval of the timeslots Trigger event (internal) Power...
Page 97: Analyzing The Envelope Power
R&S NRP Data acquisition and parameters (Sensor menu) Number of the gate to be configured. Gate# – ä ä Remote Control In the following commands, the gate to be configured is determined by the TGATe suffix. Start or end of the gate referenced to the delayed ( Trigger settings, Start of Gate –...
Page 98: Offset Correction
Data acquisition and parameters (Sensor menu) R&S NRP Offset correction Sensor Offset… The Offset dialog box is for activating and entering correction factors to effect an increase or decrease in the measurement result which is not level-dependent. This means that the effects of any attenuators, directional couplers or amplifiers that are connected ahead of the sensor can be allowed for.
Page 99 R&S NRP Data acquisition and parameters (Sensor menu) Opens a dialog box for editing the selected offset correction table. Edit Table… – ä ä Remote Control MEMory:TABLe:FREQuency[?] <NRf>{,<NRf>} MEMory:TABLe:GAIN[:MAGNitude][?] <NRf>{,<NRf>} S Parameter – Activates the S-parameter set stored in the sensor for a twoport that ä...
Page 100: Table Editor For Offset Tables
Data acquisition and parameters (Sensor menu) R&S NRP Table editor for offset tables Offset : Edit Table… The table editor displays the name of the table being edited in its title bar. Below the title bar, there is a two-column list containing frequency and offset pairs. There are two table-editor modes: •...
Page 101: Filter / Averaging
R&S NRP Data acquisition and parameters (Sensor menu) Filter / averaging Sensor Filter… The averaging filter is used to reduce fluctuations in the measured result to the extent desired. Such fluctuations can be caused by inherent noise of the measuring instrument, modulation of the measure- ment signal or beats from the superposition of adjacent carriers.
Page 102 Data acquisition and parameters (Sensor menu) R&S NRP Sensor menu Filter… – ä Fig. 4-17 Filter dialog box Tabs for selecting the sensor. A | B | C | D – ä ä ↔ Remote Control In the following commands, [1..4] represents the channel number (1 for channel A, 2 for channel B, etc).
Page 103 R&S NRP Data acquisition and parameters (Sensor menu) Filter dialog box Auto Config… – ä ä Fig. 4-18 Auto Filter dialog box Tabs for selecting the sensor. A | B | C | D – ä ä ↔ Selects the autofilter mode.
Page 104: Measurement Ranges
Data acquisition and parameters (Sensor menu) R&S NRP Measurement ranges Sensor Range… R&S NRP sensors do not have measurement ranges in the conventional sense. Instead, the R&S NRP-Z1x and R&S NRP-Z2x multipath diode sensors have several measurement paths with dif- ferent sensitivities which are always simultaneously active.
Page 105: Effect Of The Rf Source
R&S NRP Data acquisition and parameters (Sensor menu) dB value by which the crossover level is reduced. Level – ä ä Editing field with direct entry of values (see Chapter 3, Dialog boxes and their controls). Remote Control [SENSe[1..4]][:POWer][:AVG]:RANGe:AUTO:CLEVel[?] <float_value> Effect of the RF source Sensor RF Source…...
Page 106: Trigger Settings
Data acquisition and parameters (Sensor menu) R&S NRP Trigger settings Sensor Trigger… The trigger system, which is required for the BurstAv, Timeslot and Scope measurement modes, is configured in the dialog box and the dialog box. Trigger Trigger (Adv) Sensor menu Trigger…...
Page 107 R&S NRP Data acquisition and parameters (Sensor menu) Trigger dialog box Advanced… – ä ä Fig. 4-22 Trigger Advanced dialog box Tabs for selecting the sensor. A | B | C | D – ä ä ↔ Allows the Holdoff time to be entered. During the Holdoff time, which Holdoff –...
Page 108: Trigger Sequence Control
Data acquisition and parameters (Sensor menu) R&S NRP Trigger sequence control The (DEL/1TRIG) key is used in the Scope mode to manually control the trigger sequence: In continuous (not single-shot) mode, the (DEL/1TRIG) is used to inter- rupt ( ) or continue ( ) the measurement.
Page 109: Displaying Measurement Results (Windows Menu)
R&S NRP Displaying measurement results (Windows menu) Displaying measurement results Windows - menu Window labelling The R&S NRP has a total of four windows for displaying results. They are numbered 1 to 4 and so have a unique label. The window’s number is displayed in the top left of its title bar. Note: Remote control commands that act on windows contain the number of the window in ques- tion in the command, e.g.
Page 110: Using Windows
Displaying measurement results (Windows menu) R&S NRP Using windows The labelling of the second rocker switch in the Windows menu is context-sensitive and changes ac- cording to the status of the active window. Open opens the selected window. Init opens and initializes the selected window. Close closes the selected window.
Page 111: Expanding Windows (Expand)
R&S NRP Displaying measurement results (Windows menu) Expanding windows Windows Expand All opened windows are expanded to the full display height. The se- Windows menu lected window is the only window that can be seen as all the other Close | Expand –...
Page 112: Configuring The Result Display
Displaying measurement results (Windows menu) R&S NRP Configuring the result display Each of the display modes has special configuration parameters. In the digital display, the resolution is adjustable ( Resolution, page 4.30). In the hybrid digital/analog mode, you can adjust the resolution of the digital display ( Resolution, page 4.30) and specify the scaling for the analog scale (...
Page 113: Setting The Analog Scale (Scale)
R&S NRP Displaying measurement results (Windows menu) Setting the analog scale Windows Scale The analog scale in the combined digital/analog display ( ) can be set with the softkey. Analog Meter Windows menu Analog – ä Meter… Fig. 4-27 Meter Scaling dialog box Automatically selects the appropriate scaling so that the instantaneous Auto Once –...
Page 114: Configuring Measurements (Measurement Menu)
Configuring measurements (Measurement menu) R&S NRP Configuring measurements Measurement windows For every window opened via the Windows menu, you can configure a measurement in the Measure- ment menu. The measurement channels (A, B, C and D), how the measured values are processed (ratio, difference), the unit for the result, additional information (max, min), etc are also defined.
Page 115: Selecting A Measurement Function
R&S NRP Configuring measurements (Measurement menu) Selecting a measurement function Measurement Function… The R&S NRP can combine measured values from several channels (sensors) using a mathematical function and display the result in the selected window. The necessary settings are made in the Func- dialog box.
Page 116: Functions And Their Use
Configuring measurements (Measurement menu) R&S NRP Functions and their use Func & Unit : Function dialog box drop-down list itemizes all the measurement functions Func & Unit Function provided by the R&S NRP. These are: Function – ä ä ↔ Function Primary Power in the primary channel, e.g.
Page 117: Expanded Configuration For Sensors In The Scope Mode
R&S NRP Configuring measurements (Measurement menu) Expanded configuration for sensors in the Scope mode The measurement results of sensors operated in the Scope mode can be further processed and dis- played in two ways: a) by a power/time diagram (measurement window in the Graph display mode Selecting the result display mode, p.
Page 118: Setting Units
Configuring measurements (Measurement menu) R&S NRP Setting units Func & Unit : Unit drop-down list is used to set the result unit. Only those units Unit – Unit ä ä which are compatible with the selected measurement function are in- cluded as menu items: Function Unit...
Page 119 R&S NRP Configuring measurements (Measurement menu) Sum and difference of power measurements (Relative Off) dBµV     Sum (A+B) ⋅           µ   P −   Diff (A-B) ...
Page 120: Setting The Auxiliary Value
Configuring measurements (Measurement menu) R&S NRP Setting the auxiliary value Func & Unit : Auxiliary Value In the Digital display mode, the result and another value that character- izes the result can be displayed. Fig. 4-32 Measurement window, Auxiliary Value Selecting the auxiliary value: Auxiliary Value –...
Page 121: Additional Functions
R&S NRP Configuring measurements (Measurement menu) Additional functions Relative measurements Measurement Rel function is a simple way of obtaining the ratio of a measured value to a constant value, e.g. a measured power. Measurement menu Measurement using the measurement function that has been set. –...
Page 122: Limit Monitoring
Configuring measurements (Measurement menu) R&S NRP Limit monitoring Measurement Limits An upper and a lower limit for each window can be set in the Limits… dialog box. If either limit is vio- lated, a warning is issued. The warning may be one of the following: •...
Page 123: Displaying Data In The Scope Mode
R&S NRP Displaying data in the Scope mode Displaying data in the Scope mode Mode : Scope Envelope power versus time can be graphically displayed in the Scope mode, allowing timeslot and gate structures to be blended into the signal characteristic and configured. The average and peak power values measured within a gate and the Peak/Avg ratio can be numerically displayed.
Page 124 Displaying data in the Scope mode R&S NRP Background information Points The highest possible number of measurement points (312) corresponds exactly to the number of pixels available on the display of the R&S NRP. The most detailed image is obtained with this value. If the required time resolution is too high (depending on the width of the measurement window), the number of measurement points is automatically reduced to the largest possible value ( display).
Page 125: Selecting A Window
R&S NRP Displaying data in the Scope mode Selecting a window The traces recorded by a sensor in the Scope mode can be displayed in an expanded or a half-height window. The most important thing is that the sensor that has been switched to the Scope mode is en- tered in the of this window ( Functions and their use, p.
Page 126: Setting Parameters
Displaying data in the Scope mode R&S NRP Setting parameters All parameters relevant to the trace display can be directly set in the expanded window. The parameters are spread across four pages marked by tabs. Symbols Tabs for selecting the page. Marks the trigger level (visible at the left- and right-hand edges).
Page 127: T'slots
R&S NRP Displaying data in the Scope mode Length of the measurement window (image width). Co-determines the Length – ä time resolution, together with the number of measurement points. Background information, p. 4.45). Remote control [SENSe[1..4]]:TRACe:TIME[?] <float_value> Maximum power that can be displayed. –...
Page 128: Gates
Displaying data in the Scope mode R&S NRP Marks the set timeslot including the exclude start and end times. Average power for the set timeslot. The displayed value is obtained by averaging the measurement points between the inner vertical lines. Average Measurement accuracy can be increased if the Timeslot mode is se- lected for the actual measurement.
Page 129: Meas
R&S NRP Displaying data in the Scope mode Active marker. The active marker can be shifted pixel by pixel using the (ê) and (û) keys, re-entered with or changed by scrolling. Marker Edit The number 1 marks the start of a time window and the number 2 the end, regardless whether the marker is active or passive.
Page 130 Displaying data in the Scope mode R&S NRP Active marker. The active marker can be shifted pixel by pixel using the (ê) and (û) keys. The number 1 marks the start of a time window and the number 2 the end, regardless whether the marker is active or passive.
Page 131: Management Of Settings (File Menu)
R&S NRP Management of settings (File menu) Management of settings File - menu Default , p. 4.49. setting (Preset) Loading user-defined settings und Storing user-defined settings, p. 4.49/4.50. Loading settings for mobile radio standards, p. 4.50. Programming aids, p. 4.52 Assigning names to windows, p.
Page 132: Loading User-Defined Settings (Setups)
Management of settings (File menu) R&S NRP Stores the current settings under the selected name. After settings are Save – ä ä stored successfully, the dialog box is closed. Another way to store settings and close the dialog box is to press the (¶...
Page 133 R&S NRP Management of settings (File menu) File menu Standard – ä ä Recall Fig. 4-45 Recall Setup dialog box [Standard] Selects a mobile radio standard. – ä ä If enabled, only the sensor parameters are loaded but the windows are Preserve –...
Page 134: Programming Aids
Management of settings (File menu) R&S NRP Programming aids File Errorlist… If you are developing remote control programs, you can display the contents of the SCPI error queue in the Errorlist dialog box. In addition to the error, the command line that triggered the error is displayed, along with a question mark highlighted in black at the point where the command interpreter detected the error.
Page 135 R&S NRP Management of settings (File menu) Assigns a name to window 1. Pressing the softkey will open an editor Window 1 – ä ä for entering a name. Assign names to windows 2 to 4. Window 2…4 – ä ä Remote Control DISPlay[:WINDow][1..4]:NAME[?] <string>...
Page 136: System Settings (System Menu)
System settings (System menu) R&S NRP System settings System - menu Configuring the remote control interfaces, page 4.55. Setting the analog outputs, page 4.58. Selftest, page 4.60. Test generator, page 4.62. System information, page 4.62. Miscellaneous Operation at low ambient temperatures, page 4.64. Fig.
Page 137: Configuring The Remote Control Interfaces
R&S NRP System settings (System menu) Configuring the remote control interfaces System Remote Selecting a remote control interface menu: System Remote… – ä Fig. 4-50 Remote dialog box Selects the installed remote control interfaces or turns them off. GPIB Ethernet –...
Page 138: Remote Control Via Usb
System settings (System menu) R&S NRP Remote control via USB Remote : USB dialog box: Remote GPIB – ä ä ↔ Fig. 4-52 Remote – Dialog, GPIB Remote control of the R&S NRP via the USB is according to the USBTMC standard. For this purpose, a VISA library that supports remote control via the USB is required by the remote-control computer.
Page 139: Ip Address - Dialog, Manual
R&S NRP System settings (System menu) Fig. 4-54 IP Address – Dialog, Fig. 4-55 IP Address – Dialog, DHCP Manual Selects between configuring the IP address manually or automatically. Manual DHCP – ä ä ↔ Remote control SYSTem:COMMunicate:GPIB[:SELF]:ADDRess <NR1> Manual input of IP address. IP Address –...
Page 140: Setting The Analog Outputs
System settings (System menu) R&S NRP Setting the analog outputs System IO… There are two multifunction BNC connectors at the rear of the R&S NRP. The function of these connec- tors is specified in the Analog Out dialog box. menu: System IO…...
Page 141 R&S NRP System settings (System menu) Selects the function of port I/O 2. Analog Out Trigger In – In the case of , a voltage is output to I/O 2 that is proportional Analog Out ä to the value currently displayed in the selected window ( Window 1...
Page 142: Selftest
System settings (System menu) R&S NRP Selftest System Test… While booting up, the R&S NRP performs a system test. The system test is described in Chapter 1, Welcome screen and function test. Hardware faults are reported at this stage. The Selftest dialog box in the System menu is used to check the keyboard and the display and to start a selftest function in the sensors.
Page 143: Keyboard Test
R&S NRP System settings (System menu) Keyboard test Selftest : Keyboard… In the keyboard selftest dialog box, the keys can be pressed in any order. Each time a key is pressed, there is acoustic feedback and the detected key is marked. If a key is pressed more than once a warn- ing is output.
Page 144: Test Generator
System settings (System menu) R&S NRP Test generator System Power Ref How to use the test generator (option R&S NRP-B1) for Zeroing is described on page 4.3. As it is a high-precision generator with an output power of 1 mW at 50 MHz, it can also be used for other applications.
Page 145: Information About The R&S Nrp
R&S NRP System settings (System menu) Tabs for selecting the sensor. A | B | C | D – ä ä ↔ (¶Menu ) This dialog box can be closed with the (¶Menu ) key. (â) (ô) The up/down cursor keys can be used to scroll the window contents if they cannot all be viewed simultaneously.
Page 146: Miscellaneous Operation At Low Ambient Temperatures
System settings (System menu) R&S NRP Miscellaneous System Miscellaneous Operation at low ambient temperatures The built-in acoustic alarm can be configured in the Misc dialog. At very low ambient temperatures, the display becomes sluggish and the rapidly changing decimal places at the end of the reading in particular cannot be reliably determined. To improve readability un- der these circumstances, you can reduce the display update rate.
Page 147: Messages And Alarms
R&S NRP Messages and alarms Messages and alarms Overload One or more sensors are subjected to overload. Caution! Overload can destroy the sensor (de- pending on amount and duration of overload). The upper measurement limit is specified in the data sheet for the sensor. The nominal value of the upper measurement limit is also displayed in the Sensor Info dialog box ( System information,...
Page 148 Messages and alarms R&S NRP Resolution reduced in the Scope mode The settings require a sampling rate located out- side the range supported by the sensor. Thus, the number of sampled points is temporarily reduced. Hardware error A sensor has detected a hardware error. Automatic window initialization If an additional sensor is connected to the R&S NRP during operation and if no currently...
Page 149 R&S NRP Table of Contents Chapter 5 Table of Contents Remote Control - Fundamentals ..................5.1 Differences between Remote Control and Manual Control............5.1 Display ............................5.1 Measurement Modes ........................5.2 Calculate Blocks .........................5.2 Connecting a Controller to the Base Unit ..................5.3 Settings in Base Unit ........................5.3 Hardware Requirements......................5.3 IEC/IEEE Bus........................5.3 Switchover to Remote Control (REMOTE) ..................5.3...
Page 150: Fig
List of Figs. and Tables Chapter 5 R&S NRP Figs. Fig. 5-1: SCPI command tree ........................5.7 Fig. 5-2: Device model for remote control .....................5.13 Tables Table 5-1: Synchronization with *OPC, *OPC? and *WAI..............5.14 Table 5-2: Automatic settings for manual selection of a measurement mode ........5.15 Table 5-3: Correspondence between remote control and manual control ..........5.17 1144.1400.12 I-5.2...
Page 151: Remote Control - Fundamentals
R&S NRP Remote Control - Fundamentals 5 Remote Control - Fundamentals The Power Meter R&S NRP is equipped with an interface that can be connected to a controller for remote control. • IEC/IEEE-bus interface (standard equipment) in line with the standards IEC 60625.1 (IEEE 488.1) and IEC 60625.2 (IEEE 488.2) •...
Page 152: Measurement Modes
Remote Control - Fundamentals R&S NRP Measurement Modes To simplify operation in the manual mode, preset values are used in some cases for the trigger system (TRIGger command) and the timing of the measurement (SENSe[1..4]:TIMing:EXCLude:STARt and :STOP) when the measurement mode (ContAv, Burst, Timeslot, Scope) is selected ( Table 5-2).
Page 153: Connecting A Controller To The Base Unit
R&S NRP Remote Control - Fundamentals Connecting a Controller to the Base Unit Settings in Base Unit Before a link can be established between the controller and the R&S NRP, the R&S NRP must be assigned an IEC/IEEE-bus address. In the manual control mode, this is done in the System Remote menu.
Page 154: Communication On Data Lines
Remote Control - Fundamentals R&S NRP Communication on Data Lines The IEC/IEEE bus is the most common remote interface for measuring devices. It has also been implemented in the R&S NRP. The remote controller and the R&S NRP communicate by means of messages.
Page 155: Responses
R&S NRP Remote Control - Fundamentals according to their definition in the IEEE 488.2 and SCPI 1999.0 standard: are precisely defined in the IEEE 488.2 standard in terms of Common commands function and notation. They relate to functions such as the management of standardized status registers, resetting and self test.
Page 156: Structure And Syntax Of Device-Dependent Messages
Remote Control - Fundamentals R&S NRP Structure and Syntax of Device-Dependent Messages SCPI Standard SCPI (Standard Commands for Programmable Instruments) describes a standardized command set for the programming of instruments regardless of the type of instrument or manufacturer. The objective of the SCPI Consortium is to standardize device-specific commands as far as possible.
Page 157: Device-Specific Commands
R&S NRP Remote Control - Fundamentals Device-Specific Commands Device-specific commands have a hierarchical structure ( Fig. 5-1). The various Hierarchy levels are represented by compound headers. Headers at the highest level (root level) have one keyword only. This keyword describes an entire command system. Example: SENSe[1..4] This keyword denotes the command system SENSe<n>.
Page 158 Remote Control - Fundamentals R&S NRP This command sets the number of timeslots in the Timeslot mode to 6. The following command has the same effect. :POWer:TSLot:COUNt 6 Note: An optional keyword cannot be omitted if its effect is specified in more detail by a numeric suffix.
Page 159: Structure Of A Program Message
R&S NRP Remote Control - Fundamentals Structure of a Program Message A program message may contain one or several commands. Several commands in a program message are separated by a semicolon (;). If the next command belongs to a different command system, the semicolon is followed by a colon.
Page 160: Responses To Queries
Remote Control - Fundamentals R&S NRP Responses to Queries Unless otherwise expressly specified, a query is defined for each command. The query is created by appending a question mark to the associated command. Some of the SCPI rules for query responses are stricter than those of the IEEE 488.2 standard: 1.
Page 161: Parameters
R&S NRP Remote Control - Fundamentals Parameters Most commands require the specification of a parameter. Parameters must be separated from the header by a white space. Parameters may be specified as numeric values, Boolean parameters, character data, strings or block data. The type of parameter required for the specific command as well as the permissible value range are described together with the commands.
Page 162 Remote Control - Fundamentals R&S NRP Boolean parameters represent two states. The ON state (logical true) is Boolean represented by ON or a numeric value other than 0. The OFF state (logical parameters false) is represented by OFF or the numeric value 0. Queries yield 0 or 1. Example: Command: SENSe:POWer:BUFFered ON Query:...
Page 163: Device Model And Command Processing
R&S NRP Remote Control - Fundamentals Device Model and Command Processing The device model shown in Fig. 5-2 was prepared from the point of view of the processing of remote control commands. The individual components operate independently of each other and simultaneously.
Page 164: Status Reporting System
Remote Control - Fundamentals R&S NRP Status Reporting System The status reporting system collects information on the device status and makes it available to the output unit on request. Structure and function of this system are described in the following section. Output Unit The data output unit collects the information requested by the controller from the data set management.
Page 165: Annex: Automatic Settings For Manual Selection Of A Measurement Mode
R&S NRP Remote Control - Fundamentals Annex: Automatic Settings for Manual Selection of a Measurement Mode When the measurement mode of a sensor is manually selected (Sensor Mode), automatic settings are made for the trigger system and timing, which cannot be changed by manual control. This considerably simplifies operation.
Page 166 Remote Control - Fundamentals R&S NRP Remark Mode SCPI command Value User-selectable. TRIGger[1..4]:SOURce EXTernal | INTernal User-selectable. TRIGger[1..4]:SLOPe POSitive | NEGative Cannot be modified in manual TRIGger[1..4]:COUNt mode. User-selectable. TRIGger[1..4]:DELay Depends on sensor User-selectable. Timeslot TRIGger[1..4]:HOLDoff Depends on sensor User-selectable. TRIGger[1..4]:LEVel Depends on sensor Unchanged, is irrelevant.
Page 167: Annex: Correspondence Between Remote Control And Manual Control
R&S NRP Remote Control - Fundamentals Annex: Correspondence between Remote Control and Manual Control Table 5-3 compares the control elements of the graphical user interface for manual control with the SCPI commands for remote control in order to simplify the transfer of manual control procedures to a remote control program.
Page 168 Remote Control - Fundamentals R&S NRP Sensor Offset Table SENS[1..4]:CORR:FDOT SENS[1..4]:CORR:FDOT:STAT Sensor Offset Edit Table... see MEMory Sensor Offset S Parameter Device SENS[1..4]:CORR:SPD:STAT Sensor Filter Auto SENS[1..4]:AVER:COUN:AUTO In Scope mode: SENS[1..4]:TRAC:AVER:COUN:AUTO Sensor Filter Length SENS[1..4]:AVER:COUN In Scope mode: SENS[1..4]:TRAC:AVER:COUN Sensor Filter Auto Once SENS[1..4]:AVER:COUN:AUTO ONCE In Scope mode: SENS[1..4]:TRAC:AVER:COUN:AUTO ONCE...
Page 169 R&S NRP Remote Control - Fundamentals Sensor Trigger Source TRIG[1..4]:SOUR TRIG[1..4]:SLOP Sensor Trigger Level TRIG[1..4]:LEV Sensor Trigger Advanced... Holdoff TRIG[1..4]:HOLD Sensor Trigger Advanced... Hyseresis TRIG[1..4]:HYST Sensor Trigger Advanced... Single There is no remote control command. The functionality can only be achieved with an appropriate trigger system configuration (e.g.
Page 170 Remote Control - Fundamentals R&S NRP Measurement Rel Reset CALC[1..8]:REL:AUTO ONCE Measurement Ref. Val... Ref. Value CALC[1..8]:REL Measurement Ref. Val... Ref. Value Reset (Result Ref) CALC[1..8]:REL:AUTO ONCE Measurement Limits... Warning Sound CALC[1..8]:LIM:BEEP Measurement Limits... Upper Limit On CALC[1..8]:LIM:UPP:STAT Measurement Limits... Upper Limit CALC[1..8]:LIM:UPP[:DATA] Measurement Limits...
Page 171 R&S NRP Remote Control - Fundamentals System I/O... Out 1 Pass (if Pass/Fail is selected) OUTP:TTL:FAIL HIGH OUTP:TTL:LVOLT System I/O... I/O 2 1234 OUTP:REC2:FEED System I/O... I/O 2 Analog Out OUTP:REC2:STAT ON System I/O... I/O 2 Trigger In OUTP:REC2:STAT OFF System I/O...
Page 172 R&S NRP Table of Contents 6 Table of Contents Remote Control - Commands ..................6.1 Notation............................6.1 Types of Parameters.......................6.3 Common Commands to IEEE 488.1 ..................6.4 DCL - Device CLear......................6.4 GTL - Go To Local......................6.4 LLO - Local Lock Out ......................6.4 PPC - Parallel Poll Configure...................6.4 PPD - Parallel Poll Disable ....................6.4 PPE - Parallel Poll Enable ....................6.4 PPU - Parallel Poll Unconfigure..................6.4...
Page 173 Table of Contents 6 R&S NRP SCPI Commands ........................6.9 Overview of Command Systems ..................6.9 High-Level Measurement Commands (CONFigure, MEASure, READ and FETCh) ..6.11 CALCulate (Configuration of Calculate Blocks) ............6.21 CALibration ........................6.29 DISPlay .........................6.30 FORMat.........................6.38 MEMory.........................6.39 OUTPut .........................6.44 SENSe (Sensor Commands) ..................6.50 SERVice........................6.66 STATus .........................6.68 SYSTem........................6.93...
Page 174: Fig
R&S NRP List of Figs. and Tables Chapter 6 Figs. Fig. 6-1: Overview of SCPI command systems and their mutual interaction ..........6.9 Fig. 6-2: SENSe system ........................6.10 Fig. 6-3: Command system CALCulate ....................6.10 Fig. 6-4: Relationship between the commands CONFigure, READ?, FETCh? and MEASure? ...6.12 Fig.
Page 175 List of Figs. and Tables Chapter 6 R&S NRP Table 6-20: Meaning of bits used in the Operation Status Register............6.80 Table 6-21: Meaning of bits used in the Operation Calibrating Status Register ........6.81 Table 6-22: Meaning of bits used in the Operation Measuring Status Register........6.82 Table 6-23: Meaning of bits used in the Operation Status Register............6.83 Table 6-24: Meaning of bits used in the Operation Sense Status Register ..........6.84 Table 6-25: Meaning of bits used in the Operation Lower Limit Fail Status Register ......6.85...
Page 176: Remote Control - Commands
R&S NRP Remote Control - Commands 6 Remote Control - Commands Notation In the following sections, all commands implemented in the device are first listed in a table according to the command system and then described in detail. For the most part, the notation used complies with SCPI specifications.
Page 177 Remote Control - Commands R&S NRP Keywords and parameters in square brackets may be omitted in compound commands. This will not change the meaning of the command. Therefore, not only is there a short and a long form for the commands (distinguished here by lowercase and uppercase letters) but also a short form which is created by omitting keywords.
Page 178: Types Of Parameters
R&S NRP Remote Control - Commands Types of Parameters Stands for integers with sign. <NR1> Examples: • • • 32767 Stands for floating point numbers that can also be written in <NRf> exponential notation. Examples: • • • -21.2345553e-6 Is an abbreviation for <NR1>|MINimum|MAXimum|DEFault. <int_value>...
Page 179: Common Commands To Ieee 488.1
Remote Control - Commands R&S NRP Common Commands to IEEE 488.1 The following messages are interface commands developed for the IEC/IEEE bus, which can be sent when the ATN line is active ( section "IEC/IEEE Bus Interface", page 6.124). - Device CLear All commands and messages in progress are aborted.
Page 180: Spd - Serial Poll Disable
R&S NRP Remote Control - Commands - Serial Poll Disable Terminates the serial poll mode. - Serial Poll Enable Activates the serial poll mode. When addressed as a talker, the device sends the status byte. Common Commands to IEEE 488.2 The Common Commands to IEEE 488.2 are device commands that can be sent via the IEC/IEEE bus.
Page 181: Ist? - Individual Status Query
Remote Control - Commands R&S NRP Definition of string components: designation <string1> manufacturer <string2> serial number of the R&S NRP <string3> firmware version <string4> *IST? - Individual Status Query Returns the current value of the IST flag. The IST flag is described in section "IST Flag and Parallel Poll Enable Register (PPE)"...
Page 182: Pre 0
R&S NRP Remote Control - Commands *PRE 0..255 - Parallel Poll Enable Register Command Sets the Parallel Poll Enable Register to the defined value. *PRE? - Parallel Poll Enable Register Query Returns the current content of the Parallel Poll Enable Register. *PSC 0|1 - Power On Status Clear Command Determines whether the content of the ENABle registers is retained or cleared upon power-up.
Page 183: Sre 0
Remote Control - Commands R&S NRP *SRE 0..255 - Service Request Enable Sets the Service Request Enable Register bits. This command determines the conditions under which a service request is triggered. *SRE? - Service Request Enable Query Returns the value of the Service Request Enable Register. *STB? - Status Byte Query Returns the current value of the Status Byte Register.
Page 184: Scpi Commands
R&S NRP Remote Control - Commands SCPI Commands Overview of Command Systems The SCPI commands described below are grouped in command systems according to their function. Only the most important functions are shown in the figures. M E A S u r e m e n t ( h i g h - l e v e l m e a s u r e m e n t c o m m a n d s ) D I S P l a y M e a s u r e d S Y S T e m...
Page 185 Remote Control - Commands R&S NRP SENSe System Command system SENSe (incl. CALibration) :FUNCtion - ContAv :CORRection :APERture :RANGe CALibration - BurstAv :AVERage :BUFFer :FREQuency :TIMing - Timeslot - Scope Measured values to CALCulate blocks Fig. 6-2: SENSe system This command system is used for configuring the sensors and determines the processing of measured data in the sensors.
Page 186: High-Level Measurement Commands (Configure, Measure, Read And Fetch)
R&S NRP Remote Control - Commands High-Level Measurement Commands (CONFigure, MEASure, READ and FETCh) The high-level measurement commands CONFigure, MEASure, READ and FETCh combine several setting commands and thus simplify programming of the R&S NRP. The most convenient command is MEASure.
Page 187 Remote Control - Commands R&S NRP The last valid result is returned. The command is only completed after a valid FETCh:...? measurement has been performed. When BUS is set as the trigger source, a measurement cannot be started after the FETCh command and an SCPI error is output (-214, Trigger deadlock).
Page 188 R&S NRP Remote Control - Commands Syntactical Structure of High-Level Measurement Commands The high-level measurement commands can be divided as follows: <head><function>[<expression>][?] <parameter_list> <head> CONFigure[1..8], READ[1..8], MEASure[1..8], FETCh[1..8] Selection of one of the measurement modes ContAv, ContAv with data <function> buffering, Burst, Timeslot or Scope.
Page 189 Remote Control - Commands R&S NRP Table 6-1: High-level measurement commands CONFigure commands Measurement commands Parameters CONFigure[1..8]? FETCh[1..8]? READ[1..8]? ContAv mode CONFigure[1..8] READ[1..8] | MEASure[1..8] | FETCh[1..8] [:SCALar] [:SCALar] [:POWer] [:POWer] [:AVG] [:AVG]? <contav_parameter_list> :RELative :RELative? <contav_parameter_list> :DIFFerence :DIFFerence? <contav_parameter_list> :RELative :RELative? <contav_parameter_list>...
Page 190 R&S NRP Remote Control - Commands ContAv mode (with data buffering) CONFigure[1..8] READ[1..8] | MEASure[1..8] | FETCh[1..8] :ARRay :ARRay [:POWer] [:POWer] [:AVG] [:AVG]? <buffered_parameter_list> :RELative :RELative? <buffered_parameter_list> :DIFFerence :DIFFerence? <buffered_parameter_list> :RELative :RELative? <buffered_parameter_list> :SUM :DIFFerence? <buffered_parameter_list> :RELative :RELative? <buffered_parameter_list> :RATio :RATio? <buffered_parameter_list>...
Page 191 Remote Control - Commands R&S NRP Calculation Functions The CALCulate blocks receive measurement data from the sensors via input channels which are called primary and secondary channel. The following functions are available for calculating the primary channel (PC) and the secondary channel (SC). One-parameter functions ( <source_list>...
Page 192 R&S NRP Remote Control - Commands :SWR − If the forward power of a wave is measured in the PC and the reflected power in the SC, the measurement command yields the standing wave ratio. The output unit is set to "One" (UNIT:RAT :REFLection SC / If the forward power of a wave is measured in the PC and the...
Page 193 Remote Control - Commands R&S NRP Parameters Five different parameter lists are used in the command table, depending on the selected measurement mode. The elements of these lists can be omitted starting at the end and working backward. They will then be replaced by their default values.
Page 194 R&S NRP Remote Control - Commands [SENSe[1..4]]:AVERage:COUNt:AUTO:RESolution[?] 1 | 2 | 3 | [SENSe[1..4]]:TRACe:AVERage:COUNt:AUTO:RESolution[?] 1|2|3|4 DISPlay[:WINDow][1..4]:RESolution[?] 1 | 0.1 | 0.01 | 0.001 Example: is set to , three significant points are assigned <resolution> 0.01 to the value when it is displayed on a linear scale. When a log scale is used, 2 places are displayed after the decimal point.
Page 195 Remote Control - Commands R&S NRP Value range: depending on sensor. <dtolerance> Unit: S Default value: depending on sensor. The length of a time interval in which the power level may drop below the trigger level without the end of a power pulse being detected. [SENSe[1..4]][:POWer]:BURSt:DTOLerance[?] <float_value>...
Page 196: Calculate (Configuration Of Calculate Blocks)
R&S NRP Remote Control - Commands CALCulate (Configuration of Calculate Blocks) The calculate blocks calculating the measurement results from the sensor data are configured with the CALCulate command. Eight blocks are available, each with two input channels (primary and secondary channel). The available sensors (1 to 4, depending on device configuration and connected sensors) can be assigned to the channels.
Page 197 Remote Control - Commands R&S NRP CALCulate[1..8][:MINimum | :MAXimum | :PTPeak]:DATA? With this command the current output value of a calculate block can be queried. If one of the optional keywords is specified, other values can be :MAXimum, :MINimum :PTPeak queried instead of the current measured value.
Page 198 R&S NRP Remote Control - Commands CALCulate[1..8]:LIMit:BEEP ON | OFF Switches the acoustic warning for limit violations on or off. *RST value: OFF CALCulate[1..8]:LIMit:CLEar[:IMMediate] Resets the limit monitoring state and the internal counter for limit violations. CALCulate[1..8]:LIMit:CLEar:AUTO ON | OFF | ONCE Automatically resets the limit monitoring state and the internal counter for limit violations if any of the following events occurs: •...
Page 199 Remote Control - Commands R&S NRP CALCulate[1..8]:LIMit:FCOunt? This query returns the number of limit violations that occurred. The counter is zeroed when the following events occur: • The device is switched on • A reset is performed (*RST) • The CALCulate[1..8]:LIMit:CLEar command is sent. CALCulate[1..8]:LIMit:LOWer[:DATA][?] <float_value>...
Page 200 R&S NRP Remote Control - Commands CALCulate[1..8]:LIMit:LOWer:STATe[?] ON | OFF This command switches the monitoring function for the lower limit on or off. *RST value: OFF CALCulate[1..8]:LIMit:UPPer[:DATA][?] <float_value> This command sets an upper limit for the measured values. The R&S NRP can respond when this limit is exceeded (see other commands).
Page 201 Remote Control - Commands R&S NRP CALCulate[1..8]:MATH[:EXPRession][?] <string> The <string> parameter may assume the following values (1, 2, 3 and 4 for n and m). A sensor must be connected to the respective channel. <string> Meaning The calculate block outputs the measured value of sensor A. "(SENS1)"...
Page 202 R&S NRP Remote Control - Commands CALCulate[1..8]:MATH[:EXPRession]:CATalog? Lists all supported calculation functions. All functions are sent in the form of strings which are allowed as parameters for the CALCulate[1..8]:MATH:EXPRession command. CALCulate[1..8]:RELative[:MAGNitude][?] <float_value> This command determines a value that is used as a divisor (logarithmic subtraction) for all measured values of the calculate block in the state.
Page 203 Remote Control - Commands R&S NRP CALCulate[1..8]:RELative:POWer[:MAGNitude] [?] <float_value> Has the same direct effect as CALC:REL on the reference value for measured values that share the unit of a power. Unit: DBM | W Default unit: Value range: 1e-18..1e18 W | -150..210 DBM *RST value: 0 DBM CALCulate[1..8]:RELative:RATio[:MAGNitude] [?] <float_value>...
Page 204: Calibration
R&S NRP Remote Control - Commands CALibration Table 6-4: Commands of the CALibration system Command Parameter Unit Remark CALibration[1..4|:ALL] :ZERO :AUTO[?] ON|OFF|ONCE :DATA[?] <block_data> CALibration[1..4|:ALL]:ZERO:AUTO[?] ON | OFF | ONCE The CALibration[1..4]:ZERO:AUTO ONCE command performs zeroing using the signal at the sensor input.
Page 205: Display
Remote Control - Commands R&S NRP DISPlay The DISPlay command system is mainly used to configure the display of windows on the R&S NRP. The WINDow commands are assigned to the calculate blocks 1 to 4. The values calculated from the sensor values by the respective calculate block with the aid of the measurement function are displayed.
Page 206 R&S NRP Remote Control - Commands DISPlay:ERRorlist[?] ON | OFF Displays (ON) or removes (OFF) a windows which contains the contents of the SCPI error queue. The queue may be deleted by pressing the ( DEL ) key. *RST-Value: OFF DISPlay:MESSage[:STATe][?] ON | OFF Displays a window containing a user-defined message.
Page 207 Remote Control - Commands R&S NRP DISPlay:PIXMap? <block_data> Supplies the display content as binary block data. The content is sent line by line with one bit corresponding exactly to one pixel. Example: DISP:PIXM? returns: #49600xxxxxxx...x, with x in binary format comprising the display contents. DISPlay:UPDate[?] NORMal | SLOW | FREeze Adjust the update frequency of the measured values in the display.
Page 208 R&S NRP Remote Control - Commands DISPlay[:WINDow][1..4]:METer|:ANALog:AUTo[?] ONCE | OFF DISP:AUTO ONCE automatically determines scaling for the analog display. The upper and the lower limit value of the display is set as a function of the current measurement data. Only the ONCE parameter is permissible;...
Page 209 Remote Control - Commands R&S NRP DISPlay[:WINDow][1..4]:METer|:ANALog:UPPer[?] <float_value> Sets the upper limit value of the analog scale. The value range depends on the current output unit of the measured value of the window. Unit of measured DBUV DPCT value -9.99999E5 -120 -13.0103 -100...
Page 210 R&S NRP Remote Control - Commands DISPlay[:WINDow][1..4]:RESolution[?] 1 | 0.1 | 0.01 | 0.001 Specifies the number of significant places of the mantissa when the measurement result is displayed on a linear scale. The R&S NRP tries to adjust the averaging filter range so that the display noise decreases with increasing resolution.
Page 211 Remote Control - Commands R&S NRP DISPlay[:WINDow][1..4]:TRACe:LOWer[?] <float_value> Sets the lower limit for the power axis in the Scope mode. The value range depends on the unit. DBUV Unit of measured value -999.999E3 -120 -13.010 Value range 999.999E3 136.990 Default unit: DBM Unit: DBM | W | DBUV Value range: see above *RST value: -120 DBM...
Page 212 R&S NRP Remote Control - Commands DISPlay:WINDow:SIZE[?] NORMal | ZOOMed Sets the window size. The window size is determined automatically and depends on the total number of open NORMal windows. The selected window (DISP:WIND:SEL[?]) is set to maximum size, regardless of the ZOOMed the number of visible windows.
Page 213: Format
Remote Control - Commands R&S NRP FORMat The FORMat command system sets the format of numeric data (measured values) that is exchanged beween the remote control computer and the R&S NRP if high-level measurement commands are used. Table 6-6: Commands of the FORMat command system Command Parameter Unit...
Page 214: Memory
R&S NRP Remote Control - Commands MEMory The MEMory system is used for storing device states (:STATe) and correction tables (:TABLe). :STATe To allow a rapid and convenient changeover between device setups for different applications, up to 20 setups can be stored in the device. The setup with the number 0 is the default setup made in the factory.
Page 215 Remote Control - Commands R&S NRP MEMory:CATalog[:ALL]? Lists the names of all stored device states and correction tables. The length of the response depends on how many device states and tables are stored. It has the following format: <NR1>, <NR1> {,"<string>"} The first two values denote the length in bytes of the occupied RAM and of the RAM still available for storing states and tables.
Page 216 R&S NRP Remote Control - Commands MEMory:FREE:STATe? Returns the number of bytes available in memory for storing device states as well as the memory already used for device states. MEMory:FREE:TABLe? Returns the number of bytes available in memory for storing device states as well as the memory already used for device states.
Page 217 Remote Control - Commands R&S NRP MEMory:TABLe:FREQuency:POINts? Returns the number of entries (lines) in the table selected with MEM:TABL:SEL <name>. MEMory:TABLe:GAIN[:MAGNitude][?] <NRf>{,<NRf>} This command enters offset values in the second column of the table selected with MEM:TABL:SEL. Existing data for offset values will be overwritten. The number of frequencies should match with the number of offset values.
Page 218 R&S NRP Remote Control - Commands MEMory:TABLe:SELect[?] <string> Selects the table name < string>. The following commands affect this table: • MEMory:CLEar[:NAMe] <string> • MEMory:CLEar:TABLe • all MEMory:TABLe commands The selection is not changed in case of an *RST or a SYSTem:PRESet. *RST value: none Error messages: -256...
Page 219: Output
Remote Control - Commands R&S NRP OUTPut The OUTPut system serves for generator configuration. The R&S NRP can be equipped with an optional RF test generator which produces a reference power of 1 mW at 50 MHz. Moreover, the analog outputs at the rear of the power meter can be configured. Table 6-8: Commands of the OUTPut system Command Parameter...
Page 220 R&S NRP Remote Control - Commands OUTPut:RECorder[1..2]:LIMit:LOWer[?] <float_value> Voltage 3.3 V 3.0 V Power 0.0 V OUTP:REC:LIM:LOW OUTP:REC:LIM:UPP Figure 6-5: Characteristic of analog outputs Specifies the lower power limit of the characteristic for one of the two analog outputs ( Figure 6-5).
Page 221 Remote Control - Commands R&S NRP OUTPut:RECorder[1..2]:LIMit:LOWer:RATio[?] <float_value> Specifies the lower power limit of the characteristic for one of the two analog outputs if the associated calculate block returns a power ratio (unit DB, DPCT or O) as the measured value ( Figure 6-5).
Page 222 R&S NRP Remote Control - Commands OUTPut:RECorder[1..2]:STATe[?] ON | OFF Switches the analog outputs (OUT1 and OUT2/TRIG on rear panel) ON or OFF. The magnitude of the output voltage (0 V to 3.3 V) depends on the measured power of the assigned calculate block (OUTP:REC:FEED) and the configuration of the characteristic (OUTP:REC:LIM).
Page 223 Remote Control - Commands R&S NRP OUTPut:TTL[1]:ACTive[?] LOW | HIGH Specifies whether the value set via OUTP:TTL:LVOL (LOW) or via OUTP:TTL:HVOL (HIGH) should be applied if the measured value causes a limit violation at the TTL output. *RST value: OUTPut:TTL[1]:FAIL[?] LOW | HIGH Specifies whether the value set via OUTP:TTL:LVOL (HIGH) or via OUTP:TTL:HVOL (LOW) should be applied if the measured value causes a limit violation at the TTL output.
Page 224 R&S NRP Remote Control - Commands OUTPut:TTL[1]:STATe[?] ON | OFF Activates (ON) or deactivates (OFF) the TTL operating mode of the OUT1 connector (rear panel). The magnitude of the two possible output voltages can range from 0 V to 3.3 V (OUTP:TTL:HVOL and OUTP:TTL:LVOL).
Page 225: Sense (Sensor Commands)
Remote Control - Commands R&S NRP SENSe (Sensor Commands) The commands of the SENSe group configure the power sensors with the exception of the trigger system. This includes the measurement modes (ContAv, Burst, Timeslot or Scope), the offset corrections and the filter settings. Note: When the sensors are connected to the R&S NRP, they inform the device about the SENSe and TRIGger commands supported and about the value...
Page 226 R&S NRP Remote Control - Commands Command Parameter Unit Remark :BURSt :DTOLerance[?] <float_value> :SAMPLing[?] FREQ1|FREQ2 :SGAMma [:MAGNitude][?] <float_value> :PHASe[?] <float_value> :CORRection:STATe[?] ON|OFF :TRACe :AVERage [:STATe][?] ON|OFF :COUNt[?] <int_value> :AUTO[?] ON|OFF|ONCE :MTIMe[?] <float_value> :RESolution[?] 1|2|3|4 :POINt[?] <int_value> :NSRatio[?] <float_value> DB|PCT :TYPE[?] RESolution|NSR :TCONtrol[?] MOVing|REPeat...
Page 227 Remote Control - Commands R&S NRP [SENSe[1..4]]:AVERage:COUNt:AUTO:MTIMe[?] <float_value> If the R&S NRP has to determine the filter length automatically, the filter length can become large and thus also the measurement time. An upper time limit can be set via SENS[1..4]:AVER:COUN:AUTO:MTIME (maximum time). It should never be exceeded.
Page 228 R&S NRP Remote Control - Commands [SENSe[1..4]]:AVERage:COUNt:AUTO:NSRatio[?] <float_value> Indicates the maximum noise ratio in the measurement result.Achieving the same result by filter length setting is attempted only if SENS[1..4]:AVER:COUN:AUTO ON and SENS[1..4]:AVER:COUN:AUTO:TYPE NSR are set. Unit: DB | PCT Default unit: DB Value range: depending on sensor *RST value: depending on sensor [SENSe[1..4]]:AVERage:COUNt:AUTO:TYPE[?]...
Page 229 Remote Control - Commands R&S NRP [SENSe[1..4]]:CORRection:OFFSet[?] <float_value> With this command a fixed offset value can be defined for multiplying (logarithmically adding) the measured value of a sensor. If the parameters are specified without a unit, the unit set by UNIT:POW:RAT will be used.
Page 230 R&S NRP Remote Control - Commands [SENSe[1..4]]:CORRection:FDOTable[:SELect][?] <string> The name of the current frequency-dependent offset table can be set or queried by the [SENSe[1..4]]:CORRection:FDOTable[:SELect][?] command. The R&S NRP can manage up to ten such tables (MEMory commands). The frequency-dependent offset tables consist of two columns;...
Page 231 Remote Control - Commands R&S NRP [SENSe[1..4]]:FUNCtion[:ON][?] <string> This command sets the sensor to one of the measurement modes of Table 6-11. Table 6-11: Measurement modes <string> Measurement mode ContAv "POWer:AVG" After a trigger event, the power is integrated over a time interval (averaging) set with SENS:POW:APER Timeslot "POWer:TSLot:AVG"...
Page 232 R&S NRP Remote Control - Commands [SENSe[1..4]][:POWer][:AVG]:APERture[?] <float_value> This command determines the integration time for a single measurement in the ContAv mode. To increase the measurement accuracy, this integration is followed by a second averaging procedure in a window with a selectable number of values. The filter window is configured with the [SENSe[1..4]]:AVERage commands.
Page 233 Remote Control - Commands R&S NRP [SENSe[1..4]][:POWer][:AVG]:SMOothing:STATe[?] ON | OFF Activates digital lowpass filtering of the sampled video signal. The problem of instable display values due to a modulation of a test signal described under SENS[1..4]:SAMP can also be eliminated by lowpass filtering of the video signal. The lowpass filter eliminates the variations of the display even in case of unperiodic modulation and does not require any other setting.
Page 234 R&S NRP Remote Control - Commands [SENSe[1..4]][:POWer]:TGATe[1..4]:OFFSet:TIME[?] <float_value> This command is used for configuring the Timegate mode. It specifies the start of one of the four gates (sweeps) relative to the delayed trigger point. If this value is negative, the gate starts before the trigger point.
Page 235 Remote Control - Commands R&S NRP [SENSe[1..4]][:POWer]:TSLot:COUNt[?] <int_value> Sets the number of simultaneously measured timeslots in the Timeslot mode. Unit: - Value range: depending on sensor *RST value: depending on sensor [SENSe[1..4]][:POWer]:TSLot:[AVG]:WIDTh[?] <float_value> Sets the length of the timeslot in the Timeslot mode. Unit: S Value range: depending on sensor *RST value: depending on sensor...
Page 236 R&S NRP Remote Control - Commands [SENSe[1..4]]:TRACe:AVERage[:STATe][?] ON | OFF For the Scope mode, this command switches the filter function of a sensor on or off. When the filter is switched on, the number of measured values set with SENSe[1..4]]:AVERage:COUNt averaged.
Page 237 Remote Control - Commands R&S NRP [SENSe[1..4]]:TRACe:AVERage:COUNt:AUTO:RESolution[?] 1|2|3|4 Defines the number of significant places for the Scope mode for linear units and the number of decimal places for logarithmic units which should be free of noise in the measurement result. This setting is also performed by the DISP[1..4]:RES command ( page 6.35) which tries to set the sensors involved in measurement...
Page 238 R&S NRP Remote Control - Commands [SENSe[1..4]]:TRACe:AVERage:COUNt:AUTO:TYPE[?] RESolution | NSR Selects a method for the Scope mode by which the automatic filter length switchover can operate: SENS[1..4]:AVER:COUN:AUTO:TYPE Setting taken into account RESolution SENS[1..4]:AVER:COUN:AUTO:RES SENS[1..4]:AVER:COUN:AUTO:NSR SENS[1..4]:AVER:COUN:AUTO:MTIM *RST value: depending on sensor [SENSe[1..4]]:TRACe:AVERage:TCONtrol[?] MOVing | REPeat As soon as a new single value is determined, the filter window is advanced by one value so that the...
Page 239 Remote Control - Commands R&S NRP [SENSe[1..4]]:TRACe:REALtime[?] ON | OFF default state (OFF), each measurement from sensor averaged. With this behaviour can be switched off, which may increase [SENSe[1..4]]:TRACe::REALtime ON the measurement speed. This ensures that the measured values of an individual measurement are immediately delivered.
Page 240 R&S NRP Remote Control - Commands Power Time EXCLude:STARt EXCLude:STOP Integration period Fig. 6-9: Effect of commands SENS[1..4]:TIM:EXCL:STAR and :STOP 1144.1400.12 6.65...
Page 241: Service
Remote Control - Commands R&S NRP SERVice The commands of the SERVice system are used for maintenance or test purposes. They were implemented primarily to support device development. The numeric suffix refers to the sensors. Note: Before commands of the SERVice system can be sent to a sensor, they must be enabled via the SERVice:UNLock 1234 command.
Page 242 R&S NRP Remote Control - Commands SERVice[1..4]:RCOunt[?] <NR1> SERVice[1..4]:RESult[?] <NR1> These commands allow simulated measured values to be specified for test purposes. SERV:RCO specifies the number of SERV:RES pairs to follow. The first SERV:RES command specifies the measured value in watts, the second SERV:RES command determines how often the measured value should be obtained.
Page 243: Status
Remote Control - Commands R&S NRP STATus The status registers of the R&S NRP can be read and configured with commands of the STATus system. The R&S NRP uses the following status registers: • Standard Event Status Register (specified in IEEE 488.2. Reading and configuring with *ESR? and *ESE.
Page 244 R&S NRP Remote Control - Commands Queries Table 6-13: Queries for status registers Command Status register STATus Device Status :DEVice? Operation Status :OPERation? Operation Calibrating :CALibrating[:SUMMary]? Operation Lower Limit Fail :LLFail[:SUMMary]? Operation Upper Limit Fail :ULFail[:SUMMary]? Operation Measuring :MEASuring[:SUMMary]? Operation Sense :SENSe[:SUMMary]? Operation Trigger :TRIGger[:SUMMary]?
Page 245 Remote Control - Commands R&S NRP The status reporting system stores all information about the current operating status of the device and errors that occur. The information is stored in the status registers and the error queue. The contents of the status registers and error queue can be queried via the IEC/IEEE bus.
Page 246 R&S NRP Remote Control - Commands Table 6-15: Decimal value of individual bits in the SCPI status register Decimal value Bit No. Decimal value Bit No. Decimal value Bit No. Decimal value 4096 8192 1024 16384 2048 32768 The CONDition register is directly written by the hardware or the summary bit of CONDition the next lower register.
Page 247 Remote Control - Commands R&S NRP The ENABle register determines whether the associated EVENt bit influences the ENABle register summary bit (see below). Each bit of the EVENt register is ANDed (symbol '&') with the associated ENABle bit. The events of all logical operations of this register are ORed (symbol '+') and passed on to the summary bit.
Page 248: Fig
R&S NRP Remote Control - Commands Output Queue Device Status (output buffer) Sensor A connected Register Sensor B connected Sensor A error Sensor B error Sensor A Front/Rear Sensor B Front/Rear Sensor C connected Sensor D connected Sensor C error Sensor D error Sensor C Front/Rear Sensor D Front/Rear...
Page 249 Remote Control - Commands R&S NRP Operation Calibrating Sensor A calibrating Status Register Summary Sensor B calibrating Sensor C calibrating Sensor D calibrating STAT:OPER:CAL Operation Measuring Sensor A measuring Status Register Summary Sensor B measuring Sensor C measuring Sensor D measuring STAT:OPER:MEAS Operation Status Register...
Page 250 R&S NRP Remote Control - Commands Questionable Power Sensor A Power Status Register Sensor B Power Sensor C Power Sensor D Power Sensor A please zero Sensor B please zero Sensor C please zero Questionable Status Sensor D please zero Register STAT:QUES:POW Questionable Window...
Page 251 Remote Control - Commands R&S NRP Status Byte (STB) and Service Request Enable Register (SRE) The STB is already defined in IEEE 488.2. It gives a rough overview of the device status, collecting information from the lower-level registers. It is comparable with the CONDition register of a SCPI-defined register and is at the highest level of the SCPI hierarchy.
Page 252: Device Status Register
R&S NRP Remote Control - Commands IST Flag and Parallel Poll Enable Register (PPE) Similar to the SRQ, the IST flag combines the complete status information in a single bit. It can be queried by a parallel poll ( section Parallel Poll, page 6.91) or by the *IST? command.
Page 253 Remote Control - Commands R&S NRP Meaning Sensor D Front/Rear Indicates whether sensor D is connected at the front (bit is not set) or rear (bit is set) of the device. Not used Key pressed This bit is always set if a key on the front panel is pressed (CONDition) or was pressed (EVENt). Bit 15 will never be used.
Page 254 R&S NRP Remote Control - Commands Standard Event Status Register (ESR) Standard Event Status Enable Register (ESE) The ESR is already defined in the IEEE 488.2 standard. It is comparable to the EVENt register of an SCPI register. The Standard Event Status Register can be read out by the query *ESR?. The ESE forms the associated ENABle register.
Page 255 Remote Control - Commands R&S NRP Operation Status Register The CONDition register contains information on the operations currently being performed by the device, while the EVENt register contains information on the operations performed by the device since the last readout of the register. These two registers can be read by the queries STATus:OPERation:CONDition? or STATus:OPERation[:EVENt]?.
Page 256 R&S NRP Remote Control - Commands Operation Calibrating Status Register The CONDition register contains information as to whether a sensor is currently being calibrated and, depending on the configuration of the transition register, the EVENt register indicates whether a calibration was started or completed since the last readout of this register. The Operation Calibration Status Register can be read by the following commands: STATus:OPERation:CALibrating[:SUMMary]:CONDition? STATus:OPERation:CALibrating[:SUMMary][:EVENt]? .
Page 257 Remote Control - Commands R&S NRP Operation Measuring Status Register The CONDition register contains information as to whether a measurement is being performed by a sensor and, depending on the configuration of the transition register, the EVENt register indicates whether a measurement was started or completed since the last readout of this register. The Operation Measuring Status Register can be read by the following commands: STATus:OPERation:MEASuring[:SUMMary]:CONDition? STATus:OPERation:MEASuring[:SUMMary][:EVENt]?.
Page 258 R&S NRP Remote Control - Commands Operation Trigger Status Register The CONDition register contains information as to whether a sensor is currently in the WAIT_FOR_TRG state, i.e. expecting a trigger event and, depending on the configuration of the transition register, the EVENt register indicates whether the WAIT_FOR_TRG state was entered or quit by a sensor since the last readout of the register.
Page 259 Remote Control - Commands R&S NRP Operation Sense Status Register The CONDition register contains information as to whether a sensor is currently being initialized and, depending on the configuration of the transition register, the EVENt register indicates whether a sensor initialization was started or completed since the last readout of this register.
Page 260 R&S NRP Remote Control - Commands Operation Lower Limit Fail Status Register The CONDition register contains information as to whether a displayed value is currently below a configured lower limit and the EVENt register indicates whether a measured value dropped below a limit value since the last readout of the Operation Lower Limit Fail Status Register.
Page 261 Remote Control - Commands R&S NRP Operation Upper Limit Fail Status Register The CONDition register contains information as to whether a displayed value is currently above a configured upper limit and the EVENt register indicates whether a limit value was exceeded since the last readout of the Operation Upper Limit Fail Status Register.
Page 262 R&S NRP Remote Control - Commands Questionable Power Status Register The CONDition register contains information as to whether the measured power values are questionable. The Questionable Power Status Register can be read by the following commands: STATus:QUEStionable:POWer[:SUMMary]:CONDition? STATus:QUEStionable:POWer[:SUMMary][:EVENt]? Table 6-27: Meaning of bits used in the Questionable Power Status Register Meaning Not used Sensor A Power...
Page 263 Remote Control - Commands R&S NRP Questionable Window Status Register The CONDition register contains information as to whether the displayed data or the power calculated by the calculate blocks is questionable. The Questionable Window Status Register can be read by the following commands: STATus:QUEStionable:WINDow[:SUMMary]:CONDition? STATus:QUEStionable:WINDow[:SUMMary][:EVENt]? Table 6-28: Meaning of bits used in the Questionable Window Status Register...
Page 264 R&S NRP Remote Control - Commands Questionable Calibration Status Register The EVENt register and the CONDition register contain information as to whether the zero offset of a sensor is still valid. The Questionable Calibration Status Register can be read by the following commands: STATus:QUEStionable:CALibration[:SUMMary]:CONDition? andSTATus:QUEStionable:CALibration[:SUMMary][:EVENt]? Table 6-29 Meaning of bits used in the Questionable Calibration Status Register...
Page 265 Remote Control - Commands R&S NRP Service Request, Use of the Hierarchical Structure Under certain conditions, the device may send a service request (SRQ) to the controller. This service request usually causes an interrupt at the controller to which the controller program can respond by suitable actions.
Page 266 R&S NRP Remote Control - Commands Parallel Poll In case of a parallel poll, up to eight devices are simultaneously requested by the controller to transmit one bit of information on the data line, i.e. to set the data line assigned to each device to logical 0 or 1. Analogously to the SRE register, which determines the conditions for generating an SRQ, a Parallel Poll Enable Register (PPE) is available which is ANDed bit-by-bit with the STB (taking into account bit 6).
Page 267 Remote Control - Commands R&S NRP Initialization of the SCPI Status Registers The commands *RST, *DCL and SYSTem:PRESet as well as powering on the device also affect the status reporting system. Table 6-30 contains the various commands and events causing a reset of the status reporting system.
Page 268: System
R&S NRP Remote Control - Commands SYSTem With the aid of the SYSTem system, administrative device settings can be made and queried. This includes: • list of error messages • IEC/IEEE-bus address • resetting the R&S NRP • setting the date and time •...
Page 269 Remote Control - Commands R&S NRP SYSTem:BEEPer:NOTify:KEY[?] ON | OFF Enables (ON) or disables (OFF) acoustic key clicks, respectively. *RST-Wert: OFF SYSTem:BEEPer:STOP Stops the output of an audible signal. SYSTem:BEEPer:TIME <NRf> Sets the length in milliseconds of the audible signal output with SYS:BEEP. Value range: 1..60 Unit: S *RST value: This setting is not changed by *RST.
Page 270 R&S NRP Remote Control - Commands SYSTem:INFO? [<string>] Returns information about the system. <string_value> is used to query a specific information item. If called without parameters, the command returns all available information in the form of a list of strings separated by commas.
Page 271 Remote Control - Commands R&S NRP SYSTem:ERRor:EXTended[:STATe][?] <boolean> SYST:ERR:EXT ON activates extended error messages (SYST:ERR?). The location of errors in the parsed command strings is also shown. *RST-Wert: OFF SYSTem:KEY <NR1> | <character_value> This command is used for testing purposes only and simulates a single stroke of an R&S NRP front-panel key.
Page 272 R&S NRP Remote Control - Commands Simulated front-panel key <character_value> <NR1> ( DEL/1TRIG ) DELete (¶MENU) ENTer (ESC/LOCAL) ESCape ( â ) ( ô ) DOWN ( û ) LEFT ( ê ) RIGHt Note: The R&S NRP can be switched off via remote control by means of the SYST:KEY POWER command.
Page 273 Remote Control - Commands R&S NRP SYSTem:PRESet Resets the R&S NRP to default ( ) values. No difference is made between reset and preset values *RST (exceptions: INIT:CONT, SENS:AVER:TCON und SENS:TRAC:AVER:TCON). For preset values see Table 6-33 Table 6-33: Preset and *RST value Command Preset and *RST value Remark...
Page 274 R&S NRP Remote Control - Commands Command Preset and *RST value Remark Upper limit of power axis in Scope DISP[1..4]:TRAC:UPP 30 DBM mode First timeslot DISP[1..4]:TSL Frequent display updates. DISP[1..4]:UPD NORM Measured data in ASCII format. FORM "Big-Endian" byte sequence FORM:BORD NORM measured data, if FORM REAL.
Page 275 Remote Control - Commands R&S NRP Command Preset and *RST value Remark Depending on sensor. SENS[1..4]:APER <NRf> Depending on sensor. SENS[1..4]:BUFF:STAT ON | OFF Depending on sensor. SENS[1..4]:BUFF:SIZe <NR1> Depending on sensor. SENS[1..4]:TGAT:OFFS:TIME <NRf> SENS[1..4]:TGAT:SEL Depending on sensor. SENS[1..4]:TGAT:TIME <NRf> Depending on sensor.
Page 276 R&S NRP Remote Control - Commands Command Preset and *RST value Remark Depending on sensor. TRIG[1..4|:ALL]:LEV <NRf> Depending on sensor. TRIG[1..4|:ALL]:SLOP POS | NEG Depending on sensor. TRIG[1..4|:ALL]:SOUR IMM | HOLD | EXT | INT | BUS Logarithmic result scaling. UNIT[1..8]:POW Logarithmic result scaling.
Page 277 Remote Control - Commands R&S NRP SYSTem:STANdard:PRESet <string> The R&S NRP can be easily configured for measuring standardized signals (e.g. mobile radio standards). For this purpose, the standards listed in the Annex ( Standard Configurations) are stored in the R&S NRP. The SYST:STAN:PRES command sets the listed parameters and, if desired, also configures front-panel display windows (if SYST:STAN:PWS ON).
Page 278 R&S NRP Remote Control - Commands TRIGger The trigger commands are used to configure the timing conditions for the start of a measurement. Note: When the sensors are connected to the R&S NRP, they inform the device about the SENSe and TRIGger commands supported and about the value ranges for parameters.
Page 279 Remote Control - Commands R&S NRP INITiate[1..4|:ALL]:DISable[?] ON | OFF This command prevents the execution of the INIT:IMM command for one or more sensors. It can thus suppress the start of a measurement for specific sensors if the INIT:ALL:IMM command is used. *RST value: OFF INITiate[1..4|:ALL][:IMMediate][?] This command starts a single-shot measurement.
Page 280 R&S NRP Remote Control - Commands TRIGger[1..4|:ALL]:COUNt[?] <int_value> Sets the number of measurement cycles to be performed when the measurement is started with INIT. Unit: 1 Value range: depending on sensor *RST value: depending on sensor TRIGger[1..4|:ALL]:DELay[?] <float_value> Defines the delay between the trigger event and the beginning of the actual measurement (integration). Unit: S Value range: depending on sensor *RST value: depending on sensor...
Page 281 Remote Control - Commands R&S NRP TRIGger[1..4|:ALL][:IMMediate] Performs triggering and ensures that the sensor directly changes from the WAIT_FOR_TRG state to the MEASURING state irrespective of the selected trigger source ( ). A trigger delay set with TRIG:SOUR TRIG:DEL is ignored but not the automatic delay determined when TRIG:DEL:AUTO:ON is set. When the trigger source is HOLD, a measurement can only be started with TRIG.
Page 282 R&S NRP Remote Control - Commands TRIGger[1..4|:ALL]:SOURce[?] BUS | EXTernal | HOLD | IMMediate | INTernal Sets the trigger signal source for the WAIT_FOR_TRG state. The trigger event is initiated by TRIG:IMM or *TRG. In this case, the other trigger setting are meaningless.
Page 283: Unit
Remote Control - Commands R&S NRP UNIT Table 6-35: Commands of the UNIT system Command Parameter Unit Remark UNIT[1..8] DBM | W :POWer[?] :RATio[?] DB | PCT UNIT[1..8]:POWer[?] DBM | W | DBUV Selects the output unit for the measured power values. This setting also determines the unit for the parameters of the following commands: •...
Page 284: List Of Remote Control Commands
R&S NRP Remote Control - Commands List of Remote Control Commands The R&S NRP supports remote control commands to the SCPI 1999.0 standard. Command Page High-level measurement commands 6.11 CONFigure[1..8]? 6.11 CONFigure[1..8][:SCALar][:POWer][:AVG] 6.11 CONFigure[1..8][:SCALar][:POWer][:AVG]:RELative 6.11 CONFigure[1..8][:SCALar][:POWer][:AVG]:DIFFerence 6.11 CONFigure[1..8][:SCALar][:POWer][:AVG]:DIFFerence:RELative 6.11 CONFigure[1..8][:SCALar][:POWer][:AVG]:SUM 6.11 CONFigure[1..8][:SCALar][:POWer][:AVG]:SUM:RELative 6.11...
Page 285 Remote Control - Commands R&S NRP 6.11 CONFigure[1..8][:SCALar][:POWer]:BURSt[:AVG]:DIFFerence 6.11 CONFigure[1..8][:SCALar][:POWer]:BURSt[:AVG]:DIFFerence:RELative 6.11 CONFigure[1..8][:SCALar][:POWer]:BURSt[:AVG]:SUM 6.11 CONFigure[1..8][:SCALar][:POWer]:BURSt[:AVG]:SUM:RELative 6.11 CONFigure[1..8][:SCALar][:POWer]:BURSt[:AVG]:RATio 6.11 CONFigure[1..8][:SCALar][:POWer]:BURSt[:AVG]:RATio:RELative 6.11 CONFigure[1..8][:SCALar][:POWer]:BURSt[:AVG]:SWR 6.11 CONFigure[1..8][:SCALar][:POWer]:BURSt[:AVG]:RLOSs 6.11 CONFigure[1..8][:SCALar][:POWer]:BURSt[:AVG]:REFLection 6.11 CONFigure[1..8]:ARRay[:POWer][:AVG] 6.11 CONFigure[1..8]:ARRay[:POWer][:AVG]:RELative 6.11 CONFigure[1..8]:ARRay[:POWer][:AVG]:DIFFerence 6.11 CONFigure[1..8]:ARRay[:POWer][:AVG]:DIFFerence:RELative 6.11 CONFigure[1..8]:ARRay[:POWer][:AVG]:SUM 6.11 CONFigure[1..8]:ARRay[:POWer][:AVG]:SUM:RELative 6.11 CONFigure[1..8]:ARRay[:POWer][:AVG]:RATio 6.11 CONFigure[1..8]:ARRay[:POWer][:AVG]:RATio:RELative 6.11 CONFigure[1..8]:ARRay[:POWer][:AVG]:SWR 6.11...
Page 286 R&S NRP Remote Control - Commands 6.11 FETCh[1..8][:SCALar][:POWer][:AVG]:SWR 6.11 FETCh[1..8][:SCALar][:POWer][:AVG]:RLOSs 6.11 FETCh[1..8][:SCALar][:POWer][:AVG]:REFLection 6.11 FETCh[1..8][:SCALar][:POWer]:TSLot[:AVG] 6.11 FETCh[1..8][:SCALar][:POWer]:TSLot[:AVG]:RELative 6.11 FETCh[1..8][:SCALar][:POWer]:TSLot[:AVG]:DIFFerence 6.11 FETCh[1..8][:SCALar][:POWer]:TSLot[:AVG]:DIFFerence:RELative 6.11 FETCh[1..8][:SCALar][:POWer]:TSLot[:AVG]:SUM 6.11 FETCh[1..8][:SCALar][:POWer]:TSLot[:AVG]:SUM:RELative 6.11 FETCh[1..8][:SCALar][:POWer]:TSLot[:AVG]:RATio 6.11 FETCh[1..8][:SCALar][:POWer]:TSLot[:AVG]:RATio:RELative 6.11 FETCh[1..8][:SCALar][:POWer]:TSLot[:AVG]:SWR 6.11 FETCh[1..8][:SCALar][:POWer]:TSLot[:AVG]:RLOSs 6.11 FETCh[1..8][:SCALar][:POWer]:TSLot[:AVG]:REFLection 6.11 FETCh[1..8][:SCALar][:POWer]:BURSt[:AVG] 6.11 FETCh[1..8][:SCALar][:POWer]:BURSt[:AVG]:RELative 6.11 FETCh[1..8][:SCALar][:POWer]:BURSt[:AVG]:DIFFerence 6.11 FETCh[1..8][:SCALar][:POWer]:BURSt[:AVG]:DIFFerence:RELative 6.11...
Page 287 Remote Control - Commands R&S NRP 6.11 FETCh[1..8]:ARRay[:POWer][:AVG]:SUM:RELative 6.11 FETCh[1..8]:ARRay[:POWer][:AVG]:RATio 6.11 FETCh[1..8]:ARRay[:POWer][:AVG]:RATio:RELative 6.11 FETCh[1..8]:ARRay[:POWer][:AVG]:SWR 6.11 FETCh[1..8]:ARRay[:POWer][:AVG]:RLOSs 6.11 FETCh[1..8]:ARRay[:POWer][:AVG]:REFLection 6.11 FETCh[1..8]:XTIMe[:POWer] 6.11 READ[1..8]? 6.11 READ[1..8][:SCALar][:POWer][:AVG] 6.11 READ[1..8][:SCALar][:POWer][:AVG]:RELative 6.11 READ[1..8][:SCALar][:POWer][:AVG]:DIFFerence 6.11 READ[1..8][:SCALar][:POWer][:AVG]:DIFFerence:RELative 6.11 READ[1..8][:SCALar][:POWer][:AVG]:SUM 6.11 READ[1..8][:SCALar][:POWer][:AVG]:SUM:RELative 6.11 READ[1..8][:SCALar][:POWer][:AVG]:RATio 6.11 READ[1..8][:SCALar][:POWer][:AVG]:RATio:RELative 6.11 READ[1..8][:SCALar][:POWer][:AVG]:SWR 6.11 READ[1..8][:SCALar][:POWer][:AVG]:RLOSs 6.11...
Page 288 R&S NRP Remote Control - Commands 6.11 READ[1..8][:SCALar][:POWer]:BURSt[:AVG] 6.11 READ[1..8][:SCALar][:POWer]:BURSt[:AVG]:RELative 6.11 READ[1..8][:SCALar][:POWer]:BURSt[:AVG]:DIFFerence 6.11 READ[1..8][:SCALar][:POWer]:BURSt[:AVG]:DIFFerence:RELative 6.11 READ[1..8][:SCALar][:POWer]:BURSt[:AVG]:SUM 6.11 READ[1..8][:SCALar][:POWer]:BURSt[:AVG]:SUM:RELative 6.11 READ[1..8][:SCALar][:POWer]:BURSt[:AVG]:RATio 6.11 READ[1..8][:SCALar][:POWer]:BURSt[:AVG]:RATio:RELative 6.11 READ[1..8][:SCALar][:POWer]:BURSt[:AVG]:SWR 6.11 READ[1..8][:SCALar][:POWer]:BURSt[:AVG]:RLOSs 6.11 READ[1..8][:SCALar][:POWer]:BURSt[:AVG]:REFLection 6.11 READ[1..8]:ARRay[:POWer][:AVG] 6.11 READ[1..8]:ARRay[:POWer][:AVG]:RELative 6.11 READ[1..8]:ARRay[:POWer][:AVG]:DIFFerence 6.11 READ[1..8]:ARRay[:POWer][:AVG]:DIFFerence:RELative 6.11 READ[1..8]:ARRay[:POWer][:AVG]:SUM 6.11 READ[1..8]:ARRay[:POWer][:AVG]:SUM:RELative 6.11 READ[1..8]:ARRay[:POWer][:AVG]:RATio 6.11...
Page 289 Remote Control - Commands R&S NRP 6.11 MEASure[1..8][:SCALar][:POWer][:AVG]:RLOSs 6.11 MEASure[1..8][:SCALar][:POWer][:AVG]:REFLection 6.11 MEASure[1..8][:SCALar][:POWer]:TSLot[:AVG] 6.11 MEASure[1..8][:SCALar][:POWer]:TSLot[:AVG]:RELative 6.11 MEASure[1..8][:SCALar][:POWer]:TSLot[:AVG]:DIFFerence 6.11 MEASure[1..8][:SCALar][:POWer]:TSLot[:AVG]:DIFFerence:RELative 6.11 MEASure[1..8][:SCALar][:POWer]:TSLot[:AVG]:RATio 6.11 MEASure[1..8][:SCALar][:POWer]:TSLot[:AVG]:RATio:RELative 6.11 MEASure[1..8][:SCALar][:POWer]:BURSt[:AVG] 6.11 MEASure[1..8][:SCALar][:POWer]:BURSt[:AVG]:RELative 6.11 MEASure[1..8][:SCALar][:POWer]:BURSt[:AVG]:DIFFerence 6.11 MEASure[1..8][:SCALar][:POWer]:BURSt[:AVG]:DIFFerence:RELative 6.11 MEASure[1..8][:SCALar][:POWer]:BURSt[:AVG]:RATio 6.11 MEASure[1..8][:SCALar][:POWer]:BURSt[:AVG]:RATio:RELative 6.11 MEASure[1..8]:SWR 6.11 MEASure[1..8]:REFLection 6.11 MEASure[1..8]:RLOSs 6.11 MEASure[1..8]:ARRay[:POWer][:AVG] 6.11...
Page 290 R&S NRP Remote Control - Commands 6.22 CALCulate[1..8]:LIMit:BEEP 6.23 CALCulate[1..8]:LIMit:CLEar[:IMMediate] 6.23 CALCulate[1..8]:LIMit:FAIL? 6.24 CALCulate[1..8]:LIMit:FCOunt? 6.24 CALCulate[1..8]:LIMit:UPPer[:DATA][?] 6.25 CALCulate[1..8]:LIMit:UPPer:STATe[?] 6.24 CALCulate[1..8]:LIMit:LOWer[:DATA][?] 6.25 CALCulate[1..8]:LIMit:LOWer:STATe[?] 6.26 CALCulate[1..8]:MATH[:EXPRession][?] 6.27 CALCulate[1..8]:MATH[:EXPRession]:CATalog? 6.27 CALCulate[1..8]:RELative[:MAGNitude][?] 6.28 CALCulate[1..8]:RELative[:MAGNitude]:AUTO[?] 6.28 CALCulate[1..8]:RELative:POWer[:MAGNitude][?] 6.28 CALCulate[1..8]:RELative:RATio[:MAGNitude][?] 6.28 CALCulate[1..8]:RELative:STATe[?] CALibration command 6.29 CALibration[1..4]:ZERO:AUTO[?] DISPlay command 6.30 DISPlay:ILLumination[?]...
Page 291 Remote Control - Commands R&S NRP 6.33 DISPlay[:WINDow][1..4]:METer|:ANALog:UPPer[?] 6.34 DISPlay[:WINDow][1..4]:NAME[?] 6.35 DISPlay[:WINDow][1..4]:RESolution[?] 6.36 DISPlay[:WINDow][1..4]:SELect[?] 6.37 DISPlay[:WINDow][1..4]:SIZE[?] 6.35 DISPlay[:WINDow][1..4][:STATe][?] MEMory commands 6.40 MEMory:CATalog[:ALL]? 6.40 MEMory:CATalog:STATe? 6.40 MEMory:CATalog:TABLe? 6.40 MEMory:CLEar[:NAME] 6.40 MEMory:CLEar:TABLe 6.40 MEMory:FREE[:ALL]? 6.41 MEMory:FREE:STATe? 6.41 MEMory:FREE:TABLe? 6.41 MEMory:NSTates? 6.41 MEMory:STATe:CATalog? 6.41 MEMory:STATe:DEFine[?] 6.41...
Page 292 R&S NRP Remote Control - Commands 6.52 [SENSe[1..4]]:AVERage:COUNt:AUTO:MTIMe[?] 6.52 [SENSe[1..4]]:AVERage:COUNt:AUTO:RESolution[?] 6.52 [SENSe[1..4]]:AVERage:COUNt:AUTO:SLOT[?] 6.53 [SENSe[1..4]]:AVERage:COUNt:AUTO:NSRatio[?] 6.53 [SENSe[1..4]]:AVERage:COUNt:AUTO:TYPE[?] 6.53 [SENSe[1..4]]:AVERage:RESet 6.53 [SENSe[1..4]]:AVERage:TCONtrol[?] 6.54 [SENSe[1..4]]:CORRection:DCYCle[:INPut][:MAGNitude][?] 6.54 [SENSe[1..4]]:CORRection:DCYCle:STATe[?] 6.54 [SENSe[1..4]]:CORRection:FDOFfset[:INPut][:MAGNitude]? 6.55 [SENSe[1..4]]:CORRection:FDOT[:SELect][?] 6.55 [SENSe[1..4]]:CORRection:FDOT:STATe[?] 6.54 [SENSe[1..4]]:CORRection:OFFSet[?] 6.54 [SENSe[1..4]]:CORRection:OFFSet:STATe 6.55 [SENSe[1..4]]:FREQuency[:CW|:FIXed][?] 6.56 [SENSe[1..4]]:FUNCtion[:ON][?] 6.57 [SENSe[1..4]]:[POWer][:AVG]:APERture[?] 6.57 [SENSe[1..4]]:[POWer][:AVG]:BUFFer:SIZE[?] 6.57...
Page 293 Remote Control - Commands R&S NRP 6.61 [SENSe[1..4]]:TRACe:AVERage[:STATe][?] 6.61 [SENSe[1..4]]:TRACe:AVERage:COUNt[?] 6.61 [SENSe[1..4]]:TRACe:AVERage:COUNt:AUTO[?] 6.61 [SENSe[1..4]]:TRACe:AVERage:COUNt:AUTO:MTIMe[?] 6.62 [SENSe[1..4]]:TRACe:AVERage:COUNt:AUTO:RESolution[?] 6.62 [SENSe[1..4]]:TRACe:AVERage:COUNt:AUTO:POINt[?] 6.62 [SENSe[1..4]]:TRACe:AVERage:COUNt:AUTO:NSRatio[?] 6.63 [SENSe[1..4]]:TRACe:AVERage:COUNt:AUTO:TYPE[?] 6.63 [SENSe[1..4]]:TRACe:AVERage:TCONtrol[?] 6.63 [SENSe[1..4]]:TRACe:OFFSet:TIME[?] 6.63 [SENSe[1..4]]:TRACe:POINts[?] 6.64 [SENSe[1..4]]:TRACe:REALtime[?] 6.64 [SENSe[1..4]]:TRACe:TIME[?] 6.64 [SENSe[1..4]]:TIMing:EXCLude:STARt[?] 6.64 [SENSe[1..4]]:TIMing:EXCLude:STOP[?] STATus commands 6.69 STATus:DEVice[:EVENt]? 6.69 STATus:DEVice:CONDition? 6.69...
Page 294 R&S NRP Remote Control - Commands 6.69 STATus:OPERation:CALibrating[:SUMMary]:PTRansition[?] 6.69 STATus:OPERation:LLFail[:SUMMary][:EVENt]? 6.69 STATus:OPERation:LLFail[:SUMMary]:CONDition? 6.69 STATus:OPERation:LLFail[:SUMMary]:ENABle[?] 6.69 STATus:OPERation:LLFail[:SUMMary]:NTRansition[?] 6.69 STATus:OPERation:LLFail[:SUMMary]:PTRansition[?] 6.69 STATus:OPERation:ULFail[:SUMMary][:EVENt]? 6.69 STATus:OPERation:ULFail[:SUMMary]:CONDition? 6.69 STATus:OPERation:ULFail[:SUMMary]:ENABle[?] 6.69 STATus:OPERation:ULFail[:SUMMary]:NTRansition[?] 6.69 STATus:OPERation:ULFail[:SUMMary]:PTRansition[?] 6.69 STATus:OPERation:MEASuring[:SUMMary][:EVENt]? 6.69 STATus:OPERation:MEASuring[:SUMMary]:CONDition? 6.69 STATus:OPERation:MEASuring[:SUMMary]:ENABle[?] 6.69 STATus:OPERation:MEASuring[:SUMMary]:NTRansition[?] 6.69 STATus:OPERation:MEASuring[:SUMMary]:PTRansition[?] 6.69 STATus:OPERation:SENSe[:SUMMary][:EVENt]? 6.69 STATus:OPERation:SENSe[:SUMMary]:CONDition? 6.69...
Page 295 Remote Control - Commands R&S NRP 6.69 STATus:QUEStionable:PTRansition[?] 6.69 STATus:QUEStionable:CALibration[:SUMMary][:EVENt]? 6.69 STATus:QUEStionable:CALibration[:SUMMary]:CONDition? 6.69 STATus:QUEStionable:CALibration[:SUMMary]:ENABle[?] 6.69 STATus:QUEStionable:CALibration[:SUMMary]:NTRansition[?] 6.69 STATus:QUEStionable:CALibration[:SUMMary]:PTRansition[?] 6.69 STATus:QUEStionable:POWer[:SUMMary][:EVENt]? 6.69 STATus:QUEStionable:POWer[:SUMMary]:CONDition? 6.69 STATus:QUEStionable:POWer[:SUMMary]:ENABle[?] 6.69 STATus:QUEStionable:POWer[:SUMMary]:NTRansition[?] 6.69 STATus:QUEStionable:POWer[:SUMMary]:PTRansition[?] 6.69 STATus:QUEStionable:WINDow[:SUMMary][:EVENt]? 6.69 STATus:QUEStionable:WINDow[:SUMMary]:CONDition? 6.69 STATus:QUEStionable:WINDow[:SUMMary]:ENABle[?] 6.69 STATus:QUEStionable:WINDow[:SUMMary]:NTRansition[?] 6.69 STATus:QUEStionable:WINDow[:SUMMary]:PTRansition[?] 6.69 STATus:PRESet SYSTem commands 6.93 SYSTem:BEEPer[:IMMediate]...
Page 296 R&S NRP Remote Control - Commands 6.101 SYSTem:SPEed 6.101 SYSTem:TIME[?] 6.102 SYSTem:VERSion? Trigger system 6.103 ABORt[1..4|:ALL] 6.103 INITiate[1..4|:ALL]:CONTinuous[?] 6.103 INITiate[1..4|:ALL][:IMMediate][?] TRIGger:ALL:SYNChronize[:STATe][?] 6.104 TRIGger[1..4|:ALL]:ATRigger[:STATe][?] 6.105 TRIGger[1..4|:ALL]:COUNt[?] 6.105 TRIGger[1..4|:ALL]:DELay[?] 6.105 TRIGger[1..4|:ALL]:DELay[?]:AUTO 6.105 TRIGger[1..4|:ALL]:HOLDoff[?] 6.105 TRIGger[1..4|:ALL]:HYSTeresis[?] 6.106 TRIGger[1..4|:ALL][:IMMediate] 6.106 TRIGger[1..4|:ALL]:LEVel[?] 6.106 TRIGger[1..4|:ALL]:SLOPe[?] 6.107 TRIGger[1..4|:ALL]:SOURce[?] UNIT commands 6.108...
Page 297: Compatibility Information
Remote Control - Commands R&S NRP Compatibility Information This section contains information regarding the compatibility of the R&S NRP remote control commands with those of the E4418B and E4419B power meters from Agilent. The R&S NRP is largely downward-compatible to the above-mentioned devices but offers additional capabilities.
Page 298 R&S NRP Remote Control - Commands Has the same effect as SENSe[1..2]:CORRection:OFFSet[?] SENSe[1|2]:CORRection:GAIN2[?] With GAIN2, no unit may be specified. Unit 1 is valid. Corresponds to the reciprocal of SENSe[1|2]:CORRection:LOSS2[?] With :LOSS2, no unit SENSe[1..2]:CORRection:OFFSet[?] may be specified. Unit 1 is valid. Has the same effect as SENSe[1..2]:CORRection:DCYCle[?] SENSe[1|2]:CORRection:GAIN3[?] With :GAIN3, no unit may be specified.
Page 299: Interfaces
Remote Control - Commands R&S NRP Interfaces IEC/IEEE Bus Interface The R&S NRP is fitted with an IEC/IEEE bus interface as standard. The connector in line with IEEE 488 is located on the rear panel. A controller can be connected to this interface for remote control. A shielded cable is used for the connection.
Page 300 R&S NRP Remote Control - Commands ATN (Attention) Active LOW indicates the transmission of interface messages; non-active HIGH indicates the transmission of device messages. SRQ (Service Request) Active LOW enables a device to send a service request to the controller. REN (Remote Enable) Active LOW allows switchover to the remote control mode.
Page 301: Interface Functions
Remote Control - Commands R&S NRP Interface Functions Devices remote-controlled via an IEC/IEEE-bus may be equipped with different interface capabilities. Table 6-37 shows the IEC/IEEE bus capabilities of the R&S NRP. For coding of the different capabilities see the IEEE488 standard. Table 6-37: Interface functions of IEC/IEEE bus IEEE488 Interface capabilities...
Page 302 R&S NRP Remote Control - Commands Interface Messages Interface messages are transmitted to the device on data lines, where the ATN is set to active LOW. They are used for communication between the controller and the R&S NRP. Common Commands Common commands are in the code range 0x10 to 0x1F.
Page 303: Standard Configurations
Remote Control - Commands R&S NRP Standard Configurations The following tables list the settings that can be made when configuring the R&S NRP with the SYST:STAN:PRE <string> remote control command. The following values are provided for the <string> parameter. • "GSM/EDGE"...
Page 304 R&S NRP Remote Control - Commands "GSM/EDGE" Sensor parameter Remote control command in short form Value Sensor Mode SENS:FUNC "POW:XTIM" Integration Time 4.615 ms SENS:APER Duty Cycle 11.762 % SENS:DCYC Duty Cycle Correction SENS:DCYC:STAT Smoothing SENS:SMO Dropout Tolerance 577 µs SENS:BURST:DTOL Exclude Time Start 20 µs...
Page 305 Remote Control - Commands R&S NRP "NADC/DOWNLINK" Sensor parameter Remote control command in short form Value Sensor Mode SENS:FUNC "POW:AVG" Integration Time 40 ms SENS:APER Duty Cycle Correction SENS:DCYC:STAT Smoothing SENS:SMO Trigger Source TRIG:SOUR 1144.1400.12 6.130...
Page 306 R&S NRP Remote Control - Commands "NADC/UPLINK" Sensor parameter Remote control command in short form Value Sensor Mode SENS:FUNC "POW:XTIM" Integration Time 40 ms SENS:APER Duty Cycle 16.267 % SENS:DCYC Duty Cycle Correction SENS:DCYC:STAT Smoothing SENS:SMO Dropout Tolerance 3 ms SENS:BURST:DTOL Exclude Time Start 130 µs...
Page 307 Remote Control - Commands R&S NRP "PDC/DOWNLINK" Sensor parameter Remote control command in short form Value Sensor Mode SENS:FUNC "POW:AVG" Integration Time 40 ms SENS:APER Duty Cycle Correction SENS:DCYC:STAT Smoothing SENS:SMO Trigger Source TRIG:SOUR 1144.1400.12 6.132...
Page 308 R&S NRP Remote Control - Commands "PDC/UPLINK" Sensor parameter Remote control command in short form Value Sensor Mode SENS:FUNC "POW:XTIM" Integration Time 40 ms SENS:APER Duty Cycle 16.25 % SENS:DCYC Duty Cycle Correction SENS:DCYC:STAT Smoothing SENS:SMO Dropout Tolerance 3 ms SENS:BURST:DTOL Exclude Time Start 125 µs...
Page 309 Remote Control - Commands R&S NRP "DECT" Sensor parameter Remote control command in short form Value Sensor Mode SENS:FUNC "POW:XTIM" Integration Time 10 ms SENS:APER Duty Cycle 3.7 % SENS:DCYC Duty Cycle Correction SENS:DCYC:STAT Smoothing SENS:SMO Dropout Tolerance 416.7 µs SENS:BURST:DTOL Exclude Time Start 15 µs...
Page 310 R&S NRP Remote Control - Commands "WCDMA/3GPP FDD" Sensor parameter Remote control command in short form Value Sensor Mode SENS:FUNC "POW:AVG" Integration Time 10 ms SENS:APER Duty Cycle Correction SENS:DCYC:STAT Smoothing SENS:SMO Filter SENS:AVER:COUN:AUTO Filter Length SENS:AVER:COUN Trigger Source TRIG:SOUR 1144.1400.12 6.135...
Page 311 Remote Control - Commands R&S NRP "WCDMA/3GPP TDD DL" Sensor parameter Remote control command in short form Value Sensor Mode SENS:FUNC "POW:XTIM" Integration Time 10 ms SENS:APER Duty Cycle 6.667 % SENS:DCYC Duty Cycle Correction SENS:DCYC:STAT Smoothing SENS:SMO Dropout Tolerance 666.667 µs SENS:BURST:DTOL Exclude Time Start...
Page 312 R&S NRP Remote Control - Commands "WCDMA/3GPP TDD UL" Sensor parameter Remote control command in short form Value Sensor Mode SENS:FUNC "POW:XTIM" Integration Time 10 ms SENS:APER Duty Cycle 6.420 % SENS:DCYC Duty Cycle Correction SENS:DCYC:STAT Smoothing SENS:SMO Dropout Tolerance 666.667 µs SENS:BURST:DTOL Exclude Time Start...
Page 313 Remote Control - Commands R&S NRP "TD-SCDMA " Sensor parameter Remote control command in short form Value Sensor Mode SENS:FUNC "POW:XTIM" Integration Time 5 ms SENS:APER Duty Cycle 13.250 % SENS:DCYC Duty Cycle Correction SENS:DCYC:STAT Smoothing SENS:SMO Timegate Offset 1: 20 µs SENS:TGAT:OFFS:TIME 2: 710 µs 3: 835 µs...
Page 314 R&S NRP Remote Control - Commands "Bluetooth DH1" Sensor parameter Remote control command in short form Value Sensor Mode SENS:FUNC "POW:XTIM" Integration Time 1.25 ms SENS:APER Duty Cycle 29.28 % SENS:DCYC Duty Cycle Correction SENS:DCYC:STAT Smoothing SENS:SMO Dropout Tolerance 366 µs SENS:BURST:DTOL Exclude Time Start 10 µs...
Page 315 Remote Control - Commands R&S NRP "Bluetooth DH3" Sensor parameter Remote control command in short form Value Sensor Mode SENS:FUNC "POW:XTIM" Integration Time 2.50 ms SENS:APER Duty Cycle 64.88 % SENS:DCYC Duty Cycle Correction SENS:DCYC:STAT Smoothing SENS:SMO Dropout Tolerance 1.622 ms SENS:BURST:DTOL Exclude Time Start 10 µs...
Page 316 R&S NRP Remote Control - Commands "Bluetooth DH5" Sensor parameter Remote control command in short form Value Sensor Mode SENS:FUNC "POW:XTIM" Integration Time 3.75 ms SENS:APER Duty Cycle 76.533 % SENS:DCYC Duty Cycle Correction SENS:DCYC:STAT Smoothing SENS:SMO Dropout Tolerance 2.870 ms SENS:BURST:DTOL Exclude Time Start 10 µs...
Page 317 Remote Control - Commands R&S NRP "CDMA2000" Sensor parameter Remote control command in short form Value Sensor Mode SENS:FUNC "POW:AVG" Integration Time 80 ms SENS:APER Duty Cycle Correction SENS:DCYC:STAT Smoothing SENS:SMO Filter SENS:AVER:COUN:AUTO Filter Length SENS:AVER:COUN Trigger Source TRIG:SOUR 1144.1400.12 6.142...
Page 318 R&S NRP Table of Contents Annex Chapter I Table of Contents I Programming Measurements with the R&S NRP ............I.1 Measuring with high-level commands.................... I.1 The simplest measurement..................... I.1 Relative measurements ....................I.2 Processing the results of two sensors................I.3 Selecting a measurement mode ..................
Page 319 List of Figs. Annex Chapter I R&S NRP Figs. Fig. I-1: Overview of basic relationships in the trigger state system ............. I.10 Fig. I-2: Processing of measured values in the R&S NRP ..............I.11 Fig. I-3: Meaning of settings for TRIG:HOLD and TRIG:DEL ............... I.14 1144.1400.12 I-Annex.2...
Page 320: I Programming Measurements With The R&S Nrp
R&S NRP Annex: Remote Control - Commands Programming Measurements with the R&S NRP Measuring with high-level commands The R&S NRP is based on the instrument model defined in the SCPI 1999.0 standard. This model provides a number of logic blocks that can be configured via remote-control commands. The R&S NRP is provided with high-level measurement commands that automatically perform the most important settings and simplify measurements, thus making it unnecessary to completely configure these blocks for each measurement.
Page 321: Relative Measurements
Annex: Remote Control - Commands R&S NRP Relative measurements If the measurement results are to be output not as absolute values, but relative to a reference value, the keyword :RELative can be added to the measurement command. The result is then divided by a value that was previously set by means of CALC:REL:POW or CALC:REL:AUTO ONCE.
Page 322: Processing The Results Of Two Sensors
R&S NRP Annex: Remote Control - Commands Processing the results of two sensors The R&S NRP offers measurement commands for processing the results of two sensors. The calculated result can also be partly referenced to a stored reference value. The measurement commands are obtained by adding one of the following keywords: (difference) :DIFF :DIFF:REL (difference with reference value)
Page 323: Selecting A Measurement Mode
Annex: Remote Control - Commands R&S NRP Selecting a measurement mode Other MEAS commands are available for measurements to be performed in a mode other than the ContAv mode. The short form of these commands is obtained by adding a keyword for the measurement mode to keyword MEAS.
Page 324 R&S NRP Annex: Remote Control - Commands MEAS:ARRay? (1000) 1000 measured values are recorded in the ContAv mode. After termination of the last measurement, the results are stored in the output queue. There is no triggering as in the ContAv mode. The measurement result is a list of 1000 measured values separated by a comma.
Page 325: Selecting The Output Unit For Measured Values
Annex: Remote Control - Commands R&S NRP Selecting the output unit for measured values So far, no information has been given on the unit of the measured values. It is possible to modify the output unit of the measured values. A distinction is made as to whether the result represents a power or a power ratio.
Page 326: Division Of Meas
R&S NRP Annex: Remote Control - Commands Division of MEAS? MEAS? can be divided into other high-level measurement commands. ⇔ CONF [<parameters list>] MEAS? READ? [<parameters list>] The CONF command configures the measurement, whereas READ? starts the measurement, and calculates and provides the result. This division offers two advantages: 1.
Page 327 Annex: Remote Control - Commands R&S NRP Example: CONF TRIG:SOUR BUS INIT FETCh? ( Å -214, "Trigger deadlock", *TRG or GET is not possible if FETCh? is waiting). 1144.1400.12 Annex - I.8...
Page 328: Trigger State System
R&S NRP Annex: Remote Control - Commands Trigger state system The accuracy of a result largely depends on how accurately the sequence of a measurement can be determined. The R&S NRP manages a trigger state system to SCPI 1999.0 for each sensor to define the exact start and stop time of a measurement.
Page 329 Annex: Remote Control - Commands R&S NRP MEASURING TRIG:SOUR HOLD WAIT_FOR_TRG ABORT INIT:CONT? INITIATED IDLE *RST, PowerOn INIT:IMM INIT:CONT ON Fig. I-1: Overview of basic relationships in the trigger state system Fig. I-1: Overview of basic relationships in the trigger state system shows the basic structure of the trigger system.
Page 330: Logic Relationship Of Command Systems Sense, Calculate And Unit
R&S NRP Annex: Remote Control - Commands Logic relationship of command systems SENSe, CALCulate and UNIT The following section provides an overview of the measurement procedure of the R&S NRP. The commands are mentioned as examples. These commands are described in detail in chapter 6. To perform measurements with the R&S NRP, the user should have a good understanding of the trigger system and be familiar with the result processing.
Page 331: Measuring With Low-Level Commands
Annex: Remote Control - Commands R&S NRP Measuring with low-level commands Low-level commands allow the user to perform the most important modifications on the measurement configuration. In the present context, low-level commands are all commands that do not belong to high- level commands.
Page 332 R&S NRP Annex: Remote Control - Commands If triggering needs to occur in response to a rising signal edge, the trigger system has to be configured with TRIG:SOUR INT and TRIG:SLOP POS: *RST TRIG:SOUR INT (triggering in response to a signal edge) TRIG:SLOP POS (triggering in response to a rising signal edge) INIT FETCh?
Page 333 Annex: Remote Control - Commands R&S NRP Example: *RST TRIG:SOUR INT (starts measurement 50 µs after the trigger event) TRIG:DEL 50 us (starts next trigger event 800 µs after the trigger event at the earliest) TRIG:HOLD 800 us INIT FETCh? Another way to modify the trigger system timing is to set a holdoff time (TRIG:HOLD).
Page 334 R&S NRP Annex: Remote Control - Commands Level, hysteresis and dropout time With internal and external triggering (TRIG:SOUR INT | EXT), a trigger event is recognized when the level of a trigger signal exceeds a specific value. This value is the trigger level and can be set with TRIG:LEV.
Page 335: Configuration Of Sensor Settings
Annex: Remote Control - Commands R&S NRP Configuration of sensor settings The sensor settings are controlled by the SENSe command system. The sensors tell the basic unit which commands they understand and which parameters are allowed. As a result, the commands described below cannot be used for some sensors.
Page 336 R&S NRP Annex: Remote Control - Commands • Scope mode (SENS:FUNC "XTIM:POW"): This mode is used to determine a large number of measured values in succession. The number of required measured values is set with SENS:SWE:POI and the total measurement time with SENS:SWE:TIM. Note that each measurement must be triggered separately.
Page 337 Annex: Remote Control - Commands R&S NRP Automatic filter setting: SENS:AVER:COUN:AUTO:TYPE NSR | RES is used to select whether the noise component should remain below a specific threshold (NSR) or the measurement result should be stable specific accuracy (RES). avoid long measurement times,...
Page 338 R&S NRP Annex: Remote Control - Commands Measured-value corrections The R&S NRP offers different options for correcting measured values in the instrument. These options all require an existing knowledge of the test setup or the time structure of the signal. Offsets in the result can be corrected globally and depending on the frequency, and it is possible to consider the duty cycle of a signal and the influence of the complex reflection coefficient ( Γ...
Page 339: Configuration Of Calculate Blocks
Annex: Remote Control - Commands R&S NRP Reflection coefficient of the source (source gamma, Γ ): Reflections at the power source may • distort the result. If the reflection coefficient of the source is known, it can be specified for the measured-value correction via command path SENS:SGAM.
Page 340: Optimization Of Measurement Speed
R&S NRP Annex: Remote Control - Commands Optimization of measurement speed The duration of a message can be reduced by making the following setting: (deactivates screen content !!!) SYST:SPEed FAST The following settings also affect the measurement speed to a greater or lesser extent. Which of these settings are possible, however, depends on what is to be measured.
Page 341 R&S NRP Table of Contents Chapter 8 Table of Contents Maintenance ......................... 8.1 Sensor test ............................8.1 Instrument selftest........................... 8.1 Cleaning the exterior ........................8.1 Storage.............................. 8.1 1144.1400.12 I-8.1...
Page 342 R&S NRP Maintenance 8 Maintenance Under normal operating conditions the R&S NRP does not require any regular maintenance except for occasional cleaning of the front panel. Sensor test The sensor selftest is described in Chapter 4 in the section "Selftest". Instrument selftest The R&S NRP carries out a selftest during booting.
Page 343 R&S NRP Table of Contents Chapter 9 Contents SCPI Error Messages ....................... 9.1 SCPI-Specific Error Messages ....................... 9.1 No error ............................9.1 Command Error.......................... 9.1 Execution Error .......................... 9.3 Device-Specific Errors........................ 9.4 Query Errors..........................9.5 Device-Dependent Errors........................ 9.5 1144.1400.12 I-9.1...
Page 344: Scpi Error Messages
R&S NRP SCPI Error Messages 9 SCPI Error Messages The list below contains all error messages that may occur in the instrument. Negative error numbers are defined in the SCPI standard, positive error numbers identify device-specific errors. The left column of the following table gives the error code. In the right column, the text of the error message displayed or entered in the error/event queue is printed in bold.
Page 345 SCPI Error Messages R&S NRP Error code Error text returned upon queue query Explanations -112 Program mnemonic too long The header contains more than 12 characters. -113 Undefined header The header is not defined for the device. -114 Header suffix out of range The header contains an illegal numeric suffix.
Page 346: Execution Error
R&S NRP SCPI Error Messages Error code Error text returned upon queue query Explanations -171 Invalid expression The command contains an invalid mathematical expression data element. -178 Expression data not allowed The command contains mathematical expression data at a point where they are not allowed. Execution Error Execution errors;...
Page 347: Device-Specific Errors
SCPI Error Messages R&S NRP Error code Error text returned upon queue query Explanations -225 Out of memory The device has insufficient memory to perform the required operation. -226 Lists not same length A list of offset values and frequencies has not the same length as an associated list of frequency and offset values.
Page 348: Query Errors
R&S NRP SCPI Error Messages Query Errors Query errors; cause bit 2 in the ESR register to be set Error code Error text returned upon queue query Explanations -400 Query error Generic query error that cannot be defined more precisely. -410 Query INTERRUPTED The query was interrupted.
Page 349 SCPI Error Messages R&S NRP Error code Error text returned upon queue query Explanations Sensor not idle A command could not be executed because the respective sensor was not in the IDLE state at that time. Measurement aborted while waiting for data A measurement was aborted while the device was waiting for measurement results.
Page 350 R&S NRP SCPI Error Messages Error code Error text returned upon queue query Explanations Sample error Samples were lost while sampling the signal applied. The measured value can thus be incorrect. Sensor hardware error A sensor signalled an error in the sensor hardware. If the problem persists, please contact the R&S servicing center.

Rohde & Schwarz R&S NRP Operating Manual

Table of Contents

Getting Started

Manual Operation

Instrument Functions/Instrument Functions

Instrument Functions

Hardkeys

Data Acquisition and Parameters (Sensor Menu)

Displaying Measurement Results (Windows Menu)

Configuring Measurements (Measurement Menu)

Displaying Data in the Scope Mode

Management of Settings (File Menu)

System Settings (System Menu)

Messages and Alarms

Remote Control - Fundamentals/Remote Control - Fundamentals

Remote Control - Fundamentals

Differences between Remote Control and Manual Control

Connecting a Controller to the Base Unit

Switchover to Remote Control (REMOTE)

Return to Manual Operation (LOCAL)

Communication on Data Lines

Structure and Syntax of Device-Dependent Messages

Device Model and Command Processing

Annex: Automatic Settings for Manual Selection of a Measurement Mode

Annex: Correspondence between Remote Control and Manual Control

Remote Control - Commands/Remote Control - Commands

Remote Control - Commands

List of Remote Control Commands

Compatibility Information

Interfaces

Standard Configurations

I Programming Measurements with the R&S Nrp

Measuring with High-Level Commands

I Programming Measurements with the R&S NRP

Trigger State System

Logic Relationship of Command Systems Sense, Calculate and UNIT

Measuring with Low-Level Commands

Optimization of Measurement Speed

Quick Links

Operating Manual

Chapters

Need help?

Questions and answers

Related Manuals for Rohde & Schwarz R&S NRP

Summary of Contents for Rohde & Schwarz R&S NRP
