Icom IC-756PRO Service Manual page 27

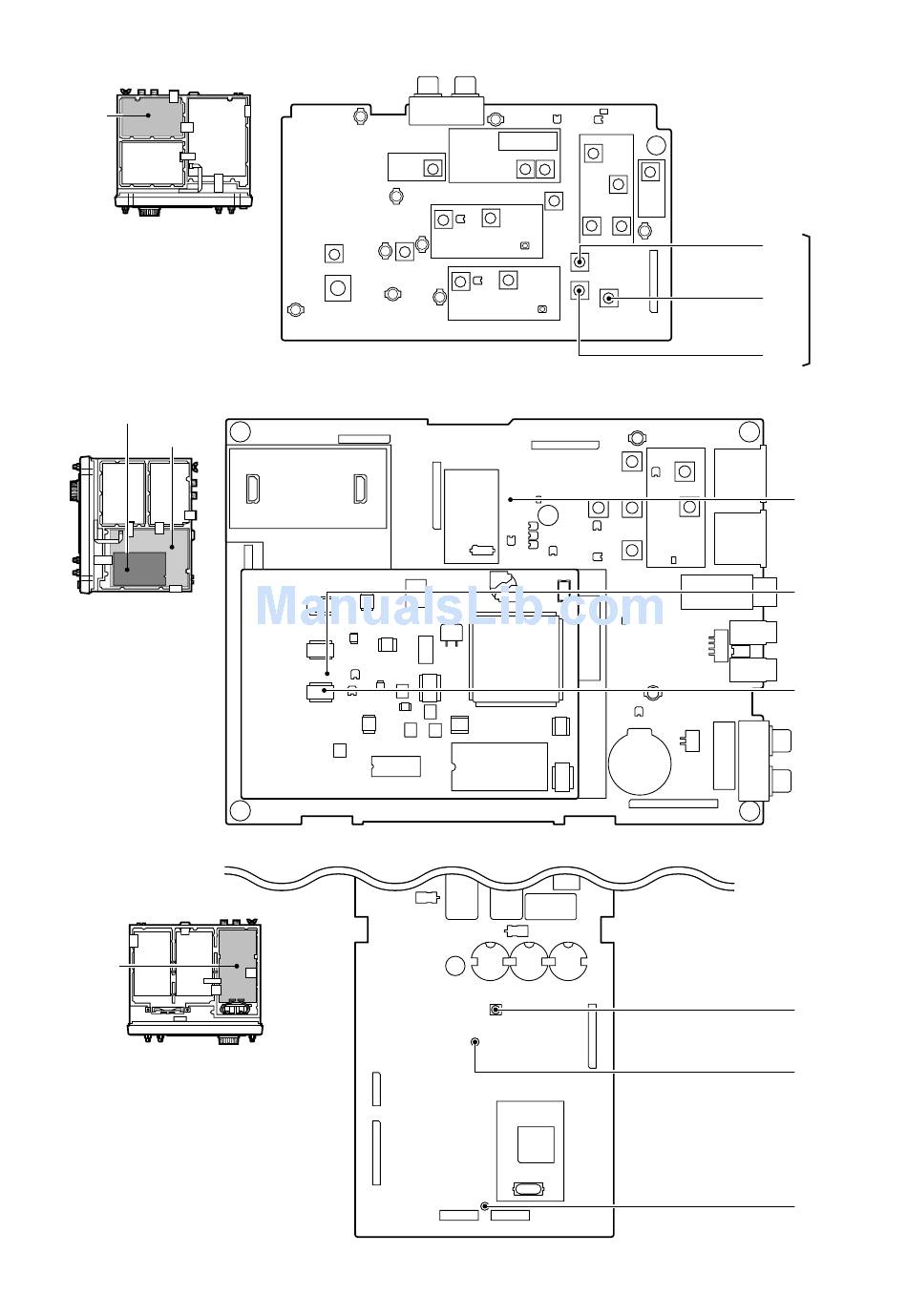

• RF unit
RF unit
Bottom view of the transceiver
• MAIN unit and DSP board
DSP board
MAIN unit
Bottom view
of the transceiver
• CTRL unit
CTRL unit
Top view of the transceiver
4 - 11
L711
Residual AM
L713
adjustment
L712
CP503
Residual AM
check point
R2227
FM deviation
adjustment
R2229
AM modulation
adjustment
C3
SWR detector
adjustment
J14 (REF)
SWR detector
check point
J12 (SETI)
SWR detector
pre-setting
