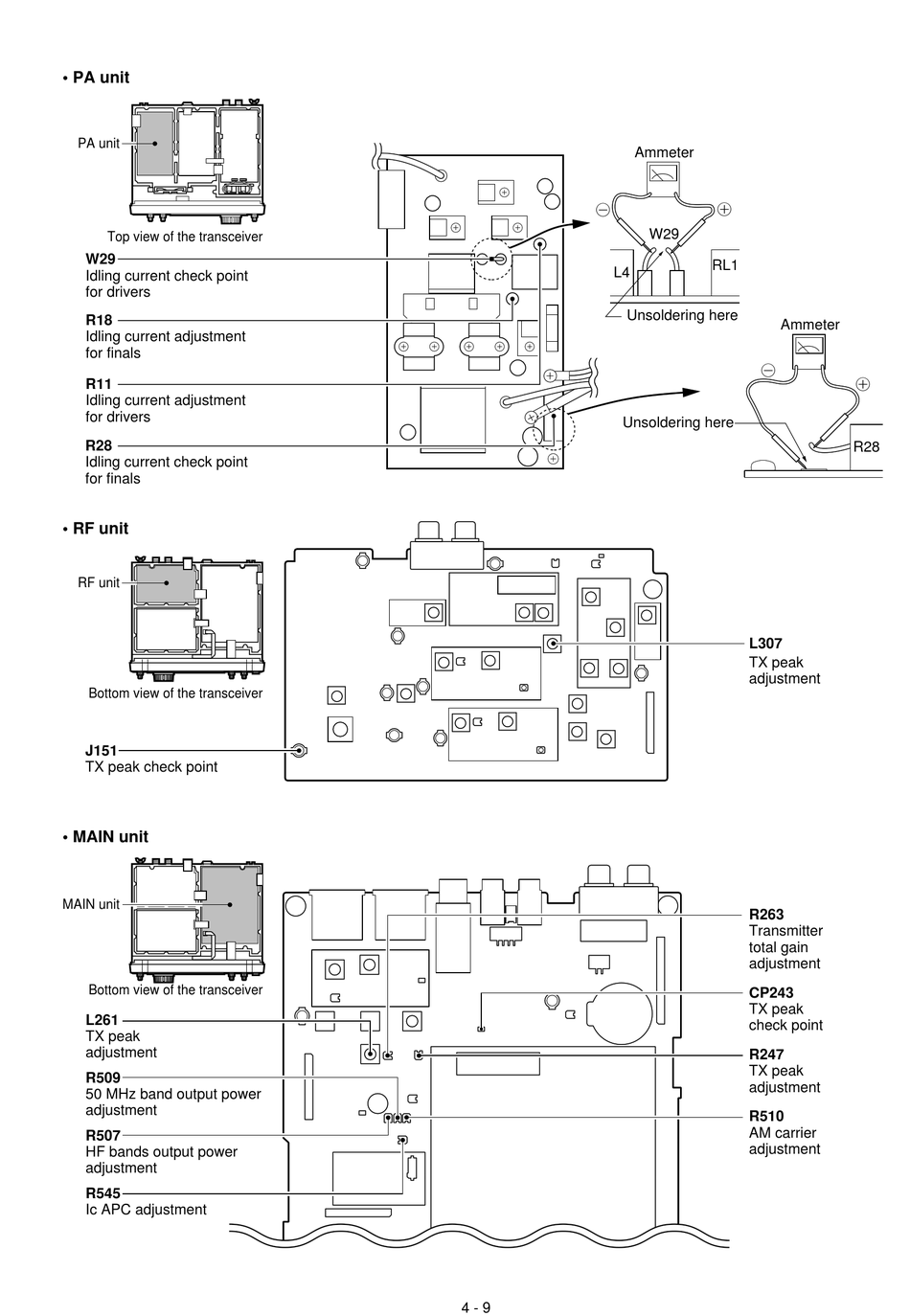

• PA unit
PA unit
Top view of the transceiver
W29
Idling current check point
for drivers
R18
Idling current adjustment
for finals
R11
Idling current adjustment
for drivers
R28
Idling current check point
for finals
• RF unit
RF unit
Bottom view of the transceiver
J151
TX peak check point
• MAIN unit
MAIN unit
Bottom view of the transceiver
L261
TX peak
adjustment
R509
50 MHz band output power
adjustment
R507
HF bands output power
adjustment
R545
Ic APC adjustment
.
L4
Unsoldering here
Unsoldering here
4 - 9
Ammeter
,
W29
RL1
Ammeter
.
L307
TX peak
adjustment
R263
Transmitter
total gain
adjustment
CP243
TX peak
check point
R247
TX peak
adjustment
R510
AM carrier
adjustment
,
R28
