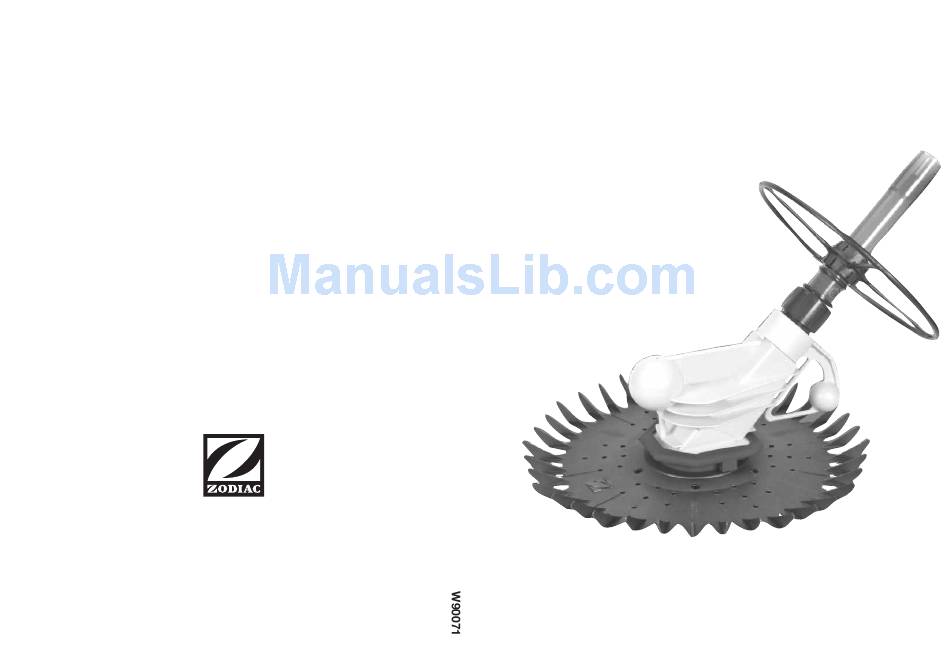

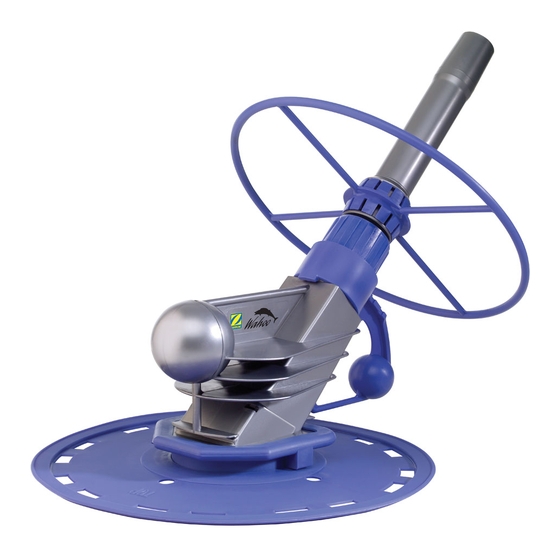

  • Page 1 Automatic Pool Cleaner ABN 87 002 641 965 PO Box 7238 Wetherill Park, NSW 2164 Australia Ph: 1800 688 552 Fax: 1300 781 688 www.zodiac.com.au © 2004 Zodiac Group Australia Pty Ltd Instruction Manual...
  • Page 2 Thank you for purchasing the world’s simplest automatic swimming pool cleaner. The Automatic Pool Cleaner has been designed and manufactured to be easily installed and to provide years of low maintenance operation. • REMEMBER TO REGISTER YOUR WARRANTY WITHIN FOURTEEN (14) DAYS FROM DATE OF PURCHASE.
  • Page 3: Table Of Contents

    Automatic Pool Cleaner if a genuine Zodiac hose has been used. SECTION 5 The warranty does not extend to the colour of the Automatic Pool Cleaner or Adjustments and troubleshooting.....................8 components. Discolouration may take place under normal conditions of use. Further...
  • Page 4: Preparing Your Pool And Filtration System

    (Send a photocopy and retain this page for future use.) basket according to the manufacturer’s instructions. Mail to: Zodiac Group Australia PO Box 7238,Wetherill Park 2164 Note: The circulation system must be operating at its maximum water flow...
  • Page 5 NOTE: If no return inlet directional fittings exist or directionals cannot be directed far enough down to prevent water flow from affecting the natural movement of the hose, you must install Automatic Pool Cleaner return line diverters.They are available through your Automatic Pool Cleaner dealer.
  • Page 6: Assembly

    Note: The Automatic Pool Cleaner comes with the Bumper Fin already fitted to help the machine avoid obstacles such as ladders and some steps.The additional deflector wheel can be used for extra clearance at steps or other obstacles. If the wheel is fitted, the Bumper Fin (as shown on page 14) should be removed first, otherwise the wheel deflector will not turn freely.
  • Page 7: Installation

    1. Remove the Automatic Pool Cleaner from the pool before super chlorinating and reinstall it a minimum of four hours later. NOTE: Attach the leader hose (Fig.3) to the Automatic Pool Cleaner head and the other end of the hose to the connection point in your pool.
  • Page 8 B. EXAMINATION 1. Examine the Diaphragm for damage or blockage. 2. If damage exists, take the complete Automatic Pool Cleaner head to a pool professional for replacement of the diaphragm. 3. If no damage exists, re-assemble the unit. The Diaphragm self adjusts on RETURN re-installation.
  • Page 9: Ad Flow Valve

    AD FLOW VALVE SYMPTOM PROCEDURE The use of the Zodiac AD Flow Valve is recommended on pools with only one 1. Cleaner is patterning. Be certain that return inlet flow has been skimmer box/suction point, or when the filtration system needs to be used but the diverted as noted in "Prepare Pool and...
  • Page 10: Adjustments And Troubleshooting

    SECTION 5 – ADJUSTMENTS & TROUBLESHOOTING SECTION 5 – ADJUSTMENTS & TROUBLESHOOTING POOL COVERAGE CORRECT BALANCING Normally it is undesirable for the return line water flow to affect the natural movement An additional hose weight (Part No. M15) may be necessary to balance the cleaner head of the hose.
