Zodiac Automatic Pool Cleaner Instruction Manual page 5

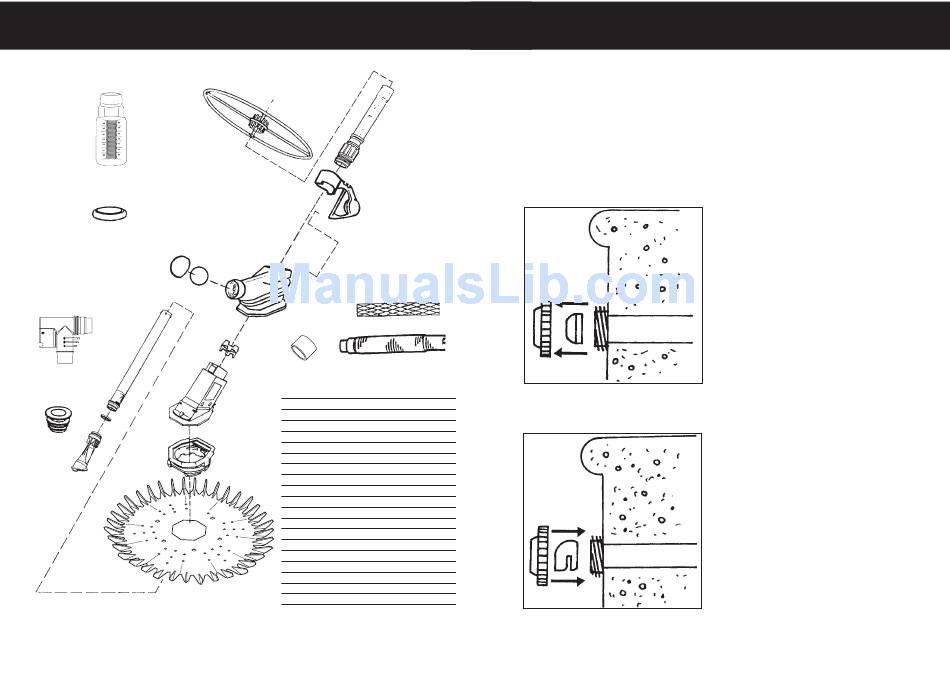

SECTION 8 – PARTS DIAGRAM
EXPLODED DIAGRAM
16
10
3
11
2
12
5
1
4
14
9
8
7
13
6
15
14
Ref. Description Qty.
1 Diaphragm
2 Diaphragm Retaining Ring
3 Threaded Inner Extension Pipe
4 Finned Disc
5 Flexi Foot
6 Inner Body
– Compression Ring
– Outer Body
– Float Chamber
7 Weighted Spur Bumper
8 Outer Extension Pipe
9 Wheel Deflector Large
10 Hose Weight
11 AD Flow Valve
12 Universal Valve Cuff
13 Hose Protector Mask
14 Hose Kit (10 x 1 Metre)
15 Pink Leader Hose Adaptor
16 Pool Pulse
SECTION 1 – PREPARING YOUR POOL
NOTE: If no return inlet directional fittings exist or directionals cannot be
directed far enough down to prevent water flow from affecting the natural
movement of the hose, you must install Automatic Pool Cleaner return line
diverters.They are available through your Automatic Pool Cleaner dealer.
NOTE: A return line divider MUST be used in pools with only one return inlet.
For pools with return inlet directional fittings:
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
FILTRATION SYSTEM
Remove the eyeball retaining ring and
remove the directional eyeball.
Replace the directional eyeball with the
Automatic Pool Cleaner retrofit eyeball
return line diverter (Part No. ARL19), and
reinstall eyeball retaining ring.
3
