Icom IC-F5062 Instruction Manual page 18

3
CONNECTION AND MAINTENANCE
■ Rear panel connecton (Contnued)

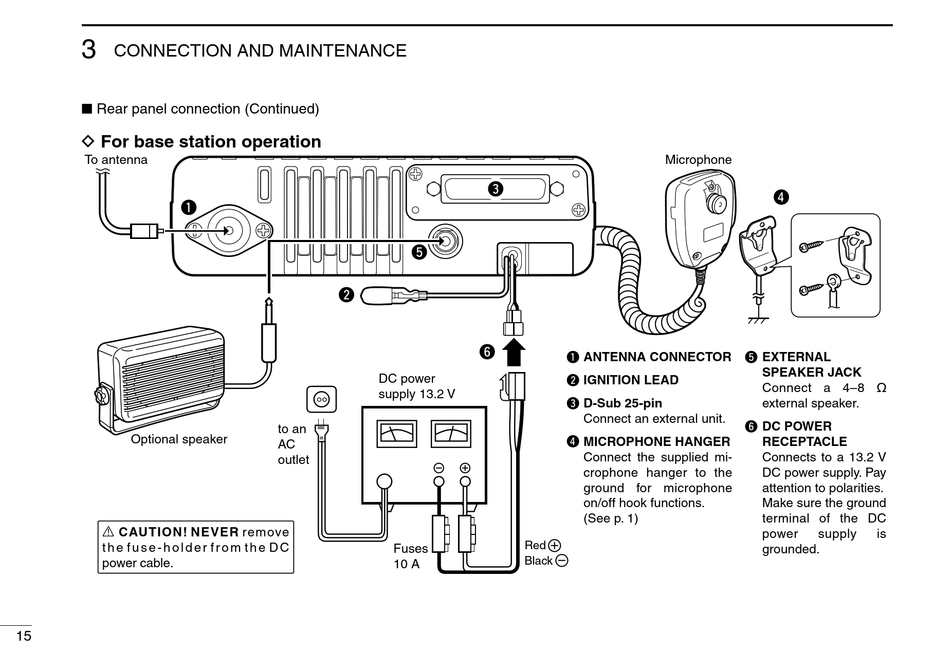

D For base station operation
To antenna
q
Optional speaker
R CAUTION! NEVER remove
t h e f u s e - h o l d e r f r o m t h e D C
power cable.
15
t
w
DC power
supply 13.2 V
to an
AC
outlet
Fuses
10 A
e
y
ANTENNA CONNECTOR
q
IGNITION LEAD
w
D-Sub 25-pin
e
Connect an external unit.
MICROPHONE HANGER
r
Connect the supplied mi-
crophone hanger to the
ground for microphone
on/off hook functions.
(See p. 1)
Red
Black
Microphone
r
EXTERNAL
t
SPEAKER JACK
Connect a 4–8 ø
external speaker.
DC POWER
y
RECEPTACLE
Connects to a 13.2 V
DC power supply. Pay
attention to polarities.
Make sure the ground
terminal of the DC
power supply
grounded.
is
