Meter Description

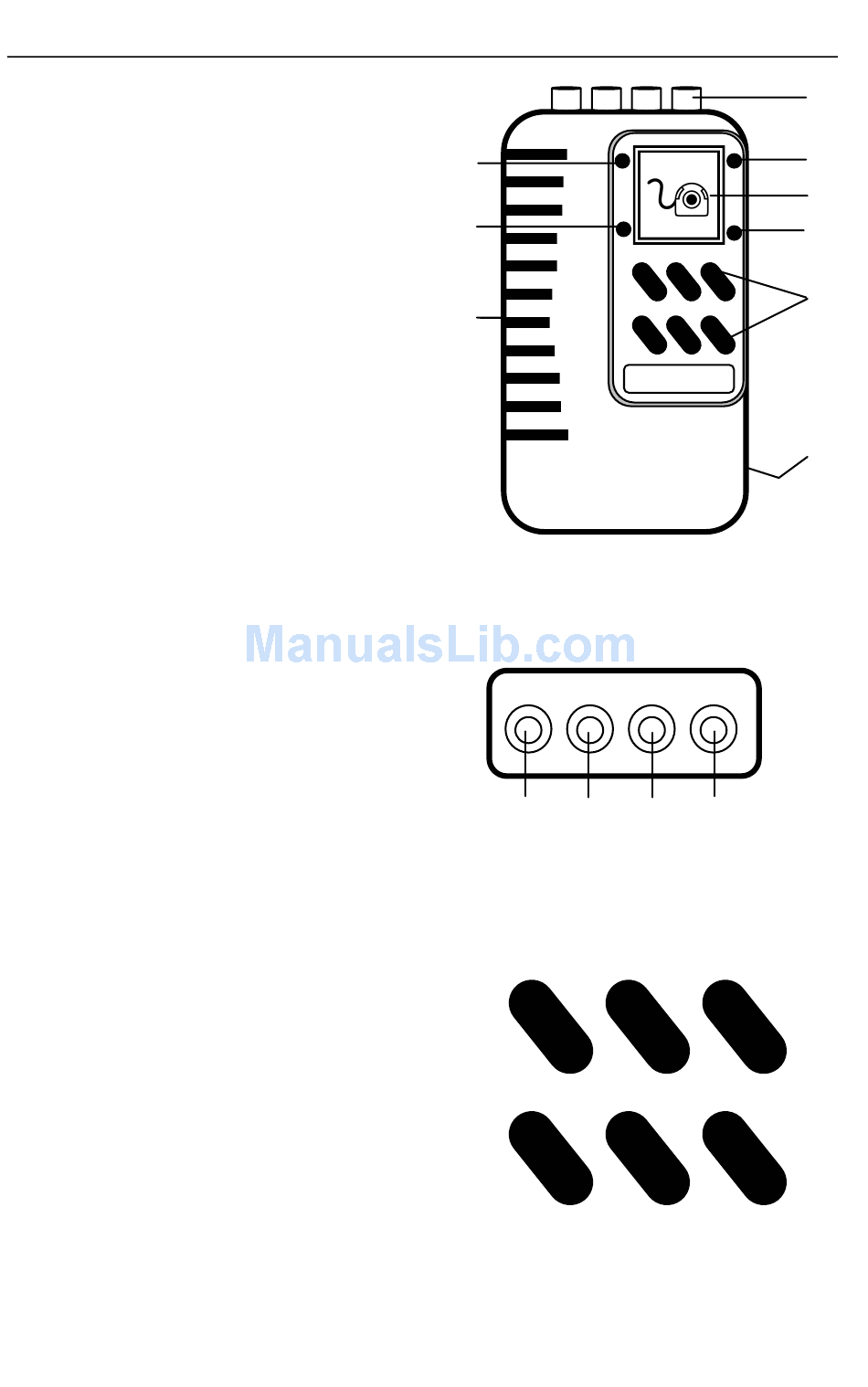

FRONT PANEL VIEW
1.
Input / Output terminals
2.
PAUSE LED indicator
3.
LCD Display
4.
Battery LED status indicator
5.
Slide switches and buttons
6.
Battery compartment (on rear)
7.
Memory FULL LED indicator
8.
DATA recording LED indicator
9.
AC adaptor input
TOP VIEW
1.
Optically isolated INPUT jack
2.
Optically isolated OUTPUT jack
3.
Non-isolated INPUT jack
4.
Non-isolated OUTPUT jack
SLIDE SWITCH AND BUTTON DESCRIPTION
1.
Power slide switch (I=ON; O=OFF)
2.
Sample Rate slide switch: Secs, Mins, Hours
3.
Automatic or Manual Recording
and Data Output slide switch
4.
RESET (memory clear) and sampling rate
INCrement (left LCD digit) button
5.
PAUSE recording and sampling rate
INCrement (right LCD digit) button
6.
Hold the SET button while pressing
an increment button to change the sample rate
7
8
9
FRONT PANEL VIEW
TOP VIEW
ISOLATE
IN
OUT
1
I
1
RESET>
4
INC.10
3
DIRECT
IN
OUT
2
3
4
S
AUTO
M
O
2
3
H
PAUSE
5
6
INC.1
1
2
3
4
5
6
MAN
OUT
SET
V2.0 3/04
