Figure 8-12 Bar Code Rotations; Bar Code Human Readable Text - Microcom 428TC Operator's Manual

Chapter 8
180
Degrees
270
Degrees

8.3 Bar Code Human Readable Text

Certain bar codes require human readable text and/or extended bars to conform to
specifications. This is accomplished by using specially created TCI's, which add the human
readable text and extended bars. This section will provide the necessary information to
successfully add these items. This should not be confused with simply making all bar codes
human readable. For bar codes that do not require extended bars, simply access the data
that the bar code is using with a second field that generates a text representation of the data
and insert in the desired position.
TCI VALUE
3
17
22
23
28
29
32
33
51
Table 8-10
428TC Operator's Manual - 880041-0141
ROTATIONS

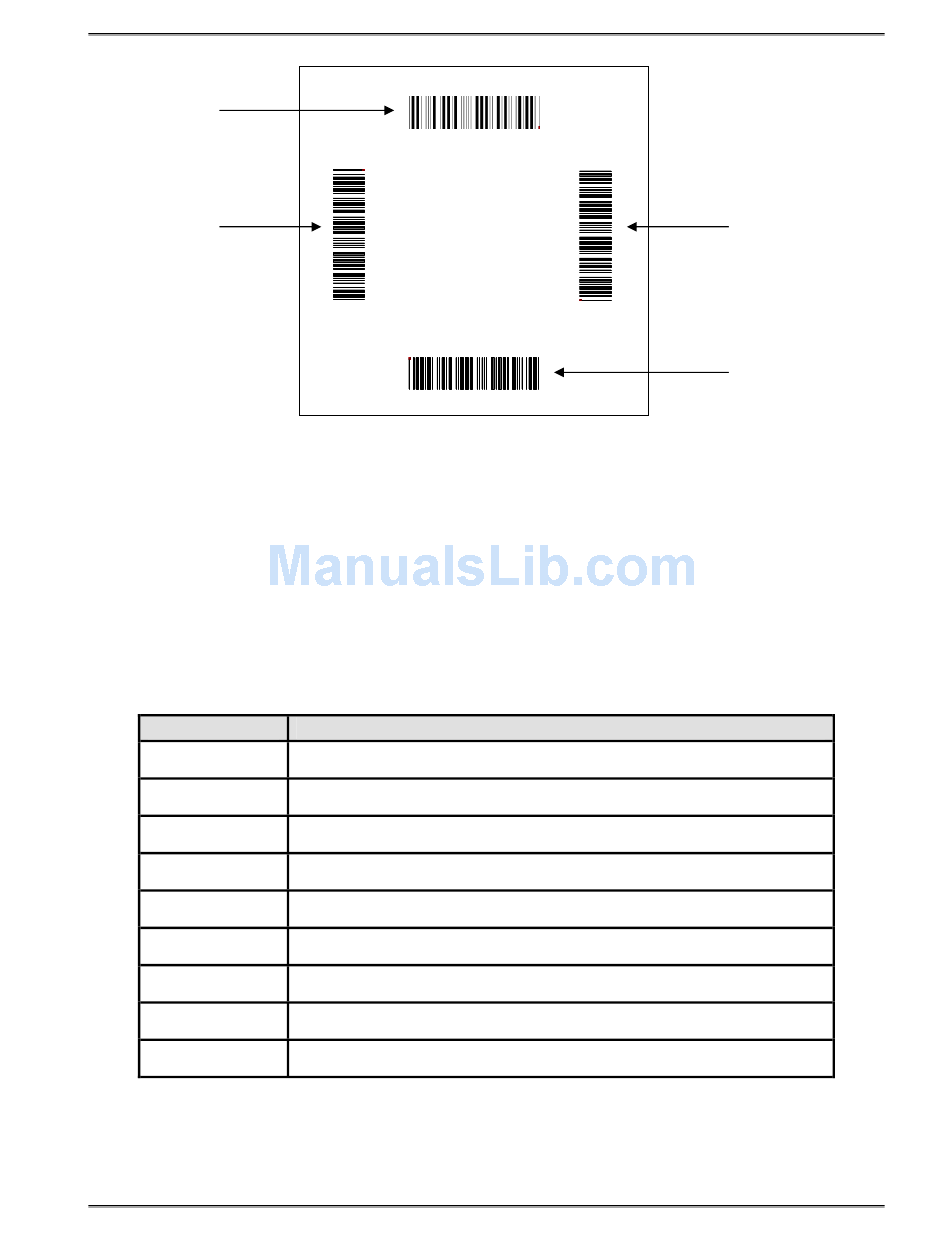

Figure 8-12 Bar Code Rotations

TCI DESCRIPTION
Text with UPC-A/UPC-E Checksum Digit added.
Text with UPC-E Checksum and Extended Bars added
Text with EAN-13 Checksum and Extended Bars added
Text with EAN-8 Checksum and Extended Bars added
Text with MSI 1 Checksum added
Text with MSI 2 Checksum added
Text with UPC-A Checksum and Extended Bars added
Text with UPC-A with Extended Bars added
Human Readable/Extended Bars TCI's
EAN128
Bar Codes
90
Degrees
0
Degrees
8-27
