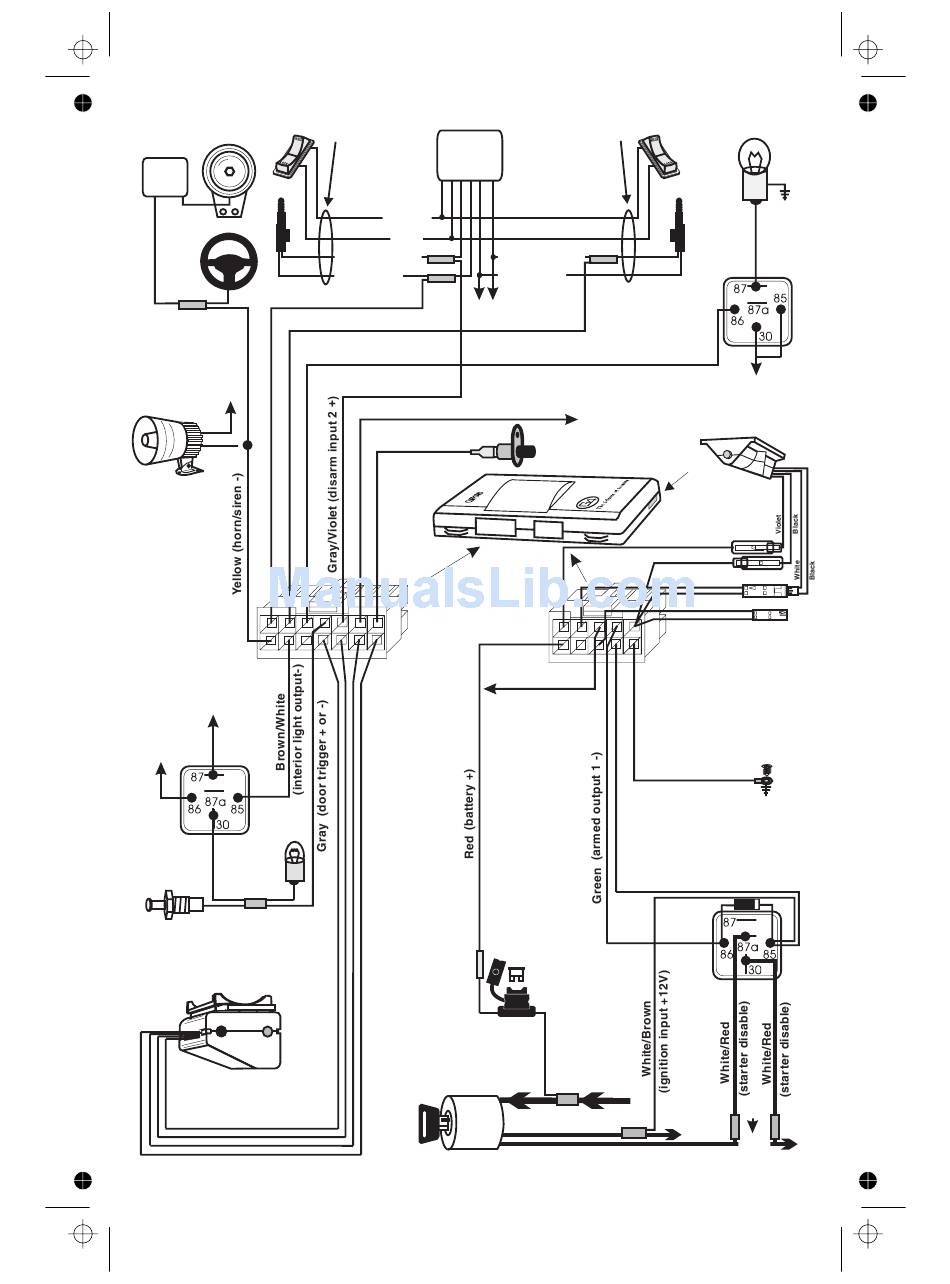

Wiring Diagram - Clifford Prime Level Three Security Upgrade Package Installation Manual

Color profile: Disabled
Composite Default screen
Siren/Car Horn
Output
Factory
Car Horn
Relay
Car Horn
White/Green
(arm input +)
OR
Optional
+12V
Siren
Red
Black
14 13
7 6 5
Connect to Ground for
Negative Trigger Pin Switches,
or +12V for Positive Trigger
Pin Switches
Optional
Interior
+12V
Light Relay
Interior
Light
Door
Switch
Optional
Dual Zone
Piezo Sensor
Black
Orange
Blue
Red
D:...-923 Level 3 install manual.vp
Mon Aug 02 10:56:50 1999
driver kick panel
Factory
Keyless
Entry
Module
UNLOCK
LOCK
+12V UNLOCK
+12V LOCK
to rear doors
(if applicable)
White/Orange
(disarm input 1 +)
Brown (Parking light output -)
Gray/Blue (- output pulse/time)
Gray/Yellow
(trunk input -)
9 8
4 3 2 1
(armed output 2 -)
Ignition
Switch
2
3
passenger kick panel
+12V UNLOCK
+12V LOCK
Optional Parking
Light Relay
Accessory
Trunk
Switch
DataPort
Violet (LED +)
Black (ground -)
White (valet switch -)
Black (ground -)
Gray (data input)
10 6
Black (ground -)
5 4 3 2 1
Green/White
Black (ground -)
White/Brown
5 amp
Fuse
Constant +12V Supply To Switch
Parking Lights
+12V
Underdash LED/Valet
Switch Assembly
Not
MX
2E
Used
Ground
Cut
Ignition
X
Starter
