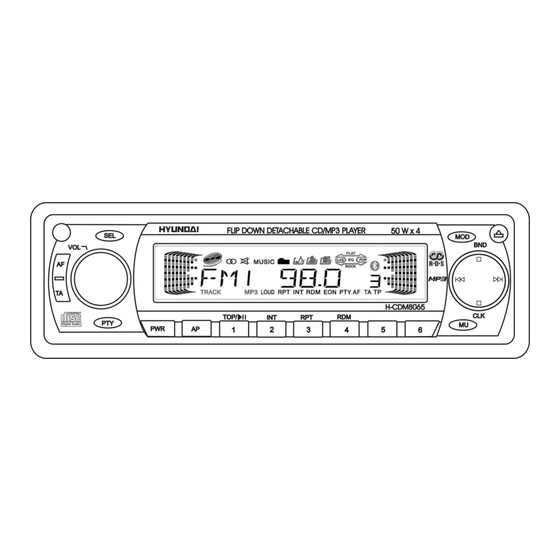

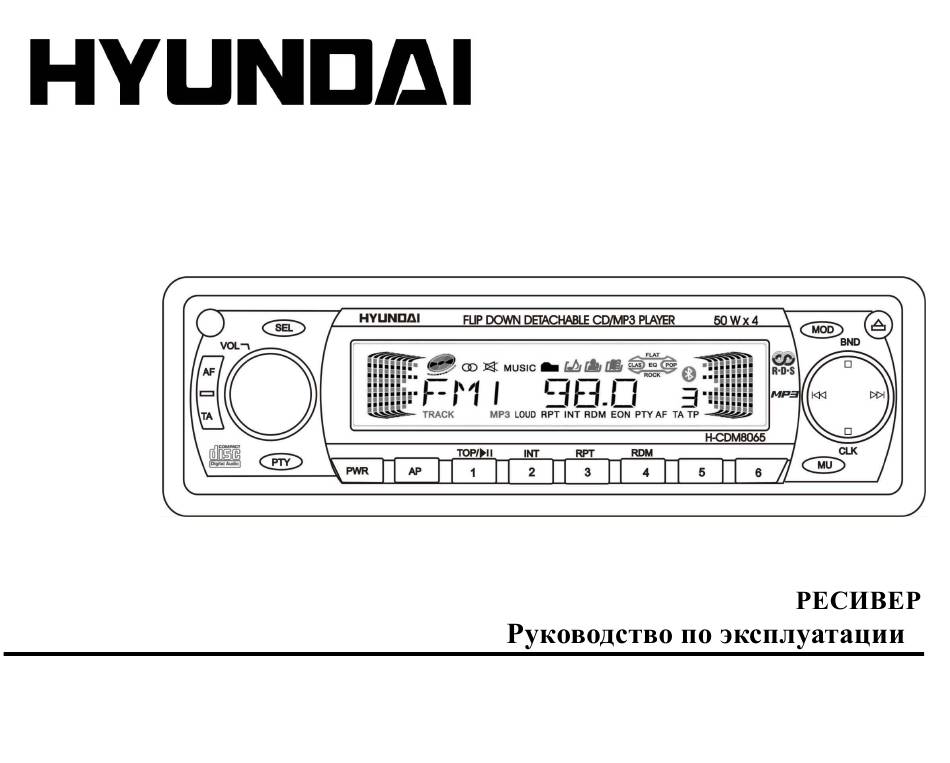

  • Page 1 H- CDM8065 CD/MP3-RECEIVER CD/MP3- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents..............................2 Important safeguards............................3 Installation/Connections............................4 Panel controls ..............................7...

  • Page 3: Important Safeguards

    Important safeguards · Read carefully through this manual to familiarize yourself with this high-quality sound system. · Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. · When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.

  • Page 4: Installation/Connections

    Installation/Connections First complete the electrical connections, and then check them for correctness. Installation way It is an anti-theft installation way. The chassis wear a metal sliding housing. Please have the wiring connection of the power supply, speakers and antenna as for the requirement of the manual, and then install the metal sliding housing into the car according to the diagram.
  • Page 6 Speaker connection Notes: · In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. · Prohibit to make the conductors of auto antenna and ground touch with each other.

  • Page 7: Panel Controls

    Panel controls 1. V-SEL/ ENTER (SEL); VOLUME-UP/DOWN BUTTONS. 2. LCD (LIQUID CRYSTAL DISPLAY). 3. MODE BUTTON. Press it to select RADIO or CD mode. 4. BAND BUTTON. Press it repeatedly to select your desired radio band during RADIO mode. 5. OPEN BUTTON. Press it to flip down the front panel and you can insert the disc into the CD compartment or press the EJ button to eject the disc from the disc compartment.
  • Page 8 9. PRESET STATION [1-6] AND TOP/CDP, INT, RPT, RDM BUTTONS. In MP3 mode 5 and 6 buttons are assigned as 10 TRACK up / down when normal play. 10. AUTO-STORAGE/PRESET MEMORY SCAN BUTTON. 11. POWER BUTTON. Press any button except the EJECT and OPEN button to turn on the unit, press PWR button hold for more than 0.5 seconds to turn off the unit.

  • Page 9: Function Of Controls

    Function of controls Volume mode Press SEL button shortly and repeatedly to select sound mode VOLUME, BASS (without preset DSP), TREBLE (without preset DSP), BALANCE and FADER. VOLUME CONTROL A. The volume level can be adjusted at any time by rotating the audio level VOL knob as select mode has been initially defaulted at volume mode.
  • Page 10 SEEK 1/ SEEK 2 (in Radio mode), DSP OFF/ FLAT/ POP M/ CLASSICS/ ROCK, LOUD OFF/ LOUD ON, SUBW OFF/ON (with subwoofer output), STEREO/ MONO (in Radio mode), DX/LOCAL (in Radio mode), VOLT LAST/ VOL ADJ (When it is in VOL ADJUST mode, the next mode will be A-VOL after VOL ADJUST mode, then you can adjust the volume level.
  • Page 11 RETUNE L/RETUNE S mode The initial time of automatic TA search or PI SEARCH mode is selected. When PI information is not caught for retune time, the radio start to retune to next same PI station. When same PI station does not catch 1 cyclic search, the radio goes to last station and waits for 4-5 minute until PI code is received.
  • Page 12 LOUD mode Press SEL button to choose loud on or off. ST/MO mode Press SEL button to choose FM stereo or mono. LOCAL/DX mode Press SEL button to choose tuner sensitivity local or distant. EONTA LOCAL mode: When the filed strength level of EON linked is less than the threshold level, the radio does not switch that station, and a customer can hardly listen to any disturbances.
  • Page 13 digit from 0 ~ 9. Then press SEL button to confirm the number and flash next smaller digit 0. With the same means, select the number of the flashing digit. After finishing selecting the number of all flashing digit, press SEL button to play the track of the selected serial number.
  • Page 14 CD Mode In CD mode, press button to play next track. Press button once to play the current track from the beginning of the current track, press button twice continuously to play the last track. Press button hold to skip forward or backward.
  • Page 15 identification code has been received. When TA is on, traffic program identification code is not received during specified time. When pressed long, it is selected EONTA LOCAL/EONTA DISTANCE mode. The purpose of this key is to reduce unwanted EON TA switching, which EON TA Information was received from current station and the radio switched to that EON linked station, but no Information could not be received because the EON linked station is located too far from that area.
  • Page 16 PTY Mode Press it shortly and repeatedly to select one of the following mode: PTY MUSIC group ª PTY SPEECH group ª PTY OFF While selecting PTY TYPE, its selection is implemented by preset buttons as described in preset key (press one of the 6 preset buttons shortly and repeatedly to select the PTY TYPE in the preset button).
  • Page 17 When AF switching mode is selected, the radio checks the signal strength of AF all the time. The interval of checking tine of each AFs depends on the signal strength of current station, from a few minute for strong station to a few seconds for weak station.

  • Page 18: Mp3 Overview

    MP3 Overview Notes on MP3 · MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. · This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. · The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.

  • Page 19: Anti-Theft System

    · You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files. · With some CD-R or CD-RW media, data may not be properly written depending on their manufacturing quality. In this case, data may not be reproduced correctly.

  • Page 20: Handling Compact Discs

    Handling compact discs · Dirty, scratched or warped discs may cause skip ping or noise. · Handle the disc only by the edges. To keep clean do not touch its surface. · Discs should be stored in their cases after use to avoid scratches. ·...

  • Page 21: Troubleshooting Guide

    Troubleshooting guide Cause Solution Symptom General The car ignition is not on. If the power supply is properly connected No power to the car accessory switch the ignition key to " ACC ". The fuse is blown. Replace the fuse. Disc Presence of CD disc inside the player.
  • Page 22 The radio does not The antenna cable is not connected the Insert the antenna cable firmly select a work, signals are too weak. station manually. the radio station automatic selection does not work.

  • Page 23: Specification

    Specification General. Power supply: 13.8V DC Current consumption max. 15A Maximum power output: 50Wx4 channels Fuse: Dimensions (W x H x D) 178 x 50 x 165 mm FM Stereo Radio. Frequency range: 65.0 74.0 / 87.5 -108.0 MHz Usable sensitivity: 3 uV I.F.
  • Page 24 ................................24 ...........................25 ............................29 ..........................31 3................................41 ..........................43 ..........................43 ..............................44 ....................45 ..........................47...
  • Page 25 · · · · · · · · · · · · · CD-R CD-R/W · CD-R CD-R/W CD-R 4x CD-R/W.
  • Page 28 · ·...
  • Page 29 V-SEL/ ENTER(SEL) VOLUME -UP/DOWN MODE. RADIO RADIO. OPEN. CLOCK (MUTE).
  • Page 30 MODE, BAND, +, -, (LOUD), SEL. (1-6) TOP/CDP, INT, RPT, RDM. EJECT OPEN, PTY ( AF (...
  • Page 31 VOLUME VOLUME, BASS ( DSP), TREBLE ( DSP), BALANCE FADER. BAS. TRE. BAL. FAD. TA SEEK/TA ALARM, PI SOUND/PI MUTE...
  • Page 32 RETUNE L/RETUNE S MASK DPI/MASK ALL BEEP 2 /BEEP ALL/BEEP OFF SEEK1/2 ( DSP OFF/ FLAT/ POP M/ CLASSIC/ ROCK LOUD ON/ LOUD OFF SUBW OFF/ON ( STEREO/ MONO ( LOCAL / DX ( LAST/ VOL ADJ - ESP10/ESP40. VOL ADJUST, A-VOL ADJUST, 10).
  • Page 33 PI sound/PI mute PI SOUND: PI MUTE: Retune L/Retune S PI SEARCH. RETUNE L: RETUNE S: MASK MASK DPI MASK ALL. (AF), ".
  • Page 34 MASK DPI. RDS, PI ( MASK ALL. BEEP 2 /BEEP ALL/BEEP OFF BEEP 2 BEEP ALL: BEEP OFF: SEEK ½ SEEK 1: SEEK 2: DSP. DSP OFF FLAT CLASSIC ROCK LOUD...
  • Page 35 ST/MO LOCAL/DX EON TA LOCAL: EON TA LOCAL EON TA LO. EON TA DISTANCE: EON TA EON TA DISTANCE EON TA DX. VOL LAST / ADJUST VOL LAST: VOL ADJ, MP3/WMA TRACK SEARCH ), DIRECTORY SEARCH ( ), CHARACTER SEARCH ( TRACK SEARCH, MP3/WMA T 000...
  • Page 36 FILE SEARCH, ROOT). CHARACTER SEARCH, NONE.
  • Page 37 Band 3/WMA 3/WMA 1.0/2.0, CD/MP3/WMA BAND, TA ( TA SEEK.
  • Page 38 SEEK, (SCAN), AUTO MEMORY EONTA LOCAL/EONTA DISTANCE. EON TA. EON TA CD/MP3/WMA S-INT MP3/WMA D-INT CD/MP3/WMA S-RPT...
  • Page 39 MP3/WMA D-RPT CD/MP3/WMA S-RDM MP3/WMA D-RDM MP3/WMA PTY ( PTY MUSIC PTY SPEECH PTY OFF PTY TYPE PTY TYPE PTY MUSIC SPEECH, PTY. PTY. PTY, NO PTY, (1-6) ª ª 1. POP M, ROCK M 1. NEWS, AFFAIRS, INFO 2. EASY M, LIGHT M 2.
  • Page 40 3. CLASSICS, OTHER M 3. CULTURE, SCIENCE, VARIED 4. JAZZ, COUNTRY 4. WEATHER, FINANCE, CHILDREN 5. NATION M, OLDIES 5. SOCIAL, RELIGION, PHONE IN 6. FOLK M 6. TRAVEL, LEISURE, DOCUMENT AF ( RDS. SEEK, (SCAN), AUTO-MEMORY RDS. REGION ON/OFF. PI SEEK AF CHECK) PI SEEK.
  • Page 41 · MPEG 3 · CD-ROM, CD-R CD-RW. · ISO 9660. · .mp3 . · .mp3 , · · 256. · · · VBR, VBR: CD-R CD-RW, MP3. · 44,1 · · ISO 9660, · CD-R...
  • Page 42 · MP3 CD-R CD-RW · · CD-R CD-RW CD-R CD-RW · 1. ID3TAG. ·...
  • Page 43 POWER OPEN, · · ·...
  • Page 44 · · · · · · ·...
  • Page 45 ». RESET.
  • Page 47 13.8 , 178 50 165 65.0 74.0 / 87.5 - 108.0 10.7 522-1620 CD/ CD-R/ CD-RW/ MP3/WMA 44,1 20-100 10-20 . 1200...
