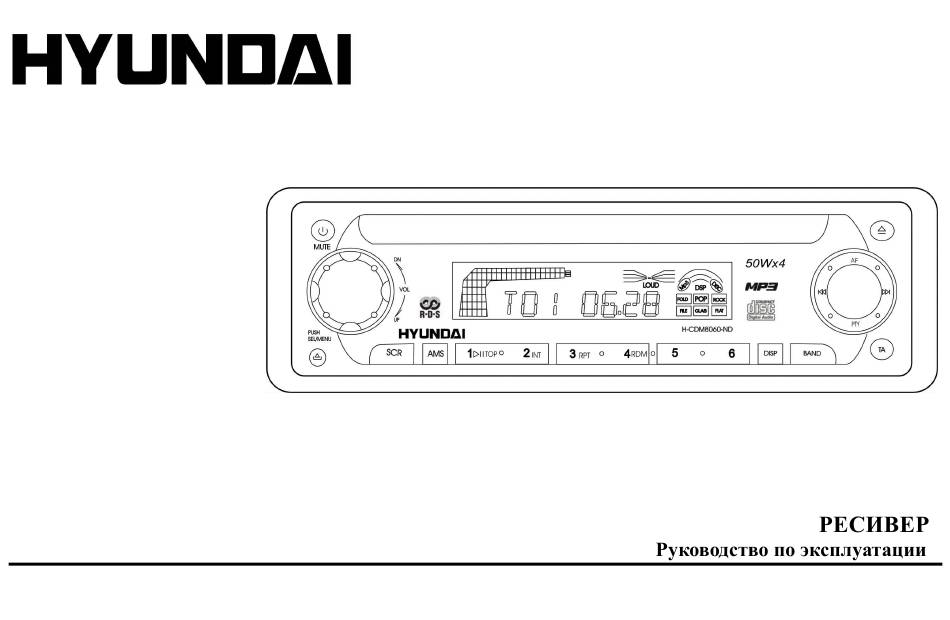

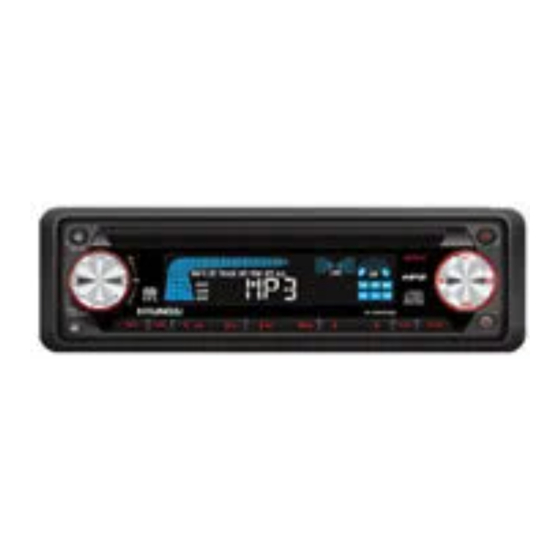

  • Page 1 H- CDM8060-ND CD/MP3-RECEIVER CD/MP3- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ..................................2 Important safeguards .................................

  • Page 3: Important Safeguards

    Important safeguards · Read carefully through this manual to familiarize yourself with this high-quality sound system. · Use only in a 12-volt DC negative-ground electrical system. · Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. · When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.

  • Page 4: Installation/Connections

    Installation/Connections First complete the electrical connections, and then check them for correctness. Installation opening This unit can be installed in any dashboard having an opening as shown below. The dashboard should be 4.75 5.56 mm thick in order to be able to support the unit. 1.
  • Page 5 Electrical connections LOCATION FUNCTION Rear right(+) Purple Rear right(-) Purple/ Black stripe Front right (+) Gray ACC+/ red Front right (-) Gray / Black stripe Auto antenna / blue Front left (-) White Front left (-) White / Black stripe Battery 12V (+) / yellow Rear left (+) Green Ground / black...

  • Page 6: Panel Controls

    Panel controls 1. Power on: press any button on the panel except to turn on the unit. Press more than 2 seconds to power off. 2. Rotate the knob to adjust volume level. Push to select VOL/ BAS/ TRE/ BAL/ FAD. Rotate the knob to adjust level. Push more than 2 seconds to Menu mode.
  • Page 7 9. Radio/ Disc play (when disc is in). 10. AMS: Radio preset scan/ Radio Audio preset SEARCH: MP3 track/ file/ character 11. Disc playback: Play/ Pause. Top play (press more than 2 seconds). 12. Disc playback: Intro play (10 seconds). 13.

  • Page 8: Button Tips

    Button tips AMS: Auto Memory Store Press briefly to scan the preset station 1-6 for 5 seconds each. Hold more than 2 seconds, the 6 strongest available station will be automatically saved in the memory of preset button 1-6. Radio Radio : Press briefly either side of the button to tune in the station that you have known its frequency.

  • Page 9: Menu Function

    Menu Function Press the button more than 2 seconds to enter menu mode, then each press changes the mode as follows: TA mode MASK mode ESP mode DSP mode LOUD ON / OFF mode BEEP ON / OFF SEEK1/2 mode (only in tuner mode) ST / MO mode (only in tuner mode) LOCAL / DX mode (only in tuner mode) VOL mode.
  • Page 10 DSP mode Rotate the Multi-Control to choose DSP sound effect. POP ROCK CLASSIC FLAT DSP OFF LOUD mode Rotate the Multi-Control to choose loud on or off. BEEP ON/OFF mode Rotate the Multi-Control to choose button beep sound on or off. SEEK 1/2 mode Rotate the Multi-Control to choose radio seek mode 1 or 2.

  • Page 11: Mp3 Play Back

    MP3 Play back While playing MP3 disc, the folder/file name and ID3 TAG (song title, album and artist) can entirely scroll displayed on the LCD display. Elapsed playing time and Track number Folder name and number File name and number Song title Album title Artist name.

  • Page 12: Mp3 Overview

    MP3 Overview Notes on MP3 · MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. · This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. · The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.

  • Page 13: Mp3 Character Search

    · Up to 16 characters are displayed for the name of an Album or a Track. ID3TAG version 1.x is required. · Note that the unit may not play Tracks in the order that you wrote them to the disc. MP3 Character Search Press AMS button three times to select "CHAR SCH"...

  • Page 14: Rds (Radio Data System)

    RDS (Radio Data System) RDS service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. The following functions are available when receiving RDS stations. RDS Basics AF( Alternative Frequency list ) When reception is poor, an RDS station broadcasting the same program is tuned in automatically.
  • Page 15 Traffic Announcements Some RDS FM stations periodically provide traffic information. TP ( Traffic Program Identification ) - Broadcasting of traffic information TA ( Traffic Announcements Identification ) - Radio announcements on traffic conditions TA Mode Press TA button to turn on / off TA. When TA mode is on and TA indicator on LCD is displayed.
  • Page 16 PTY Reception (Program Type) RDS FM stations provide a program type identification signal. Example: news, rock, info, sport, etc. PTY Mode Press PTY button to turn PTY on, previous PTY type is displayed and searched if no button is pressed for 2 seconds. If there is no correspond program type, NO PTY is displayed.

  • Page 17: Anti-Theft System

    Anti-Theft System This unit is equipped with a detachable panel. Removing this panel makes the radio totally inoperable. Place the detachable panel into the case. 1. Switch off the power of the unit. 2. Remove the detachable panel. 3. Gently press the button of the case and open the cover. 4.

  • Page 18: Handling Compact Discs

    Handling compact discs · Dirty, scratched or warped discs may cause skip ping or noise. · Handle the disc only by the edges. To keep clean do not touch its surface. · Discs should be stored in their cases after use to avoid scratches. ·...

  • Page 19: Components

    Components 1. Mounting collar 1 pc. 2. Tapping screws M5x6 mm 4 pcs. 3. Mounting bolt (50 mm) 1 pc. 4. Wire connector 1 pc. 5. Removable face plate case 1 pc. 6. Trim plate 1 pc. 7. L-key 2 pcs. 8.

  • Page 20: Troubleshooting Guide

    Troubleshooting guide General Car's engine switch is not on. Turn your car's key to ACC or ON. No power or no sound Cable is not correctly connected. Check connection. Fuse is burnt. Replace fuse. Check volume or mute on / off. If above solutions cannot help, press the RESET button.

  • Page 21: Specification

    Specification General. Power supply: 12V DC (11V-16V), Test voltage 14.4V, negative ground Maximum power output: 50Wx4 channels Rated power output (RMS): 25Wx4 channels (4 10% T.H.D.) Suitable speaker impedance: 4-8 ohm Pre-Amp output voltage: 2.0V(CD play mode: 1KHz, 0 dB, 10 K load) Fuse: Dimensions (WxHxD) / Weight 178 50 166 mm / 1.7 kg...
  • Page 22 .................................... 22 ............................... 23 ............................... 24 ..............................26 ................................28 ..................................29 3 ................................31 3....................................32 ................................ 33 RDS ( )..............................34 ..............................37 .............................. 37 ..................................39 ..................................39 ........................40 ..............................41...
  • Page 23 · · 12 . · · · · · · · · · · ·...
  • Page 24 4,75 5,56...
  • Page 25 (+) - ACC+/ (-) - 12 (+) / (+) -...
  • Page 26 VOL/BAS/TRE/BAL/FAD, ESP 12s/45s...
  • Page 27 10. AMS: 3 10 3 +10 : FM1 – FM2 – FM3 – AM1 – AM2. MUSIC ( SPEECH ( Reset RESET...
  • Page 28 AMS: 1 6. DISP,...
  • Page 29 MASK LOUD ON / OFF BEEP ON / OFF SEEK1/2 ( ST / MO ( LOCAL / DX ( VOL. TA ALARM TA SEEK. TA ALARM TA/TP TA SEEK. TA ALARM TA/TP TA SEEK TA SEEK. MASK MASK DPI MASK ALL. MASK DPI MASK ALL NO RDS...
  • Page 30 DSP. ROCK CLASSIC FLAT DSP OFF LOUD BEEP ON/OFF SEEK ½ SEEK 1: SEEK 2: LO/DX ST/MO VOL LAST / ADJUST VOL LAST: VOL ADJ,...
  • Page 31 ID3 TAG ( TRACK SCH . 001 . 100, 100, · FILE SCH .
  • Page 32 · MPEG 3 · CD-ROM, CD-R CD-RW. · ISO 9660. · .mp3 . · .mp3 , · · 256. · · · . VBR: CD-R CD-RW, MP3. · 44,1 · · ISO 9660, · CD-R · MP3 CD-R CD-RW ·...
  • Page 33 · CD-R CD-RW CD-R CD-RW · 1. ID3TAG. · «CHAR SCH» ( « ». « ». « » «ECHO»...
  • Page 34 RDS ( AF ( RDS- PS Display ( AF ( REG. RDS- RDS- NO CT.
  • Page 35 RDS, SEEK ( ), SCAN ( EON ( EON, RDS- EON. EON RDS- . EON PTY ( RDS,...
  • Page 36 PTY, PTY. PTY. 1 6 , POP M ( NEWS ( AFFAIRS ( ROCK M ( INFO ( M.O.R.M. ( SPORT ( EDUCATE ( LIGHT M ( DRAMA ( CLASSIC M ( CULTURE ( OTHER M ( SCIENCE ( VARIED ( JAZZ M ( WEATHER ( COUNTRY M (...
  • Page 37 POWER OPEN,...
  • Page 38 · · · · · · · · · ·...
  • Page 40 30 , NO FILE: ERR-7: ERR-10: ERR-11: ERR-3: ERR-4: RESET...
  • Page 41 12 , 16 ) 14,4 , (RMS): 10 % .D.) / 15 CD: 1 , 10 178 50 166 / 1.7 ESP: CD (12s/45s), MP3 (45s) 87.5 108.0 = 50 / 12 ) / 50 / 55 522-1620 = 20 - 20 / >...
