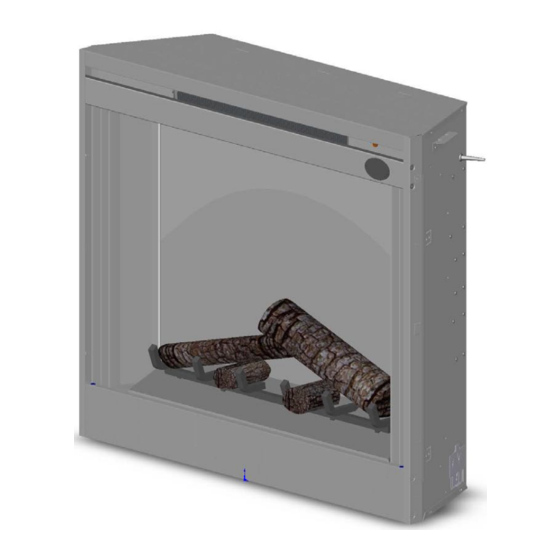

Dimplex BFSL33 Installation Manual
Fireplace
Hide thumbs
Also See for BFSL33:
- Owner's manual (39 pages) ,
- Installation manual (22 pages) ,
- Service manual (19 pages)
Table of Contents
Advertisement
IMPORTANT SAFETY INFORMATION: Always read this manual first
before attempting to install or use this fireplace. For your safety, always
comply with all warnings and safety instructions contained in this manual
to prevent personal injury or property damage.
To view the full line of Dimplex products, please visit
www.dimplex.com

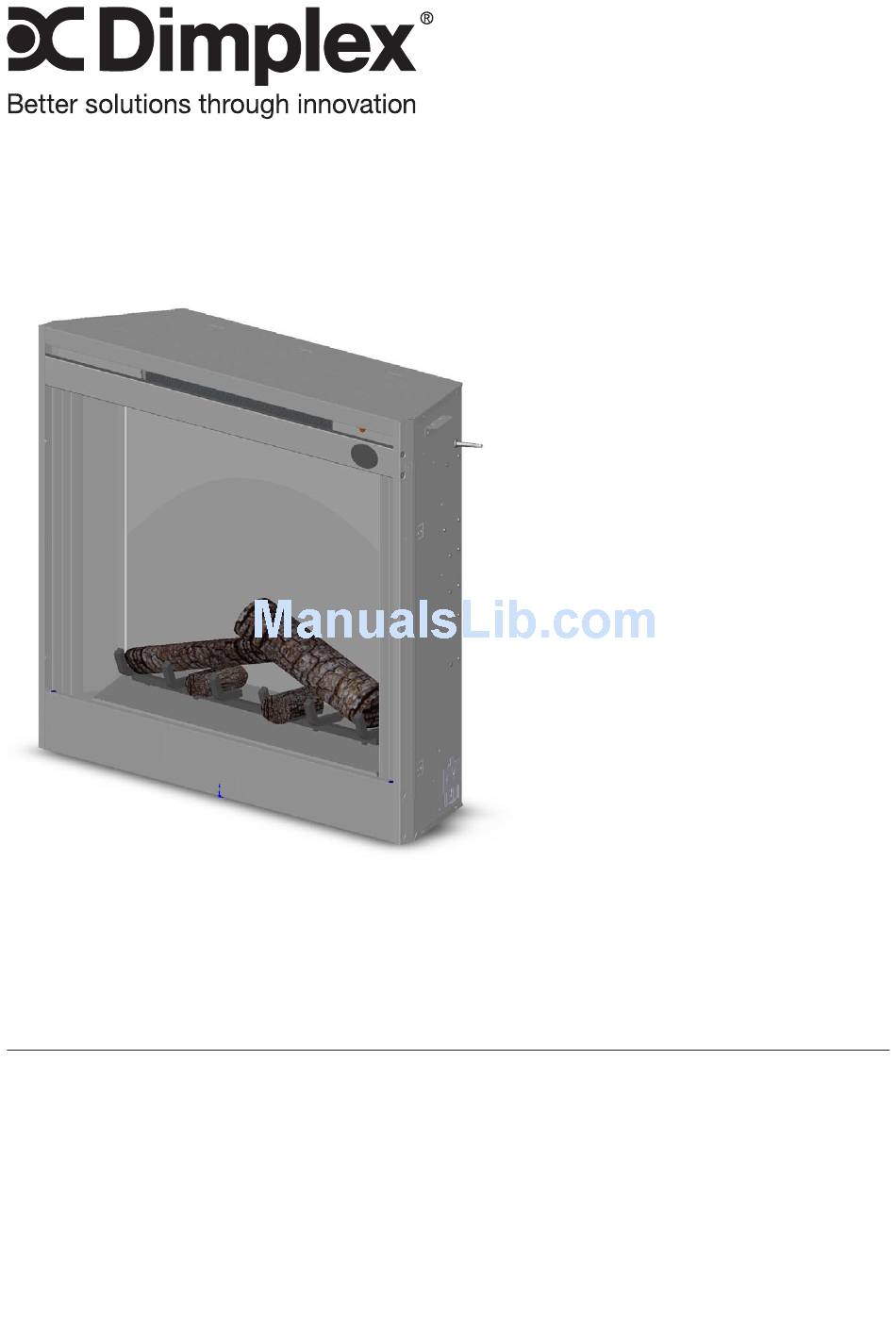

Installation Guide
Model
BFSL33
7211030100R01
Advertisement
Table of Contents
Related Manuals for Dimplex BFSL33
Summary of Contents for Dimplex BFSL33
-
Page 1: Installation Guide
For your safety, always comply with all warnings and safety instructions contained in this manual to prevent personal injury or property damage. To view the full line of Dimplex products, please visit www.dimplex.com 7211030100R01... -
Page 2: Table Of Contents
CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment. WARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of fire, serious injury, or death. www.dimplex.com... -
Page 3: Listing And Code Approvals
LISTING AND CODE APPROVALS The BF series fireplaces have been tested in accordance with the UL 2021 and CSA C22.2 No. 46 standards for fixed and location-dedicated electric room heaters. MODEL SPECIFICATIONS AMPS Rated Voltage Remote Wall No Heat Power 208 Volt (Volts) Control... -
Page 4: Section A: Installation Information
This fireplace comes with three trim pieces, top and two sides. The top piece is secured with screws at either end and one in the middle. The two side pieces require a tab to be inserted in the center slot then secured with a screw at the top and bottom. www.dimplex.com... -
Page 5: Mounting Flanges
MOUNTING FLANGES Figure 3 NOTE: The trim should be in- stalled before securing the firebox in the opening. There are two mounting flanges located on each side of the fireplace Mounting insert. Flanges From the inside of the unit, bend tabs outward and mount to the inside of the framing using suitable hardware. -
Page 6: Voltage Selector Switch Location
240V (230 position) to 120V (115 position). When wiring the unit for 208V / 240V the voltage selector switch should be in the 230V position. When wiring the unit for 120V the voltage selector switch should be in the 115V position. www.dimplex.com... -
Page 7: Section C: Direct Power Wiring
SECTION C: DIRECT POWER WIRING 240V INSTALLATION WHITE WIRE - N WHITE WIRE - N RED WIRE – L2 RED WIRE – L2 240 V POWER BLACK WIRE – L1 BLACK WIRE – L1 SUPPLY (BREAKER GREEN WIRE - G GROUND WIRE - G PANEL) IMPORTANT: The unit is factory configured for 208/240V operation. -
Page 8: 120V Installation
Connect the ground wire (green) from the unit to the ground from the power supply. When the unit has been configured for the appropriate power supply volt- age, ensure that all connections are tight. Insert all the wiring back into the unit and secure with a cable clamp. www.dimplex.com... -
Page 9: 120V Installation - No Heat Installation
120V INSTALLATION - NO HEAT INSTALLATION WHITE WIRE - N WHITE WIRE - N 120 V RED WIRE – L2 POWER BLACK WIRE – L1 BLACK WIRE – L1 SUPPLY GREEN WIRE - G GROUND WIRE - G (BREAKER PANEL) RED - 1 RED - 2 WIRE NUTS... -
Page 10: Section D: Alternate Control Options
PANEL) CAUTION: The use of a wall switch to control the main power for 240V is not recommended. To control the unit remotely the use of a Dimplex Wall Remote - WRCPF-KIT - is suggested (sold seperately). NOTE: Before installing the unit have the following wires installed: •... - Page 11 Connect Ground (green) from the unit to the Ground (green) wire of the main power wall switch by using a wire connector (not supplied). Connect L1 (black) wire from the power supply to the L1 terminal of the main power wall switch. Secure the 2 remaining Ground wires (green) with a ground screw in the main switch wall box.
-
Page 12: 120V Main Power Wall Switch - No Heat
Connect the Ground wire (green) from the unit to the Ground wire (green) of the main power wall switch by using a wire connector (not supplied). Connect L1 (black) from the power supply to the L1 terminal of the main www.dimplex.com... - Page 13 power wall switch. Locate and separate by wire nut the 1 (red) and 2 (red). Secure the 2 remaining Ground wires (green) with a ground screw in the main switch wall box. Ensure that all connections are tight. Insert all the wiring of the main power wall switch into the main switch wall box.
-
Page 14: 120V Heater Wall Switch Control
CAUTION: The use of a wall switch to control the heater for a 240V instal- lation is not recommended. To control the heater remotely the use of a Dimplex Wall Remote - WRCPF-KIT - is suggested (sold seperately). NOTE: Before installing the unit complete the following: •... -
Page 15: 120V Wall Mounted Thermostat
CAUTION: The use of a wall mounted thermostat to control a 240V installa- tion is not recommended. To control the unit with a thermostat the use of a Dimplex Wall Remote - WRCPF-KIT - is suggested (sold seperately). NOTE: Before installing the unit complete the following: •... - Page 16 Insert all the wiring back into the unit and secure with a cable clamp. BLACK BLACK GROUND BLACK WIRE WHITE WIRE GROUND SCREW GROUND GROUND NOTE: This only illustrates thermostat connection, see previous sections for main power connection instruc- tions. GROUND www.dimplex.com...
-
Page 17: 120V / 240V Wall Mounted Flame Override Switch
120V / 240V WALL MOUNTED FLAME OVERRIDE SWITCH BLUE – 4 WALL BLUE – 3 SWITCH GROUND - G DO NOT USE WITH NO HEAT INSTALLATIONS NOTE: The fireplace can be wired to have a wall switch operate the flame independent of the heater. -
Page 18: Wall Remote - Wrcp-Kit
Flame Effect Purifire™ Heat Off Indicator Function Lock Indicator RF Code Function Indicator Set Temperature Down Set Temperature Up 10 . Flame Off 11 . Flame On 12 . Purifire™ Off 13 . Purifire™ On 14 . Low Battery Indicator www.dimplex.com... -
Page 19: Unit Internal Wiring Diagram
UNIT INTERNAL WIRING DIAGRAM Dimplex North America Limited 1367 Industrial Road Cambridge, ON Canada N1R 7G8 © 2012 Dimplex North America Limited...
