IMPORTANT SAFETY INFORMATION: Always read this manual first
before attempting to install or use this fireplace. For your safety, always
comply with all warnings and safety instructions contained in this manual
to prevent personal injury or property damage.
To view the full line of Dimplex products, please visit
www.dimplex.com

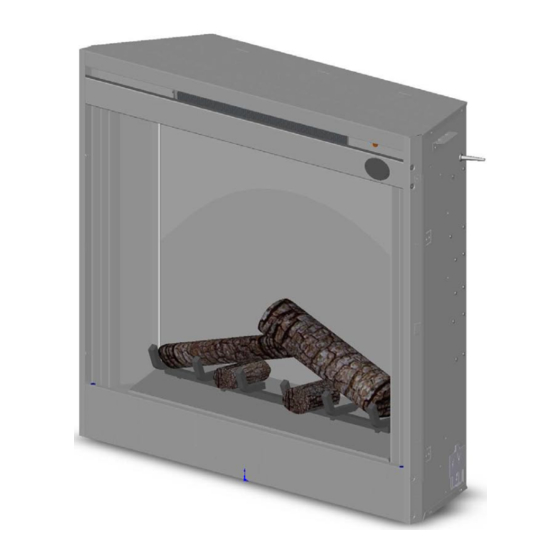

Installation Guide

Model
BFSL33
7211030100rev00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BFSL33 and is the answer not in the manual?

Questions and answers

Related Manuals for Dimplex BFSL33

Summary of Contents for Dimplex BFSL33

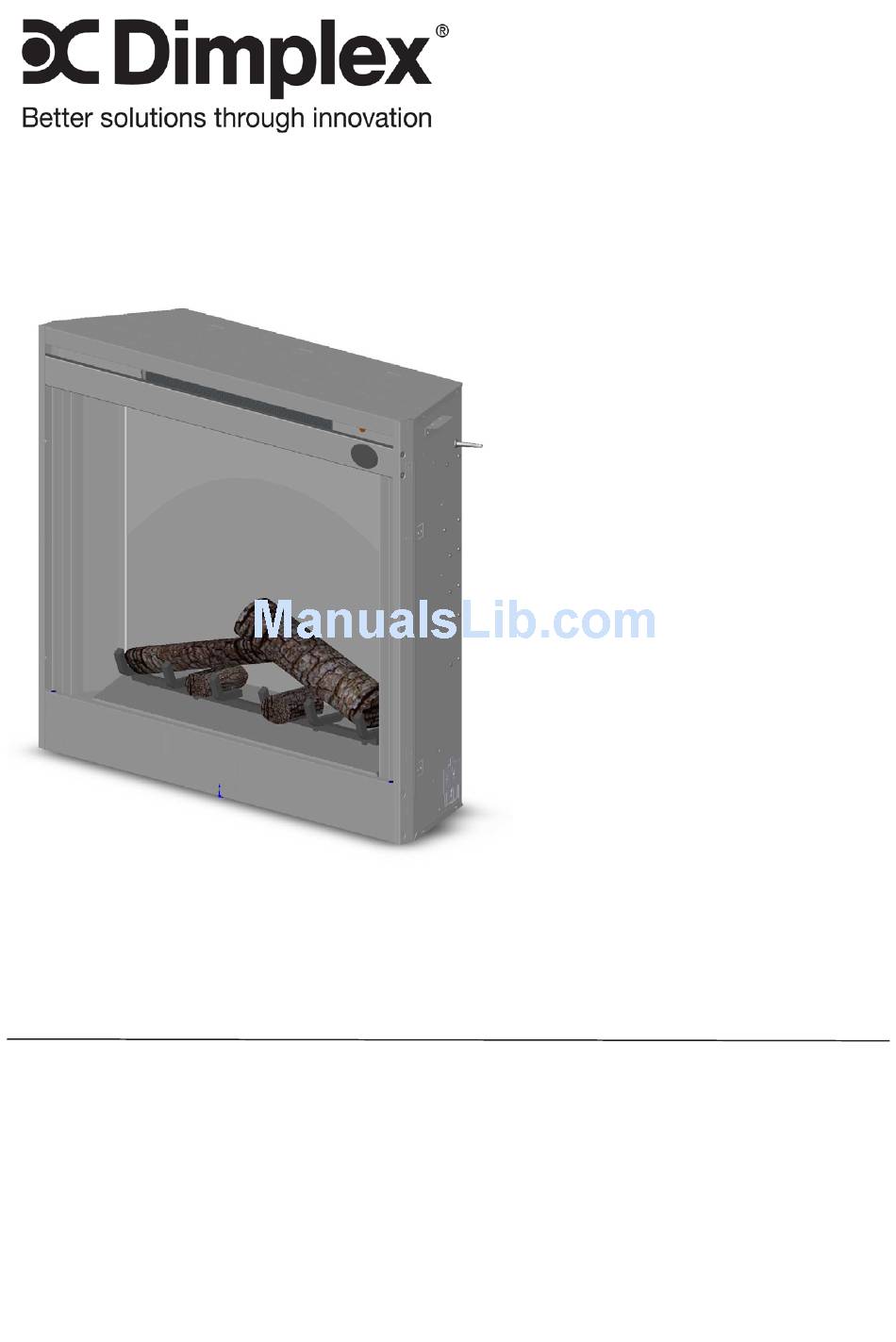

  • Page 1: Installation Guide

    For your safety, always comply with all warnings and safety instructions contained in this manual to prevent personal injury or property damage. To view the full line of Dimplex products, please visit www.dimplex.com 7211030100rev00...

  • Page 2: Table Of Contents

    CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment. WARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of fire, serious injury, or death. www.dimplex.com...

  • Page 3: Listing And Code Approvals

    LISTING ANd COdE APPROvALS The BF series fireplaces have been tested in accordance with the UL 2021 and CSA C22.2 No. 46 standards for fixed and location-dedicated electric room heaters. MOdEL SPECIFICATIONS Rated AMPS AMPS AMPS AMPS Voltage Remote Wall Power No Heat Volts...

  • Page 4: Rim Mounting

    This fireplace comes with three trim pieces, top and two sides. The top piece is secured with screws at either end and one in the middle. The two side pieces require a tab to be inserted in the center slot then secured with a screw at the top and bottom. www.dimplex.com...

  • Page 5: R Ecommended

    SECTION A: FRAMING dIMENSIONS Rough-In Framing dimensions Rough-In Corner Framing Firebox dimensions This fireplace is a zero clearance design. No combustibles can be placed on the top surface of the fireplace. Combustibles may be installed to the edge of the unit. Four mounting flanges on the sides of the unit are provided to facili- tate installation.

  • Page 6: Langes

    When wiring the unit for 120 volts the voltage selector switch should be in the 115 volt position. Mounting ounTing langes Flanges There are two mounting flanges located on each side of the fireplace insert. Bend tabs and mount to framing us- ing suitable hardware. www.dimplex.com...

  • Page 7: S Witch

    SECTION C: FACTORY SETTING WIRING 240 v nsTallaTion (Without Main Power Wall Switch) IMPORTANT: The unit is factory configured for 208/240 volt operation NOTE: Use 3 conductor wire with ground (4 wires total) from the power supply (breaker panel) to the junction box on the unit. NOTE: All wiring must be completed prior to installing the unit.
  • Page 8 Insert all the wiring back into the unit and secure with a cable clamp. WHITE WIRE - N WHITE WIRE - N RED WIRE – L2 120 v POWER BLACK WIRE – L1 BLACK WIRE – L1 SUPPLY (bREAKER GREEN WIRE - G GROUND WIRE - G PANEL) www.dimplex.com...
  • Page 9 120 v nsTallaTion nsTallaTion (Without Main Power Wall Switch & No Heat Installation) IMPORTANT: The unit is factory configured for 208/240 volt operation NOTE: Use 2 conductor wire with ground (3 wires total) from the power supply (breaker panel) to the junction box on the unit. NOTE: All wiring must be completed prior to installing the unit.
  • Page 10 Ensure that all connections are tight. Insert all the wiring of the main power wall switch into the main switch wall box. Insert all the wiring back into the unit and secure with a cable clamp. www.dimplex.com...

  • Page 11: Iring

    240 v WiTCh iring iagraM WHITE - N WHITE – N 240 v RED – L2 RED – L2 POWER WALL SWITCh BLACK – L1 BLACK – L1 SUPPLY (bREAKER GROUND - G GROUND - G PANEL)

  • Page 12: Iring Or Olt

    Ensure that all connections are tight. Insert all the wiring of the main power wall switch into the main switch wall box. Insert all the wiring back into the unit and secure with a cable clamp. www.dimplex.com...

  • Page 13: Olt Olt

    120 v WiTCh iring iagraM WHITE - N WHITE – N RED – L2 120 v BLACK – L1 POWER WALL BLACK – L1 SUPPLY SWITCh (bREAKER GROUND - G GROUND - G PANEL)

  • Page 14: H Eat I Nstallation

    Ensure that all connections are tight. Insert all the wiring of the main power wall switch into the main switch wall box. Insert all the wiring back into the unit and secure with a cable clamp. www.dimplex.com...
  • Page 15 120 v WiTCh iring iagraM nsTallaTion WHITE - N WHITE – N RED – L2 BLACK – L1 120 v POWER WALL RED – 2 SUPPLY SWITCh BLACK – L1 (bREAKER WIRE RED – 1 PANEL) NUTS GROUND - G GROUND - G...
  • Page 16 Ensure that all connections are tight. Insert all the wiring of the heater wall switch into the heater switch wall box. Insert all the wiring back into the unit and secure with a cable clamp. www.dimplex.com...
  • Page 17 120/240 v eaTer WiTCh iring iagraM (See Section C or Section D For Main Power Connection) RED – 2 WALL RED – 1 ThERMOSTAT GROUND - G...
  • Page 18 Connect the other end of the green (ground) wire to the thermostat wall box ground screw. Ensure that all connections are tight. Insert all the wiring of the wall mounted thermostat into the wall box. Insert all the wiring back into the unit and secure with a cable clamp. www.dimplex.com...

  • Page 19: 120/240 V

    ounTed herMosTaT iring iagraM 120/240 v (See Section C or Section D For Main Power Connection) RED – 2 WALL RED – 1 ThERMOSTAT GROUND - G...
  • Page 20 Ensure that all connections are tight. Insert all the wiring of the heater wall switch into the heater switch wall box. Insert all the wiring back into the unit and secure with a cable clamp. www.dimplex.com...

  • Page 21: Lame Override

    laMe verride WiTCh iring iagraM 120/240 v (See Section C or Section D For Main Power Connection) NOT AvAILAbLE WITh NO hEAT INSTALLATION BLUE – 4 WALL BLUE – 3 SWITCh GROUND - G...

  • Page 22: Unit Internal Wiring Diagram

    UNIT INTERNAL WIRING dIAGRAM Dimplex North America Limited 1367 Industrial Road Cambridge, ON Canada N1R 7G8 © 2011 Dimplex North America Limited...
