SECTION 5—OPERATING INSTRUCTIONS
4. The humidifier adapter is next to the inlet filter. Pull up
and remove the humidifier bottle adapter. Refer to Detail
"B" in FIGURE 5.3.
5. Attach it to the humidifier by turning the wing nut on the
humidifier bottle counterclockwise until it is securely
fastened. Refer to Detail "C" in FIGURE 5.3.
DETAIL "A"
DETAIL "C"
Filter
Access
Door

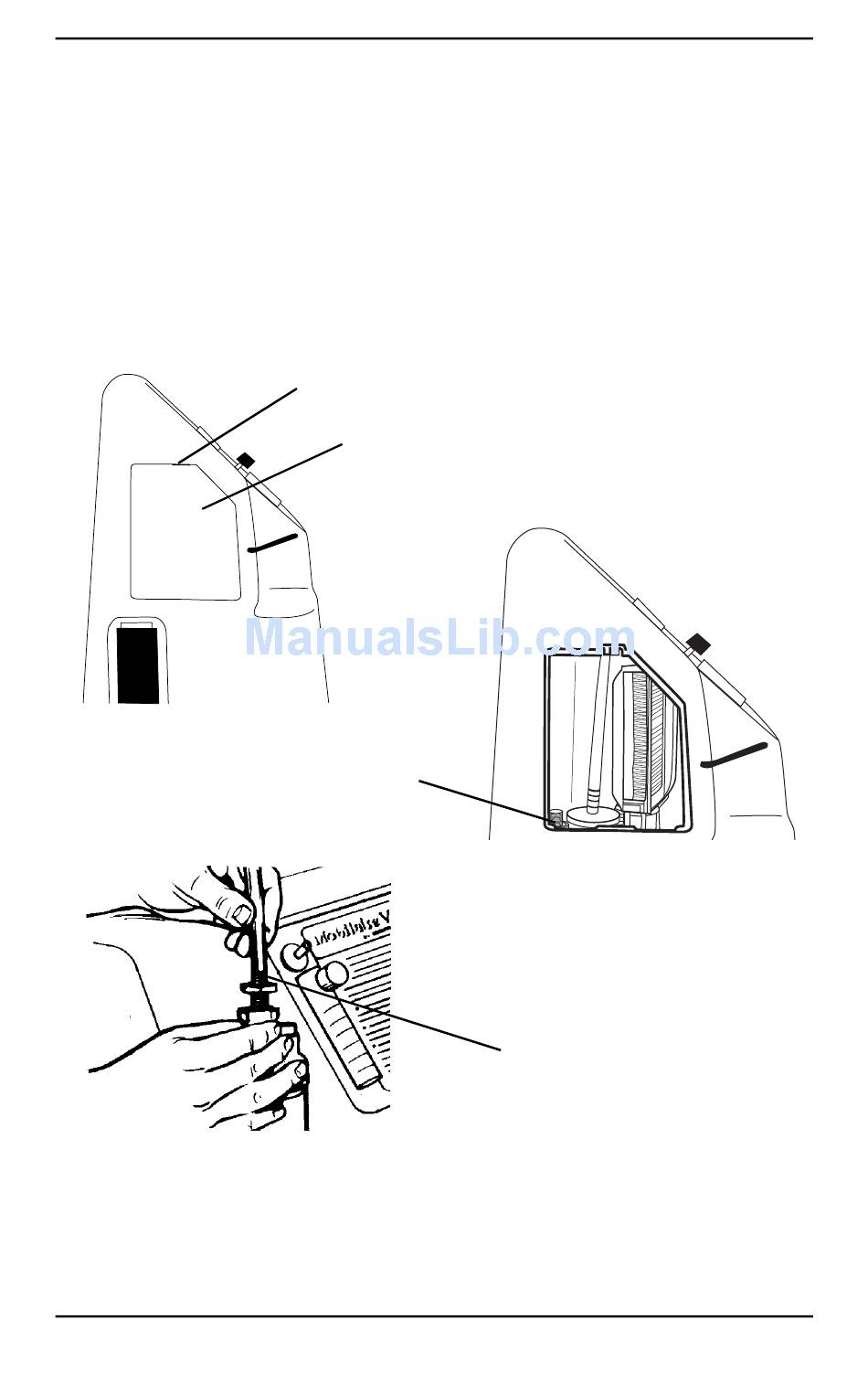

FIGURE 5.3
6. Attach oxygen tubing from the humidifier bottle to
oxygen outlet connector on the oxygen concentrator.
Platinum Series
™
Plate Groove (Insert Flat
Head Screwdriver Here)
Filter Access Door
Humidifier Bottle
Adapter
Attaching the Humidifier Bottle Adapter
24
DETAIL "B"
Humidifier Bottle
Adapter
Part No 1118353
