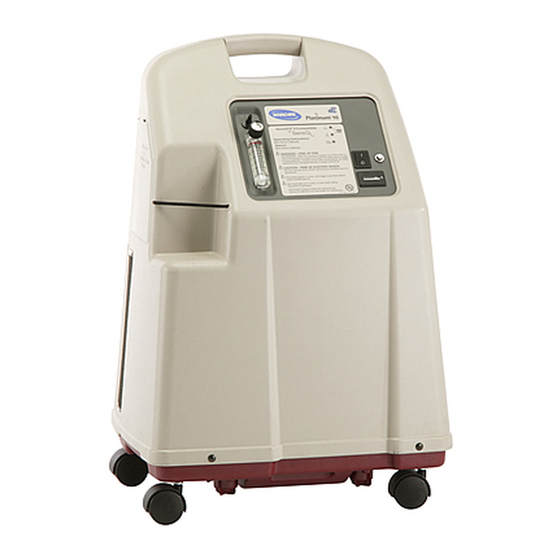

- Page 1 OPERATOR'S MANUAL - ENGLISH MANUAL DE INSTRUCCIONES - DOMESTIC SPANISH PLATINUM 5 OXYGEN CONCENTRATORS STANDARD, /SENSO ® AND HOMEFILL™ II WITH CONCENTRADORES DE OXÍGENO STANDARD, /SENSO ®Y HOMEFILL™ II Sens with Sens...
-
Page 2: Special Notes
SPECIAL NOTES WARNING... - Page 3 TABLE OF CONTENTS ............
-
Page 4: Safety Summary
SAFETY SUMMARY CAUTION WARNING... - Page 5 WARNING (CONTINUED) WARNING...
-
Page 6: Polarized Plug Instruction
WARNING (CONTINUED) POLARIZED PLUG INSTRUCTION... - Page 7 HomeFill II owner's manual, part number Power Outlet 1100873, for connection and operating instruc- Cord Fitting tions. When not in use, the plug provided with the concentrator should be inserted into the outlet fitting. For more information about the HomeFill II, contact your Invacare dealer.
-
Page 8: Specifications
SPECIFICATIONS Sens... - Page 9 SPECIFICATIONS (CONTINUED) Sens Sens...
- Page 10 SPECIFICATIONS (CONTINUED)
- Page 11 HANDLING UNPACKING NOTE: Unless the Oxygen Concentrator is to be used immediately, retain containers and packing materials for storage until use of the concentrator is required. INSPECTION STORAGE...
- Page 12 INTRODUCTION OPERATING INSTRUCTIONS ECOMMENDED UIDELINES FOR PTIMUM ERFORMANCE...
-
Page 13: Plug In Power Cord
NOTE: Ensure that your concentrator is at least (3) three-inches away from walls, draperies or furniture to assure sufficient air flow. Avoid deep pile carpets and heaters, radiators or hot air registers. PLUG IN POWER CORD CONNECT HUMIDIFIER (IF SO PRESCRIBED) WARNING Humidifier Bottle Humidifier Bottle... - Page 14 Humidifier Bottle Adapter Filter Access Door NOTE: If using the Remote Humidifier/Flowmeter Accessory, refer to the Operating Instructions which accompany the accessory. Oxygen Outlet Oxygen Connector Tubing Humidifier Outlet WARNING...
-
Page 15: Power Switch
POWER SWITCH On/Off (I/O) Power Switch FLOWRATE WARNING NOTE: To properly read the flowmeter, locate the prescribed flowrate line on the flowmeter. Next, turn the flow knob until the ball rises to the line. Now, center the ball on the L/min. line prescribed (FIGURE 6). Flow knob Ball... -
Page 16: Initial Startup Of The Concentrator
SENSO ® OXYGEN PURITY INDICATOR- IF YOUR UNIT FEATURES THE O SENSOR FEATURE INITIAL STARTUP OF THE CONCENTRATOR NOTE: Concentrator may be used during the initial start warm-up time (approximately 30 min.) while waiting for the GREEN O purity light to illuminate. EXPLANATION OF OXYGEN PURITY INDICATOR LIGHTS (FIGURE 7): YELLOW... -
Page 17: Maintenance
OXYGEN PURITY INDICATOR- IF YOUR UNIT DOES NOT FEATURE THE O SENSOR LX MODELS INDICATOR LIGHT EXPLANATION (FIGURE 8): GREEN MAINTENANCE CLEANING THE CABINET FILTERS Cabinet Filter (located on both sides of concentrator) NOTE: There are two (2) cabinet filters. One (1) is located on each side of the cabinet (FIGURE 9). - Page 18 CAUTION CABINET WARNING HUMIDIFIER NOTE: To clean the oxygen humidifier, follow the instructions provided by the manufacturer. If none are provided, follow these steps: WARNING...
-
Page 19: Troubleshooting Guide
TROUBLESHOOTING GUIDE SYMPTOM: PROBABLE CAUSE: SOLUTION:... - Page 20 PREVENTIVE MAINTENANCE RECORD INVACARE PLATINUM OXYGEN CONCENTRATOR ON EACH INSPECTION SensO SensO...
