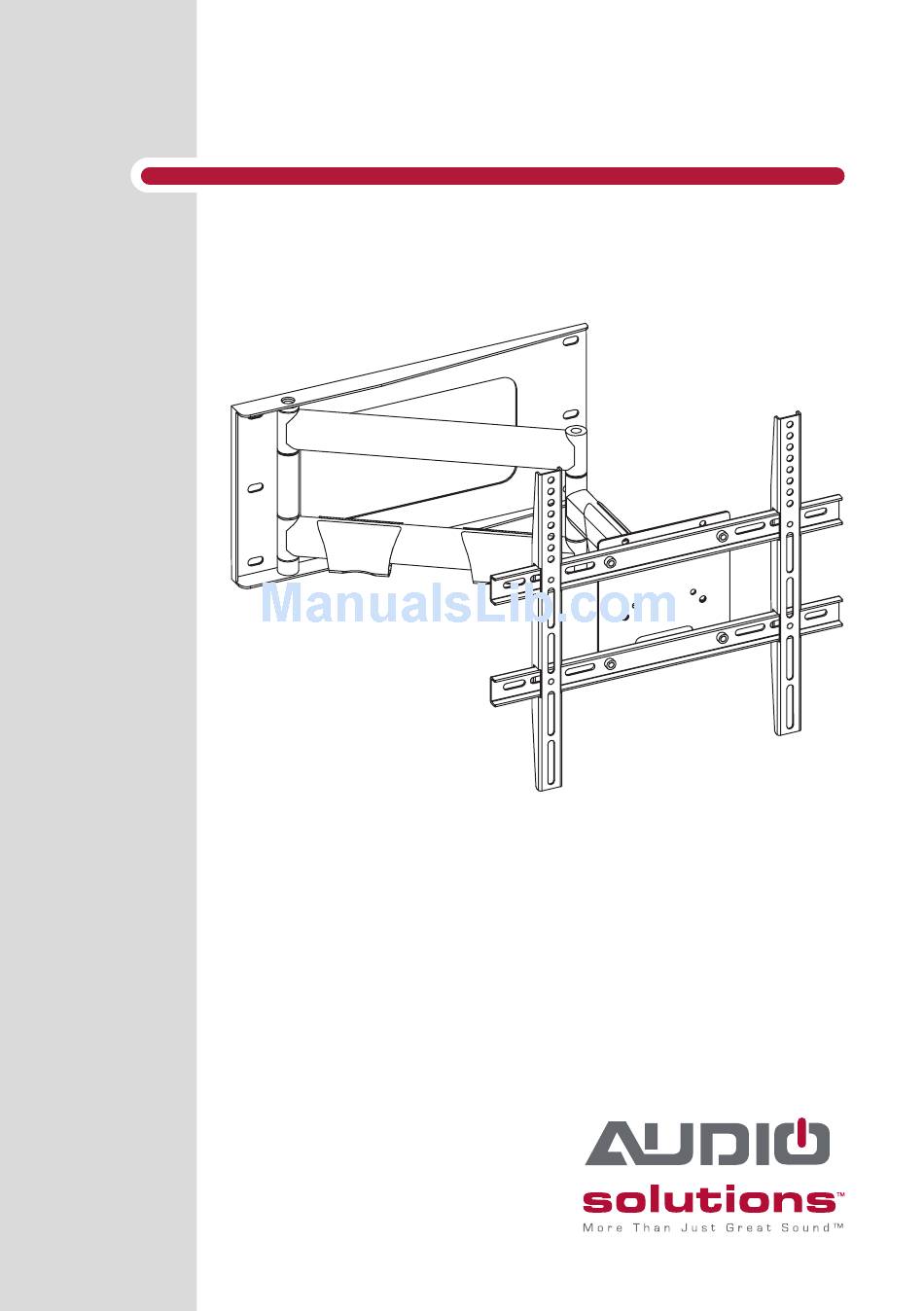

- Page 1 Model FM2260 Wall Mount Full Motion Television Wall Mount...
-
Page 2: Getting Started
Never use defective parts, as improper installation may cause damage or serious injury. Do not use this product for any purpose not explicitly specified by Audio Solutions. Audio Solutions cannot be liable for damage or injury caused by incorrect mounting, incorrect assembly, or incorrect use. -
Page 3: Opening The Package
GettING StARted Opening the Package The FM2260 Wall Mount and accompanying hardware have been carefully packed in a carton designed to protect it from transportation damage. After opening the carton, check that the components are in good condition and that all listed contents are included. - Page 4 GettING StARted Wall Plate Mounting Hardware Part Image Description M8/M6 Part Image Description Spacer Square Head Screw M4/M5 Concrete Washer Anchor M6/M8 Washer M8 Washer M4 Washer M8 x 14 Bolt M5 Washer Allen Wrench M6 Washer M8 Washer TV Bracket Assembly Hardware Part Image Description M4 x 12 Bolt...
- Page 5 INStAllAtION SteP 1 Read and understand all of the enclosed instructions and verify that all parts are present and appear in good working order before you begin. SteP 2 Attach the Wall Plate to the wall. Use the included leveling tool to make sure the wall plate is level. Wood Stud Mounting The Wall Plate must be mounted, at the top and bottom, to at least 2 wooden studs, spaced a minimum of 16”...
- Page 6 INStAllAtION SteP 3 After locating the mounting holes on the back of your television, choose mounting Option 1, 2 or 3 and assemble the mounting bracket to fit your style of television (Figure 3). • OPTION 1: Keep the Connecting Plate separate for attaching directly to the back of the television. •...
- Page 7 INStAllAtION Figure 5 - Attach Bracket to tV (Option 2) Figure 6 - Attach Bracket to tV (Option 3) NOTE: Use the proper bolts and washers that correspond to the mounting holes on the back of the TV. Take care to tighten by hand first or damage to the mounting holes can occur. Some TVs without a flat back may require the use of a spacer when attaching the brackets.
- Page 8 INStAllAtION NOTE: You will need at least 2 people to finish this mounting procedure. To avoid possible injury, do not attempt to mount the TV alone. YES! Figure 7 - two Person Install WARNING! SteP 5 Hang the pre-assembled TV unit on the Wall Plate (Figure 8). Slide the Connecting Plate attached to your TV into the corresponding square bracket on the mounted Wall Plate, illustrated in Figure 8.
- Page 9 INStAllAtION SteP 6 NOTE: Angle adjustment should be done by at least two people. • (A) While another person is holding the television assembly, loosen the two handles on either side of the mounting plate and tilt the television up to 5 degrees back or 15 degrees forward. Tighten the handles when the desired angle is achieved.
-
Page 10: Limited Warranty
lIMIted WARRANty Audio Solutions – Audio Mount – Limited Warranty – Valid in the United States and Canada This 60 month limited warranty is provided by Metra Electronics Corporation for the Metra product identified by the purchaser’s registration as indicated below, and there are no other warranties, expressed or implied, except as required by law, including warranties of merchantability and fitness for a specific purpose, that are provided for herein, however all such implied warranties, if any, are limited to the duration of this specific limited product warranty. - Page 11 ©2011 Metra Electronics Corporation, 460 Walker Street, Holly Hill, FL 32117-2699 Specifications are subject to change without notice. All trademarks are the property of their respective owners. www.audiosolutions.com...
