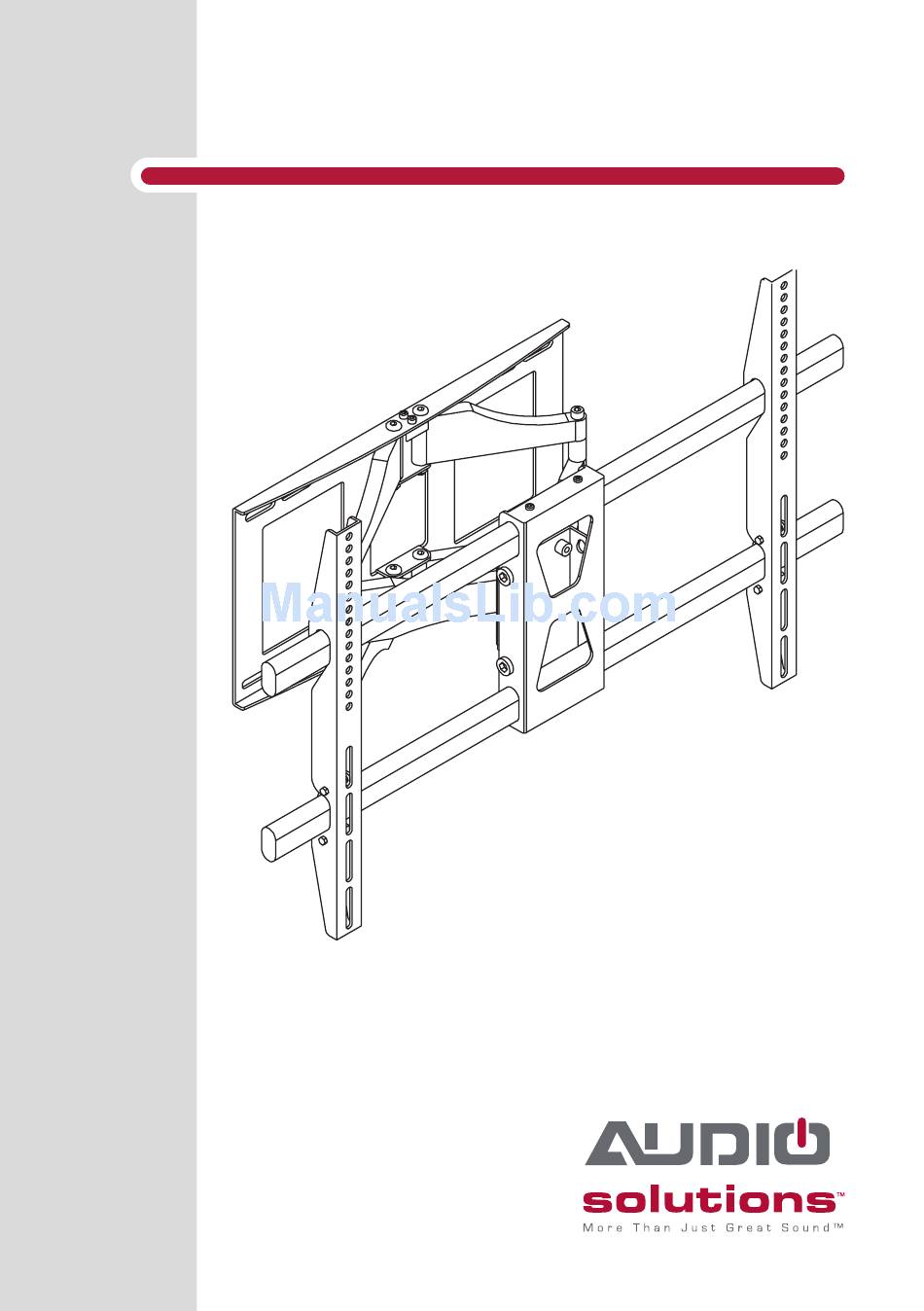

- Page 1 Model AS-FM3260 Wall Mount Full Motion Television Wall Mount...
-
Page 2: Getting Started
GettING StARted Introduction Congratulations on the purchase of your new Audio Solutions™ AS-FM3260 Television Wall Mount. For maximum benefit, please read the entire manual before beginning installation. NOTE: This model has been designed to work with most 32 to 60 inch Plasma, LED and LCD televisions with a maximum weight of 132lbs (60kg). -
Page 3: Opening The Package
GettING StARted Opening the Package The AS-FM3260 Wall Mount and accompanying hardware have been carefully packed in a carton designed to protect it from transportation damage. After opening the carton, check that the components are in good condition and that all listed contents are included. - Page 4 GettING StARted Wall Plate Mounting Hardware Part Image Description M4/M5 Part Image Description Spacer Lag Bolt M8/M6 Spacer Concrete Anchor M4/M5 M8 Washer Washer M6/M8 M8 x 16 Bolt Washer M4 Washer M8 Nut M5 Washer Allen Wrench M6 Washer M8 Washer TV Bracket Assembly Hardware Part Image Description...
- Page 5 INStAllAtION SteP 1 Read and understand all of the enclosed instructions and verify that all parts are present and appear in good working order before you begin. SteP 2 Remove the safety screws (A) in each bracket and set aside for later use (Figure 2). Do not discard these screws.
- Page 6 INStAllAtION SteP 3 Use the included allen wrench to loosen the bolts (B) on the rectangular bracket holding the two bars. Slide the bars until they are symmetrical and then tighten the bolts to secure (Figure 3). Figure 3 - Adjust Bars...
- Page 7 INStAllAtION SteP 4 Attach the Wall Plate to the wall. Use the included leveling tool to make sure the wall plate is level. Wood Stud Mounting The Wall Plate must be mounted, at the top and bottom, to at least 2 wooden studs, spaced a minimum of 16”...
- Page 8 INStAllAtION SteP 5 In the hardware bag provided, locate the 4 pan head bolts that fit the thread pattern for your television or Audio Solutions™ Audio Mount™. With the two vertical brackets centered on the back of the TV, gently thread the screws into the holes by hand.
- Page 9 INStAllAtION NOTE: You will need at least 2 people to finish this mounting procedure. To avoid possible injury, do not attempt to mount the TV alone. YES! Figure 6 - two Person Install WARNING! SteP 6 Hang the pre-assembled TV unit on the Wall Plate, securing the bracket hooks over each bar (Figure 7). Replace the screws (A) at the bottom of each bracket and tighten with the included allen wrench to secure the brackets to the Wall Plate.
- Page 10 INStAllAtION SteP 7 NOTE: Angle adjustment should be done by at least two people. • (A) While another person is holding the television assembly, loosen the two screws on either side of the mounting plate and tilt the television up to 5 degrees back or 15 degrees forward. Tighten the screws when the desired angle is achieved.
-
Page 11: Limited Warranty
Metra Electronics Corporation will repair or replace, at its option, any defective unit. This warranty is applicable only to the original purchaser and is not assignable or transferable. Metra hereby... - Page 12 ©2011 Metra Electronics Corporation, 460 Walker Street, Holly Hill, FL 32117-2699 Specifications are subject to change without notice. All trademarks are the property of their respective owners. www.audiosolutions.com...
