Summary of Contents for Audio Solutions AS-FM64

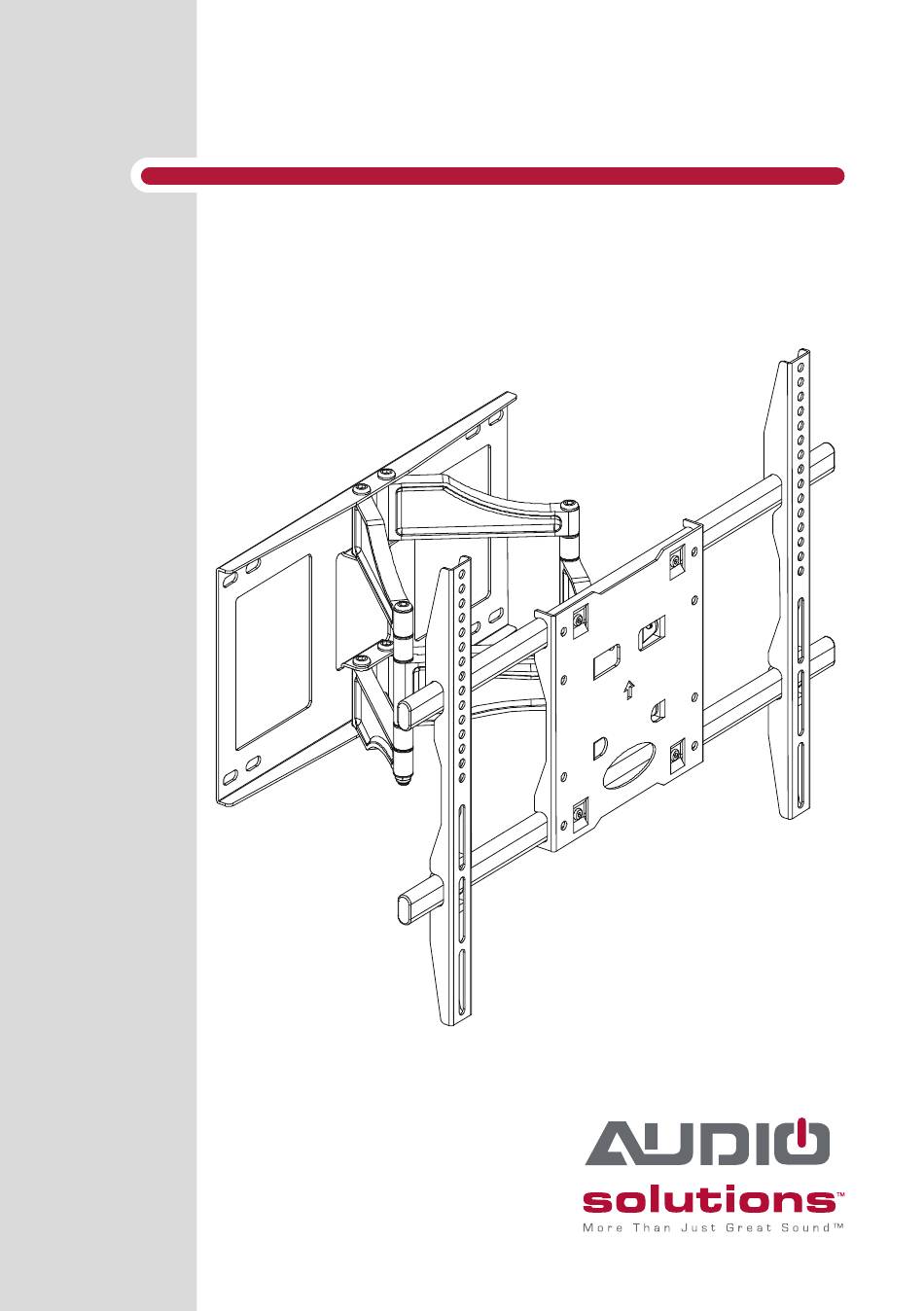

- Page 1 Model AS-FM64 Wall Mount Full Motion Television Wall Mount...
-
Page 2: Getting Started
Never use defective parts, as improper installation may cause damage or serious injury. Do not use this product for any purpose not explicitly specified by Audio Solutions. Audio Solutions cannot be liable for damage or injury caused by incorrect mounting, incorrect assembly, or incorrect use. -
Page 3: Opening The Package
GettING StARted Opening the Package The AS-FM64 Wall Mount and accompanying hardware have been carefully packed in a carton designed to protect it from transportation damage. After opening the carton, check that the components are in good condition and that all listed contents are included. - Page 4 GETTING STARTED Wall Plate Mounting Hardware Part Image M4/M5 Part Image Spacer Lag Bolt M8/M6 Spacer Concrete Anchor M4/M5 M8 Washer Washer M6/M8 M8 x 16 Bolt Washer M4 Washer M8 Nut M5 Washer Allen Wrench M6 Washer M8 Washer TV Bracket Assembly Hardware Part Image M4 x 12 Bolt...
-
Page 5: Installation
INStAllAtION SteP 1 Read and understand all of the enclosed instructions and verify that all parts are present and appear in good working order before you begin. SteP 2 Attach the Wall Plate to the wall. Use the included leveling tool to make sure the wall plate is level. Wood Stud Mounting The Wall Plate must be mounted, at the top and bottom, to at least 2 wooden studs, spaced a minimum of 16”... - Page 6 INStAllAtION SteP 3 In the hardware bag provided, locate the 4 pan head bolts that fit the thread pattern for your television. With the two vertical brackets centered on the back of the TV, gently thread the screws into the holes by hand.
- Page 7 INStAllAtION NOTE: You will need at least 2 people to finish this mounting procedure. To avoid possible injury, do not attempt to mount the TV alone. YES! Figure 4 - two Person Install WARNING! SteP 4 Next, hang the pre-assembled TV unit on the Wall Plate. Slide the protruding flat head hex bolt on the bracket attached to your TV (A) into the groove on the mounted Wall Plate, illustrated in Figure 5.
- Page 8 INStAllAtION SteP 5 NOTE: Angle adjustment should be done by at least two people. • (A) Locate the two hex head bolts used to secure the TV bracket to the wall mount. These bolts can be loosened and the TV rotated up to 3 degrees clockwise or counter-clockwise. Have another person hold the television in place while you adjust these screws.
-
Page 9: Limited Warranty
lIMIted WARRANty Audio Solutions – Audio Mount – Limited Warranty – Valid in the United States and Canada This 60 month limited warranty is provided by Metra Electronics Corporation for the Metra product identified by the purchaser’s registration as indicated below, and there are no other warranties, expressed or implied, except as required by law, including warranties of merchantability and fitness for a specific purpose, that are provided for herein, however all such implied warranties, if any, are limited to the duration of this specific limited product warranty. - Page 10 ©2013 Metra Electronics Corporation, 460 Walker Street, Holly Hill, FL 32117-2699 Specifications are subject to change without notice. All trademarks are the property of their respective owners. www.audiosolutions.com...
