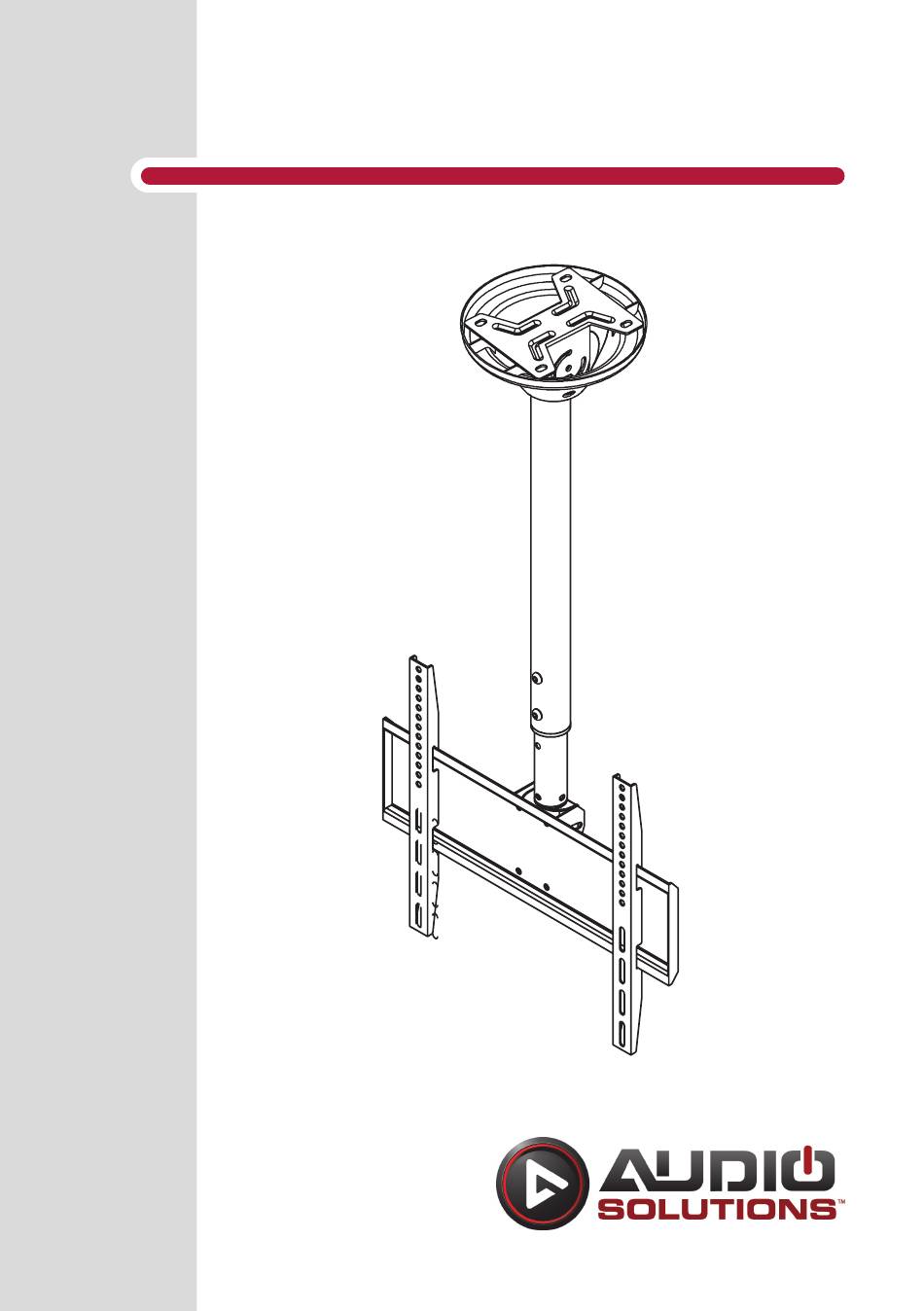

- Page 1 Model AS-CM3260 Wall Mount Ceiling Mount Television Bracket...
-
Page 2: Getting Started
NOTE: This wall mount has been designed to work with the Audio Solutions™ 2.1 or 3.1 Audio Mount™. This mount will also work directly with most 32 to 60 inch Plasma, LCD and LED televisions with a maximum weight of 132lbs (60kg). -
Page 3: Opening The Package
GettING StARted Opening the Package The AS-CM3260 Television Ceiling Mount and accompanying hardware have been carefully packed in a carton designed to protect it from transportation damage. After opening the carton, check that the components are in good condition and that all listed contents are included. - Page 4 GettING StARted Ceiling Mount Hardware Part Image Description M4 x 30 Bolt Part Image Description M8 x 16 Bolt M5 x 30 Bolt M8 Washer M6 x 35 Bolt M8 Nut M8 x 40 Bolt M4/M5 M6 x 60 Bolt Spacer M8/M6 M6 Nut Spacer M4 x 16...
- Page 5 SteP 2 Choose a location on the ceiling for your new Audio Solutions™ TV Mount. Ensure there is adequate support in the ceiling to attach the ceiling plate with the supplied screws. Wood Stud Mounting Locate the studs and mark the center and edge locations.
- Page 6 INStAllAtION SteP 3 Slide the plastic cover over the pole until flush to the ceiling and align the screw holes. Use the included M6 x 60 bolts (Figure 3 - A) to secure the cover to the ceiling. For an angled ceiling, remove a side section of plastic at the opening around the pole before sliding over the pole.
- Page 7 INStAllAtION SteP 4 Adjust the pole height by removing the screws that connect the two sections together and sliding the pole. Align the screw holes and secure at the desired height using the included screws (Figure 4 - A). Figure 4 - Adjust Height/Install Front Plate SteP 5 Attach the front plate to the pivoting bracket (Figure 4 - B) using four M8 x 16 bolts.
- Page 8 ELECTRIC OR BATTERY DRILL until you are certain you have the right size thread. DO NOT OVER TIGHTEN the screws (Figure 5). When installing an Audio Solutions™ Audio Mount™ 2.1 or 3.1, mount the television to the Audio Mount™ as instructed in the Audio Mount™ Owner’s Manual and then mount the brackets to the back of the mount.
- Page 9 INStAllAtION SteP 7 Hang the pre-assembled TV unit on the front plate, as shown in Figure 7. Tighten the screws (A) to secure the TV unit to the front plate. This wall mount is designed to conceal cables inside the pole. Run cables through the ceiling and out through the hole at the bottom of the pole for a clean look.
- Page 10 INStAllAtION SteP 8 NOTE: Angle/Height adjustment should be done by at least two people. • (A) While another person is holding the television assembly, loosen the two screws on either side of the mounting plate and tilt the television up to 5 degrees back or 15 degrees forward. Tighten the screws when the desired angle is achieved.
-
Page 11: Limited Warranty
lIMIted WARRANty Audio Solutions™ – Audio Mount – Limited Warranty – Valid in the United States and Canada This 60 month limited warranty is provided by Metra Electronics Corporation for the Metra product identified by the purchaser’s registration as indicated below, and there are no other warranties, expressed or implied, except as required by law, including warranties of merchantability and fitness for a specific purpose, that are provided for herein, however all such implied warranties, if any, are limited to the duration of this specific limited product warranty. - Page 12 ©2012 Metra Electronics Corporation, 460 Walker Street, Holly Hill, FL 32117-2699 Specifications are subject to change without notice. All trademarks are the property of their respective owners. www.audiosolutions.com...
