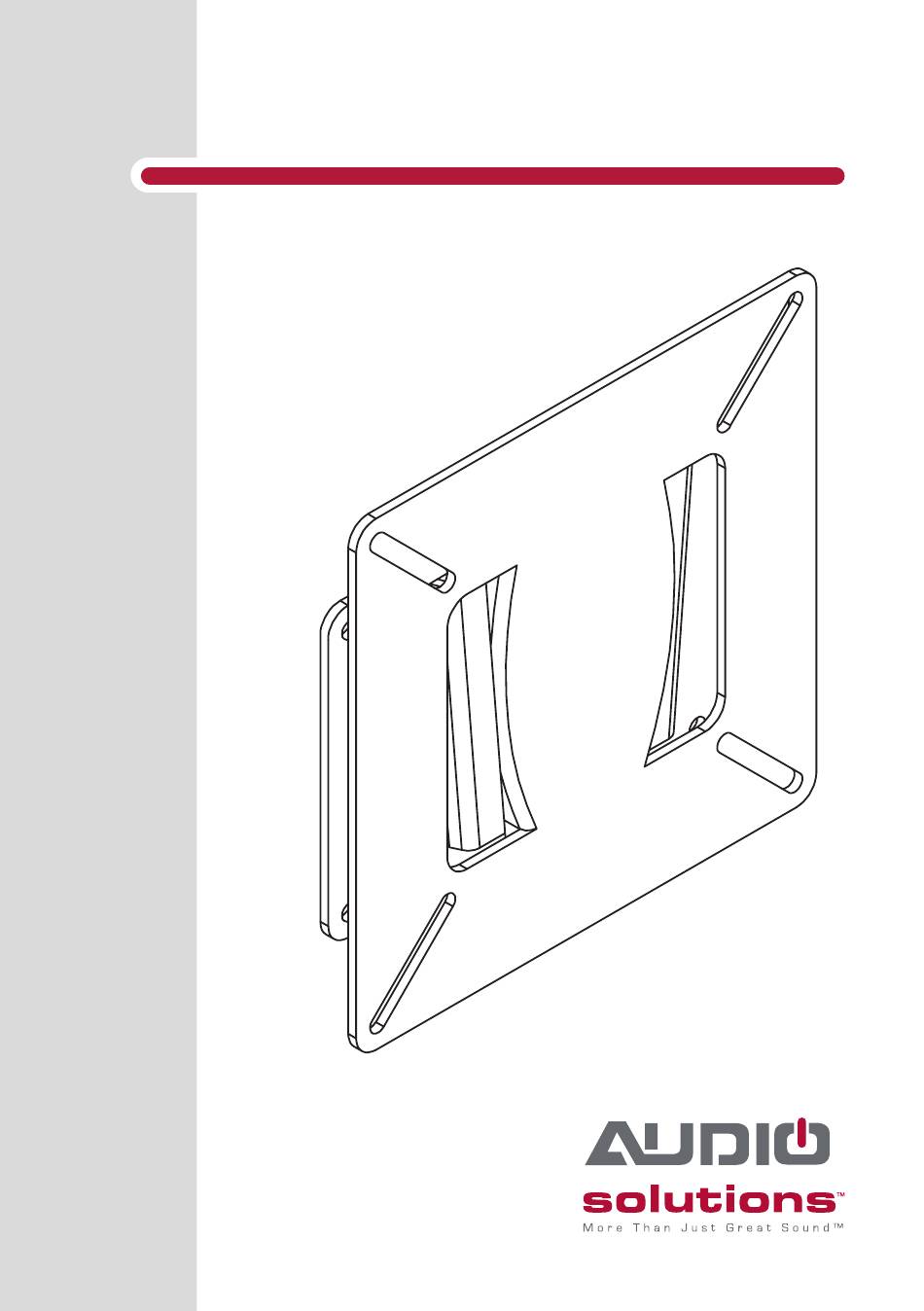

- Page 1 Model LP1026 Wall Mount Low Profile Television Wall Mount...
-
Page 2: Getting Started
Never use defective parts, as improper installation may cause damage or serious injury. Do not use this product for any purpose not explicitly specified by Audio Solutions. Audio Solutions cannot be liable for damage or injury caused by incorrect mounting, incorrect assembly, or incorrect use. -
Page 3: Opening The Package
GettING StARted Opening the Package The LP1026 Wall Mount and accompanying hardware have been carefully packed in a carton designed to protect it from transportation damage. After opening the carton, check that the components are in good condition and that all listed contents are included. - Page 4 GettING StARted Wall Plate Mounting Hardware Part Image Description Square Head Screw Concrete Anchor TV Bracket Assembly Hardware Part Image Description M4 x 12 Bolt M4/M5 Washer...
-
Page 5: Installation
INStAllAtION SteP 1 Read and understand all of the enclosed instructions and verify that all parts are present and appear in good working order before you begin. SteP 2 Attach the Wall Plate to the wall. Wood Stud Mounting The Wall Plate should be mounted, at the top and bottom, to at least one wooden stud. Locate a wooden stud and mark the center and edge locations. - Page 6 INStAllAtION SteP 3 With the bracket centered on the back of the TV, gently thread the screws into the holes. DO NOT OVER TIGHTEN the screws (Figure 3). Figure 3 - Attach Brackets to tV NOTE: Use the proper bolts and washers that correspond to the mounting holes on the back of the TV. Take care to tighten by hand first or damage to the mounting holes can occur.
- Page 7 INStAllAtION NOTE: You will need at least 2 people to finish this mounting procedure. To avoid possible injury, do not attempt to mount the TV alone. YES! Figure 4 - two Person Install WARNING! SteP 4 Slide the pre-assembled TV into the Wall Plate, as illustrated in (Figure 5). Figure 5 - Attach tV Assembly to Wall Plate...
-
Page 8: Limited Warranty
lIMIted WARRANty Audio Solutions – Audio Mount – Limited Warranty – Valid in the United States and Canada This 60 month limited warranty is provided by Metra Electronics Corporation for the Metra product identified by the purchaser’s registration as indicated below, and there are no other warranties, expressed or implied, except as required by law, including warranties of merchantability and fitness for a specific purpose, that are provided for herein, however all such implied warranties, if any, are limited to the duration of this specific limited product warranty. - Page 9 ©2011 Metra Electronics Corporation, 460 Walker Street, Holly Hill, FL 32117-2699 Specifications are subject to change without notice. All trademarks are the property of their respective owners. www.audiosolutions.com...
