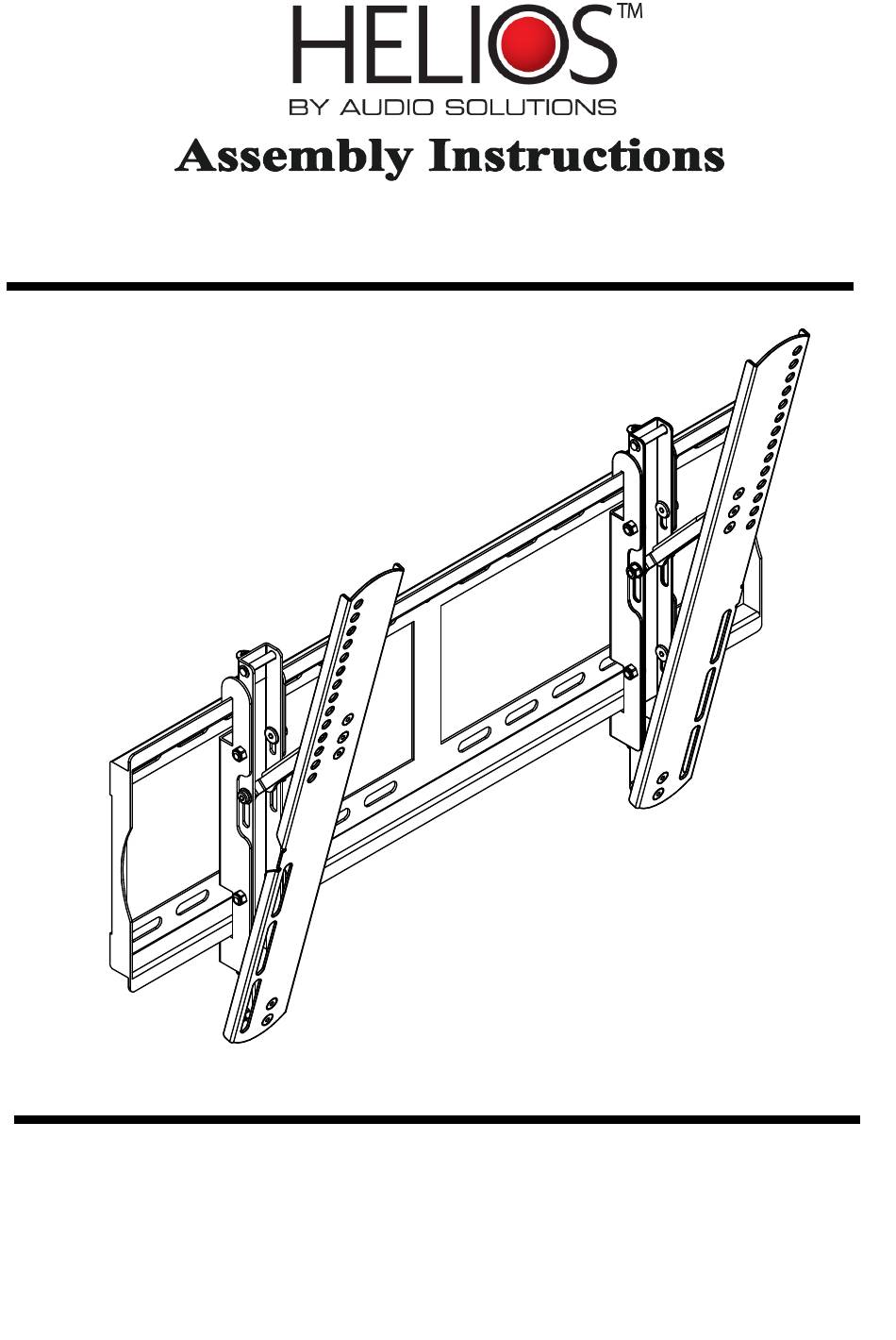

Audio Solutions Helios TL64PL Assembly Instructions

This model will hold most 32-65 flat panel tvs, load capacity: 45kg 99lbs

TL64PL

• Please read these instructions carefully before using.

• This model will hold most 32-65 Flat Panel TVs.

• Load capacity: 45kg (99Lbs).

Table of Contents

Need help?

Do you have a question about the Helios TL64PL and is the answer not in the manual?

Page 1 TL64PL • Please read these instructions carefully before using. • This model will hold most 32-65 Flat Panel TVs. • Load capacity: 45kg (99Lbs).
Page 2 TL64PL Safety Safety Warning: Thanks for choosing this Helios wall mount and please read these instructions carefully before using the model TL64PL to avoid any injury of anybody and(or) any property loss. If you do not understand these directions, or have any doubts about the safety of the installation, please call a qualified contractor or contact Helios customer service department.
Page 4 Note: 1. Please use the corresponding screw & washer for the holes of the TV back, assembling with incorrect screw & washer will damage the holes on the TV back, uneven assembly will cause slanted TV screen. 2. Professional knowledge required to assemble the flat panel TV and the wall mount and need at least 2 people to finish this mounting procedure.
Page 5 ©2014 Metra Electronics Corporation, 460 Walker Street, Holly Hill, FL 32117-2699 Specifications are subject to change without notice. All trademarks are the property of their respective owners. 1-866-839-9187...
