This function is used to specify whether or not an offboard PCI
Offboard PCI IDE Card >:
IDE card is installed in your computer. You must specify the slot number on the board
which will be used for the card.
Specify the PCI interrupt that is assigned to the Pri-
Offboard PCI IDE Primary (/Secondary) IRQ >:
mary (/Secondary) IDE channel on the offboard PCI IDE controller.
Specify the IRQ priority to be used by the PCI devices on slots
PCI Slot (1,2,3,4) IRQ Priority >:
1 to 4.
Used to indicate whether or not the DMA channel is assigned for
DMA Channel (0,1,3,5,6,7) >:
a PnP or ISA card.
Assign the displayed IRQ to be used by a legacy ISA adapter
IRQ (3,4,5,7,9,10,11,14,15) >:
card. The settings are or .
ISA/EISA PCI/PnP

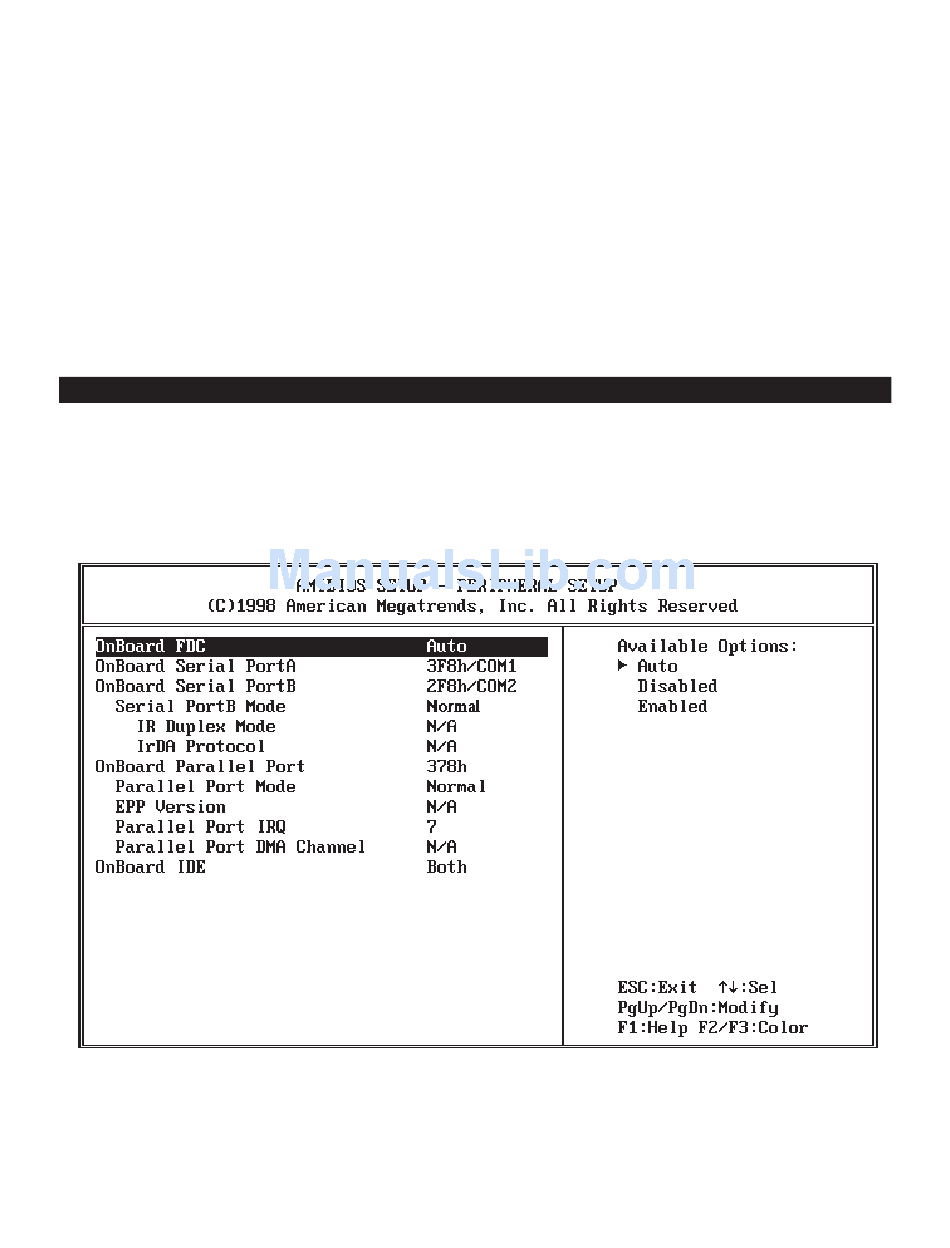

PERIPHERAL SETUP

This setup works mostly on Multi-I/O Chip (W83977F). The options are used to
change the Chipset's registers. Carefully change any default setting to meet your
application needs. The only concern is Onboard Serial Port 2. If you want to use
the IrDA port, you have to configure the SIR or ASKIR model in the BIOS's Periph-
eral Setup's COM2; the RS-232 COM2 will be disabled.
Used to enable the FDC on your board. If you set it to , the BIOS will
Onboard FDC >: Auto
automatically decide if the FDC should be enabled.
Specify the I/O port address of the serial port 1(/2). If you set it
Onboard Serial Port A (/B) >:
to , the BIOS will decide the correct I/O port address automatically.
Auto
