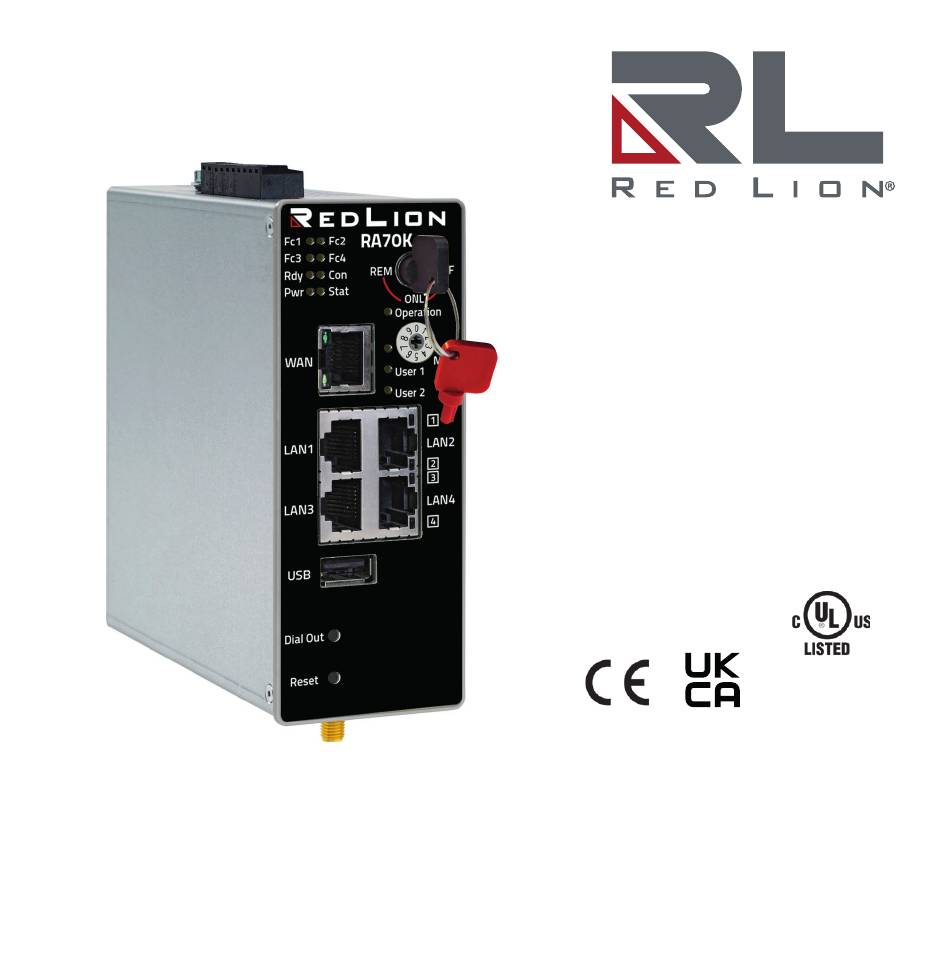

- Page 1 PROG� CNTLR� E482663 RKH 210, RKH 216 RKH 235, RKH 259 EU, RKH 259 US RA70K - Keyed Remote Access Router Quick Start Guide V 7�3�0 Aug 8 , 2023 from HW05 and FW 7.3.0 LP1164D...
-
Page 2: Table Of Contents
Contents IMPORTANT! - Read This ����������������������������������������������������������������������������������������������������� 3 Using Open Source Software ���������������������������������������������������������������������������������������������� 4 2.1 General Information ����������������������������������������������������������������������������������������������������� 4 2.2 Special Liability Regulations �������������������������������������������������������������������������������������� 5 Included In Delivery ������������������������������������������������������������������������������������������������������������� 6 Performance Characteristics ����������������������������������������������������������������������������������������������� 7 Safety Instructions ��������������������������������������������������������������������������������������������������������������� 7 Router Installation ���������������������������������������������������������������������������������������������������������������� 8 6.1 Installation position / minimum distances ����������������������������������������������������������������... -
Page 3: Important! - Read This
This document is valid for Remote Access Routers RA70KR0010V1S0D0 - in dieser Anleitung auch als RKH 210 bezeichnet. RA70KR0000V1S0D0 - in dieser Anleitung auch als RKH 216 bezeichnet. RA70KR0010V0S0D0 - in dieser Anleitung auch als RKH 235 bezeichnet. RA70KR4A00V1S0D0 - in dieser Anleitung auch als RKH 259 US bezeichnet. RA70KR4E00V1S0D0 - in dieser Anleitung auch als RKH 259 EU bezeichnet. Ab Firmware-Version V 7.3.0 und ab Hardware-Version HW05* The SIMPLY.connect function is only available for devices with the Simplify³ logo* Type:RKH 2xx S/N:05232350XXXXXX WAN,VPN,1xMPI/PROFIBUS Item#: RA70KR0010V1S0D0 HW: 05 LAN MAC:70:B3:D5:XX:XX:XX WAN MAC:70:B3:D5:XX:XX:XX PROG. CNTLR. E482663 Red Lion Europe GmbH Winnettener Str.6 D-91550 Dinkelsbühl www.mbconnectline.com Figure 1: Device nameplate (representative picture) - 3 -... -
Page 4: Using Open Source Software
Using Open Source Software 3.1 General Information Our products contain, amongst others, open-source software that is provided by third parties and has been published for free public use. The open-source software is subject to special open-source software licenses and the copyright of third parties. Basically, each customer can use the open- source software freely in compliance with the licensing terms of the respective producers. The rights of the customer to use the open-source software beyond the purpose of our products are regulated in detail by the respective concerned open-source software licenses. The customer may use the open-source software freely, as provided in the respective effective license, beyond the purpose that the open-source software has in our products. In case there is a contradiction between the licensing terms for one of our products and the respective open-source software license, the respective relevant open-source software license takes priority over our licensing terms, as far as ... -
Page 5: Special Liability Regulations
Requests must be directed to the following address, if possible under specification of the serial number: Red Lion Controls, Inc. Tel: Inside US: +1 (877) 432-9908 35 Willow Springs Circle Outside US: +1 (717) 767-6511 York, PA 17406 Website: www.redlion.net Support: support.redlion.net 3.2 Special Liability Regulations We do not assume any warranty or liability, if the open-source software programs contained in our product are used by the customer in a manner that does not comply any more with the purpose of the contract, which is the basis of the acquisition of our product. This concerns in particular any use of the open-source software programs outside of our product. The warranty and liability regulations that are provided by the respective effective open-source software license for the respective open- source software as listed in the following are effective for the use of the open-source software beyond ... -
Page 6: Included In Delivery
Included In Delivery Please check that your delivery is complete: All device types RKH 210, RKH 216, RKH 235, RKH 259 EU and RKH 259 US RA70K - Keyed Remote Access Router Quick Start Guide V 7�0�1 Aug 8 , 2023 from HW05 and FW 7.3.0... -
Page 7: Performance Characteristics
Performance Characteristics • On-board 2-level remote access key ◦ Pos. REM: trigger remote access connection ◦ Pos. ONL: alarms, dashboards & router administration ◦ Pos. OFF: no connection with RLConnect24 • The router can be fully configured via the portal RLConnect24 or using the web interface via locally connected computer, or remotely. • Deployable in North America / Europe / SAARC using GSM modem connections, plus access via LAN and Internet� • Secure connection using an integrated firewall with IP filter, NAT and port forwarding, VPN with , and AES (256-, 192-, 128-Bit), Blowfish (128-Bit), 3DES (168-Bit), DES (56-Bit) authentication via � Pre-Shared-Key, X.509 • Alarm management: ◦ Fully configurable digital inputs and outputs, and the ability to send via email, SMS or Internet dial-up� ◦... -
Page 8: Router Installation
Opening up the device voids the warranty! according to IEC 60950/EN 60950/VDE 0805. Router Installation 7.1 Installation position / minimum Operation 0.79“ distances (20 mm) Mode User 1 User 2 RA70K LAN1 LAN2 Stat The router is intended for mounting on DIN rails (according Operation to DIN EN 50 022) and for installation in a control cabinet. LAN4 LAN3 Installation and mounting must be in accordance with VDE Mode... -
Page 9: Device Dimensions In Inches (Mm)
LAN MAC:70:B3:D5:XX:XX:XX LAN1 LAN2 (11) WAN MAC:70:B3:D5:XX:XX:XX PROG. CNTLR. 0.16 (4) E482663 LAN4 LAN3 Contains: Red Lion Europe GmbH Winnettener Str.6 0.33 D-91550 Dinkelsbühl www.mbconnectline.com (8.5) Manufacturer: Headquarters: Red Lion Europe GmbH Red Lion Controls, Inc. Winnettener Str.6 1750 5th Avenue D-91550 Dinkelsbühl... -

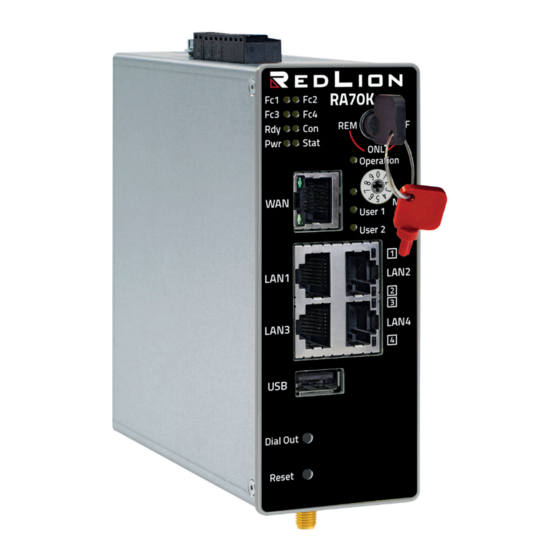

Page 10: Displays, Controls And Connections
Displays, Controls and Connections galvanically isolated X1 X2 I4 I3 I2 I1 P M O2 O1 RA70K Power supply connection 10 - 30 VDC – 0 VDC connection Stat Operation Digital input I4 (10 - 30 V) Digital input I3 (10 - 30 V) - Page 11 1� Function / status LEDs 8� Coding switch hexadecimal 2� WAN interface 8�a Function / status LEDs for coding switch 3� LAN interfaces 1 – 4 9� Key switch 4� USB Host 2.0 9�a Function / status LEDs for key switch Key (red) for switch positions OFF, 5� Dial Out button ONL, RST*, REM** 6� Reset button 9�c Key (black) for switch positions 7� Serial interface COM OFF, ONL * The switch position RST has just a tactile function�...
- Page 12 Function / status LEDs Colour Status Description green flashes SIMPLY.connect * ready and disabled (5 Hz) This function is only available if the device is set to its factory settings SIMPLY.connect * ready and activated Activation takes place by pressing the Dial Out button orange flashes (1 Hz) Data received at COM flashes (1 Hz) Data transmission to COM green orange GSM devices: no reception (1 Hz) GSM devices: == 20% - 50% flashes green GSM devices: reception depending on Fc4 lights up GSM devices: (+ Fc4 green): 71% - 100% orange...
- Page 13 Colour Status Description orange Waiting for bootloader or signature successfully checked Check signature, loads kernel green Waiting for kernel flashes (1 Hz) Loads rootFs Boot process completed - device is ready for use orange No VPN connection started Internet connection established + VPN connection started flashes Flashing frequency 1.5 Hz: VPN connection established green No Internet connection flashes Flashing frequency 3 Hz: Internet connection is being made Internet connection is established green The power supply to the router is interrupted / the router is not connected to the power supply Power supply is connected to the terminal block and switched on Stat flashes (1 Hz) Error in the error memory Found fault - The error type can be viewed on the WebGUI of the ...
- Page 14 Interfaces and buttons Label Status Description – Router WAN port (customer network, DSL modem ���) LED green lights = Network connection available WAN-LED LED orange flashing = Network data transfer active LAN 1 - 4 – Local network ports (e�g� machine network) LED green lights = Network connection available LAN-LED 1- 4 (Dual LED) LED orange flashing = Network data transfer active –...
-
Page 15: First Time Operation
First Time Operation Connect, depending on device type, an antenna, and insert a SIM card. Before connecting the router to a network or PC, fi rst ensure that it is properly connected to a power supply, otherwise it may cause damage to other equipment. X2 galvanically isolated • Connect equipotential bonding I4 I3 I2 I1 P M O2 O1 to the grounding lug on the router’s top panel� • Connect the (10-30 VDC) power supply to the terminal of the router� Make sure that the polarity is correct. ◦... -
Page 16: Initial Configuration
10 Initial Configuration Requirements: • You have a user account on the Remote Service Portal V 2�x RLConnect24 If you do not have a user account on RLConnect24, please contact your system administrator or authorized sales partner. For more information about RLConnect24 see www.redlion.net in our Support Portal� • Windows PC with remote client software RLAccess * installed � With RLAccess you establish a secure VPN connection to RLConnect24� * The latest version can be downloaded on www.redlion.net Generally following procedure applies: •... -
Page 17: Initial Configuration Via Rsp Rlconnect24 V 2.X
10.1 Initial confi guration via RSP RLConnect24 V 2.x 10.1.1 Login RLConnect24 Login Remote-Service-Portal admin@doefactory ········· Login I forgot my password ADVICE: Upon fi rst login, please change the default login information! Navigation: Administration > Users 10.1.2 Creating a project Navigation: Administration > Projects In the project overview, click the plus and assign the next screen a Project Name (all other inputs / information can be made ... -
Page 18: 9�1�3 Create A Device
10.1.3 Create a device Navigation: Administration > Projects > Project 2 (selected project) In the selected project, click the plus and select “Create new device”� For the basic confi guration, you only need to select your “Device Type” and enter a unique device “Name”� You can create your own name for the Device. RKH259 The following are allowed: Numbers: 0 to 9, A to Z, a to z (avoid blanks) Letters: A to Z and a to z Characters: Point, hyphens and underscores After saving your settings you will be automatically redirected to the device settings� For the initial confi ... -
Page 19: Configuring The Device (Connection Data)
10.1.4 Confi guring the device (connection data) Navigation: Administration > Projects > Project 2 (selected project) > New Device (selected device) Here the following menus are relevant for the initial confi guration: • LAN (all devices) Make sure that the LAN IP and the WAN IP are in diff erent address ranges. •... -
Page 20: Creating A Configuration
10.1.5 Creating a confi guration Navigation: Administration > Projects > Project 2 (selected project) > NewDevice (selected device) After entering all necessary data, you must transfer the confi guration to the router. Therefore connect a USB stick to your confi guration PC (the USB stick must have the fi le format FAT!)� and select “Download to PC”� Click the Sync icon The confi guration fi le “mbconnect24.mbnx” can now be downloaded to the USB stick. IMPORTANT: The downloaded confi ... -
Page 21: Transfer Configuration To The Keyed Remote Access Router
10.1.6 Transfer confi guration to the Keyed Remote Access Router When the router is ready to operate, insert the USB stick into the USB port of the device. As soon as the router recognizes the confi guration fi le, both LED Fc1 + LED Fc2 are fl ashing� RA70K Now press and hold down the Dial Out button Dial Out until LED Fc3 fl ashes � Release the Dial Out button ... -
Page 22: Access The Web Interface Of The Keyed Router
11 Access the Web Interface of the Keyed Router On the web interface of the router a Status page and a Diagnostic page are available. On the Status page, five steps with additional information are displayed, which must be run through when connecting the router to the portal� The Diagnostic page helps you in case of a failed connection establishment in troubleshooting. Requirements: • The configuration PC and the router must be in the same IP address range. Depending on the LAN IP that you assigned to the device in the portal, you may need to assign the configuration PC to the same address range. If you assigned the router e.g. the LAN IP 192.168.2.200, you need the configuration PC to assign the same address range (192.168.2.X). This applies to both the IP address and subnet mask. • The router must be accessible via the LAN interface of the configuration PC. Start a browser and enter the LAN IP you have assigned in the portal to the router� To log on to router enter the following data: Username: admin Password: The default password is located ... -
Page 23: Quick Start
11.1 Quick Start After a successful login you will see in the Quick Start menu the device state� Here, five steps are displayed that are required so that the device can connect to the portal� = everything OK = processing = Error Click on the icon to the right of each progress to get details / information about this step� If all five steps have been completed successfully, the router is connected to the portal RLConnect24�... -
Page 24: Diagnostics
11.2 Diagnostics In case of a failed connection setup, the Diagnostic page provides support for troubleshooting. 12 Factory Settings On Delivery The router is delivered with the following factory settings: ADVICE: IP address 192�168�0�100 Upon first login, please change the default login information! Subnet mask 255�255�255�0 Username admin Password The default password is located on the ... -
Page 25: Loading The Factory Settings
13 Loading the Factory Settings NOTICE Before you configure the device to its factory defaults, you should note the following: • Save your configuration first. After restoring the factory defaults, all of your settings/ changes will be deleted. • The IP address of the device is reset to the original IP address (192�168�0�100)� • You may also need to modify the network settings of the configuration PC accordingly. • The device password is reset to its individual default password� The default password can be found on the back of the unit. - Page 26 Load the factory settings - continued 1� a) Switch on the router or b) if the router is ready for operation, press the Reset button. Reset Stat 2� When the LED Rdy flashes (green), turn the red key switch - with the red key - to the switch position RST and hold this key position. Stat 3� When LED Fc3 is flashing (orange), release the key. Stat When both the Pwr and Rdy LEDs light up, the router is reset to its “factory settings at the time of delivery” and can/must be reconfigured.
-
Page 27: Technical Data (Extracts)
14 Technical Data (extracts) Performance data Voltage V (DC) 10 – 30 VDC (external Power Supply or other SELV Power Supply Source, rated 10 - 30 VDC, max� 40 A) Power consumption max� 500 mA @ 24 V IP protection class IP 30* Area of application Dry environments Operating temperature -40 – +75 °C Storage temperature -40 – +85 °C Humidity 0 – 95% (non condensing) - Page 28 VPN protocol IPsec/PPTP/OpenVPN, 64 Tunnel Encryption method AES (256-, 192-, 128-Bit), Blowfish (128-Bit), 3DES (168-Bit), DES (56-Bit) Hash algorithms SHA-2 (SHA-256, SHA-512), SHA-1, MD5 Authentication Pre-Shared-Key, X.509 Network/security Firewall 1:1 NAT, IP-Filter, Port forwarding, stateful inspection IP router NAT-IP, TCP/IP routing, IP forwarding Services DHCP server, DHCP client, DNS server, NTP client, PPP server, DynDNS Time levelling NTP server Optional Interfaces RS-232/485 (software-switchable) (RKH 210) MPI/Profibus (RKH 235) SIM card slots 2 pieces SIM card reader with ejector (for mini-SIM) - 28 -...
- Page 29 Communication Devices with LTE (4G) module - US (RKH 259 US) from hardware version from HW 05 Target region North America (Public safety, AT&T, Verizon, FirstNet, T-Mobile, Canada) HSxPA 1900 PCS (B2), AWS (B4), 850 (B5) MHz; Downlink max. 42 Mbps 700 Lower (B12), 700 PS (B14), AWS (B4), 1900 PCS (B2), 850 (B5), 700 Upper (B13), AWS-3 (B66), 600 (B71) MHz; Downlink max. 150 Mbps, Uplink max. 50 Mbps RF parameters Output power - typical values for max output level Sensitivity - typical sensitivity levels > 2G: LB 33 dBm; HB: 30 dBm > -108 dBm @ 2G > 3G/TD-SCDMA: 24dBm > -113.5 dBm @ 3G > 4G (FDD & TDD): 23dBm @1RB > -103 dBm @ 4G FDD (BW=5 MHz) 35034498; 35432809; 35604311 Contains FCC ID: RI7LE910CxNF NOTICE Device type RKH 259 US bears no CE marking and may not be used or put into ...
-
Page 30: Technical Support
Output power ( Sensivity ( typical) typical) 2G: LB: 33 dBm; HB: 30 dBm -108 dBm @ 2G 3G/TD-SCDMA: 24dBm -113.5 dBm @ 3G 4G (FDD & TDD): 23dBm @1RB -103 dBm @ 4G FDD (BW=5 MHz) 35162610 SIMPLIFIED EU DECLARATION OF CONFORMITY Red Lion declares that the radio equipment type RKH 259 EU (RA70K-R4E00V-1S0D0 and RA70K-R4E00V-1S0DA) is manufactured in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at www.redlion.net. SIMPLIFIED UKCA DECLARATION OF CONFORMITY Hereby, Red Lion declares that the equipment type RKH 259 EU (RA70K-R4E00V-1S0D0 and RA70K-R4E00V-1S0DA) is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: www.redlion.net. 15 Technical Support For technical support (FAQ, troubleshooting, most recent information, etc.) see our website www.redlion.net. For support enquiries, always give the serial number of your router. ... -
Page 31: Information On Cyber Security
16 Information on cyber security To prevent unauthorized access to facilities and systems, observe the following security recommendations: General • Periodically ensure that all relevant components meet these recommendations and any additional internal security policies. • Perform a security assessment of the entire system. Use a cell protection concept with suitable products. For example, “ICS Security Compendium“ from the BSI (Bundesamt für Sicherheit in der Informationstechnik (Federal Office for Security in Information Technology)). https://www.bsi.bund.de/SharedDocs/Downloads/EN/BSI/ICS/ICS-Security_compendium.html. Shortened URL: http://bit.ly/3Ya4tTH Physical access • Restrict physical access to security-relevant components to qualified personnel� Security of the software • Keep software/firmware updated. -> Stay informed about security updates for the product. -> Stay informed about product updates. You can find information about this at: www.redlion.net� Passwords • Define rules for the use of the devices and assigning passwords. • Change passwords regularly, to increase security. • Use only passwords with a high password strength. Avoid weak passwords such as ... -
Page 32: Disposal Of Devices
Only for EU countries: Dispose of the device in accordance with the Waste Electrical and Electronic Equipment Directive 2012/19/EU - WEEE. © 2023 Red Lion Controls, Inc� All rights reserved� Red Lion and the Red Lion logo, are registered trademarks of Red Lion Controls, Inc. All other company and ...
