4.4.8
4.4.8
4.4.8
4.4.8
ADF Lamp Removal
ADF Lamp Removal
ADF Lamp Removal
ADF Lamp Removal
1.
Remove the ADF optical chassis. (See subsection 4.4.5)
2.
Use your right hand to hold the main frame of the ADF unit while the other hand hold the base of
the ADF unit. Then push forward to separate these two parts.
3.
Use pincerpliers to remove the screws on the ADF lamp assembly as shown in below.
4.
Gently remove the lamp from the lamp holder.

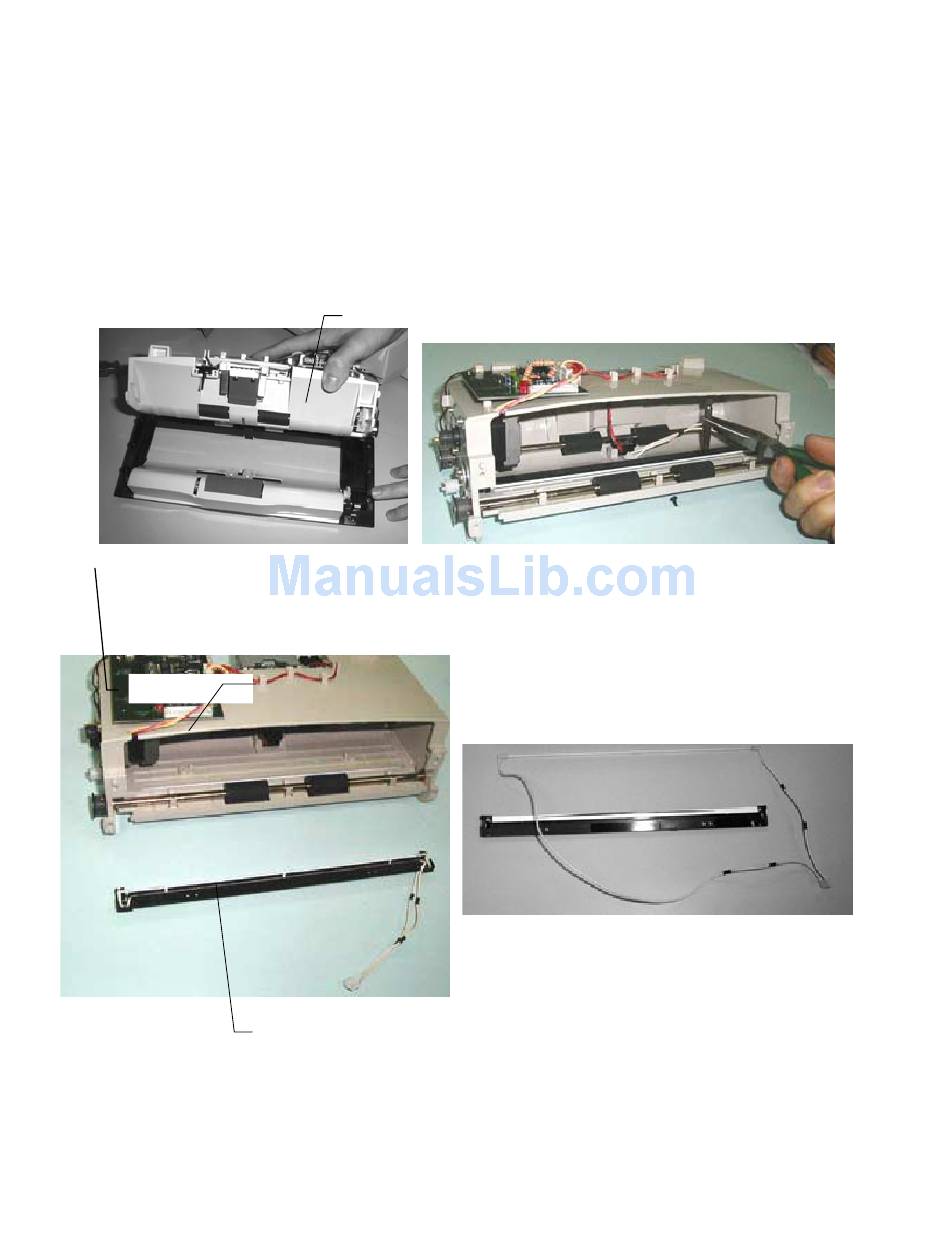

Lamp Holder
ADF Unit
Lamp
Lamp
Assembly
Figure 4.19 ADF Lamp Assembly Removal
Figure 4.19 ADF Lamp Assembly Removal
Figure 4.19 ADF Lamp Assembly Removal
Figure 4.19 ADF Lamp Assembly Removal
4-17
