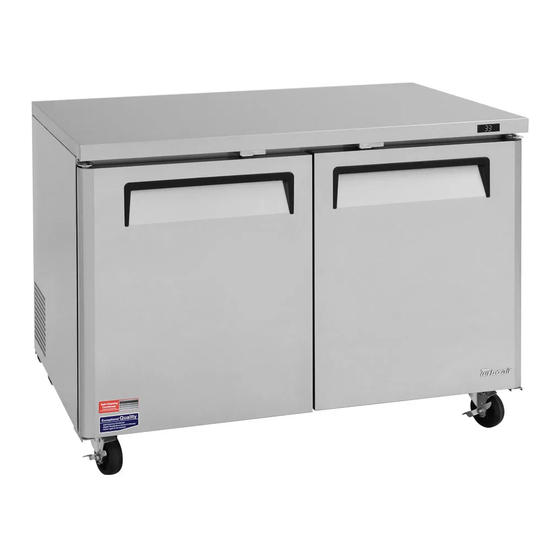

Turbo Air MUF-48 Service Manual
M3 series prep table under counter freezer series
Hide thumbs
Also See for MUF-48:
- Installation and operation manual (18 pages) ,
- Installation and operation manual (18 pages) ,
- Installation and operation manual (18 pages)
Subscribe to Our Youtube Channel
Related Manuals for Turbo Air MUF-48
Summary of Contents for Turbo Air MUF-48
- Page 1 Commercial Freezer Service Manual M3 Series Prep Table Under Counter Freezer Series Model No: MUF-48 MUF-28...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1.FEATURE CHART 1-1.FRONT VIEW 1-2.SIDE VIEW 2.WIRING DIAGRAMS 2-1.MUF-48 2-2.MUF-28 3.PART DETAILS 3-1.COMPRESSOR COMPARTMENT 3-2.DOOR 3-3.REFRIGERATION COMPARTMENT 4.MAIN COMPONENTS 5.TEMPERATURE CONTROL INSTRUCTION 5-1.HOW TO USE THE TEMPERATURE CONTROL 5-2.FUNCTION TABLE 6.PARTS LIST 7.REPLACEMENT OF MAIN COMPONENTS 7-1.REPLACING DOOR 7-2.REFRIGERATION COMPARTMENT PARTS... -
Page 3: Feature Chart
1.FEATURE CHART 1-1.FRONT VIEW MUF-48 MUF-28 1-2.SIDE VIEW 1 COUNTER TOP 2 DOOR(L) 3 DOOR HANDLE(L) 4 EVAPORATOR DUCT 5 LOUVER 6 MULLION 7 SHELF( R ) 8 CABINET ASSEMBLY 9 DOOR GASKET 10 SHELF CLIP 11 TOP HINGE 12 EVAPORATOR FAN MOTOR... - Page 4 2.WIRRING DIAGRAMS 2-1.MUF-48 2-2.MUF-28...
- Page 5 3.PART DETAILS 3-1. COMPRESSOR COMPARTMENT MUF-48 MUF-28 CONDENSER UNIT ASSEMBLY 3-2. DOOR DOOR GASKET 3-3.REFRIGERATION COMPARTMENT TEMPERATURE CONTROL & EVAPORATOR ,THEMOSTAT...
-
Page 6: Part Details
PART DETAILS EVAPORATOR FAN MOTOR... -
Page 7: Main Components
4.MAIN COMPONENTS 1.COMPRESSOR MODEL MAKER PART NAME PART NO. HORSE CAPACITY TYPE OF INPUT G2F5700100 MUF-48 CAE2420Z 1/3HP 115V 60Hz TECUMSHE M369700100 MUF-28 HBL-27YE-1 1/4HP 110-115V 60Hz DAEWOO 2.COMPRESSOR RELAY ,OVERLOAD MODEL RELAY PART NO. OVERLOAD PART NO. MAKER NOTE... -
Page 8: Temperature Control Instruction
Cond.Fan Motor ■ Cut in and out temperature chart. °F Cool Normal Cold 1 Model: Cut in 9.5±1.5 5.9±1.5 4.1±1.5 MUF-28 Cut Out -3.1 -6.7 -7.5 Cool Normal Cold 2 Model: Cut in 2.3±1.5 -1.3±1.5 -3.1±1.5 MUF-48 Cut Out -9.4 -14.8... -
Page 9: Parts List
6.PARTS LIST FOR M3 MUF Model Part name Part code Description Remark COUNTER TOP COUNTER TOP Assembly WR25700100 SUS304-#4 COUNTER TOP Assembly WR45700100 SUS304-#4 CASTER M726500100 5INCH MOVING SAME AS SD SERIES CASTER M726500200 5INCH MOVING STOPPING SAME AS SD SERIES DOOR TOP HINGE ( R ) M722900100... - Page 10 Model Part name Part code Description Remark LOUVER UF25800100 SUS439-2B SAME AS SD SERIES LOUVER UF45800100 SUS439-2B SAME AS SD SERIES SHELF WM77800100 Pe-coating(gray) SHELF WM27800100 Pe-coating(gray) FIXTURE SHELF CLIP 30220L0900 PA-66 SAME AS SD SERIES SHELF MID BRACKET M720600100 SUS304 SAME AS SD SERIES SHELF STANDARD...
-
Page 11: Replacement Of Main Components
7.REPLACEMENT OF MAIN COMPONENTS 7-1.REPLACING DOOR A.Unscrew the top hinge B.Lift the door 7-2.REFRIGERATION COMPARTMENT PARTS A.Disassemble the evaporator fan duct assembly... - Page 12 REPLACEMENT OF MAIN COMPONENTS B.Disassemble the evaporator fan motor D.Disassemble the evaporator duck...
- Page 13 REPLACEMENT OF MAIN COMPONENTS E.Remove the thermostat & sensor F.Remove the evaporator coil 7-3.COMPRESSOR COMPARTMENT PARTS A.Disassemble the rear grill...
- Page 14 REPLACEMENT OF MAIN COMPONENTS B.Disassemble the cable tie C.Disassemble the condesing unit two screws as above Pull out the condensing unit D.Disassemble the condenser fan motor...
- Page 15 REPLACEMENT OF MAIN COMPONENTS 7-4.REPLACING THE EVAPORATOR & EVAPORATOR FAN MOTOR. A.Unscrew the screw located on both sides and top of the evap duct assamble fixture D.Unscrew the screws located on left and right side of the evap duct.
- Page 16 REPLACEMENT OF MAIN COMPONENTS E.And then, you can replace fan motor, evaporator coil and thermo sensor.
