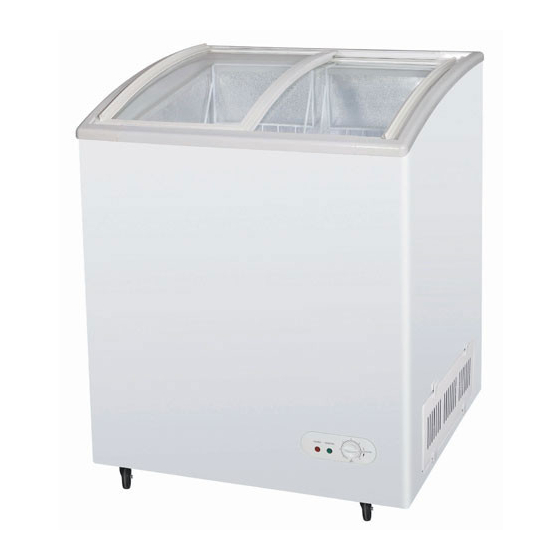

Ice cream freezer
Hide thumbs Also See for TSD-27CF:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
Turbo Air Speed up the Pace of Innovation
Ice Cream
Freezer
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment!
TSD-27CF
TSD-35CF
TSD-47CF
TSD-60CF
www.turboairinc.com
CAUTION!
PLEASE KEEP POWER
SWITCH ON BEFORE
OPERATING THIS EQUIPMENT
