Turbo Air Speeds up the Pace of Innovation
Undercounter
Refrigerators & Freezers
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment!
REFRIGERATORS
MUR-28
MUR-36
MUR-48
MUR-60
MUR-72
FREEZERS
MUF-28
MUF-36
MUF-48
MUF-60
www.turboairinc.com
Advertisement

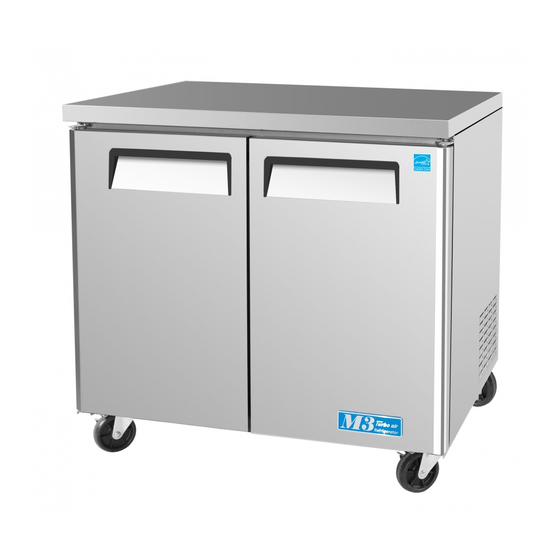

Related Manuals for Turbo Air MUF-36
Summary of Contents for Turbo Air MUF-36
- Page 1 Turbo Air Speeds up the Pace of Innovation Undercounter Refrigerators & Freezers Installation and Operation Manual Please read this manual completely before attempting to install or operate this equipment! REFRIGERATORS MUR-28 MUR-36 MUR-48 MUR-60 MUR-72 FREEZERS MUF-28 MUF-36 MUF-48 MUF-60...
- Page 2 REFRIGERANT AMPS WEIGHT MUF-28 115V/60Hz R-134A 5.3A 163lbs 115V/60Hz R-134A 6.0A 187lbs MUF-36 115V/60Hz R-134A 8.3A 246lbs MUF-48 MUF-60 115V/60Hz R-134A 9.0A 282lbs SERIAL NUMBER The serial number is located on the rating label which is on the left interior wall.
- Page 3 INSTALLATION OF CASTERS 1) Screw the caster (in rear side) and the caster brakes (in front side) by using caster wrench. 2) Use the caster shims to level the cabinet, if necessary, by inserting them to stems of the casters. ROTATION CASTER (2EA) CASTER (WITH BRAKE) (2EA)
- Page 4 INSTALLATION OF DRAIN PAN 1) In damp season, when the drain water overflow the drain pan, remove the drain pan and pour the water away. And then set the drain pan back up as below drawing please (Model : MST-28, MST-28-12, MUR-28, MUF-28). MST-28, MST-28-12 MUR-28, MUF-28...
- Page 5 HOW TO CLEAN THE PAN SUPPORTER 1) Remove the Guide Pans and Pans. Then pull out the Pan Supporter. Clean the pan supporter and reinstall in place. MODEL MST-28, MST-48 MST-60, MST-72 MST-28-12, MST-48-18 MST-60-24, MST-72-30...
- Page 6 - Be sure that there is ample air space so that air can flow through the rear of the unit - Turbo Air recommends that the rear of the unit be no less than 5 inches from the wall 2. PLACE ON STRONG GROUND...
- Page 7 CLEANING Before cleaning, turn unit off at power switch. 1. CLEANING THE INTERIOR AND EXTERIOR - The interior and exterior of the unit can be cleaned using warm water with soap - Do not use an abrasive cleaner because it will scratch the surface 2.
- Page 8 BASIC OPERATION REFRIGERATORS 1. The controller(thermostat) is located at the right inside of the unit. 2. The factory setting for the control is ‘Normal’. 3. Set toward ‘Cool’ for higher temperature and ‘Cold’ for lower temperature. 4. The thermostat controls compressor’s on/off by sensing inside temperature. •...
- Page 9 REVERSIBLE DOOR INSTRUCTIONS - MAIN COMPONENTS INSTRUCTION (MUR-28 / MUF-28 only) 1.DOOR DOOR 2.TOP HINGE/BOTTOM HINGE BOTTOM HINGE TOP HINGE 3.SPRING BAR SPRING BAR 4.DOOR BUSHING 3 mm DOOR BUSHING 5 mm DOOR BUSHING...
- Page 10 REVERSIBLE DOOR INSTRUCTIONS (MUR-28 / MUF-28 only) 5.M5 BOLT/M6 BOLT 6.UNIT COVER CAP UNIT COVER CAP - CHANGE REVERSIBLE DOOR (MST-28, MUR-28, MUF-28) 1.Unscrew the top hinge 2.Take apart top hinge from unit. 4.Unscrew the screws located on right of bottom hinge. 3.Lift the door, then remove it.
- Page 11 REVERSIBLE DOOR INSTRUCTIONS (MUR-28 / MUF-28 only) 3.Screw the screws located on left 4.Take apart door dushing from the of bottom hing right bottom side of door 5.Remove door bushing from 6.Pull out spring bar from the right- top side of door right side of door 8.Take off unit cover cap from the 7.Take apart unit cover cap from the...
- Page 12 REVERSIBLE DOOR INSTRUCTIONS (MUR-28 / MUF-28 only) 10.Assemble the door bushing(3mm) 9.Put spring bar into the left of door in the left-top position of door 11.Install the door bushing(5mm) 12.After installing the door, screw the in the left bottom side of door top hinge(follow the arrow) 13.Fix the top hinge with screwer 14.Follow the arrow while you open the door...
- Page 13 TROUBLESHOOTING SYMPTOMS CAUSES SOLUTIONS Refrigerator(Freezer) • The setting temperature is too • Turn the temperature dial to a is freezing(melting) low(high) to maintain food warmer(colder) setting. food freshness. The unit does not • There is a power connection • Check the power cord to make sure refrigerate at all failure problem.
- Page 14 STAINLESS STEEL EQUIPMENT CARE AND CLEANING CAUTION : Do not use any steel wool, abrasive or chlorine based products to clean stainless steel surfaces. Stainless Steel Opponents There are three basic things which can break down your stainless steel’s passivity layer and allow corrosion to rear its ugly head.
- Page 15 4. Water Treatment To reduce deposits, soften the hard water when possible. Installation of certain filters can remove corrosive and distasteful elements. Salts in a properly maintained water softener can be to your advantage. Contact a treatment specialist if you are not sure of the proper water treatment.
- Page 16 THREE YEAR WARRANTY Turbo Air warrants to the original purchaser of every new Turbo Air refrigerated unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal use and service, for a period of three (3) year from the date of original installation or 39 months after shipment date from Turbo Air , whichever occurs first.
- Page 17 3. ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FLOOD, ACTS OF GOD. TURBO AIR is not responsible for the repair or replacement of any parts that Turbo Air determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood, or an Act of God.
- Page 18 (3) year from the date of original installation or 39 months after shipment date from Turbo Air, whichever occurs first. Any part, covered under this warranty, that are by Turbo Air to have been defective within three (3) year of original installation or thirty-nine (39) months after shipment date from manufacturer, whichever occurs first, is limited to the repair or replacement, including labor charges, of defective parts or assemblies.
