Turbo Air Speeds up the Pace of Innovation
Glass Door Freezers and Ice Merchandisers
Installation and Operation Manual
Please read this manual completely before attempting to install or operate this equipment.

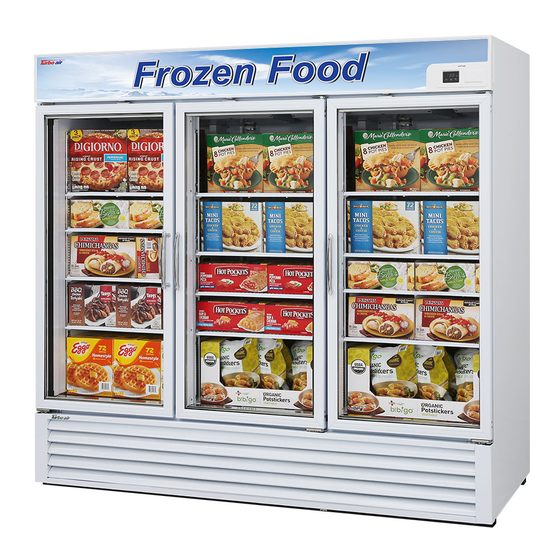

GLASS DOOR FREEZERS
TGF-23F**-N#
TGF-49F**-N#
TGF-72F**-N#
TGF-23F**-S-N#
TGF-49F**-S-N#
TGF-72F**-S-N#
TGF-49F**-N#-DV
GLASS DOOR
ICE MERCHANDISERS
TGIM-23*-N#
TGIM-23H*-N#
TGIM-23H*-N#-L
TGIM-49*-N#
(*) - May or may not have suffix from A to Z to denote cosmetic difference.
(#) - May or may not be followed by a letter indicating refrigerant type.
Model with left-hinged door will be followed by suffix L.
WARNING : This product can expose you to chemicals including Bisphenol A(BPA)
and Di(2-ethylhexyl)phthalate(DEHP) and Cobalt sulfate heptahydrate, which are
known to the State of California to cause cancer and birth defects or other reproductive
harm. For more information go to www.P65Warnings.ca.gov
AVERTISSEMENT :
Cancer ET Troubles de l'appareil reproducteur - www.P65Warnings.ca.gov
www.turboairinc.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Turbo Air TGF-72F -N Series
Summary of Contents for Turbo Air TGF-72F -N Series
- Page 1 Turbo Air Speeds up the Pace of Innovation Glass Door Freezers and Ice Merchandisers Installation and Operation Manual Please read this manual completely before attempting to install or operate this equipment. GLASS DOOR FREEZERS TGF-23F**-N# TGF-49F**-N# TGF-72F**-N# TGF-23F**-S-N# TGF-49F**-S-N# TGF-72F**-S-N#...
-
Page 2: Table Of Contents
NOTICE TO CUSTOMER ..................11 INSTALLATION ......................11 CLEANING ....................... 12 BASIC OPERATION ....................13 DISPLAY PANEL (SINGLE DOOR) ................14 DISPLAY PANEL ....................16 - 17 TROUBLESHOOTING ..................18 - 19 WARRANTY INFORMATION ................20 - 21 WARRANTY REGISTRATION CARD ................. 23 Turbo air... -
Page 3: Notice
Indicates hazards of death or serious injury, DANGER if the instructions are not followed. WARNING Indicates dangers of death or serious injury, if the instructions are not followed. Indicates risks of personal injury or material damage, CAUTION if the instructions are not followed. Turbo air... -
Page 4: For Hydrocarbon Refrigeration Units
- Do not damage the refrigerant circuit. - Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of a type recommended by the manufacturer. Turbo air... - Page 5 • Any and all technicians handling these units must be equipped with proper personal protection and equipment and follow applicable safety measures and precaution to avoid risk of fire or explosion. Turbo air...
-
Page 6: Important Safety Information - Safety Precautions
• Do not allow children to climb, stand, or hang on the refrigerator doors or shelves in the refrigerators. They could damage the refrigerator and seriously injure themselves. • To prevent suffocation and entrapment hazards of children, remove the doors and seals from the refrigerator before disposing of it or discontinuing its use. Turbo air... -
Page 7: Installation & Usage
• Do not put bottles or any kind of glass in the freezer. The container may break and cause personal injury. • Do not disconnect the power cord by pulling on it. This may disconnect a wire and cause a short circuit. Turbo air... - Page 8 Incorrect repairs done by an unqualified person may be a potential source of danger that could have critical consequences for the user of the appliance. - Never put ice cubes or ice lollies straight from the freezer into your mouth. The low temperature may cause cold burns. Turbo air...
-
Page 9: Proper Disposal Of Old Appliance
3. If the malfunction still persists, then contact our Customer Service, specifying: • The nature of the problem, • The appliance model number and serial number • Your full address, telephone number and area code. Turbo air... -
Page 10: Specifications
HCS : HORIZONTAL CLOSED SOLID SC : SELF-CONTAINED M : MEDIUM TEMPERATURE APPLICATION L : LOW TEMPERATURE APPLICATION SERIAL NUMBER The serial number is located on the rating label inside. Please retain the unit's serial number for service purpose. Turbo air... -
Page 11: Notice To Customer
Insufficient space causes the noise of vibration, inefficient refrigeration, damage to the refrigeration system, and the waste of electricity. (Turbo Air recommends that the rear of the unit would be no less than 5 inches from the wall) 3. -
Page 12: Cleaning
5. Never repair or disassemble or amend the cabinet on your own. - There is a risk of person injury or damage to the freezer. - It is recommended that any service be carried out by a qualified person. Turbo air... -
Page 13: Basic Operation
8. It is critical to maintain good air flow in the freezers. Please be mindful when storing food product in the unit. Make sure not to place food products too close to the evaporator compartment, and leave at least 4 inches of room from the evaporator compartment. Turbo air... -
Page 14: Display Panel (Single Door)
DISPLAY PANEL (SINGLE DOOR) TEMP CONTROL BUTTON INTERIOR TEMP INDICATOR POWER SWITCH LAMP SWITCH T.F. DOOR TURBO POWER FREEZE TURBO FREEZE DOOR OPENING FAN RUNNING TURBO FREEZE BUTTON (SEE PAGE 16) Turbo air... - Page 15 DISPLAY PANEL (MULTI DOOR) TEMP CONTROL BUTTON POWER SWITCH INTERIOR TEMP INDICATOR LAMP SWITCH TURBO FREEZE DOOR OPENING FAN RUNNING TURBO FREEZE BUTTON (SEE PAGE 16) Turbo air...
-
Page 16: Display Panel
3. Once all frost is eliminated, the temperature will continue to rise until it reaches 50℉(10℃). When the defrost limit control senses this temperature, the defrost control will change to refrigeration mode. 4. The panel displays “ ” during the defrost cycle. Turbo air... - Page 17 2. If a door is open for more than 30 seconds, a warning sound will "BEEP" three (3) times. 3. After 1 minute, the warning sound will "BEEP" again, five (5) times. 4. After 5 minutes, the warning sound will "BEEP" continuously. 5. Once the door is closed, the beeping will immediately stop. Turbo air...
-
Page 18: Troubleshooting
- Correct setting of the refrigerator / freezer temperature controls, - Inhibited air circulation. - Condenser coil is properly cleaned. 3. If the refrigerator compartment temperature is too low, check for: - Correct setting of the temperature controls. Turbo air... - Page 19 • The compressor does not run during the defrost cycle. Note: Formation of condensation on and around the edge of the door and the front side of the cabinet is normal. Gurgling noises inside the refrigerating circuit are normal. Turbo air...
-
Page 20: Warranty Information
(indoor building only) and start-up in accordance with the instruction packet supplied with each Turbo air unit. Turbo Air's obligation under this warranty is limited to a period of two (2) year from the date of original installation or twenty seven (27) months after shipment date from Turbo Air, whichever occurs first. - Page 21 What is Not Covered by This Warranty... Turbo Air’s sole obligation under this warranty is limited to either repair or replacement of parts, subject to the additional limitations below. This warranty neither assumes nor authorizes any person to assume obligations other than those expressly covered by this warranty.
- Page 22 Turbo air...
-
Page 23: Warranty Registration Card
Address: (Street / Unit #) (City) (State) (Zip Code) hereby inform and certify to Turbo Air Inc. (Manufacturer) that the product model (Owner’s Name) and serial number mentioned above was purchased on from (Date of Purchase) (Name of the Dealer) Turbo Air Inc. - Page 24 4184 E. Conant St., Long Beach, CA 90808 Toll Free: 1-800-381-7770 Fax: 310-900-1033 Email: warranty@turboairinc.com www.turboairinc.com...
