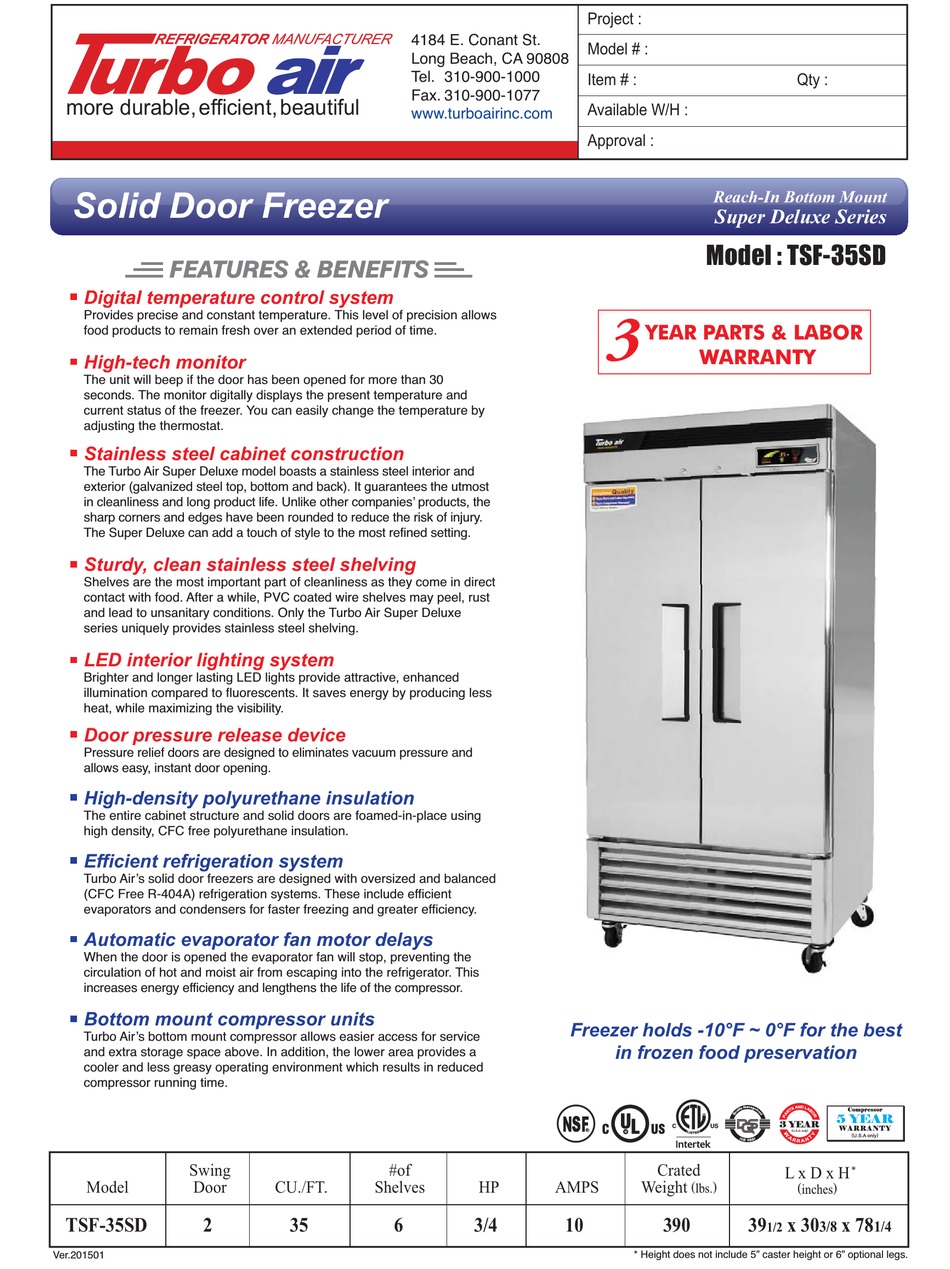

Turbo Air TSF-35SD Dimensional Information

more durable, efficient, beautiful
Solid Door Freezer Solid Door Freezer
FEATURES & BENEFITS
Digital temperature control system
Provides precise and constant temperature. This level of precision allows
food products to remain fresh over an extended period of time.
High-tech monitor
The unit will beep if the door has been opened for more than 30
seconds. The monitor digitally displays the present temperature and
current status of the freezer. You can easily change the temperature by
adjusting the thermostat.
Stainless steel cabinet construction
The Turbo Air Super Deluxe model boasts a stainless steel interior and
exterior (galvanized steel top, bottom and back). It guarantees the utmost
in cleanliness and long product life. Unlike other companies' products, the
sharp corners and edges have been rounded to reduce the risk of injury.
The Super Deluxe can add a touch of style to the most refined setting.
Sturdy, clean stainless steel shelving
Shelves are the most important part of cleanliness as they come in direct
contact with food. After a while, PVC coated wire shelves may peel, rust
and lead to unsanitary conditions. Only the Turbo Air Super Deluxe
series uniquely provides stainless steel shelving.
LED interior lighting system
Brighter and longer lasting LED lights provide attractive, enhanced
illumination compared to fluorescents. It saves energy by producing less
heat, while maximizing the visibility.
Door pressure release device
Pressure relief doors are designed to eliminates vacuum pressure and
allows easy, instant door opening.
High-density polyurethane insulation
The entire cabinet structure and solid doors are foamed-in-place using
high density, CFC free polyurethane insulation.
Efficient refrigeration system
Turbo Air's solid door freezers are designed with oversized and balanced
(CFC Free R-404A) refrigeration systems. These include efficient
evaporators and condensers for faster freezing and greater efficiency.
Automatic evaporator fan motor delays
When the door is opened the evaporator fan will stop, preventing the
circulation of hot and moist air from escaping into the refrigerator. This
increases energy efficiency and lengthens the life of the compressor.
Bottom mount compressor units
Turbo Air's bottom mount compressor allows easier access for service
and extra storage space above. In addition, the lower area provides a
cooler and less greasy operating environment which results in reduced
compressor running time.
Swing
Model Door
TSF-35SD 2
Ver.201501
4184 E. Conant St.
Long Beach, CA 90808
Tel. 310-900-1000
Fax. 310-900-1077
www.turboairinc.com
#of
CU./FT. Shelves
35 6
Project :
Model # :
Item # :
Available W/H :
Approval :
3
YEAR PARTS & LABOR
Freezer holds -10°F ~ 0°F for the best
in frozen food preservation
HP AMPS Weight
3/4 10
* Height does not include 5" caster height or 6" optional legs.
Qty :
Reach-In Bottom Mount
Super Deluxe Series

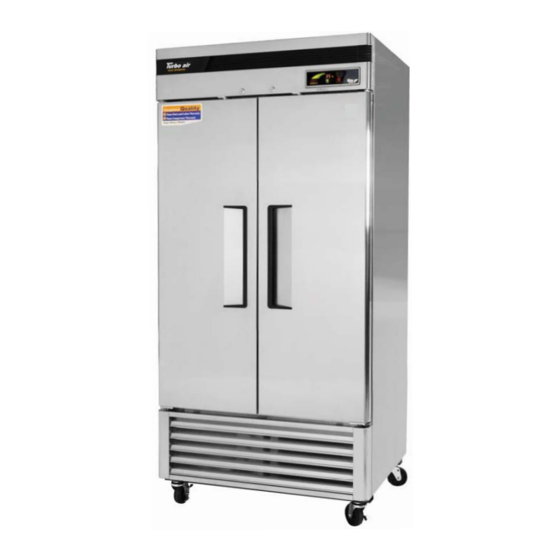

Model : TSF-35SD
WARRANTY
5 YEAR
3 YEAR
Crated
L x D x H
( lbs. )
( inches )
390 39 x 30
3/8
1/2
Compressor
W A RR A NT Y
( U.S.A only )
*
x 78
1/4
