Turbo Air J Series Service Manual
Undercounter freezers - narrow
Hide thumbs
Also See for J Series:
- Service manual (27 pages) ,
- Installation and operation manual (28 pages) ,
- Service manual (15 pages)
Subscribe to Our Youtube Channel
Related Manuals for Turbo Air J Series
Summary of Contents for Turbo Air J Series

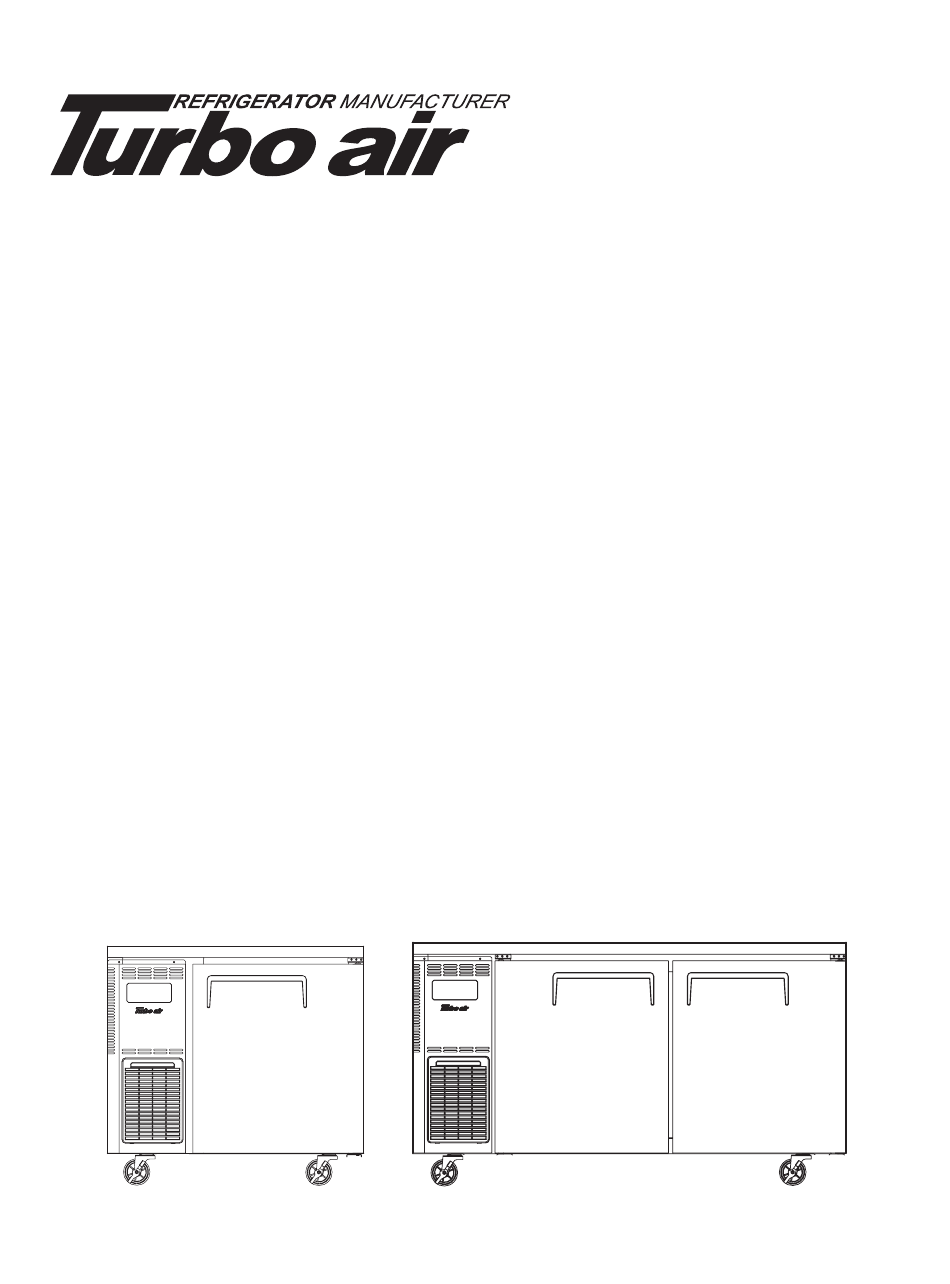

- Page 1 J Series Undercounter Freezers - Narrow Service Manual JUF-36S-N JUF-48S-N JUF-60S-N www.turboairinc.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS EXPLODED VIEW JUF-36S-N EXPLODED VIEW JUF-48S-N EXPLODED VIEW JUF-60S-N EXPLODED VIEW WIRING DIAGRAMS MAIN COMPONENTS PARTS LIST TEMPERATURE CONTROL INSTRUCTION REPLACEMENT OF MAIN COMPONENTS REPLACING DOOR REFRIGERATION COMPARTMENT PARTS COMPRESSOR COMPARTMENT PARTS... -
Page 3: Juf-36S-N Exploded View
JUF-36S-N EXPLODED VIEW PART NAME MAIN PCB COVER EVA ASSY CONDENSER FAN MOTOR FRONT PCB COUNTERTOP UNIT BRACKET (A) ASSY UNIT FRONT COVER EVAP FAN AIR GUIDE CASTER CABINET ASSY BOTTOM HINGE (R) UNIT BRACKET DOOR (R)-900 UNIT SIDE COVER TOP HINGE (R) CONDENSER ASSY EVAP DRAIN GUIDE COVER... -
Page 4: Juf-48S-N Exploded View
JUF-48S-N EXPLODED VIEW PART NAME MAIN PCB COVER AIR GUIDE (L/R) COMPRESSOR FRONT PCB EVAP DUCT DRYER ASSY UNIT FRONT COVER EVAP FAN MOTOR DRAIN PAN EVAP ASSY CONDENSER FAN MOTOR BOTTOM HINGE (L) COUNTERTOP UNIT BRACKET (A) TOP HINGE (L) CASTER DOOR (L)-1200 EVAP FAN AIR GUIDE... -
Page 5: Juf-60S-N Exploded View
JUF-60S-N EXPLODED VIEW PART NAME MAIN PCB COVER AIR GUIDE (L/R) COMPRESSOR EVAP DUCT FRONT PCB DRYER EVAP FAN MOTOR DRAIN PAN ASSY UNIT FRONT COVER CONDENSER FAN MOTOR EVAP ASSY BOTTOM HINGE (L) COUNTERTOP UNIT BRACKET (A) TOP HINGE (L) EVAP FAN AIR GUIDE CASTER DOOR (L)-1200... -
Page 6: Wiring Diagrams
WIRING DIAGRAMS JUF-36S-N COOLING FAN FUSE FRONT -PCB MOTOR PROTECTOR D-SENSOR R-SENSOR DRAIN DRAIN DEFROSTER HOSE HEATER HEATER HEATER STARTER MAIN CONDENSER CONDENSER RUNNING POWER CAPACITOR EVAP CABINET MOTOR MOTOR CORD HEATER MOTOR FUSE LAMP EARTH JUF-48S/60S-N FUSE COOLING FAN FRONT -PCB MOTOR... -
Page 7: Main Components
MAIN COMPONENTS COMPRESSOR CAPACITY PART NO. TYPE OF INPUT MAKER MODEL PART NAME NUG60LR CISR 115V/60HZ JUF-36S-N NUG80LR CISR 115V/60HZ JUF-48S-N CISR 115V/60HZ JUF-60S-N NUG80LR COMPRESSOR CAPACITOR PART NO. PART NO. RUNNING MAKER NOTE MODEL STARTING JUF-36S-N 100㎌ 160V JUF-48S-N 150㎌... -
Page 8: Parts List
PARTS LIST MODEL PART NAME PART CODE DESCRIPTION JUF-36S-N JUF-48S-N JUF-60S-N COUNTERTOP ASSY KR60680101 COUNTERTOP ASSY KR20680101 COUNTERTOP ASSY KR90680101 DOOR ASSY (L)-1200 JUR4805104 DOOR ASSY (R)-1200 JUR4805202 DOOR ASSY (L)-1500 JUR6005104 DOOR ASSY (R)-1500 JUR6005202 DOOR GASKET KR23300107 DOOR GASKET KR53300107 DOOR BUSHING M720700108... - Page 9 PARTS LIST MODEL PART NAME PART CODE DESCRIPTION JUF-36S-N JUF-48S-N JUF-60S-N EVAP FAN MOTOR 4511003050 DISPLAY PCB JR85400101 MAIN PCB BR85400100 POWER CORD M721300202 R SENSOR K3F5102100 D SENSOR K3F5102001 MAIN PCB COVER (B) KR81400100 ASSY MULLION (900) KR22100100 ASSY UNIT FRONT COVER KR81410709 EVA DRAIN GUIDE KW81800100...
-
Page 10: Temperature Control Instruction
TEMPERATURE CONTROL INSTRUCTION BASIC OPERATION 1. Plug in and the Display panel will be lighted and make a beep sound. The compressor will begin to run. 2. The compressor is automatically cycled by the electronic controller (PCB). 3. The Defrost cycle is automatically controlled by the PCB. 4. -
Page 11: Replacement Of Main Components
REPLACEMENT OF MAIN COMPONENTS REPLACING DOOR A. Unscrew the top hinge B. Lift the door REFRIGERATION COMPARTMENT PARTS A. Disassemble the evaporator duct assembly B. Disassemble the harness motor C. Remove the evaporator fan motor D. Remove the air guide (L/R) E. -
Page 12: Compressor Compartment Parts
REPLACEMENT OF MAIN COMPONENTS COMPRESSOR COMPARTMENT PARTS A. Disassemble the unit front cover assembly B. Disassemble the unit side cover C. Remove the mech cover D. Remove the comp base E. Disassemble the condensing unit... - Page 13 4184 E. Conant St., Long Beach, CA 90808 Toll Free: 1-800-381-7770 Fax: 310-900-1033 Email: warranty@turboairinc.com www.turboairinc.com...
