Quick Operation Guide of DS-9600/8600/7700/7600NI-ST and DS-7700/7600NI-SP Series NVR
Front Panel

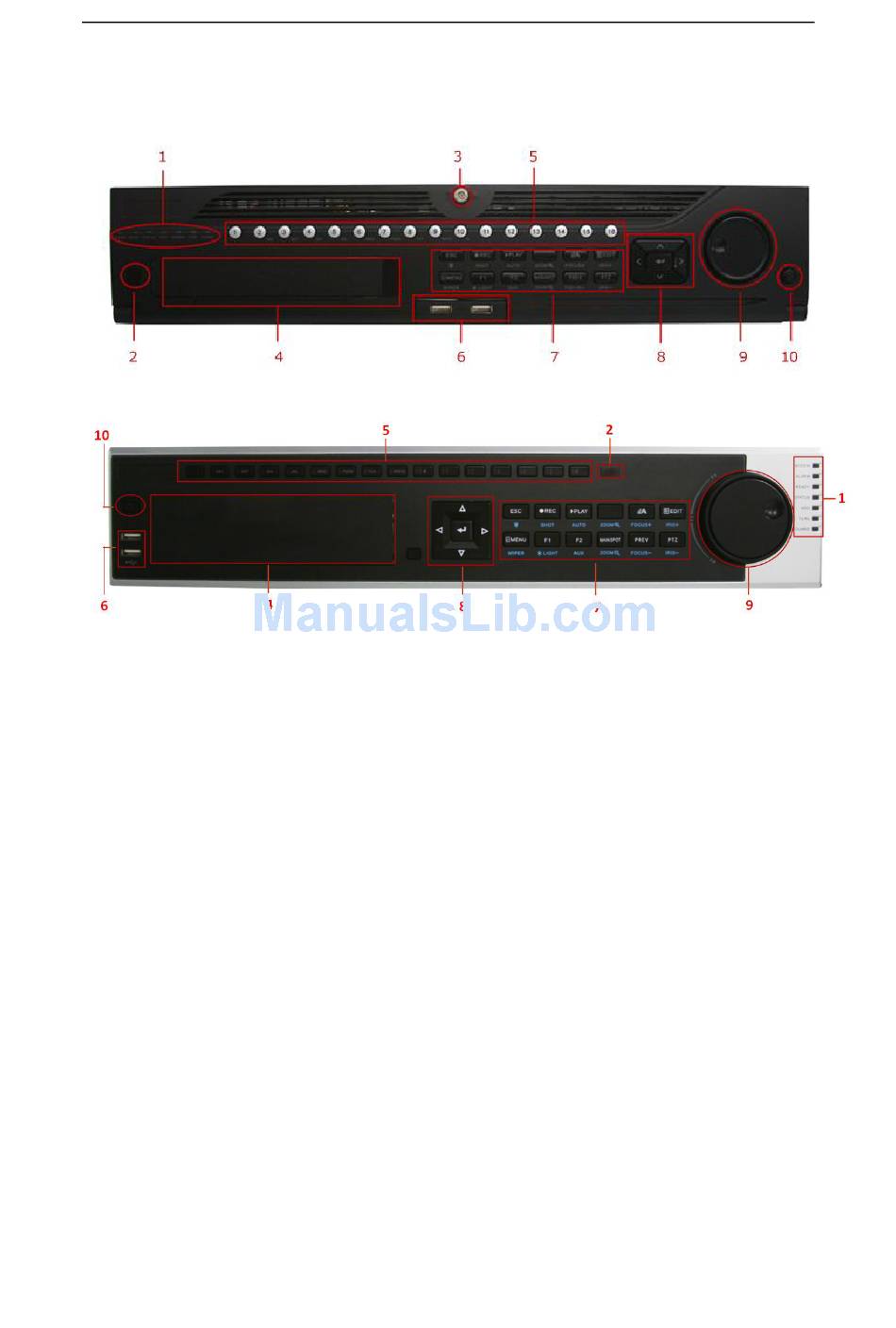

DS-9600NI-ST
DS-8600NI-ST
① Status Indicator(Alarm, Ready, Status, HDD, MODEM, Tx/Rx, Guard)
② IR Receiver
③ Front Panel Lock
④ DVD-R/W
⑤ Alphanumeric Buttons
⑥ USB Interface
⑦ Compound Buttons
⑧ DIRECTION/ENTER Buttons
⑨ JOG SHUTTLE Control
⑩ Power Button
