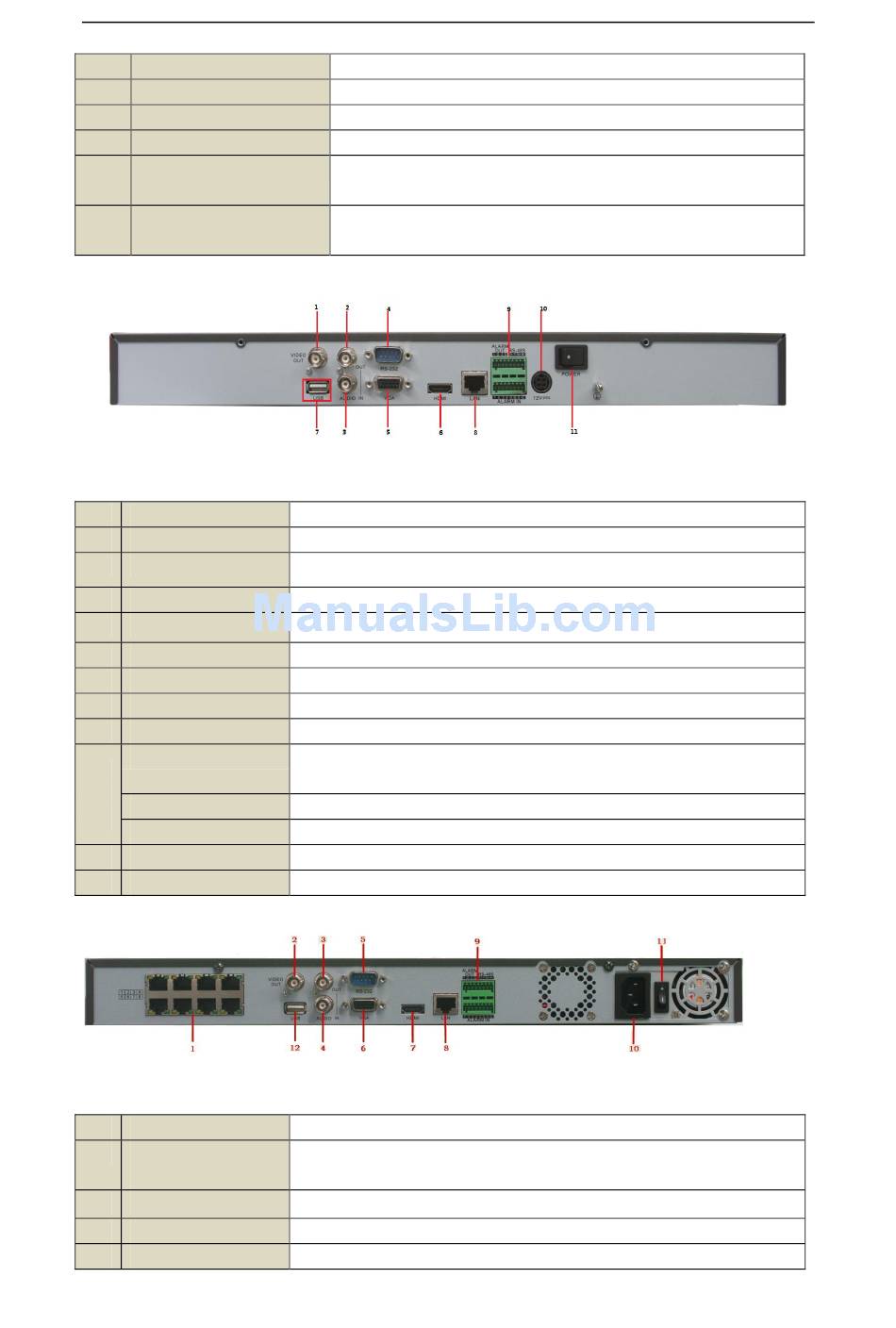

Quick Operation Guide of DS-9600/8600/7700/7600NI-ST and DS-7700/7600NI-SP Series NVR
ALARM OUT
11
GROUND
12
AC 100V ~ 240V
13
POWER
14
USB interface
15
Network Interfaces with
PoE function
No.
Item
1
VIDEO OUT
2
AUDIO OUT
3
AUDIO IN
4
RS-232 Interface
5
VGA
6
HDMI
7
USB
8
LAN Interface
RS-485 Interface
9
ALARM IN
ALARM OUT
10
Power Supply
11
Power Switch
No.
Item
1
Network Interfaces
with PoE function
2
VIDEO OUT
3
AUDIO OUT
4
AUDIO IN
Connector for alarm output.
Ground (needs to be connected when NVR starts up).
AC 100V ~ 240V power supply.
Switch for turning on/off the device.
Universal Serial Bus (USB) ports for additional devices such as USB
mouse and USB Hard Disk Drive (HDD).
Network interface for the cameras and to provide power over Ethernet.
DS-7600NI-ST
Description
BNC connector for video output.
BNC connector for audio output.
BNC connector for audio input. (Also for voice talk)
Connector for RS-232 devices.
DB9 connector for VGA output. Display local video output and menu.
HDMI video output connector.
Connects USB disks and devices.
Connector for LAN (Local Area Network).
Connector for RS-485 devices. T+ and T- pins connect to R+ and R- pins of
PTZ receiver respectively.
Connector for alarm input.
Connector for alarm output.
12VDC power supply.
Switch for turning on/off the device.
DS-7600NI-SP
Description
Network interface for the cameras and to provide power over Ethernet.
BNC connector for video output.
BNC connector for audio output.
BNC connector for audio input. (Also for voice talk)
9
