mounting And AdJusting the Front-Assist hAndle
1. Remove the battery pack from
the trimmer.
2. Loosen the four screws in the
handle with a Phillips screwdriver
(available separately) and remove
the screws, spring washers, flat
washers and lower clamp from the

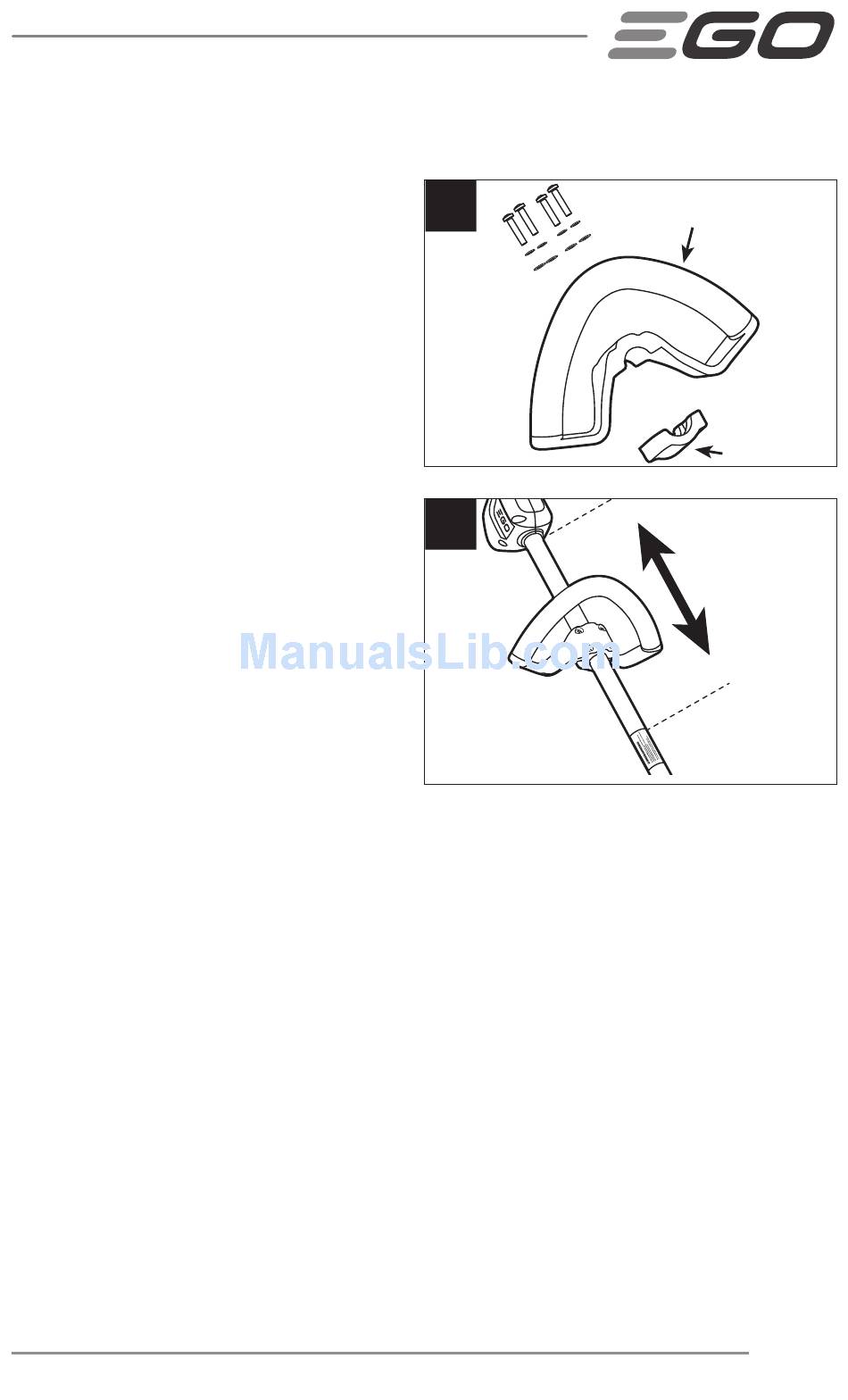

handle (Fig. 4).
3. Attach the front-assist handle and
lower clamp on the shaft and secure
them by pre-tightening the four
screws. Turn the front-assist handle
upwards to point toward the top of
the handle (Fig. 5).
4. Adjust the front-assist handle
position between the rear handle
housing and warning label on the
shaft, as shown in Fig. 5. shorter
users may adjust handle to a lower
position (away from you) and taller
users may adjust the handle to an upper position (towards you). The handle
should be adjusted so that your front arm is straight when using the trimmer.
5. Tighten the four screws so that the handle cannot be rotated on the shaft.
