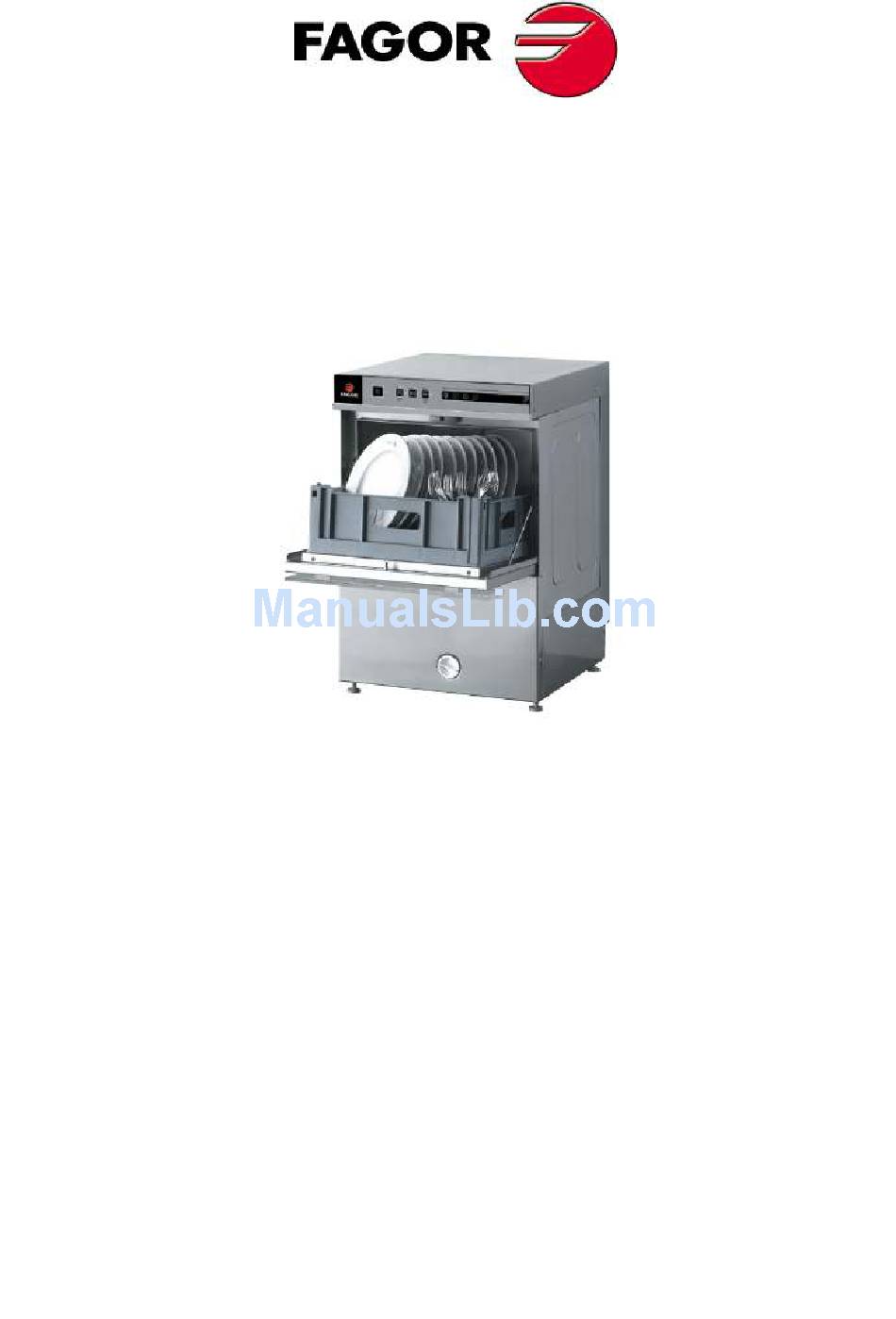

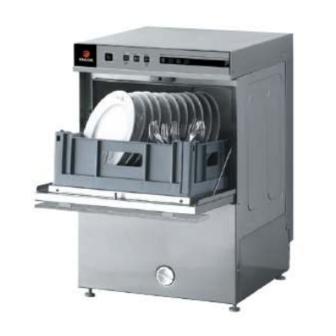

- Page 1 AD-21BDD Instruction Manual FAGOR GLASSWASHER WITH DRAIN PUMP AND DETERGENT DISPENSER Fagor Australasia Pty Ltd 7 Boola Place Dee Why NSW 2099 Phone: 02 9984 7533 Fax: 02 9984 7544 Email: info@fagor.com.au...
-
Page 2: Installation
1. POSITIONING For the machine to work properly, you must ensure that it is level. Four threaded bolts (legs) are supplied with your machine. These should be fitted to the underside of the machine and adjusted to level the machine, as shown in Figure 1. Figure 1 2. - Page 3 Figure 3 S = Stopcock / F = Filter / H= Fagor supplied hose and backflow prevention device / E = Electrovalve / B = Electropump / C= Drain collector / D= Drain hose Dynamic pressure during rinse is 2÷4 Kg/cm2. If the pressure is less than 2 kg/cm2 (28 PSI), an electrical pressure pump should be installed, as shown in Figure 4.
- Page 4 Figure 4 S = Stopcock / F = Filter / H= Fagor supplied hose and backflow prevention device / E = Electrovalve / B = Electropump / C= Drain collector / D= Drain hose When the water hardness level is above 10º F, a water softener should be installed.
- Page 5 3mm. 2.12 The machine must be earthed. Figure 6 (220-240V-1N~) am/ve=yellow-green a= blue m= brown r= red n= black Figure 7 Figure 8: Technical Specifications of AD-21BDD Water Tank Boiler Max. Rinse Supply Basket Cycle Tank...
-
Page 6: Detergent Dispenser
Figure 10 AD-21BDD Wait for water to heat up to required temperature. The thermometer (9) indicates the rinse temperature and the thermometer (10)indicates the wash temperature. - Page 7 Press P1, P2 or P3 button to select the require length of the wash (90”, 120’’ or 180” respectively). The appropriate LED (4,6 & 8 on Figure 10) will light up. When the cycle has finished, the LED will go off. The door can be opened and the basket removed.
-
Page 8: Maintenance
If the machine is not washing or rinsing properly, check the levels of rinse aid and detergent and check that the supply pipes are not kinked and do not have an air bubble blocking them. After sales service: Fagor Australasia Pty. Ltd., 7 Boola Place, Dee Why, NSW. Tel. 02 9984 7533 Email: info@fagor.com.au... - Page 9 6. INFORMATION FOR TECHNICIANS 6.1 CONFIGURATION OF THE DIPS FAGOR ELECTRIC CYCLE TIMES DIP1 DIP2 DIP3 DIP4 ADVANCE (seconds) MODEL P1= 90 / P2=120 / AD 21 BDD P3=180 DIP1= OFF, when the door is closed, the glasswasher continues washing only if the cycle has not finished.
- Page 10 3. TANK DRAINAGE ERROR. This is indicated by a three-impulse train. That is, the ON/OFF LED lights up three times for 0.5 seconds each time and then remains unlit for 2 seconds, then lighting up again three times. This continues while the drainage pump does not drain the water in the tank to the correct level in the specified time.
